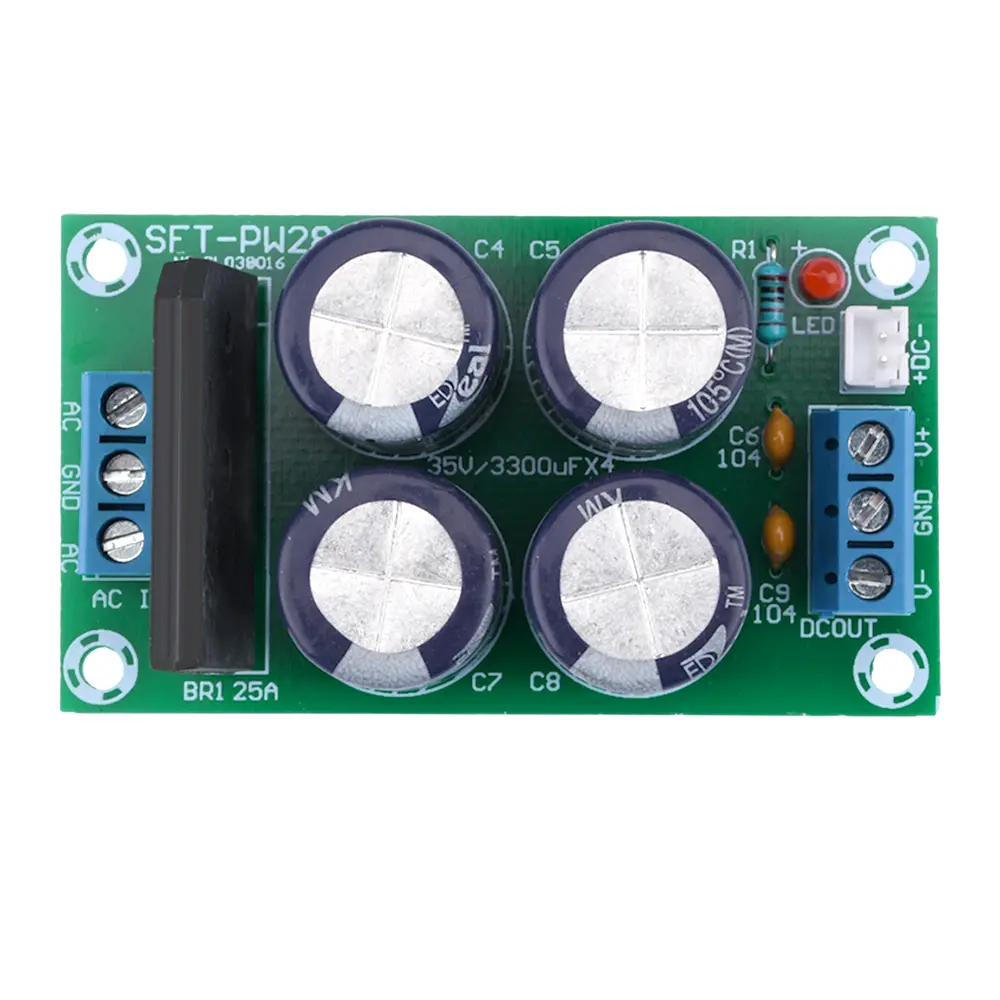

PW28 Dual Power Filter Power Amplifier Board Rectifier Module 25A Flat Bridge Unregulated Power Supply Board Dual USB AC to DC

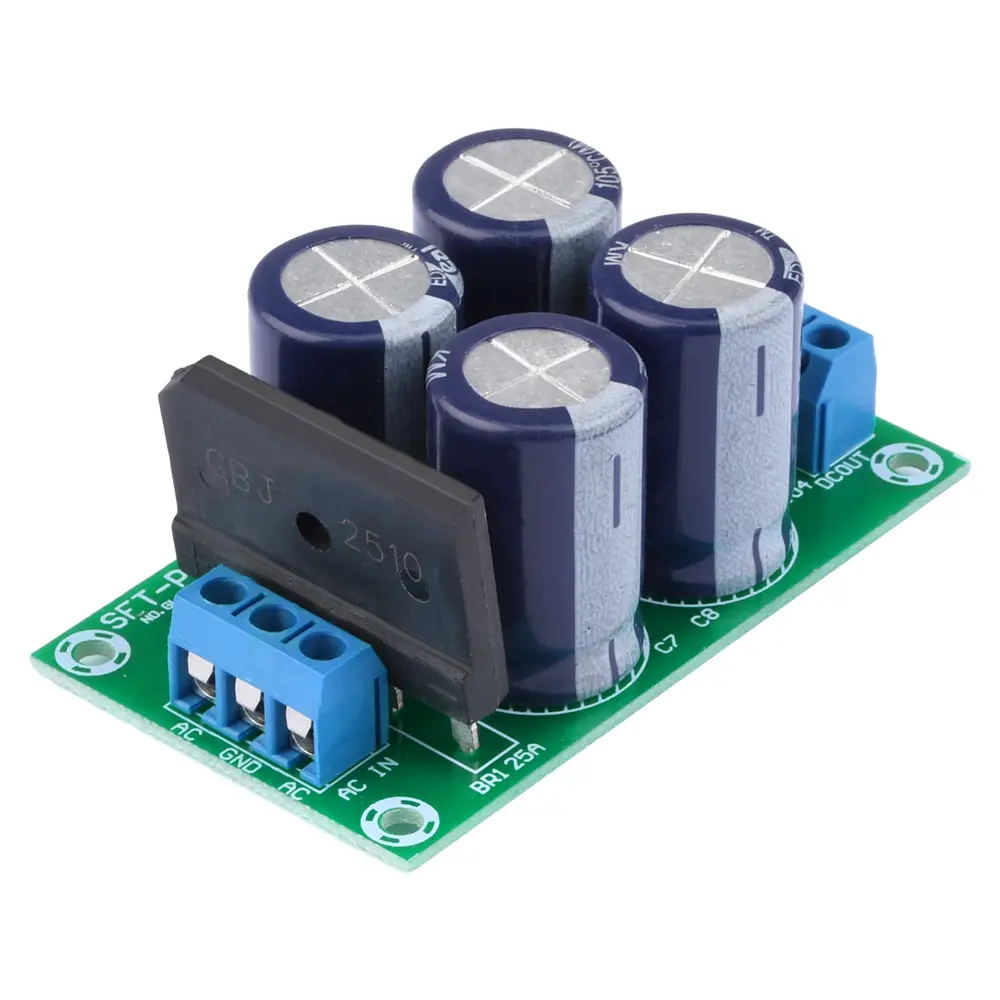

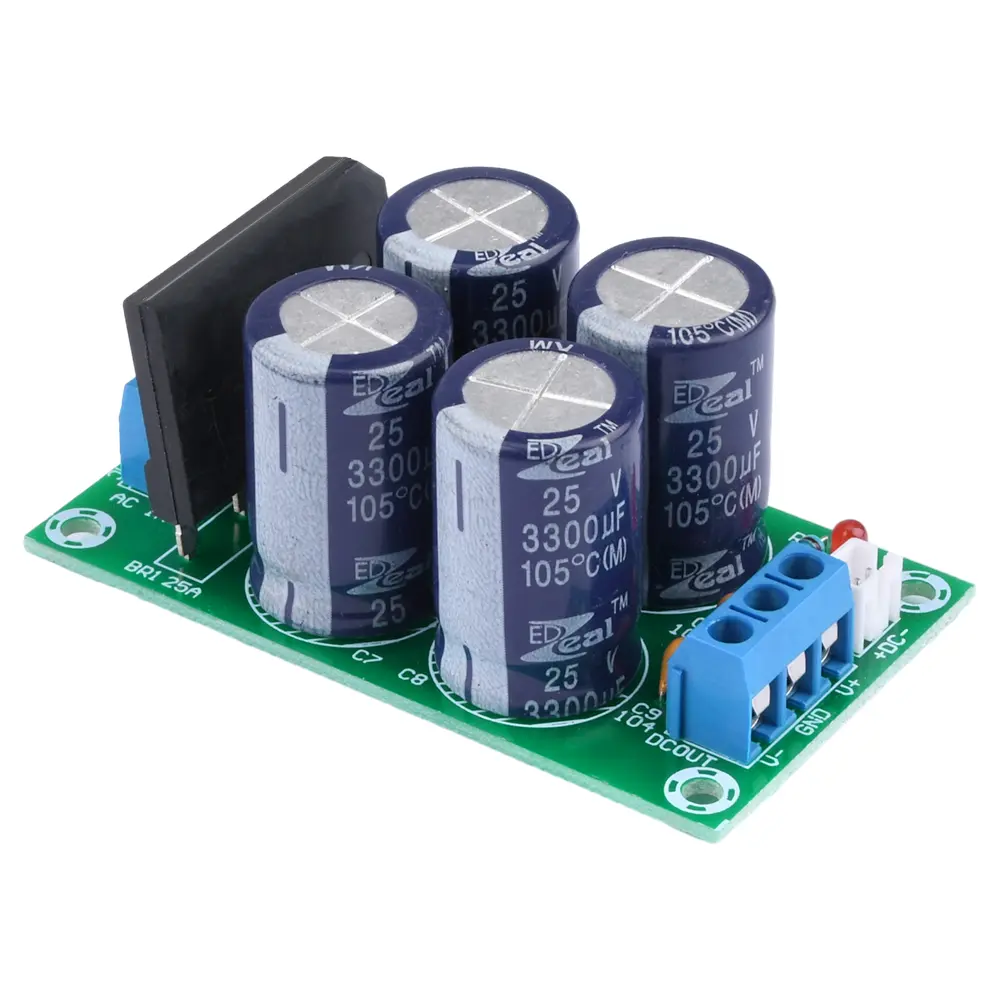

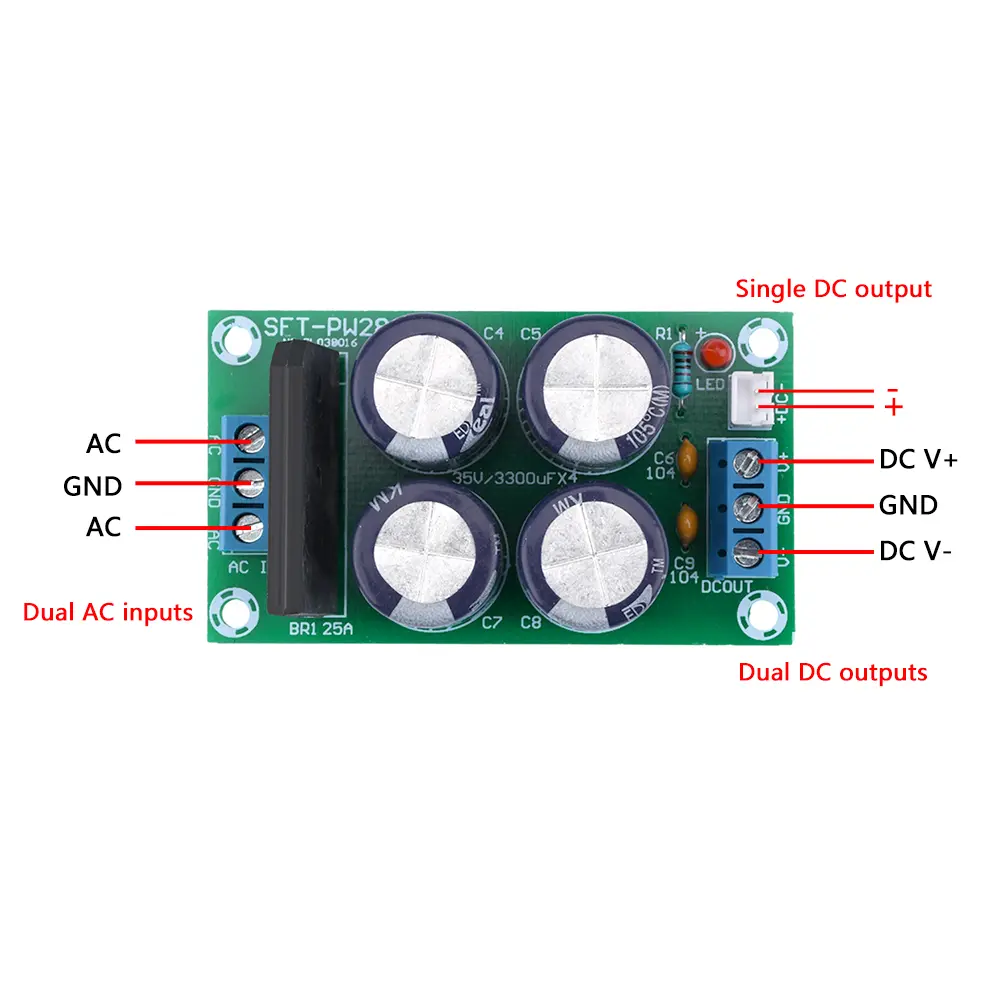

<div class="detailmodule_dynamic"><kse:widget data-widget-type="customText" id="1005000004384065" type="relation"></kse:widget></div><div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><div><br/><strong><span style="font-size:20px">Features:</span></strong><br/>1. Adopting brand new selected components, quality assurance and durability<br/>2. The product can effectively inhibit AC clutter, making the output DC more pure, as a dual power supply for amplifiers, can be used for LM1875, TDA2030, TDA7294, LM3886 and other low and medium power amplifiers<br/>3.The PCB board is made of FR-4 fiberglass board, and the large-area copper pavement obtains small internal resistance of the power supply.<br/>4. The rectifier filter board uses 25A rectifier bridge with large current to rectify the dual AC full wave into dual DC, and uses four 3300uf/25V capacitors to do the filtering, with a total capacity of up to 13000uf.<br/>5. High-current input and output terminals using KF301-3P terminals, wiring fast and easy to add another 2.0mm-2P power output terminals, so that DIY is more practical!</div><div><br/></div><p><strong><span style="font-size:20px">Parameter:</span></strong><br/>Product name: dual power rectifier filter board<br/>Input Voltage: Dual AC9~17V<br/>Output Voltage: Dual DC DC±12~24V<br/>Flat bridge current: 25A<br/>PCB material: 1.6mm thick FR-4 full glass fiber board<br/>Mounting hole spacing: 60x31mm, hole diameter: 3.2mm</p><p>Warm tips: this board is equipped with 25V electrolytic capacitors, the maximum output DC voltage can not exceed 25V, the full-bridge rectifier filter has about 1.4 times the boost, so the input AC voltage can not exceed 17V. if you need a higher voltage, you have to replace the filtering capacitor with a higher withstand voltage. If you need higher voltage, you have to replace the filter capacitor with a higher voltage, for example, if you replace it with a 50V electrolytic capacitor, the maximum output DC voltage can be up to 50V, and the maximum input AC voltage can be up to 35V. over-voltage work will make the electrolytic capacitor bulging or bursting!</p><p><strong><span style="font-size:20px">Package include:</span></strong><br/>Filter *1<br/></p></div></div><p><br/></p>
$7.61
$7.04
- Category : Consumer Electronics
- Brand : diy_electronics_module_999_store DIY Electronics Module 999 Store
