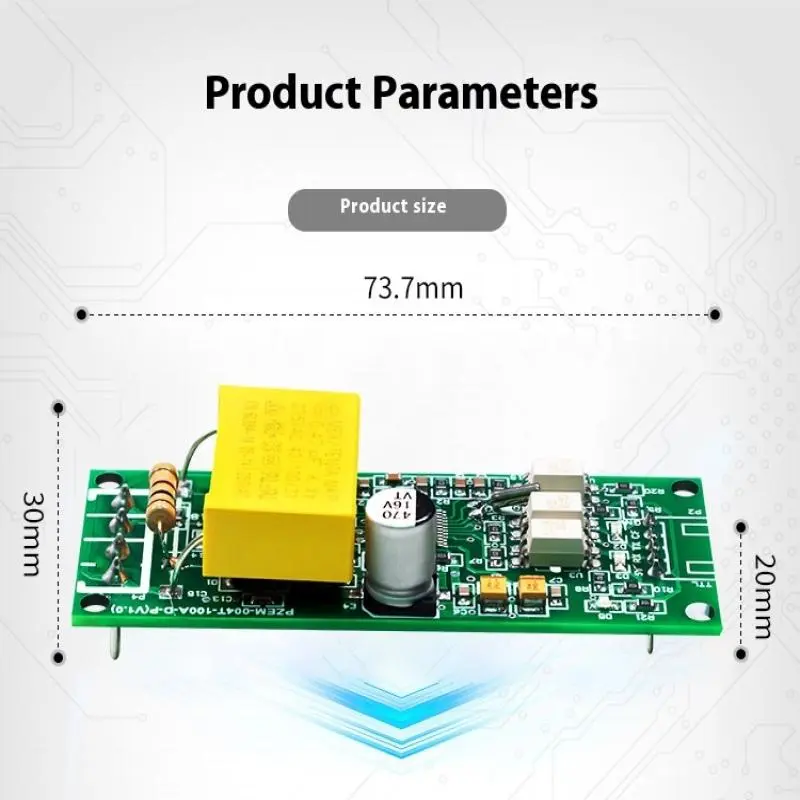

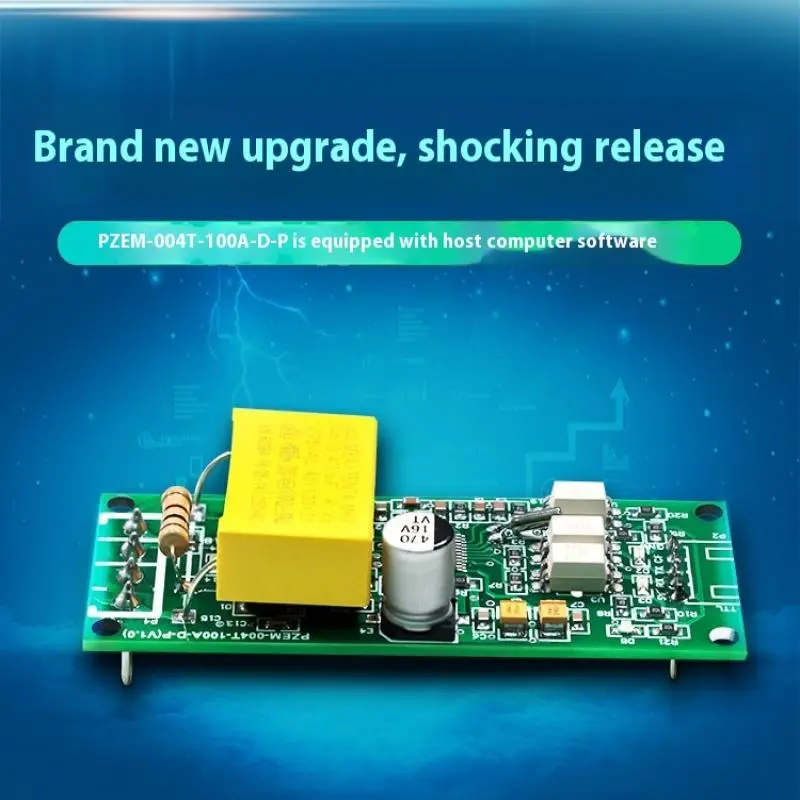

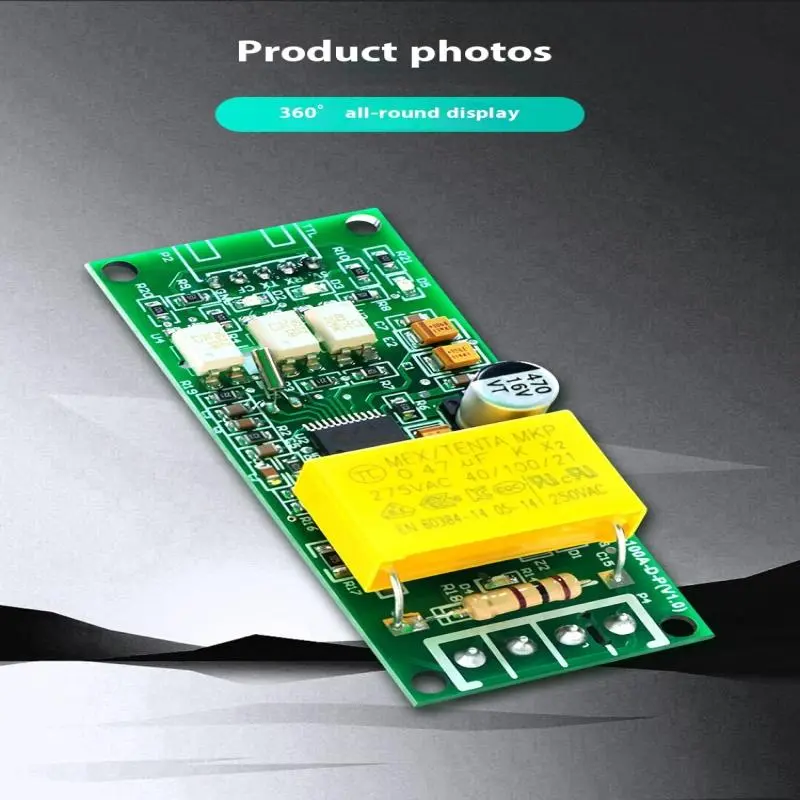

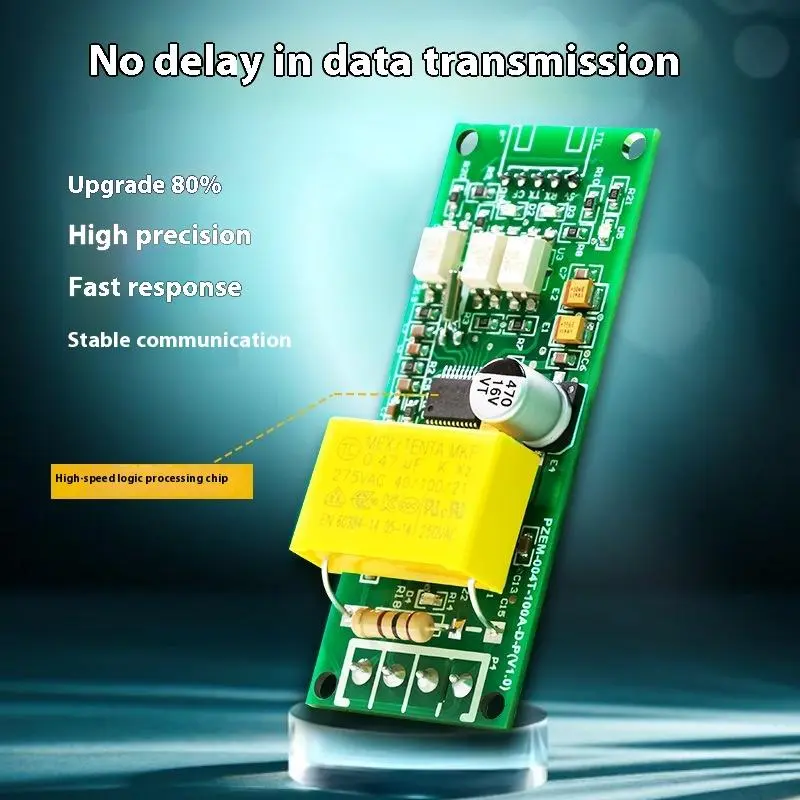

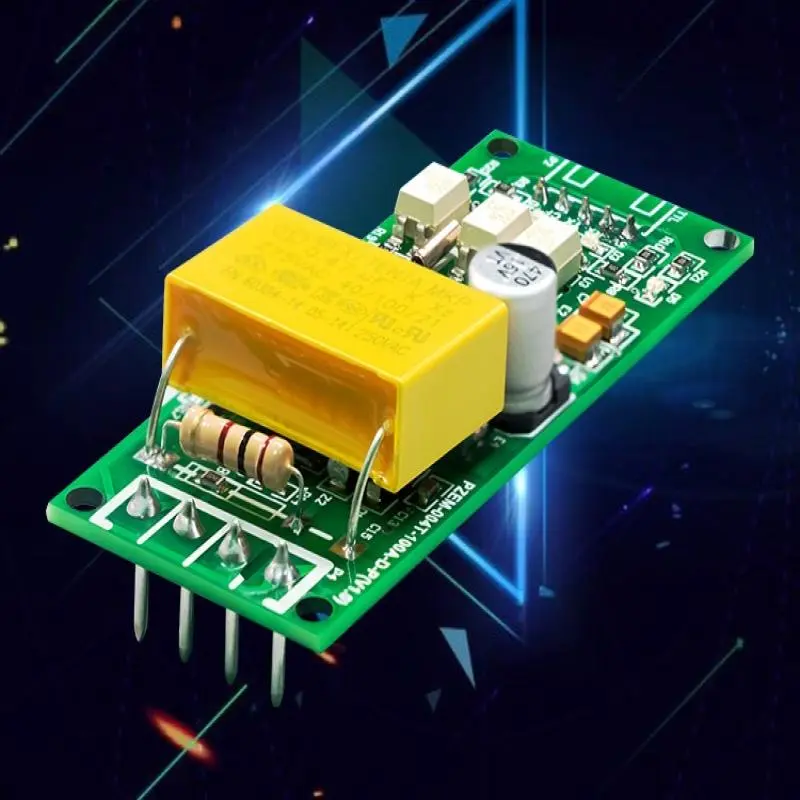

<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><p><span style="font-size:16px;font-family:Verdana">Description:</span></p><p><span style="font-size:16px;font-family:Verdana">1.Mainly used for measuring AC voltage, current, active power, frequency, power factor and active power.</span></p><p><span style="font-size:16px;font-family:Verdana">2. The module does not have display function, the data is read through the TTL interface.</span></p><p><span style="font-size:16px;font-family:Verdana">3. Power overrun alarm: active power threshold can be set, when the measured active power exceeds the set threshold, the alarm state is set.</span></p><p><span style="font-size:16px;font-family:Verdana">4. Common to all WIN systems, high precision, fast response, stable communication.</span></p><p><span style="font-size:16px;font-family:Verdana">5. Adopting UART to TTL communication interface, power clearing function, and there is a row of pins design, easy to use.</span></p><p><span style="font-size:16px;font-family:Verdana">Parameter:</span></p><p><span style="font-size:16px;font-family:Verdana">Material: Metal</span></p><p><span style="font-size:16px;font-family:Verdana">Voltage measurement range: AC 80~260V</span></p><p><span style="font-size:16px;font-family:Verdana">Resolution: 0.1V</span></p><p><span style="font-size:16px;font-family:Verdana">Accuracy: 0.5%</span></p><p><span style="font-size:16px;font-family:Verdana">Current measurement range: 32A, 63A</span></p><p><span style="font-size:16px;font-family:Verdana">Resolution: 0.001A</span></p><p><span style="font-size:16px;font-family:Verdana">Accuracy: 0.5%</span></p><p><span style="font-size:16px;font-family:Verdana">Active power: 32A/7040W, 63A/13860W</span></p><p><span style="font-size:16px;font-family:Verdana">Resolution: 0.1W</span></p><p><span style="font-size:16px;font-family:Verdana">Precision: 0.5%</span></p><p><span style="font-size:16px;font-family:Verdana">Power factor: 0.00~1.00</span></p><p><span style="font-size:16px;font-family:Verdana">Frequency: 45~65Hz</span></p><p><span style="font-size:16px;font-family:Verdana">Active power: 0~9999.99kWh</span></p><p><span style="font-size:16px;font-family:Verdana">Resolution: 1Wh</span></p><p><span style="font-size:16px;font-family:Verdana">Accuracy: 0.5%</span></p><p><span style="font-size:16px;font-family:Verdana">Pulse output: 1600imp/kwh</span></p><p><span style="font-size:16px;font-family:Verdana">Operating Temperature: -20~60°C</span></p><p><span style="font-size:16px;font-family:Verdana">Size: 73.7*30*20mm</span></p><p><span style="font-size:16px;font-family:Verdana">Package Included:</span></p><p><span style="font-size:16px;font-family:Verdana">1 x Module</span></p><p><span style="font-size:16px;font-family:Verdana">1 x Transformer</span></p><p><span style="font-size:16px;font-family:Verdana">Note:</span></p><p><span style="font-size:16px;font-family:Verdana">1. Please note that the photo does not show actual size please refer to Description for size details.</span></p><p><span style="font-size:16px;font-family:Verdana">2. Please allow differences due to manual measurement thanks.</span></p><p><span style="font-size:16px;font-family:Verdana">3. Due to the difference between different monitors the image may not reflect the actual color of the item.</span></p></div></div><div class="detailmodule_image"></div><br/>
