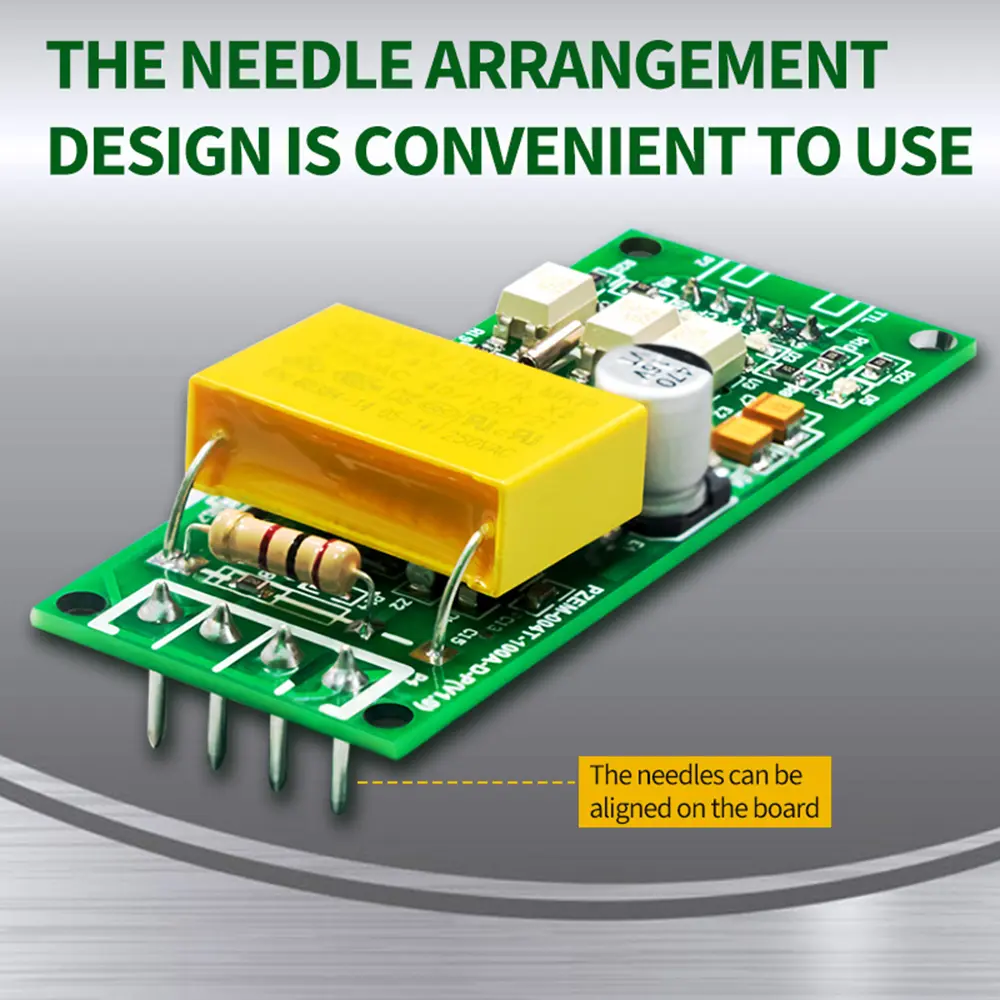

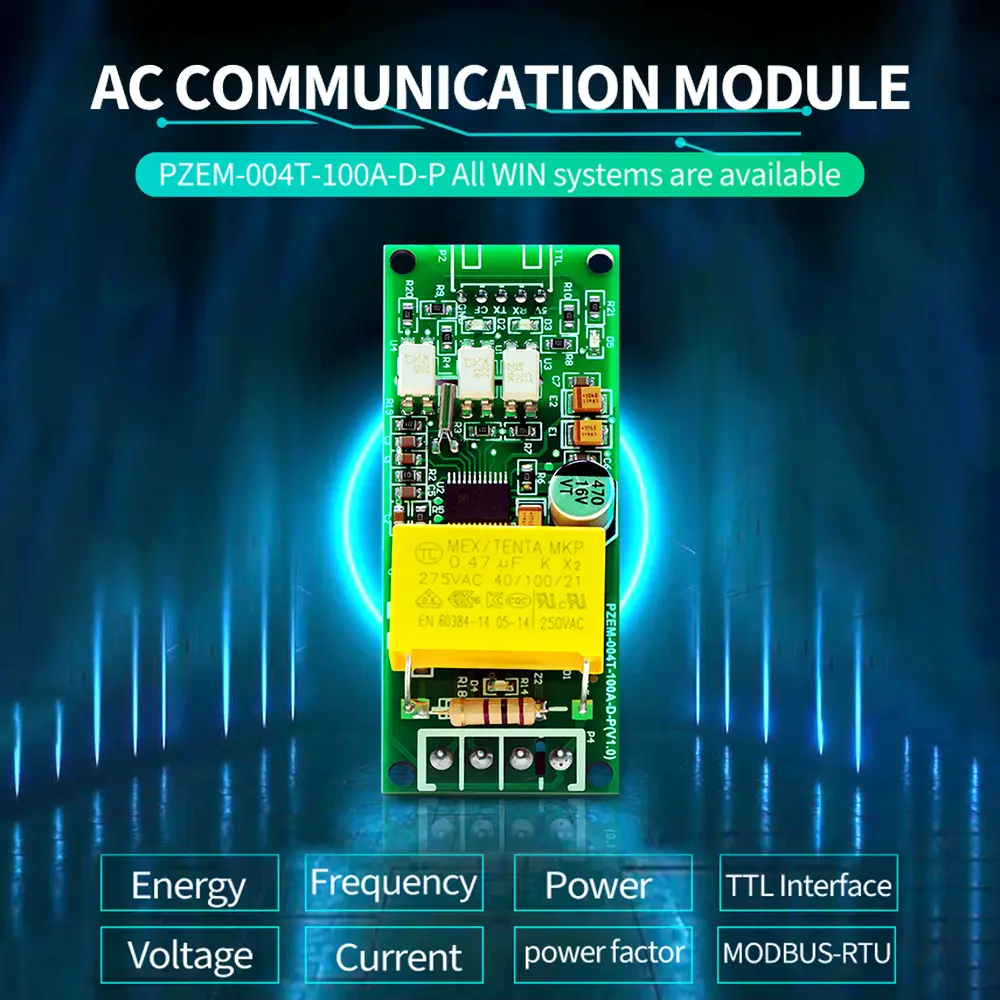

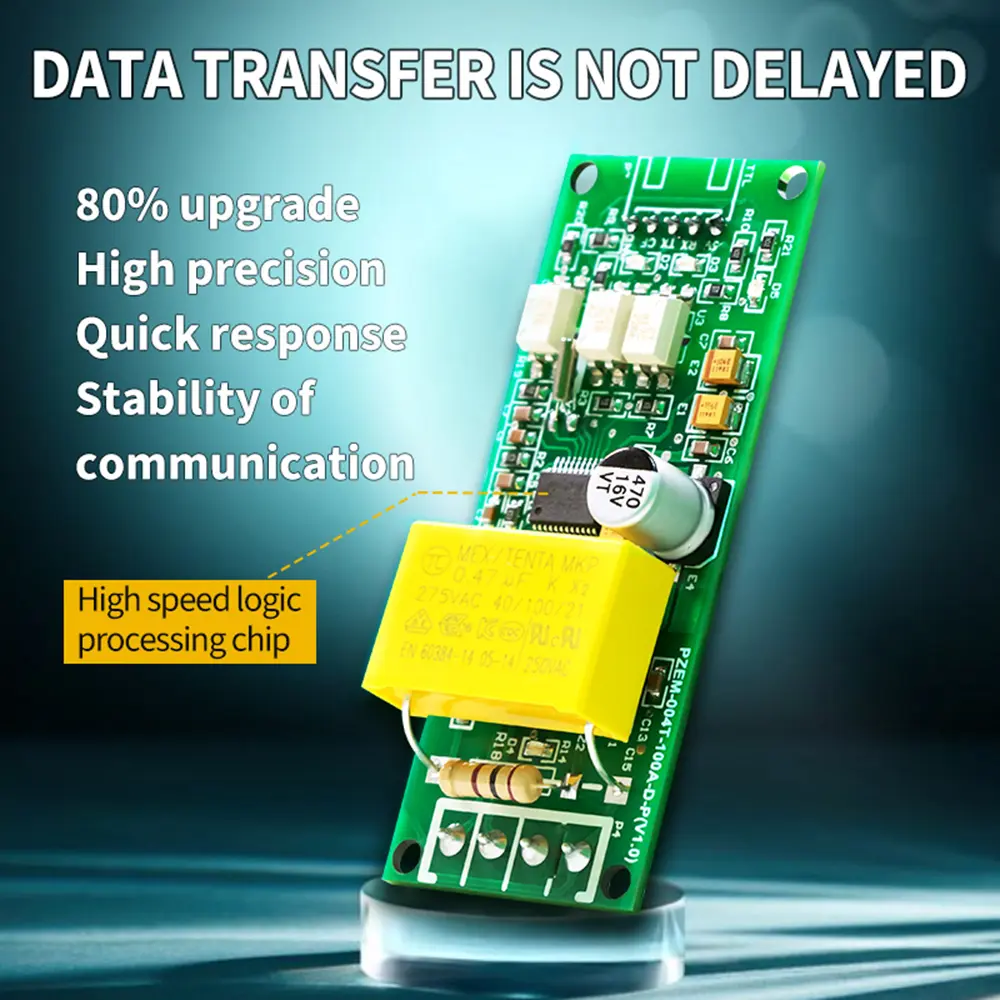

<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><p>Features:<br/>1.Mainly used for measuring AC voltage, current, active power, frequency, power factor and active power.<br/>2. The module does not have display function, the data is read through the TTL interface.<br/>3. Power overrun alarm: active power threshold can be set, when the measured active power exceeds the set threshold, the alarm state is set.<br/>4. Common to all WIN systems, high precision, fast response, stable communication.<br/>5. Adopting UART to TTL communication interface, power clearing function, and there is a row of pins design, easy to use.</p><p>Parameter:<br/>Voltage measurement range: AC 80~260V<br/>Resolution: 0.1V<br/>Accuracy: 0.5%<br/>Current measurement range: 32A, 63A<br/>Resolution: 0.001A<br/>Accuracy: 0.5%<br/>Active power: 32A/7040W, 63A/13860W<br/>Resolution: 0.1W<br/>Precision: 0.5%<br/>Power factor: 0.00~1.00<br/>Frequency: 45~65Hz<br/>Active power: 0~9999.99kWh<br/>Resolution: 1Wh<br/>Accuracy: 0.5%<br/>Pulse output: 1600imp/kwh<br/>Operating Temperature: -20~60°C<br/>Size: 73.7*30*20mm</p><p>Package include:<br/>Module *1<br/>Transformer *1<br/><br/></p></div></div><p><br/></p>
