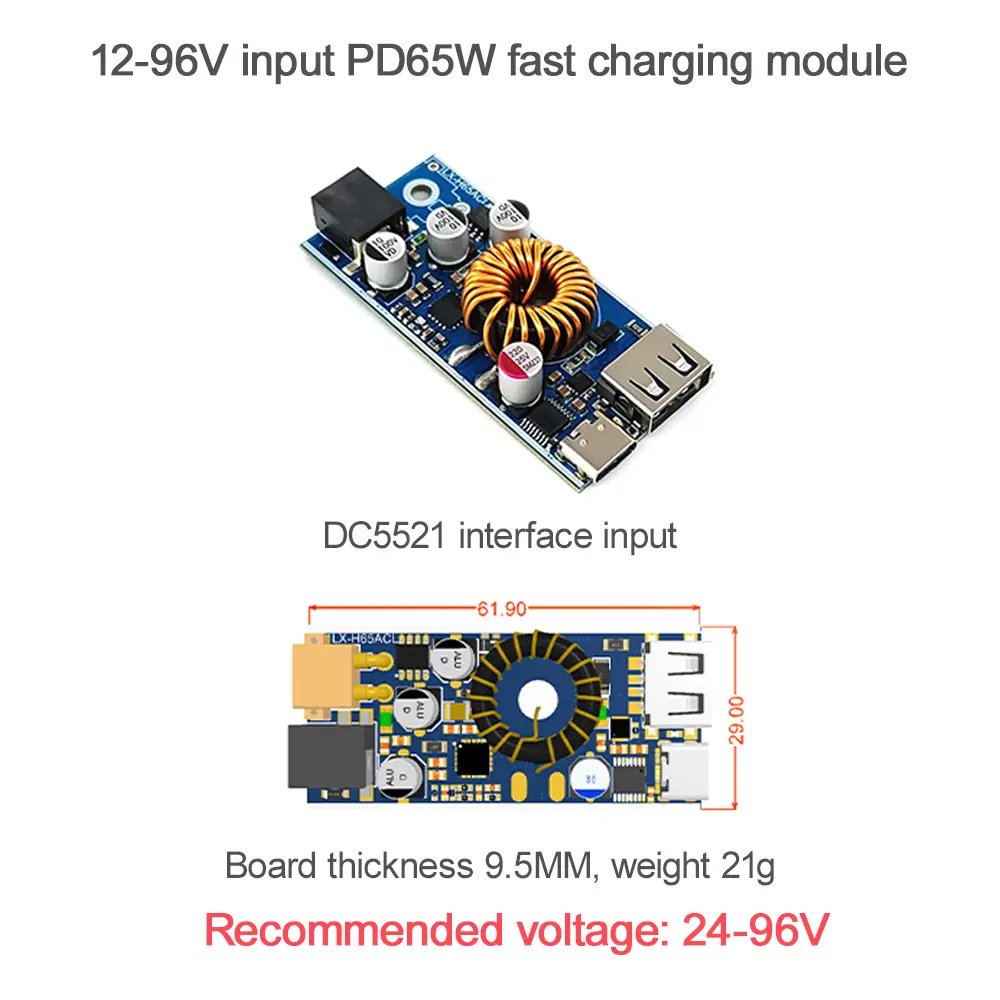

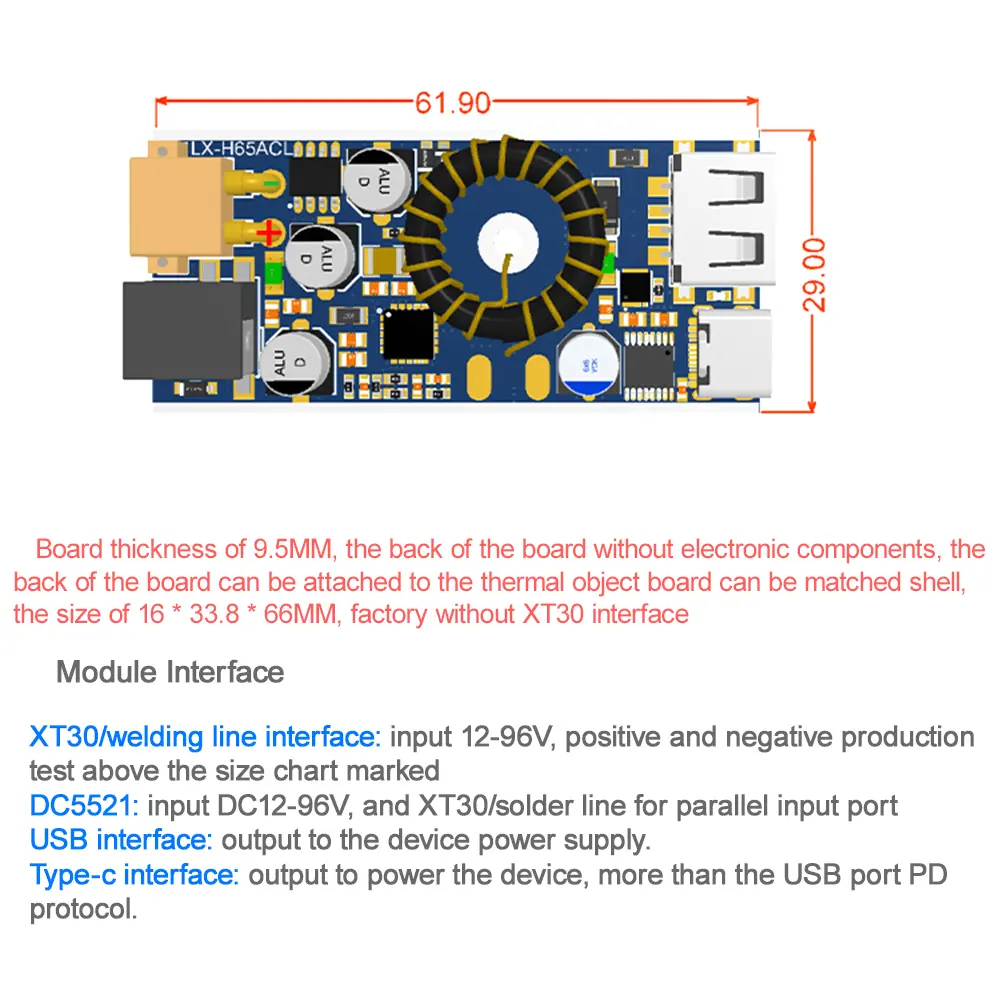

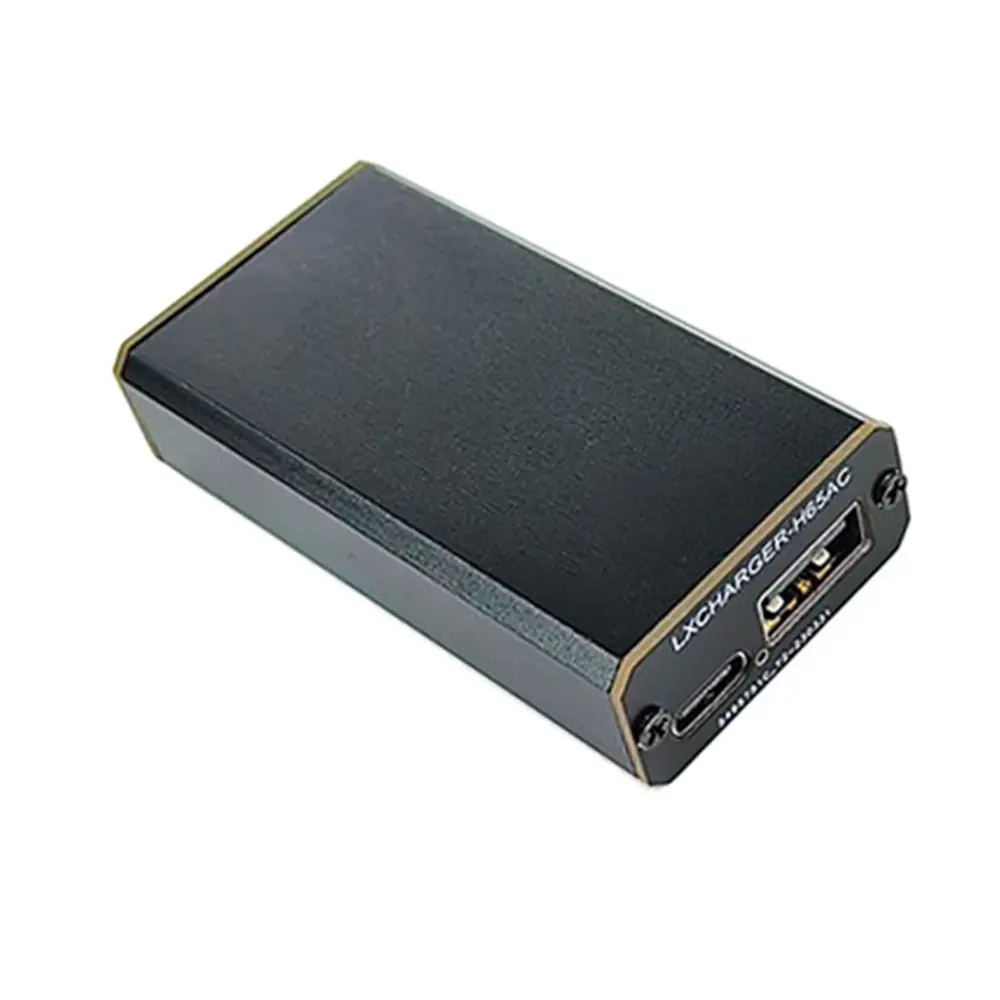

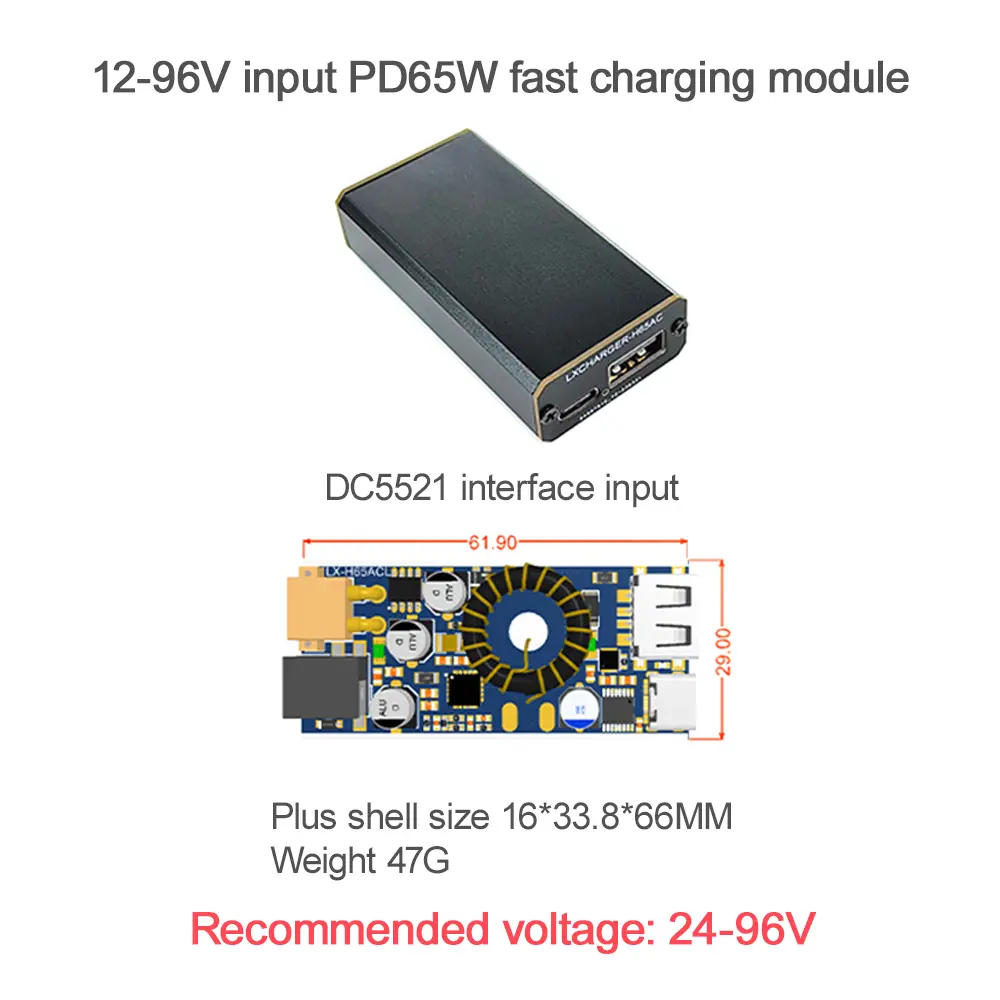

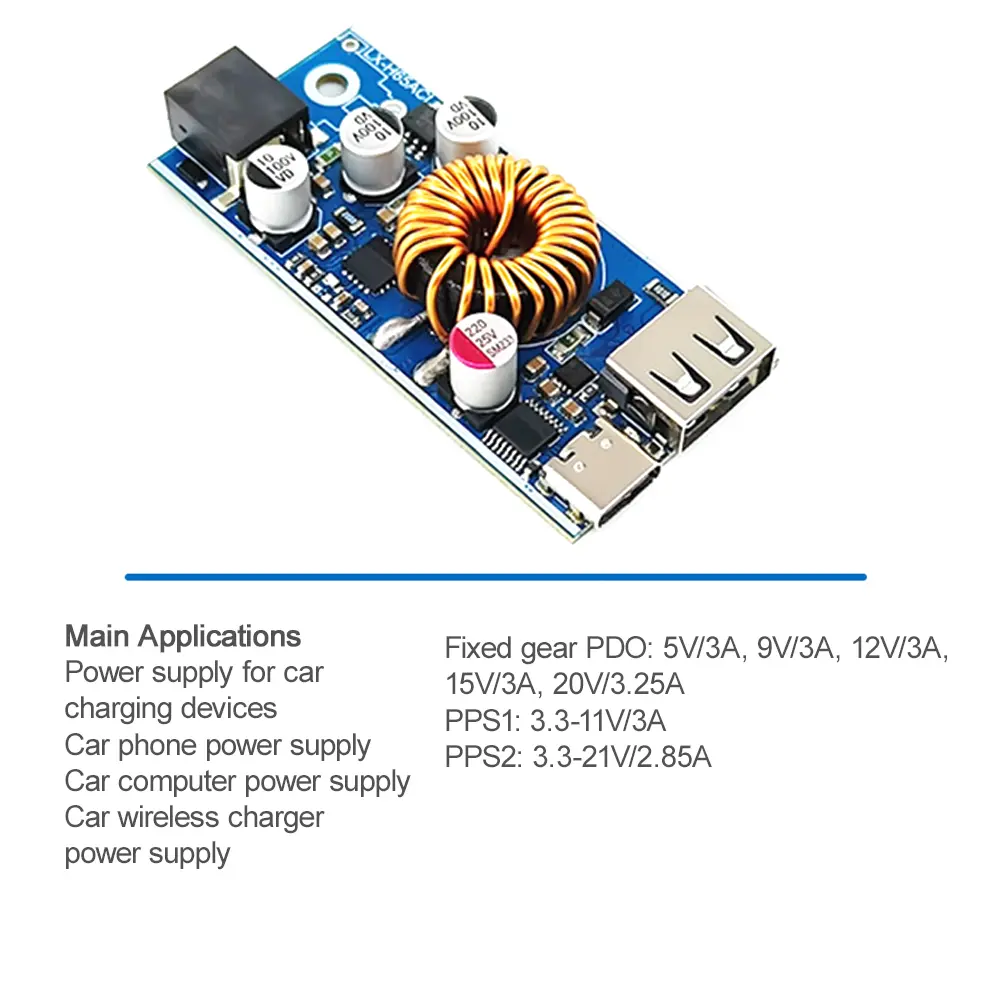

<div class="detailmodule_dynamic"><kse:widget data-widget-type="customText" id="1005000004352011" type="relation"></kse:widget></div><div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><div><br/><span style="font-size:20px"><strong>Features:</strong></span><br/>1.We have put in sufficient effort in the design, materials, and PCB process of this product, so that this module can achieve considerable parameters and functions in a very small volume;<br/>2.Efficient and high-power voltage reduction module, with sufficient materials and multiple protections, ensuring safety and reliability;<br/>3.The module size is only 61.9mm * 29mm, and the board thickness is 9.5mm. The small volume can achieve high power and low power ripple;<br/>4.The module has a very small size and limited heat dissipation area. High power output and heat generation are normal phenomena, and high-quality materials are used, so there is no need to worry about heat generation affecting the lifespan.<br/>5.Optional aluminum alloy shell, multi-purpose, can be used for power supply of car charging equipment, car phone power supply, car computer power supply, car wireless charging power supply, etc.</div><div><br/></div><p><span style="font-size:20px"><strong>Parameters:</strong></span><br/>Input: DC12-96<br/>Output: capable of 5V 3.5A<br/>Static current: 2mA<br/>Output: Can have two ports simultaneously<br/>Equipped with multiple protocols<br/>Built in over temperature protection<br/>Output using solid-state capacitors<br/>Temperature range: -40 ℃ to+85 ℃<br/>Supports QC3.0+/3.0/2.0 protocols<br/>Support for Xiaomi CHARGE TURBO27W protocol<br/>Supports for Huawei FCP/SCP/HVSCP protocol<br/>Supports for Samsung AFC 9V protocol<br/>Supports for Apple 2.4A charging specification<br/>Supports PD65W<br/>Fixed gear PDO: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3.25A<br/>PPS1: 3.3-11V/3A<br/>PPS2: 3.3-21V/2.85A<br/>Module size: 61.9mm * 29mm, board thickness 9.5mm (there are no electronic components on the back of the board, and heat dissipation objects can be attached on the back)<br/>The supporting shell size is 16 * 33.8 * 66MM (without XT30 interface module interface at the factory)</p><p><span style="font-size:20px"><strong>Main purpose:</strong></span><br/>Car charging equipment power supply, car phone power supply, car computer power supply, car wireless charging power supply<br/>Interface Description:<br/>XT30/solder wire interface: Input 12-96V, with reference dimensions for positive and negative poles marked on the drawing (note: XT30 interface module interface is not included in the factory)<br/>DC5521: Input DC12-96V, with XT30/solder wire as parallel input port<br/>USB interface: outputs power to the device.<br/>Type-c interface: Outputs power to the device, with multiple PD protocols compared to USB ports.</p><p><span style="font-size:20px"><strong>Instructions for use:</strong></span><br/>When using the PD protocol of 20V, the product can support up to 65W, while other protocols and voltage power will be smaller because the maximum current will be limited. The current and power output of different protocols may also vary, mainly determined by the protocol. Therefore, if your phone can charge you with 65W or 100W using this module, 65W is required. No, please be aware.<br/>Many people ask if it is possible to use solar energy for power supply, and if it can be used in electric vehicles. They can only say that no matter what type of power supply you use, ensure that the power supply voltage and current are sufficient. Within the parameter range, and stable, all types of electricity are the same. If you do not know your own power supply parameters, you must be cautious when purchasing.<br/>Attention to Huawei users! Using this module requires the use of original cables or high current cables that support the SCP protocol. If you use a regular cable and the phone does not start fast charging, and because the phone has also shaken the SCP protocol, you cannot shake the old FCP protocol again. (That's why you use a regular cable and my module doesn't charge quickly, but it's cheaper and only comes with the FCP protocol module.).<br/>The wiring should not be too thin to ensure that the wire can withstand the corresponding current.<br/>The higher the power used by the module, the closer the current is to the maximum current. The heat will increase, so pay attention to heat dissipation when using.<br/>When encountering problems during use, contact customer service must cooperate with them to provide wiring pictures, videos, etc. It is not acceptable to only provide text information.<br/>Recommended voltage: Fast charging of 24-96V modules will generate heat, but our solution will be relatively low.<br/>Different versions of the product may have slight differences in appearance, which is normal and does not affect the use of the product.</p><p><span style="font-size:20px"><strong>Package include:</strong></span><br/>1X fast charging module (optional without or with casing)<br/><br/></p></div></div><p><br/></p>
