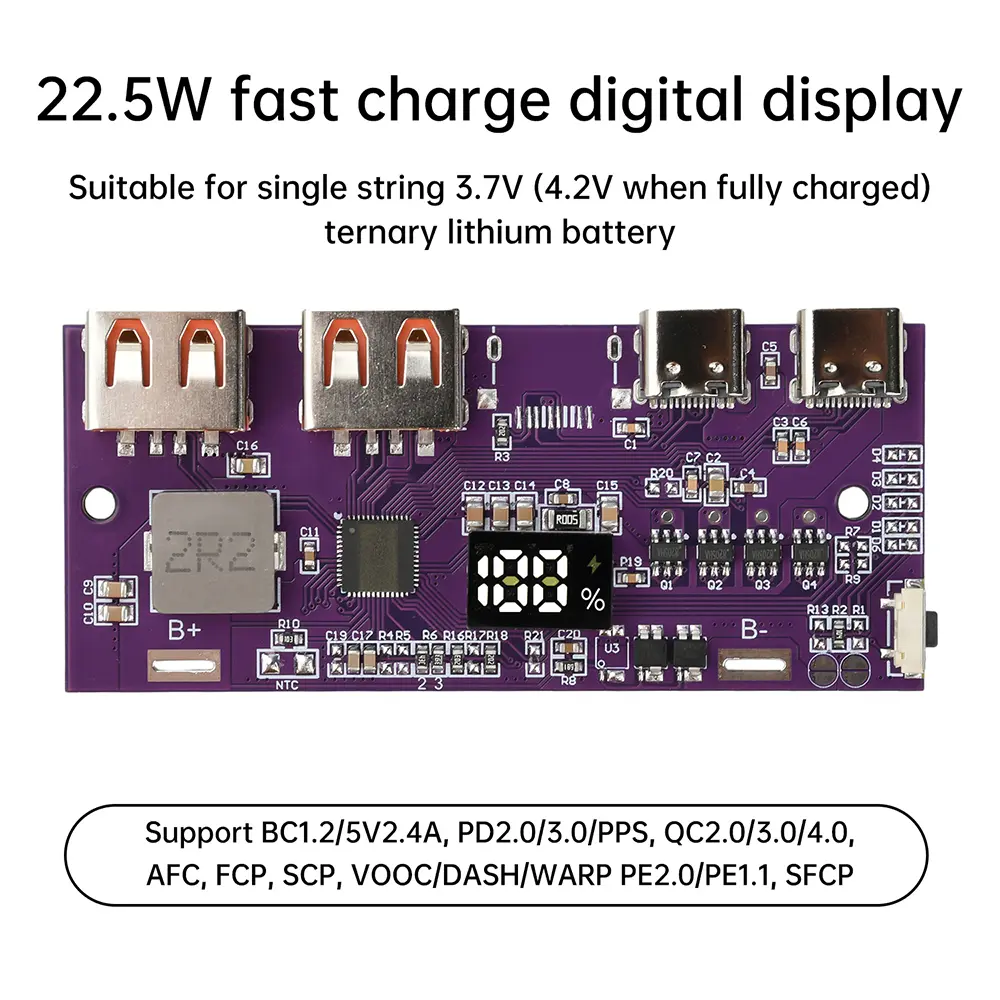

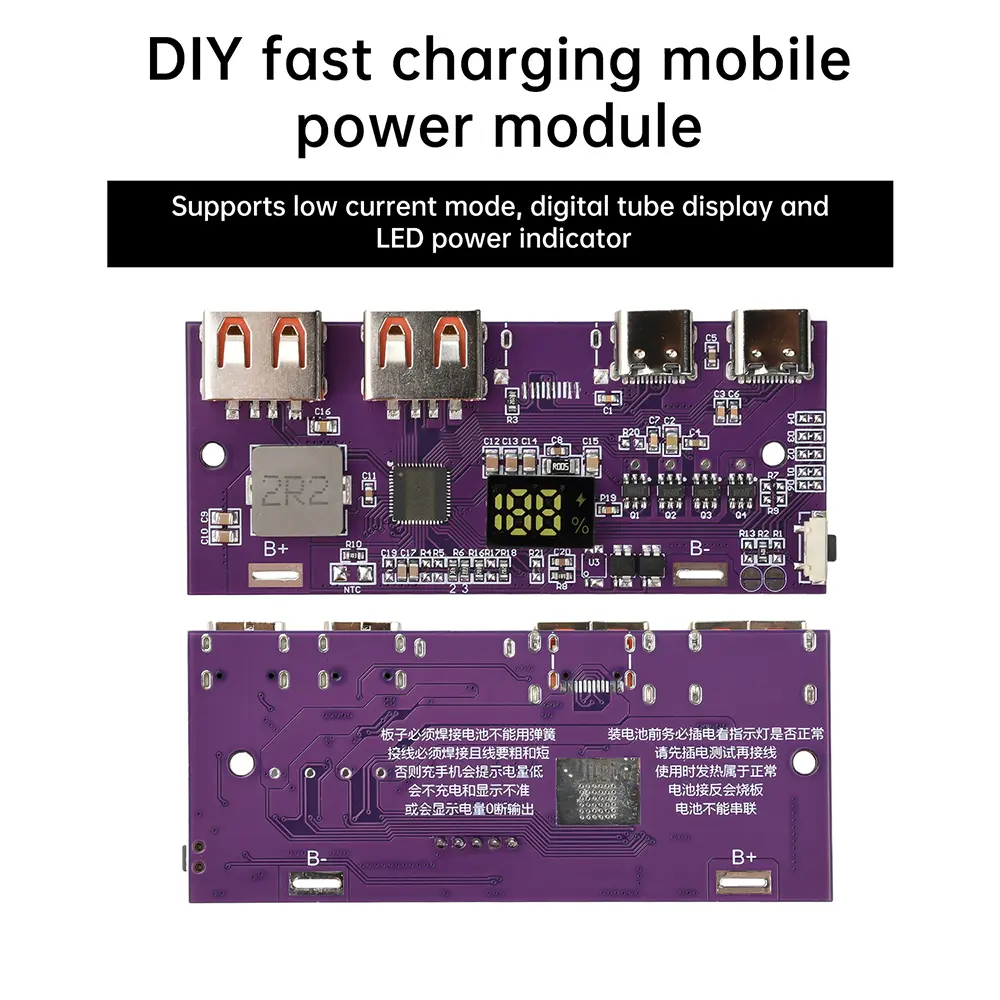

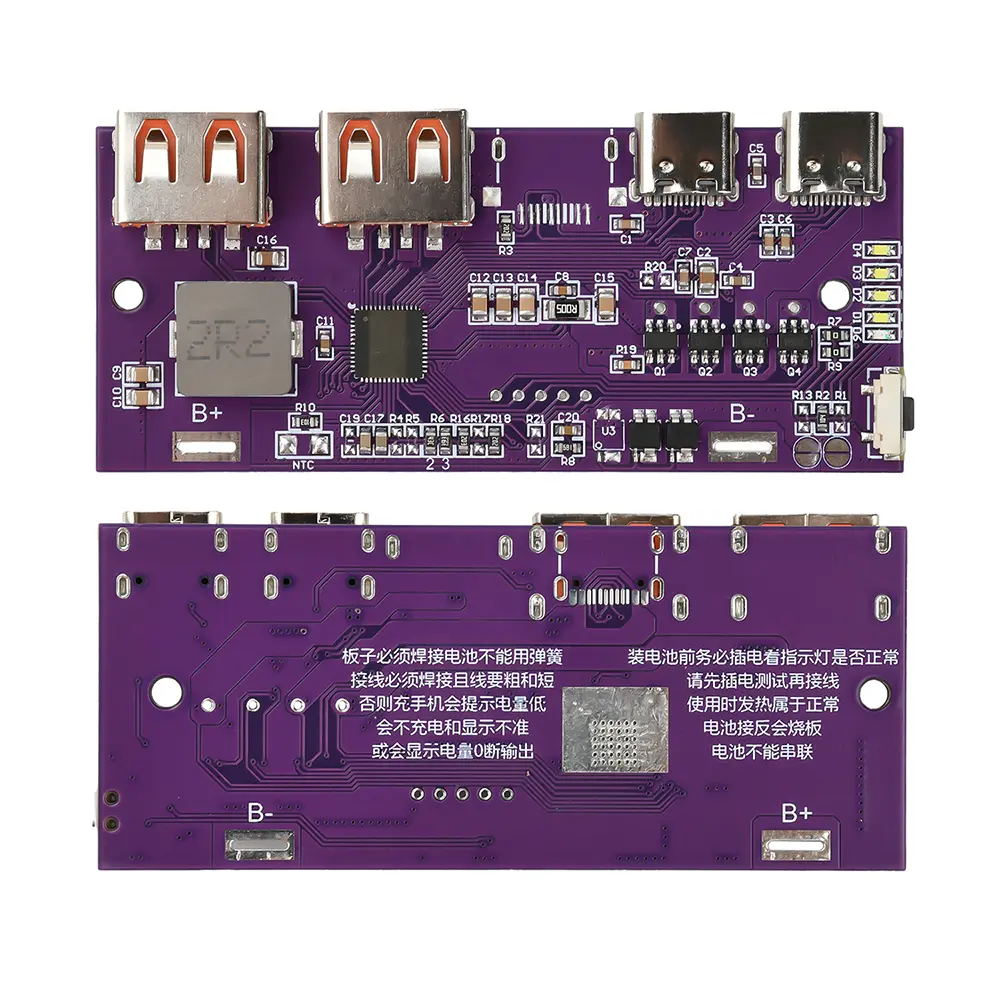

<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><p>Features<br/>1.Support 22.5W high power fast charging output, to meet the demand for fast charging, enhance the use of efficiency 2.Compatible with QC4 +, PD3.0 mainstream fast charging protocol, adapt to a variety of devices, enhance the versatility 3.Products support small current mode, support for the digital tube display and LED power indication, more convenient to use<br/>4. Designed for 3.7V Li-ion ternary battery, providing stable and efficient energy conversion and protection mechanism.<br/>5. Suitable for DIY mobile power projects, easy to customize personalized fast charging solutions</p><p>Parameter<br/>The product is suitable for single string 3.7V (full of 4.2V) ternary lithium batteries <br/>Button: <br/>Short press action, open the USB port and the light load Type-C output port external discharge and power display <br/>Double-click action, close the USB port and the Type-C output port, the power display <br/>If there is an external power supply exists, only the output port will be closed <br/>Type-C port: support for input and output <br/>USB port: large Current output interface <br/>B+: battery positive interface, use must be welded, the line must be thick, can not be too long <br/>B-: battery negative interface, use must be welded, the line must be thick, can not be too long <br/>Module wiring with a multimeter to measure the module charging and discharging B+ and B- contact voltage is the same or very small difference, if the difference is large, there is a problem with the wiring or the battery aging</p><p>Support protocol: <br/>Support BC1.2/5V2.4A <br/>Support PD2.0/PD3.0 <br/>Support QC2.0/QC3.0/QC4.0 <br/>Support AFC, FCP, SCP, PPS, SFCP <br/>Support VOOC, DASH, WARPPE2.0, PE1.1</p><p>Package include<br/>Fast charging motherboard module *1 (style of your choice)<br/><br/></p></div></div><br/>
