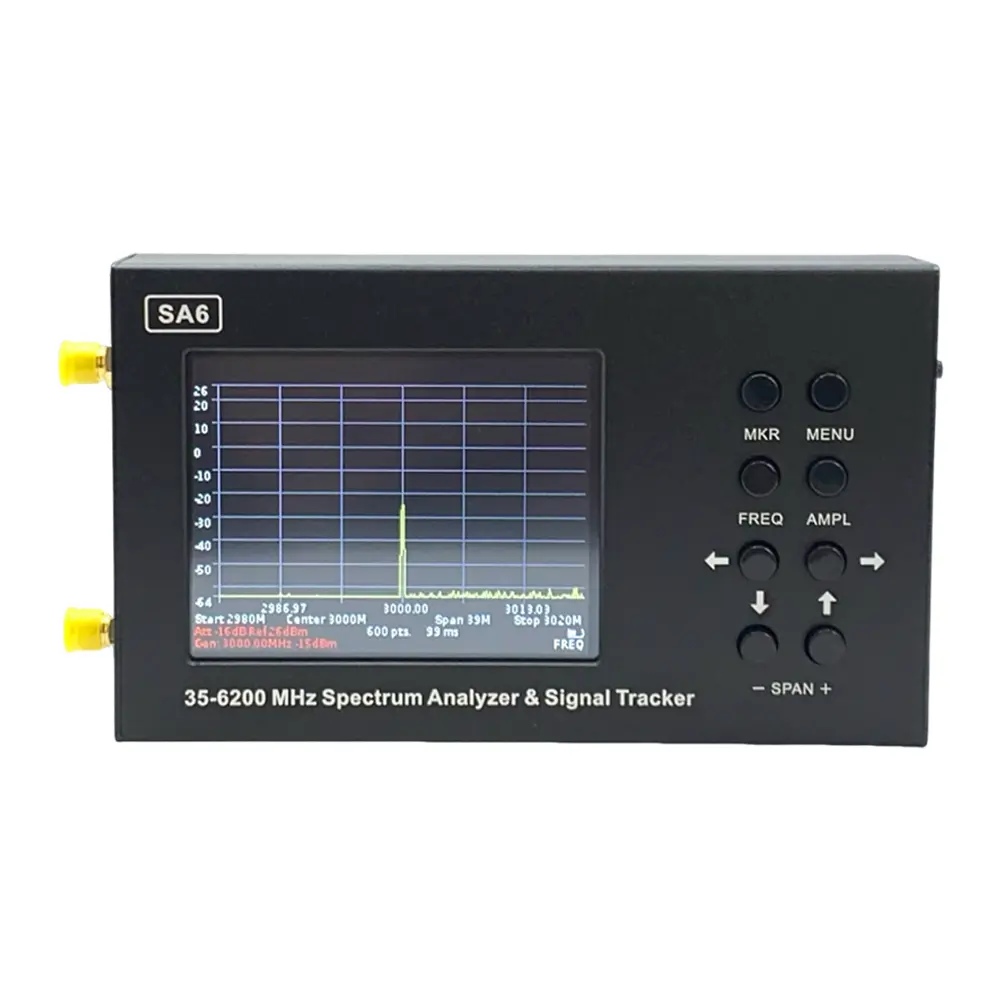

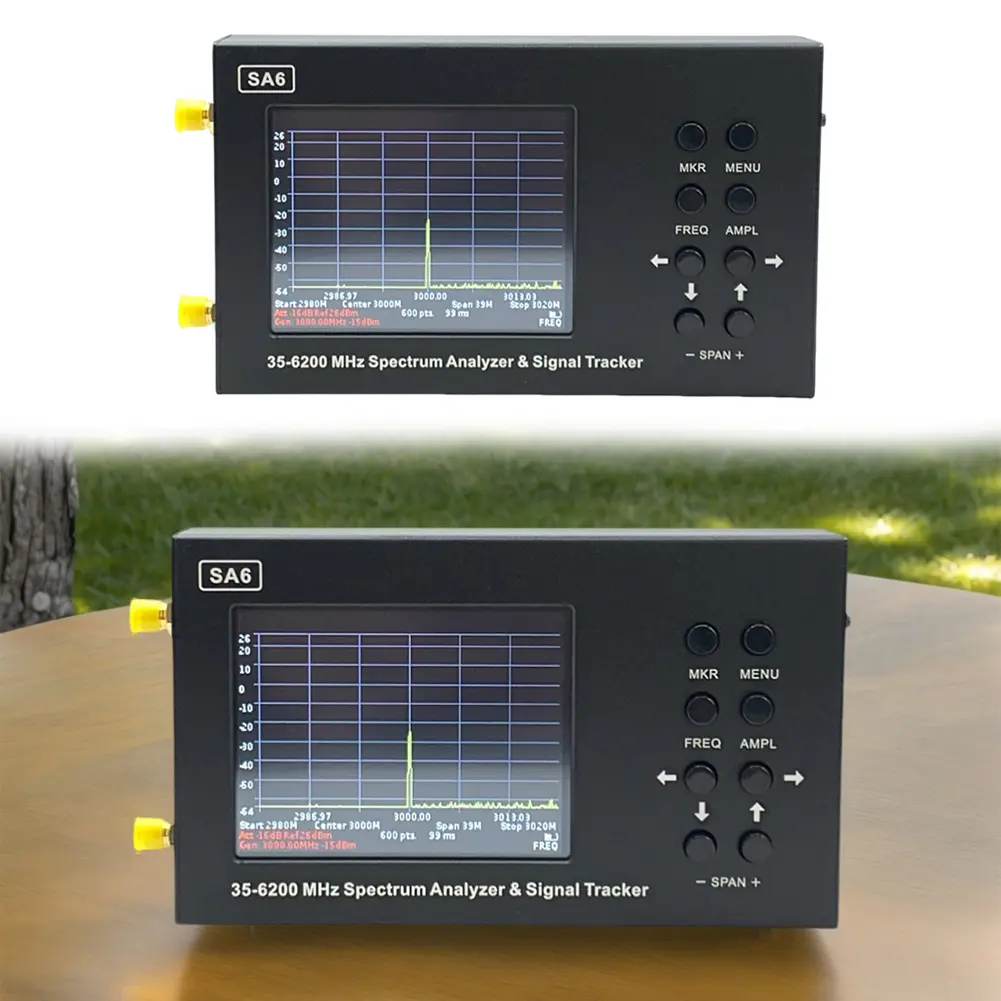

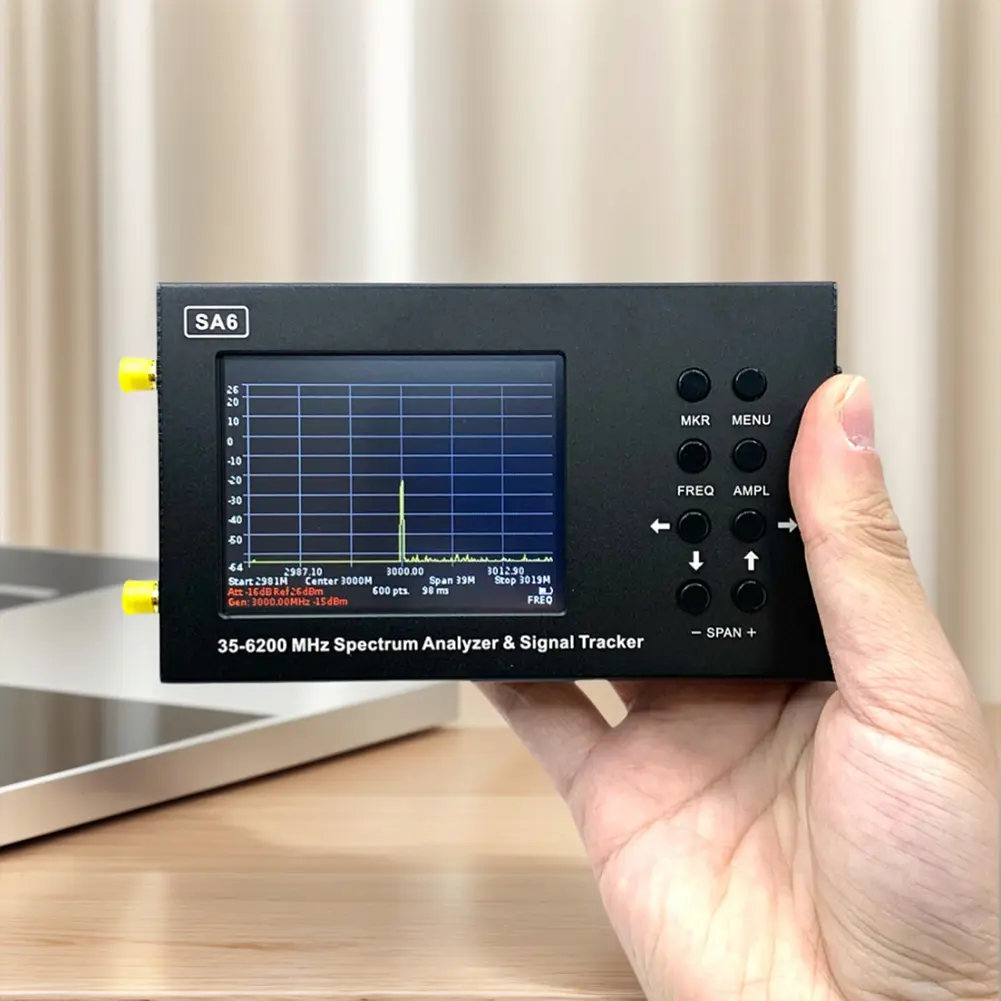

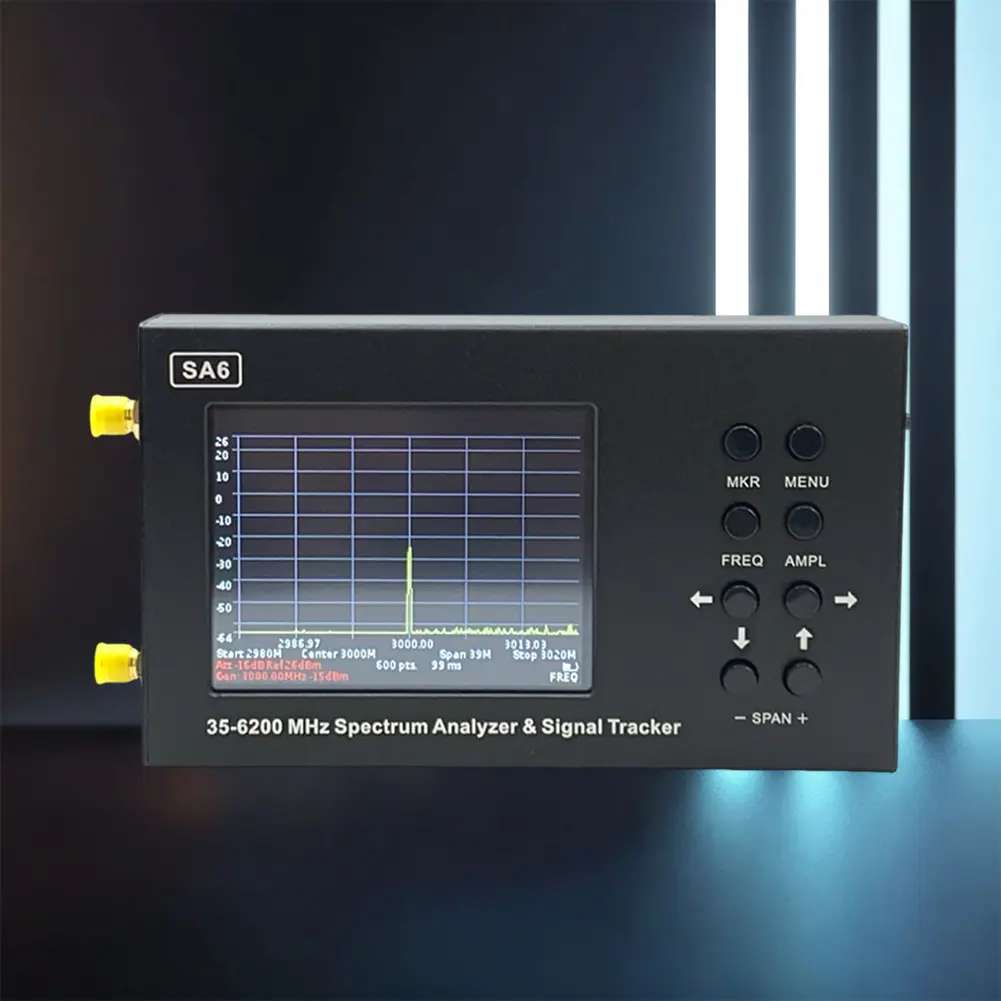

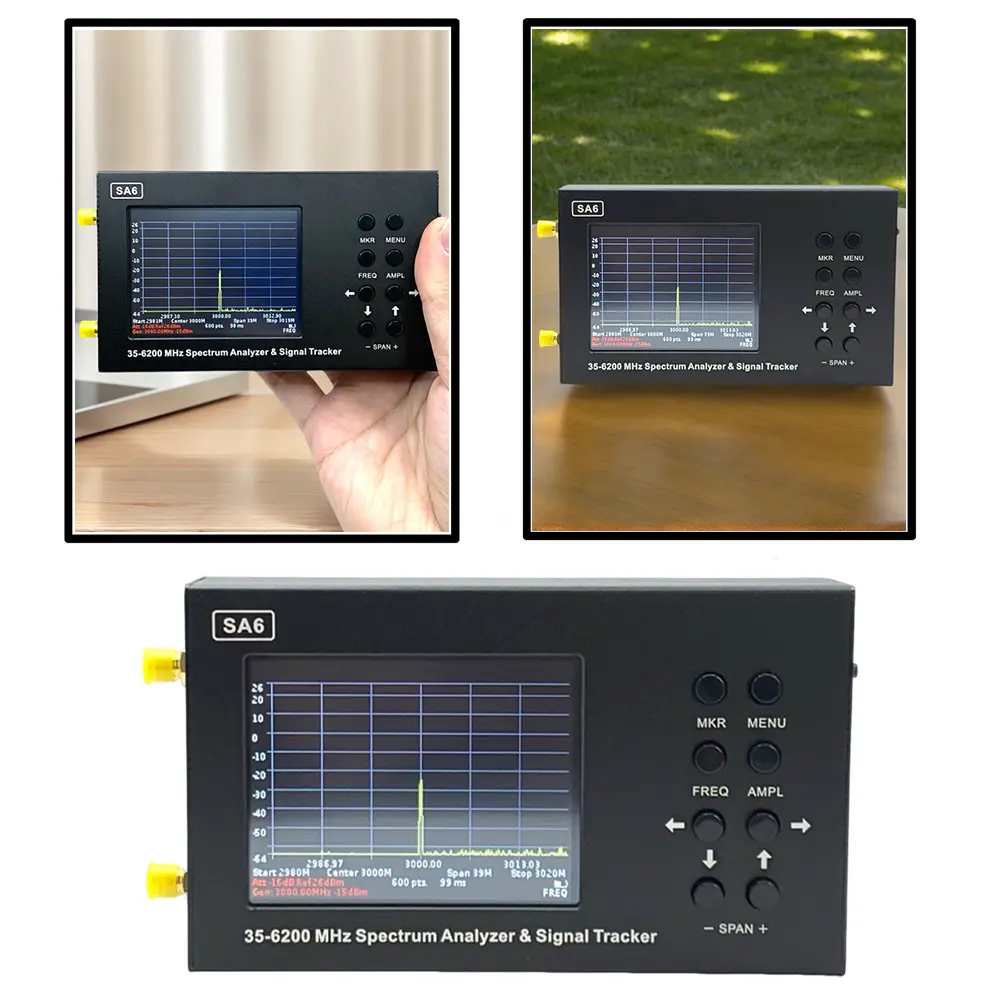

<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><div style="font-size: 28px; font-family: tahoma, geneva, sans-serif; font-weight: bold; padding: 2px 2px;"> <kse:widget data-widget-type="customText" id="24238678" title="Kitchen" type="custom"></kse:widget> </div><table class="ke-zeroborder" width="100%" cellspacing="0" cellpadding="0" border="0"> <tbody> <tr> <td> <div> <div> <p> <br /> </p> <p> </p> <p> <br /> </p> <p> SA6 35-6200 MHz Portable Spectrum Analyzer Signal Genertor 3G 4G LTE CDMA DCS GSM GPRS GLONASS Spectrum Signal Genertor 3.2inch Screen Spectrum Analyzer &amp; Signal Tracker<br /> <b>Feature:</b><br /> <b>1.3.2-Inch Color Touch Screen:</b> Experience precision in control with the 3.2-inch color resistive touch screen, providing intuitive operation and clear visualization when managing your portable spectrum analyzer signal generator for on-the-go convenience.<br /> <b>2.Wide Frequency Range:</b> Covering from 35 to 6200 MHz, this rf spectrum analyzer allows for extensive signal tracking and measurement across a broad range of frequencies, making it a versatile tool for various applications.<br /> <b>3.Fast Scanning Capability:</b> With a rapid scanning frequency range at 500 points per point, the spectrum signal generator enables swift and efficient signal monitoring, optimizing your analysis process.<br /> <b>4.High Measurement Accuracy:</b> Achieve precise results with a dynamic range of 70-75dB, maintaining accuracy within 2dB. This tracking generator ensures reliable data for professional-grade tasks.<br /> <b>5.Portable and PC Compatible:</b> Weighing just 380g with dimensions of 150X75X23mm, this spectrum analyzer &amp; signal tracker is lightweight and compact, featuring seamless integration with Windows-based computers for extended functionality.<br /><br/><br/><span><strong>Specification:</strong></span><br /> <span>Origin: Mainland China</span><br /> Product Description:<br /> SA6 is a simple portable spectrum analyzer and signal rangefinder designed to display the spectrum of signals in the frequency range from 35 to 6200 MHz.<br /> The analyzer finds the amplitude and frequency of the spectral components of the analyzed process. The spectrum analyzer can process signals from all widely used technologies: Wi-Fi, 2G, 3G, 4G, LTE, CDMA, DCS, GSM, GPRS, GLONASS, etc.<br /> Another important feature is the additional functionality of the tracking generator, which makes it possible to measure the frequency response of passive or active devices such as filters or amplifiers.<br /> The software allows the measurement of SWR and return loss modules. This requires an external directional coupler and a set of calibration measures.<br /> SA6 is mainly intended for field operation.<br /> The device is rugged, lightweight and has low energy consumption.<br /> It enables service centers and maintenance teams to perform on-site HF analysis for commissioning and repair work. In addition, the spectrum analyzer is a perfect solution for repair shops and radio amateurs.<br /> Applications:<br /> Place external antenna on base station<br /> Quickly analyze RF environment<br /> Check if repeater unit is operating correctly<br /> Repair and adjust repeaters, generators, filters, etc.<br /> Measure SWR when using external directional coupler.<br /> The device is controlled in one of two ways:<br /> By buttons on the device and by touch screen.<br /> All measurement data is displayed in real time on the screen of the device or PC.<br /> Specifications:<br /> Display frequency range: 35 - 6200 MHz<br /> Measurement frequency range: 35 - 4500 MHz<br /> Dynamic range in the 35-3000 MHz band: 75 dB<br /> Dynamic range in the 3000-4500 MHz band: 70 dB<br /> Maximum span: 6165 MHz<br /> Bandwidth: 200 kHz, fixed<br /> Sweep speed to view bands above 100MHz: 700MHz/sec<br /> Sweep 100 MHz: &lt;0.25 sec<br /> Noise floor up to 3000 MHz: &lt;-90 dBm<br /> Noise floor 3000-4500 MHz: &lt;-85 dBm<br /> Noise floor 4500-6200 MHz: &lt;-80 dBm<br /> Wave impedance: 50 ohms<br /> VSWR in the operating frequency range: &lt;1,5<br /> Internal attenuator: 0-30 dB<br /> Attenuation up to 10 dB : 2 dB<br /> Error at 10 to 20 dB attenuation: 5 dB<br /> Error at 20 to 30 dB attenuation: 8 dB<br /> Output power of tracking generator: -15 ... -25 dBm<br /> Accuracy of dynamic range: 2,0 dB<br /> Maximum input power at 0 dB attenuator: 10 dBm<br /> Maximum input power at attenuation &gt; 20 dB: +20 dBm<br /> Maximum input measurement signal: +10 dBm<br /> Maximum input DC voltage: 25 V<br /> Maximum current consumption when operating on battery: 450 mA<br /> Maximum current consumption when operating on USB: 500 mA (when charging)<br /> Battery: 2500 mAh<br /> Material of housing: ABS<br /> Product dimensions: approx. 132.00x78.00x20.00 mm<br /> Product dimensions: 5.2x3.07x0.79 inch<br /> <br /> <p> <strong>Note:</strong><br /> Due to different monitor settings and lighting conditions, the actual color of the item may vary slightly from the pictures. Thanks for your understanding!<br /> Please allow a 1-2 cm difference in measurements due to manual measuring. </p> <br /> <br /> </p> <p> </p> <p> 1 X Spectrum Analyzer<br /> 1 X USB Type-C Cable<br /> 2 X 30cm Rg405 Smajb2/Smajb2 Rf Cables<br /> 1 X Sma-Kk Female Straight Connector<br /> 1 X Stylus Pen<br /> <br /> </p> <p> </p> <p> </p> <p> </p> <p> <span style="color:#171A1D;font-family:&quot;font-size:14px;font-style:normal;font-weight:400;background-color:#FFFFFF;"><div style="font-size: 28px; font-family: tahoma, geneva, sans-serif; font-weight: bold; padding: 2px 2px;"> <kse:widget data-widget-type="relatedProduct" id="33380996" title="Measurement" type="relation"></kse:widget> </div></span> </p> <p> </p> <p> </p> <table class="ke-zeroborder" width="100%" cellspacing="0" cellpadding="0" border="0"> </table> </div> </div> </td> </tr> </tbody> </table></div></div>
