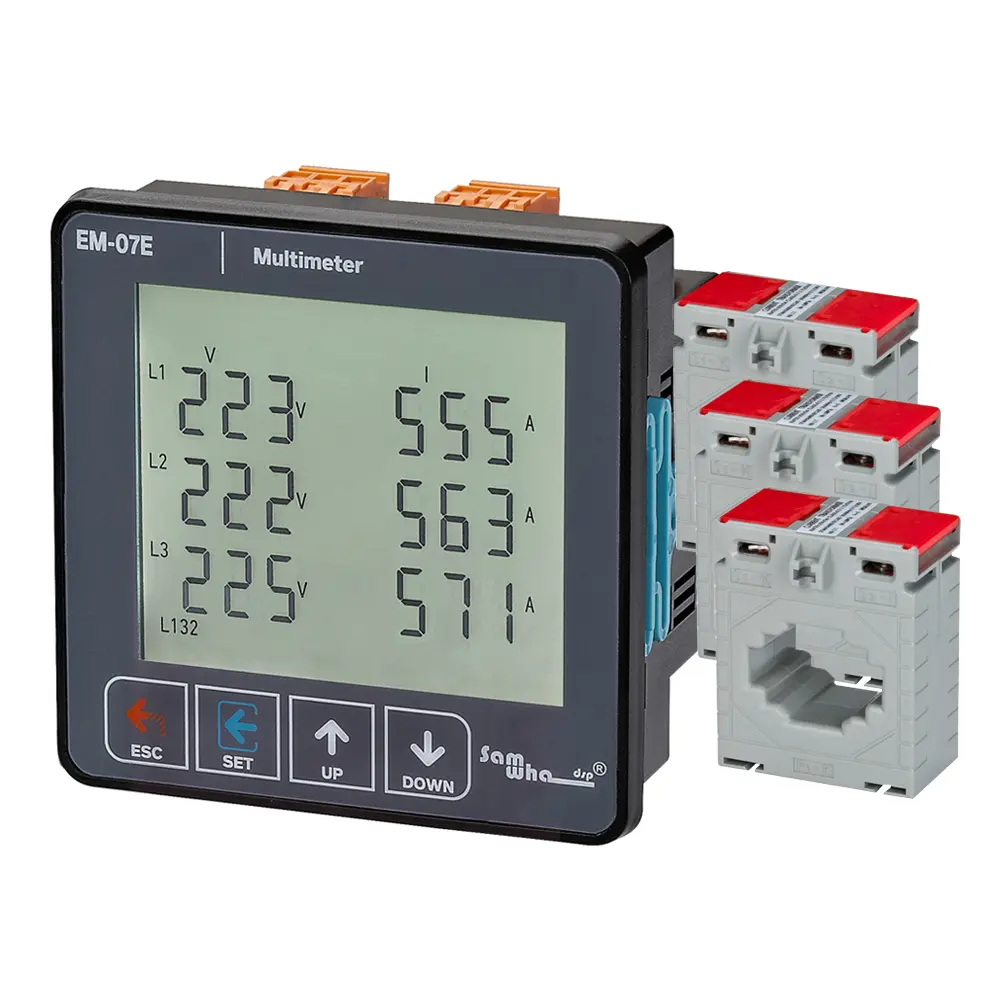

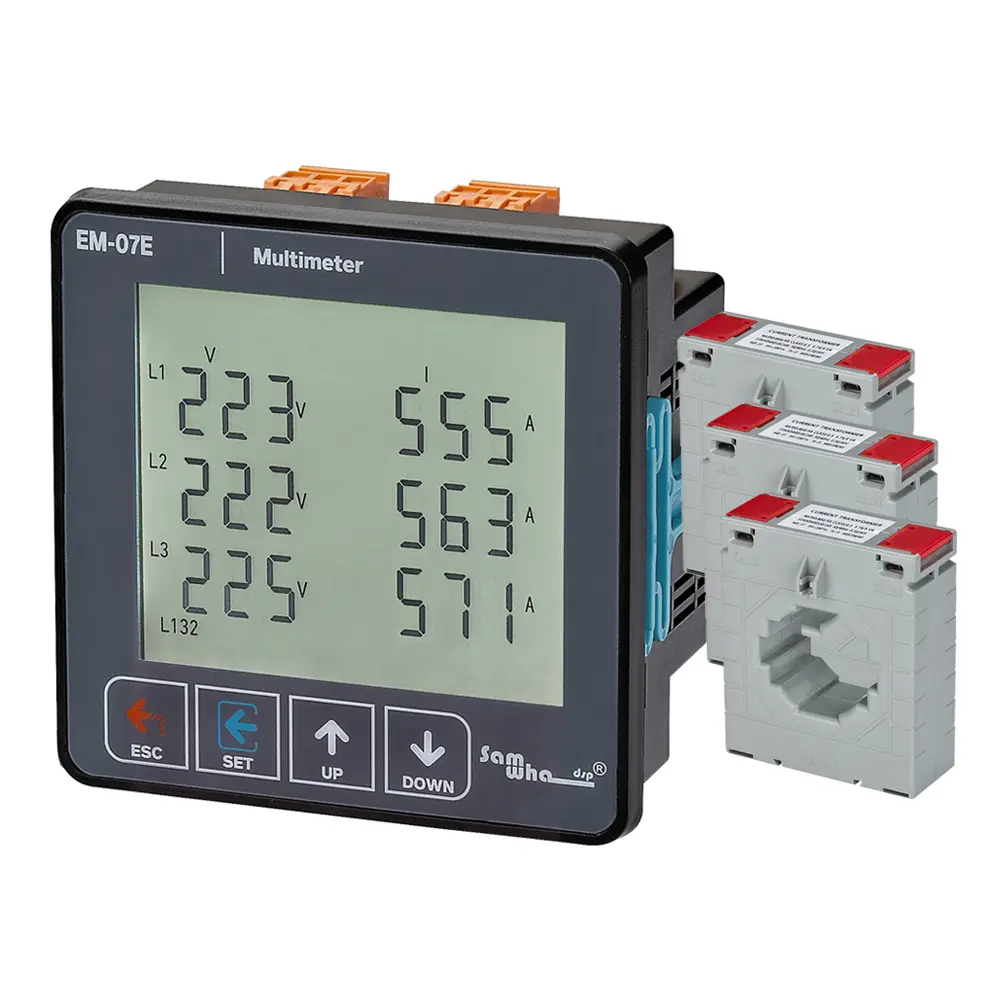

<div class="detailmodule_text"><p style="font-family:OpenSans;font-size:20px;font-weight:900;line-height:28px;white-space:pre-wrap;color:rgb(0, 0, 0);margin-bottom:12px" class="detail-desc-decorate-title">General</p><p style="font-family:OpenSans;font-size:14px;font-weight:300;line-height:20px;white-space:pre-wrap;color:rgb(0, 0, 0);margin-bottom:12px" class="detail-desc-decorate-content">EM-07E Multimeter measures the load on the system and voltage, current, apparent power minimum and maximum values, demands related to this load on the system.</p></div><div class="detailmodule_text"><p style="font-family:OpenSans;font-size:20px;font-weight:900;line-height:28px;white-space:pre-wrap;color:rgb(0, 0, 0);margin-bottom:12px" class="detail-desc-decorate-title">Features</p><p style="font-family:OpenSans;font-size:14px;font-weight:300;line-height:20px;white-space:pre-wrap;color:rgb(0, 0, 0);margin-bottom:12px" class="detail-desc-decorate-content">◈ RS485 Modbus RTU (1200 - 38400bps)<br/>◈ 71.5 x 61.5 Custom Design Glass LCD<br/>◈ 3-phase voltage and 3-phase current<br/>transformer<br/>◈ It shows that V1, V2, V3, V12, V23, V31, I1, I2, <br/>I3, S1, S2, S3, F1, F2, F3<br/>◈ It shows the minimum, maximum and <br/>average values of V1, V2, V3, V12, V23, V31, <br/>F1, F2, F3 <br/>◈ It shows the minimum, maximum, average <br/>and demand values of I1, I2, I3, S1, S2, S3<br/>◈ High/Low voltage, current, frequency <br/>(adjustable)<br/>◈ Phase-Neutral or Phase-Phase protection <br/>(adjustable)<br/>◈ Protect Voltage, Current and Frequency<br/>◈ Shows phase sequence<br/>◈ Can delete the demands<br/>◈ Menu is password-protected</p></div><div class="detailmodule_text-image"><p style="font-family:OpenSans;font-size:20px;font-weight:900;line-height:28px;white-space:pre-wrap;color:rgb(0, 0, 0);margin-bottom:12px" class="detail-desc-decorate-title">Construction</p><div></div></div><div class="detailmodule_text"><p style="font-family:OpenSans;font-size:14px;font-weight:300;line-height:20px;white-space:pre-wrap;color:rgb(0, 0, 0);margin-bottom:12px" class="detail-desc-decorate-content">1 - It shows phase number belong to measurement values<br/>2 - Showing values are minimum of measurement values<br/>3 - Showing values are maximum of measurement values<br/>4 - Showing values are average of measurement values<br/>5 - Showing values are demand of measurement values<br/>6 - It shows Serial Communications<br/>7 - It shows that type of measurement values<br/>8 - It shows number of error<br/>9- It shows phase sequence. &quot;L123&quot; means that phase sequence is correct. &quot;L132&quot;means that phase sequence is incorrect.</p></div><div class="detailmodule_text"><p style="font-family:OpenSans;font-size:20px;font-weight:900;line-height:28px;white-space:pre-wrap;color:rgb(0, 0, 0);margin-bottom:12px" class="detail-desc-decorate-title">Definition of Buttons</p><div><br/></div></div><div class="detailmodule_image"></div><div class="detailmodule_text"><p style="font-family:OpenSans;font-size:14px;font-weight:300;line-height:20px;white-space:pre-wrap;color:rgb(0, 0, 0);margin-bottom:12px" class="detail-desc-decorate-content">ESC Button: <br/>-State of Measurement; Back to home screen.<br/>-State of Menu; Exit menu. State of changing <br/>parameter; Not save chance and back to menu <br/>state.<br/>-State of Error; Manual reset<br/><br/>SET Button: <br/>-State of Measurement: Entry Menu. <br/>-State of Menu: Entry state of changing <br/>parammeter.<br/>-State of changing parameter: save change and <br/>back to menu state<br/><br/>UP Button: <br/>-State of Measurement: To navigate from a main <br/>measurement values to another.<br/>-State of Menu: To navigate from menu <br/>parameters to another.<br/>-State of changing parameter: Increase value of <br/>parameter<br/><br/>RIGHT Button: <br/>-State of Measurement: To navigate from a deep <br/>measurement values to another(min,max,avg, <br/>dmd)<br/>-State of Menu: To navigate from menu <br/>parameters to another<br/>-State of changing parameter: Decrease value of <br/>parameter</p></div><div class="detailmodule_text"></div><div class="detailmodule_text"><p style="font-family:OpenSans;font-size:20px;font-weight:900;line-height:28px;white-space:pre-wrap;color:rgb(0, 0, 0);margin-bottom:12px" class="detail-desc-decorate-title">Warnings</p><p style="font-family:OpenSans;font-size:14px;font-weight:300;line-height:20px;white-space:pre-wrap;color:rgb(0, 0, 0);margin-bottom:12px" class="detail-desc-decorate-content">▲Use the device according to the instructions specified by us.<br/><br/>▲Do not expose the LCD display directly to sunlight in order to avoid any harm on it.<br/><br/>▲Note that the temperature level on the panel to which the device is mounted is at the range ofoperating temperature of the device (-20°C.....55°C).<br/><br/>▲There must be a space of 5cm behind the device after its installation.<br/><br/>▲Fix the device securely to the front-cover of the panel with the apparatus delivered together with the device.<br/><br/>▲Be sure that the panel to which the device is mounted does not operate in a humid environment.<br/><br/>▲Place the switch or circuit breaker close to the device or in a location that is easily accessible for theoperator.<br/><br/>▲Place a switch or circuit breaker on the system during installation of the device. <br/><br/>▲Please note that the cables must not be energized during installation.<br/><br/>▲Flexible monitored and twisted cables must be used for the input and output lines which are notconnected to the mains.<br/><br/>▲The technical personnel according with the instructions specified in the user&#x27;s manual must performinstallation of the device and electrical connections.<br/><br/>▲The feeder cables must be compatible with the requirements of lEC 60227 or lEC 60245</p></div><div class="detailmodule_text"><p style="font-family:OpenSans;font-size:20px;font-weight:900;line-height:28px;white-space:pre-wrap;color:rgb(0, 0, 0);margin-bottom:12px" class="detail-desc-decorate-title">Start-up of the Device:</p><p style="font-family:OpenSans;font-size:14px;font-weight:300;line-height:20px;white-space:pre-wrap;color:rgb(0, 0, 0);margin-bottom:12px" class="detail-desc-decorate-content">Read the warnings before the device is energized. Make sure that the device is connected according tothe connection diagram. When the device energized for the first time, the Home Screen is displayed. Enterthe current transformer ratio and the voltage transformer ratios*, if installed, on the settings menu at first.<br/>*The EM-07-XXD and EM-07E-XXD do not require current transformer ratios</p></div><div class="detailmodule_text"><p style="font-family:OpenSans;font-size:20px;font-weight:900;line-height:28px;white-space:pre-wrap;color:rgb(0, 0, 0);margin-bottom:12px" class="detail-desc-decorate-title">Points to take into consideration in the selection and connection of Current Transformer</p><p style="font-family:OpenSans;font-size:14px;font-weight:300;line-height:20px;white-space:pre-wrap;color:rgb(0, 0, 0);margin-bottom:12px" class="detail-desc-decorate-content">Be sure that the current transformer value is higher than the maximum current drawn from the system.<br/><br/>In order to prevent any mistake while connecting the output terminals of the curent transformer, use cables in different colors for each phase or designate a number for each cable.<br/><br/>Keep the cables connected to the output terminals of the current transformer away from the high-voltage line.<br/><br/>In order to prevent any shake on the current transformer, fix it on the bus-bar, cable or rail.</p></div><div class="detailmodule_text"><p style="font-family:OpenSans;font-size:20px;font-weight:900;line-height:28px;white-space:pre-wrap;color:rgb(0, 0, 0);margin-bottom:12px" class="detail-desc-decorate-title">Maintenance</p><p style="font-family:OpenSans;font-size:14px;font-weight:300;line-height:20px;white-space:pre-wrap;color:rgb(0, 0, 0);margin-bottom:12px" class="detail-desc-decorate-content">Switch off the device and release from connections. Clean the trunk of device with a swab. Don’t use any conductor or chemical might damage the device. <br/>Make sure device works after cleaning.</p></div><div class="detailmodule_text"><p style="font-family:OpenSans;font-size:20px;font-weight:900;line-height:28px;white-space:pre-wrap;color:rgb(0, 0, 0);margin-bottom:12px" class="detail-desc-decorate-title">Specifications</p><p style="font-family:OpenSans;font-size:14px;font-weight:300;line-height:20px;white-space:pre-wrap;color:rgb(0, 0, 0);margin-bottom:12px" class="detail-desc-decorate-content">Operating Voltage(Un).......: 85V - 240V AC<br/>Operating Frequency..........: 50/60 Hz.<br/>Operating Power..................: &lt;10VA<br/>Operating Temperature.....: -20°C.....+55°C<br/>Voltage Input......................: 5V ~ 330V AC<br/>Voltage Meas. Range..........: 5V ~ 330kV<br/>Current Meas. Range...........: 50mA-10000A(EM-07E)(With Standard C.T)<br/>Voltage, Current Accuracy...:%±1<br/>Supported Connection.........:3P4W<br/>Current Transformer Ratio..:1,0...2000(EM-07E)<br/>Voltage Transformer Ratio....:1,0....999,9<br/>Communication....:RS485 MODBUS RTU<br/>Display....:71.5 x 61.5mm Glass LCD<br/>Weigh......................................:&lt;300gr.<br/>Protection Class..:IP41(Font Panel), IP20(Body)<br/>Panel Hole Sizes....................:91mm x 91mm<br/>Connection Type.................: Plug-in terminal<br/>Cable Diameter....................: 1,5mm²<br/>Mounting............: Mounting on panel front cover<br/>Operating Altitude.............: &lt;2000meter</p></div><div class="detailmodule_text-image"><p style="font-family:OpenSans;font-size:20px;font-weight:900;line-height:28px;white-space:pre-wrap;color:rgb(0, 0, 0);margin-bottom:12px" class="detail-desc-decorate-title">Dimensions</p><div></div></div><div class="detailmodule_text-image"></div><div class="detailmodule_text-image"><p style="font-family:OpenSans;font-size:20px;font-weight:900;line-height:28px;white-space:pre-wrap;color:rgb(0, 0, 0);margin-bottom:12px" class="detail-desc-decorate-title">Connection Diagram</p><div></div></div><div class="detailmodule_text-image"></div><p><br/></p>
