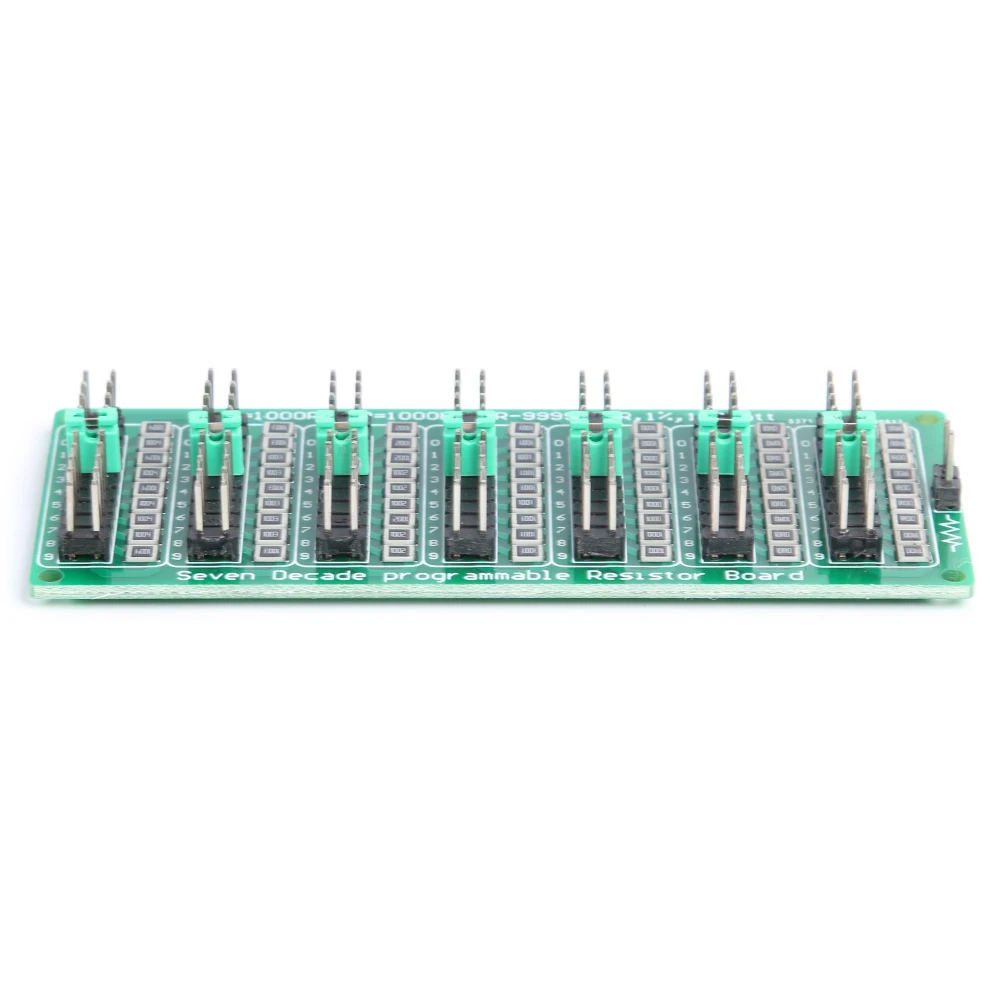

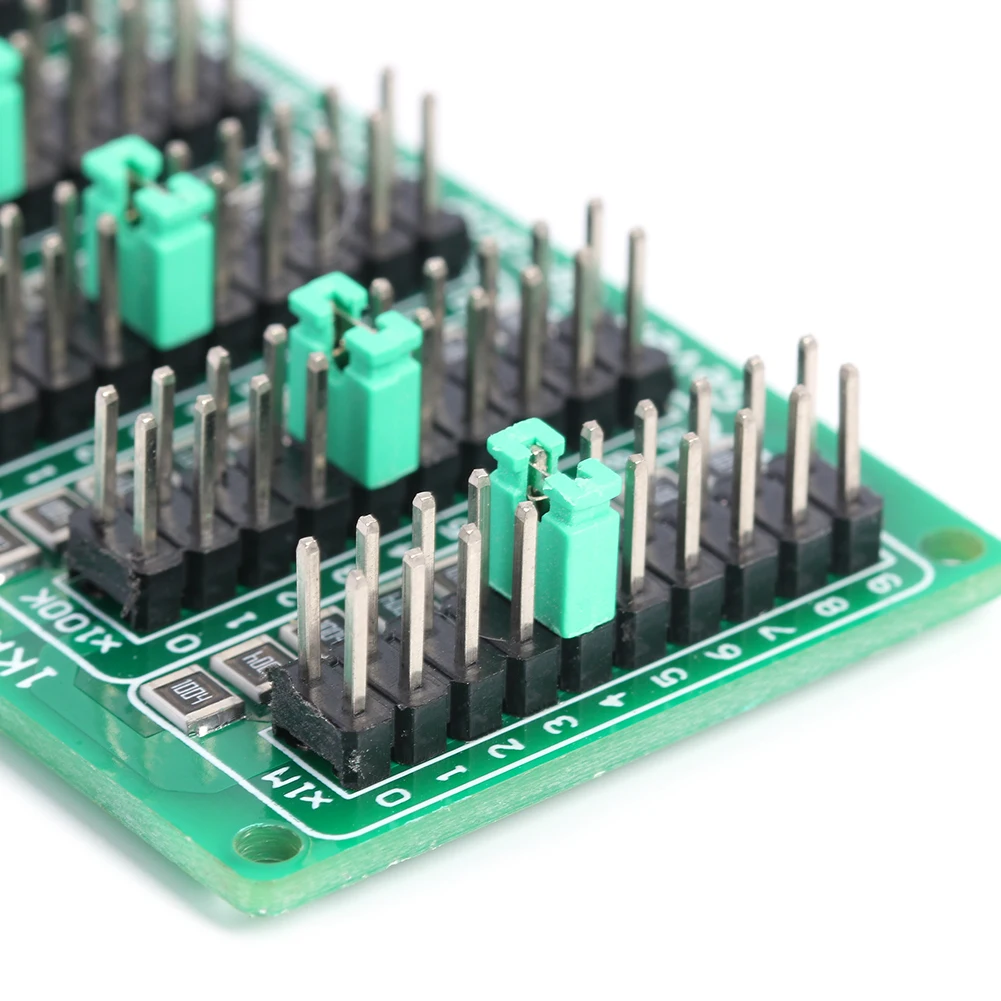

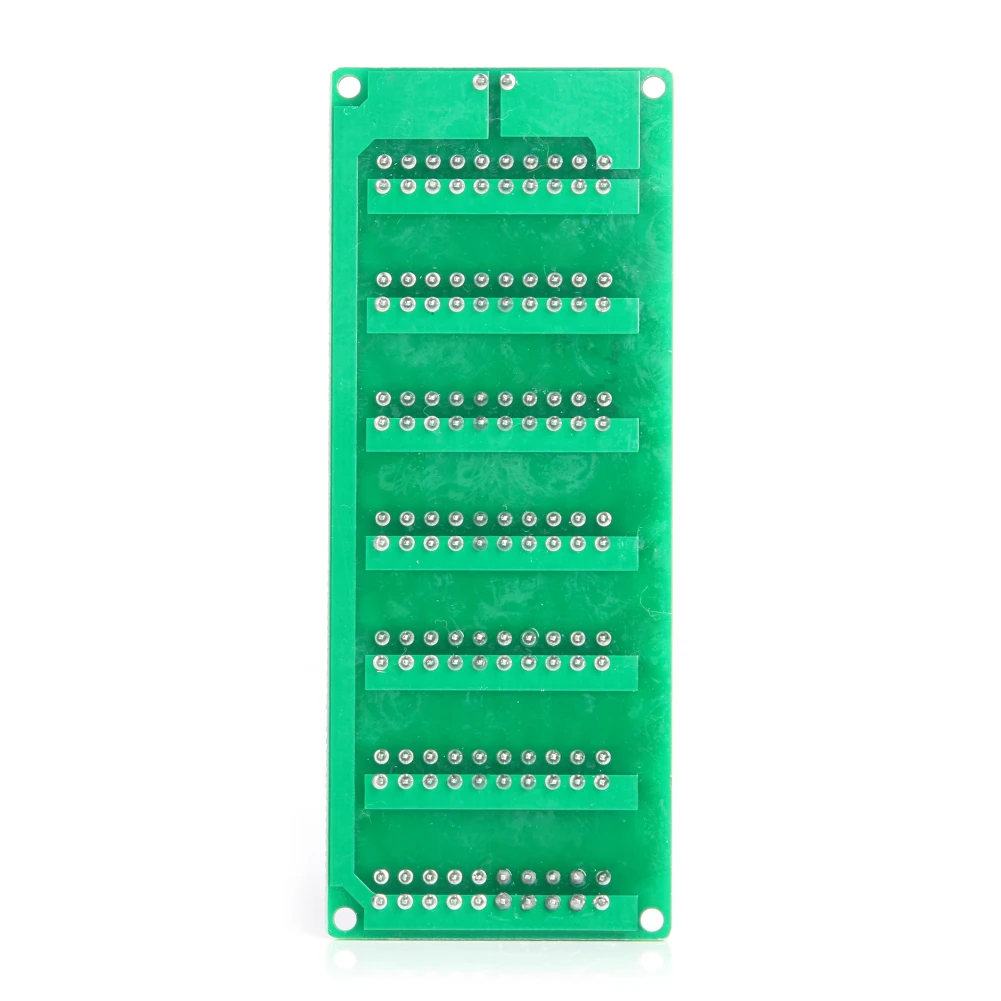

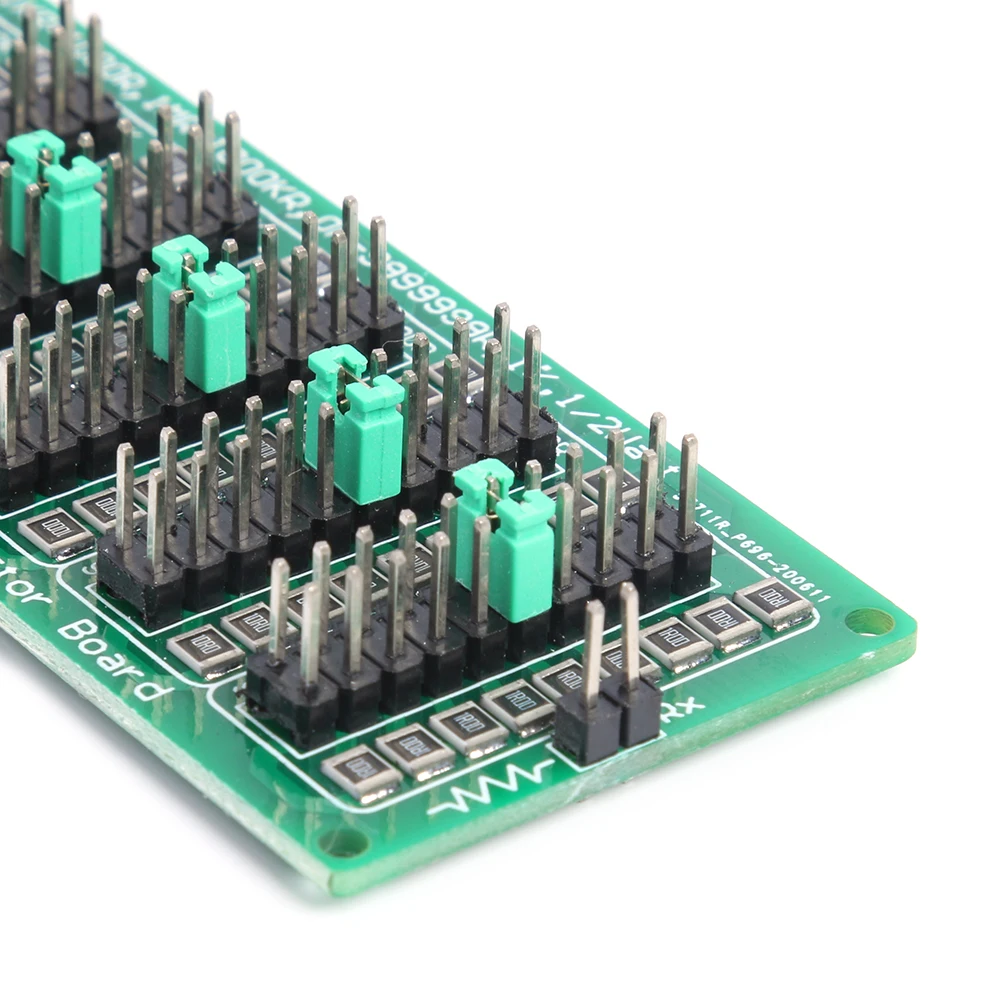

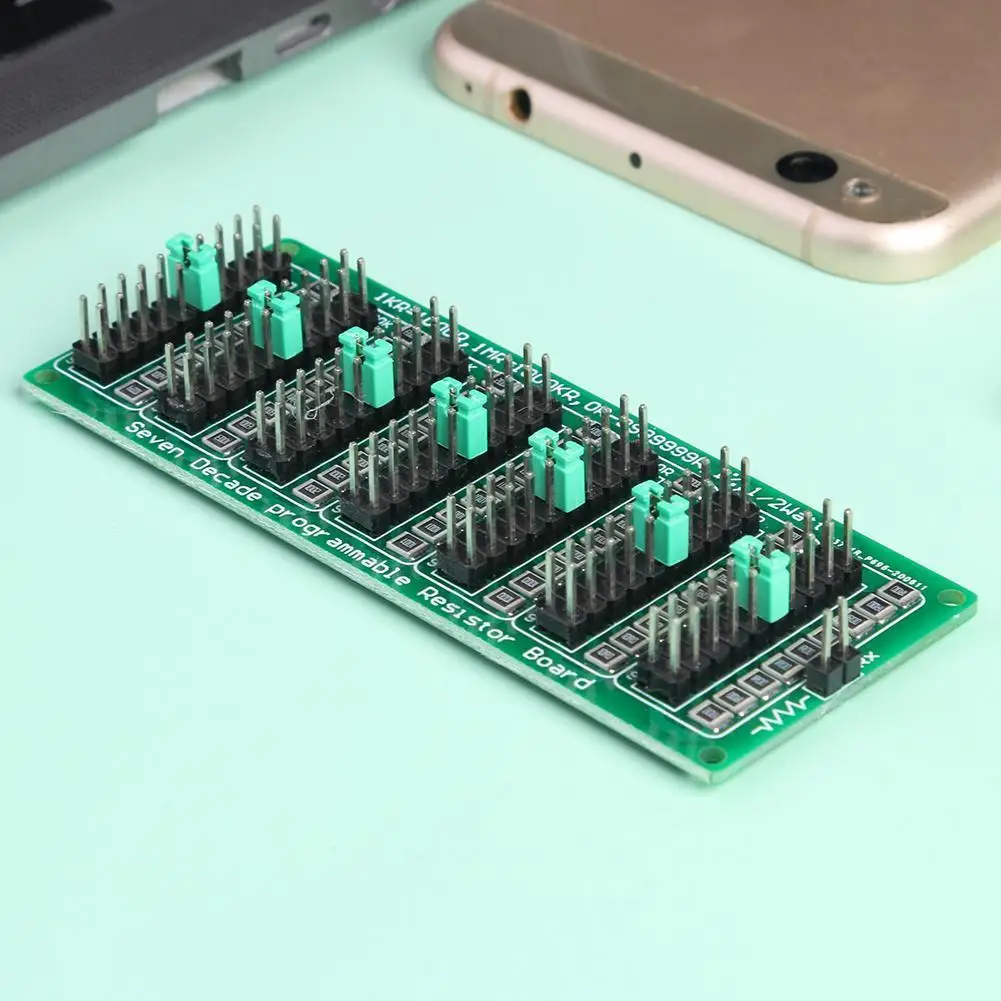

<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><p> <span>&nbsp;<br /> </span> <table class="ke-zeroborder" width="100%" cellspacing="0" cellpadding="0" border="0"> <tbody> <tr> <td> <div> <div> </div> <div style="padding:15px;border:1px solid #AEAEAE;"> Seven Decade Resistor Board 1R-9999999R Step Accuracy 1R 1/2 Watt Programmable Resistance SMD Module&nbsp;<br /> Description:<br /> This is "resistance substitution box" good low-cost alternative solution, can flexible and quick setting resistance range from 1R to 9999999R, step accuracy 1R. for educational experiments, electronic engineering design or test trimming are excellent applications.<br /> <br /> Feature:<br /> Design based on "resistors series" theorem.<br /> 1/2 watt tolerance +/-1% SMD resistors.<br /> High quality FR4 glass fiber PCB.<br /> With spare parts 7 pieces jumper caps&nbsp;<br /> <br /> Specification:<br /> Programmable Resistance: 0 to 9,999,999 ohm, 1 ohm per step.<br /> Resistance Tolerance: ±1%<br /> Rated Power: 1/2W<br /> Maximum Working Voltage: 200V<br /> Product Size: 90 X 35 X 10mm/3.54 X 1.38 X 0.39"<br /> <br /> Note:<br /> 1. Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!<br /> 2. Please allow 1-3mm measuring deviation due to manual measurement.<br />&nbsp;<br /> </div> <div> </div> <div style="padding:15px;border:1px solid #AEAEAE;"> 1 X&nbsp;<span>Programmable&nbsp;</span>Resistor Board&nbsp;<br /> </div> <br /> <div style="text-align:center;"> </div> <br /> <div> <br /> </div> <div> </div> <p> </p> </div> <p> <br /> </p> </td> </tr> </tbody> </table> </p></div></div>
