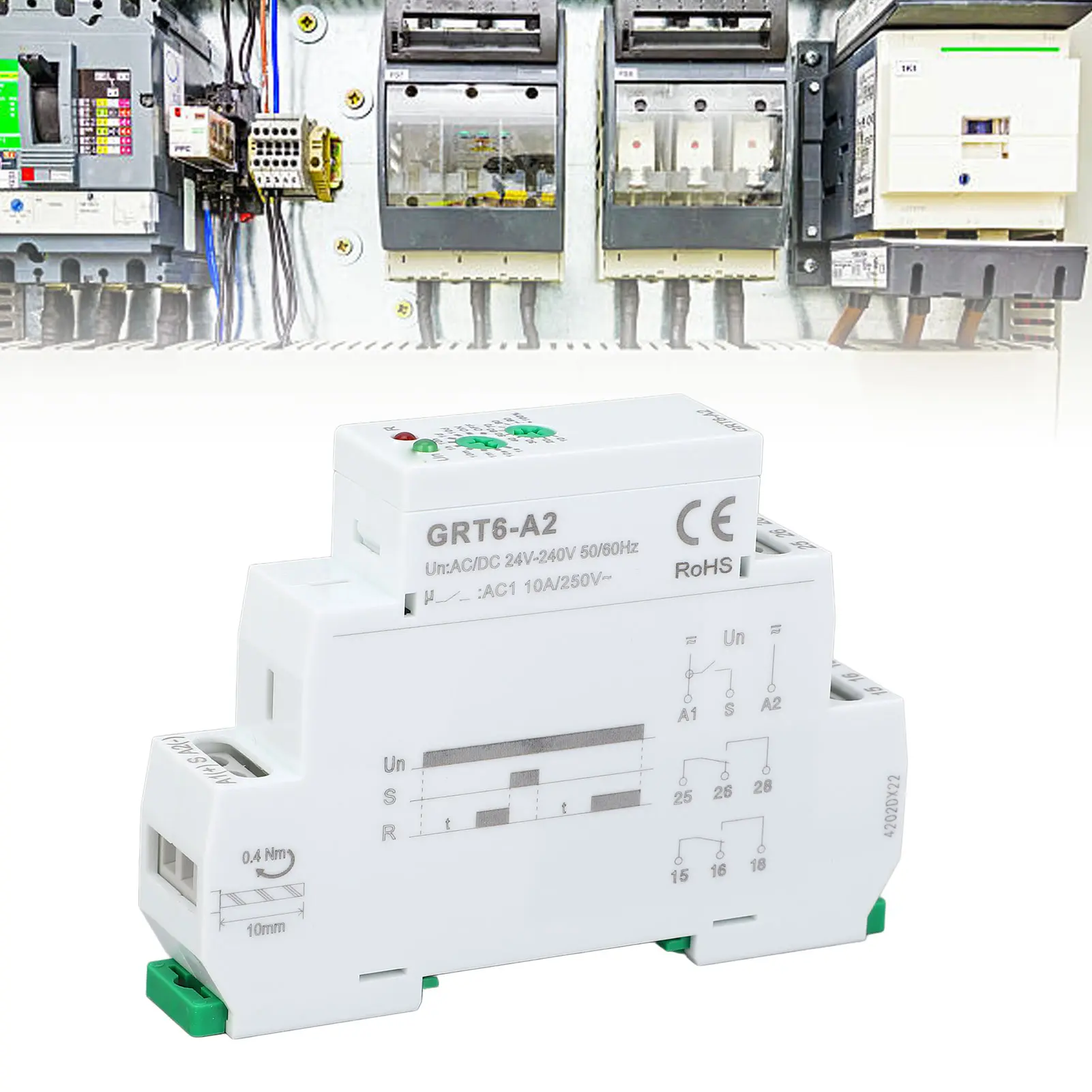

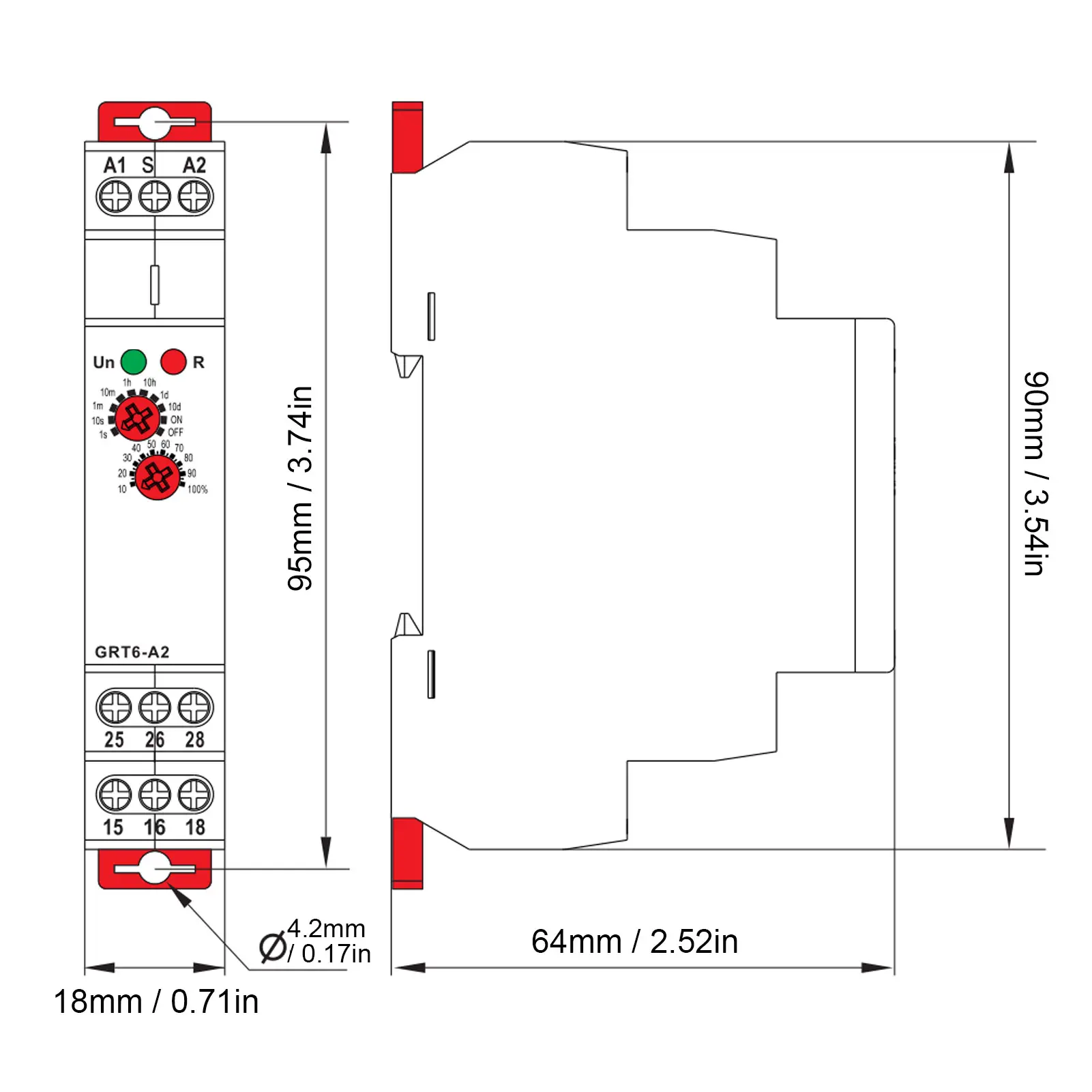

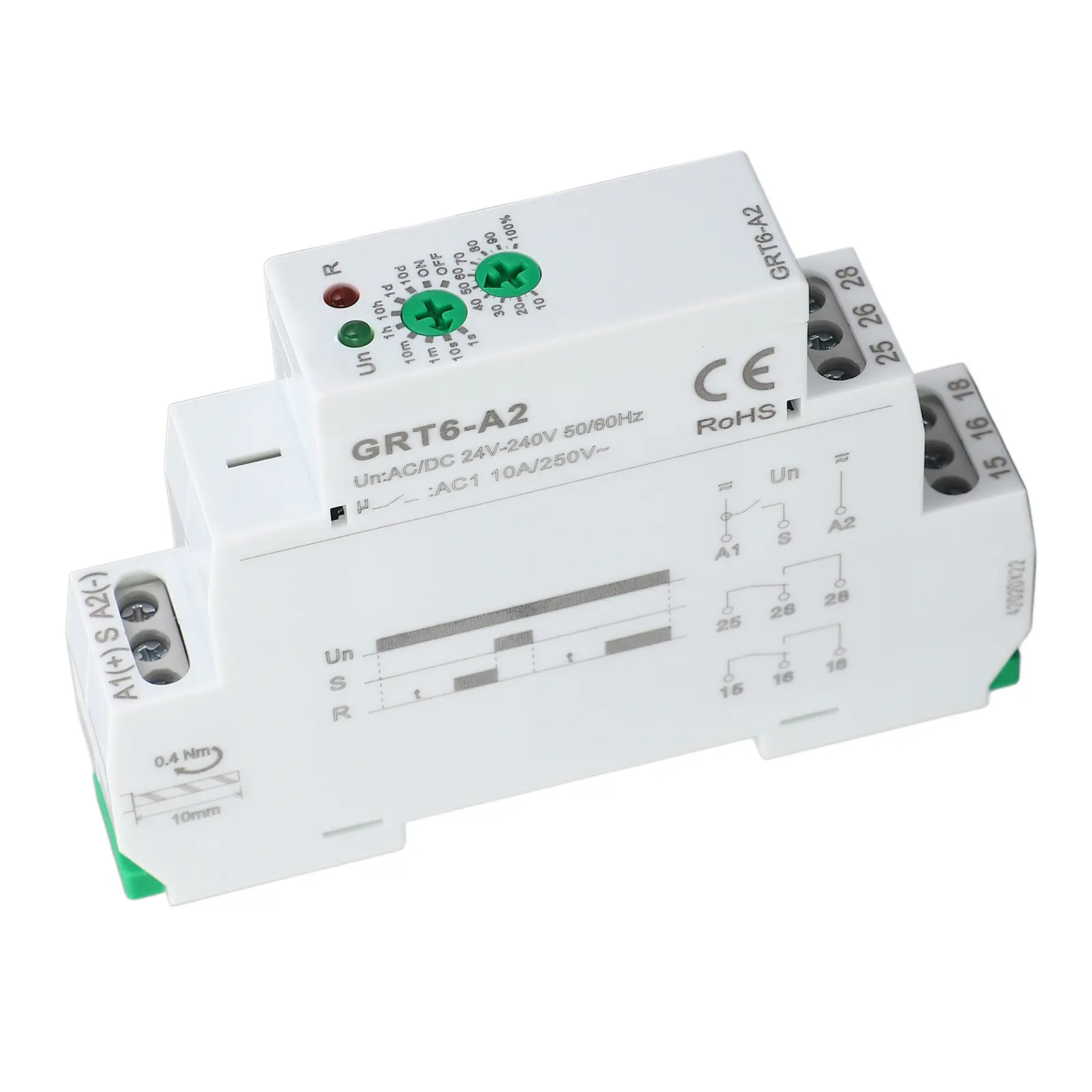

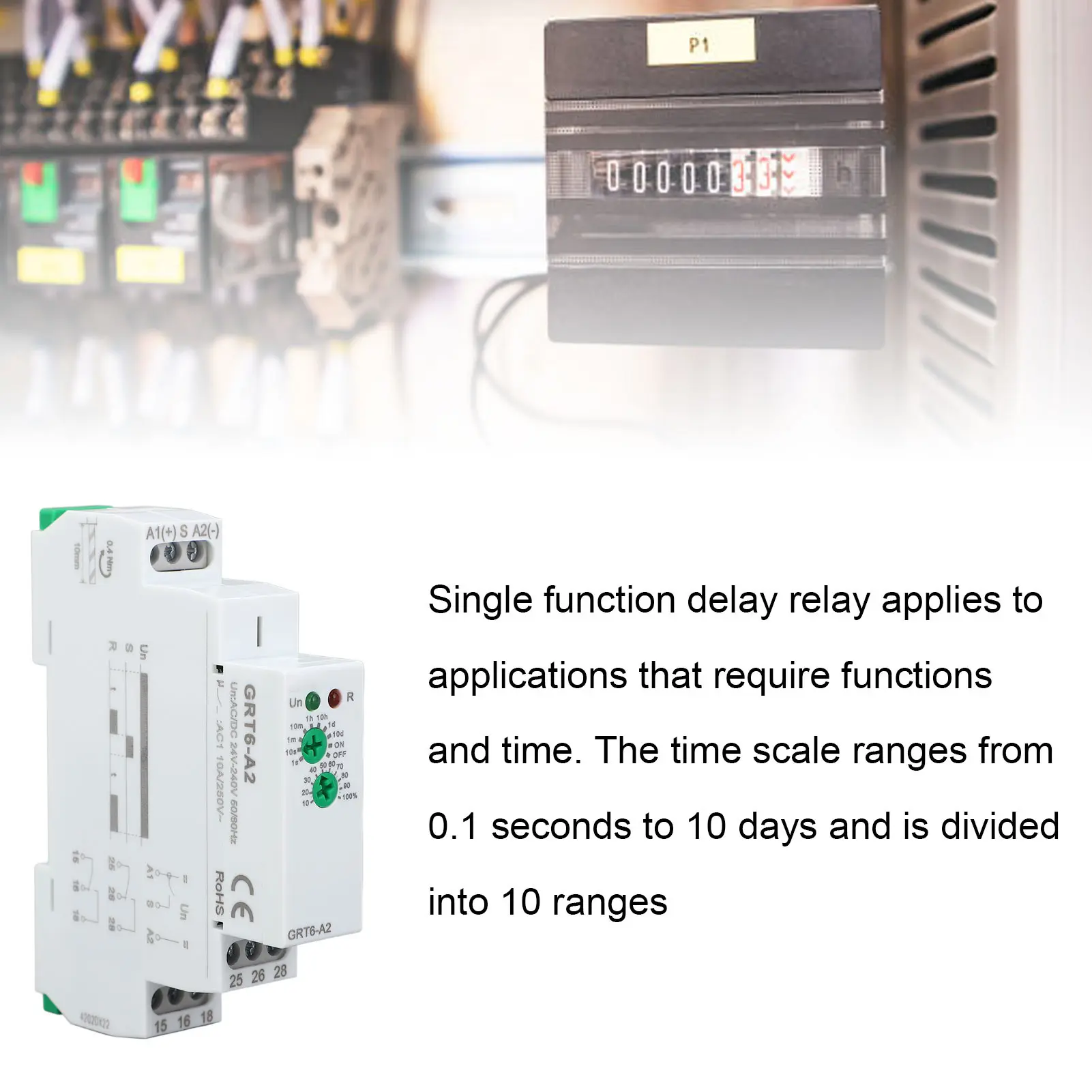

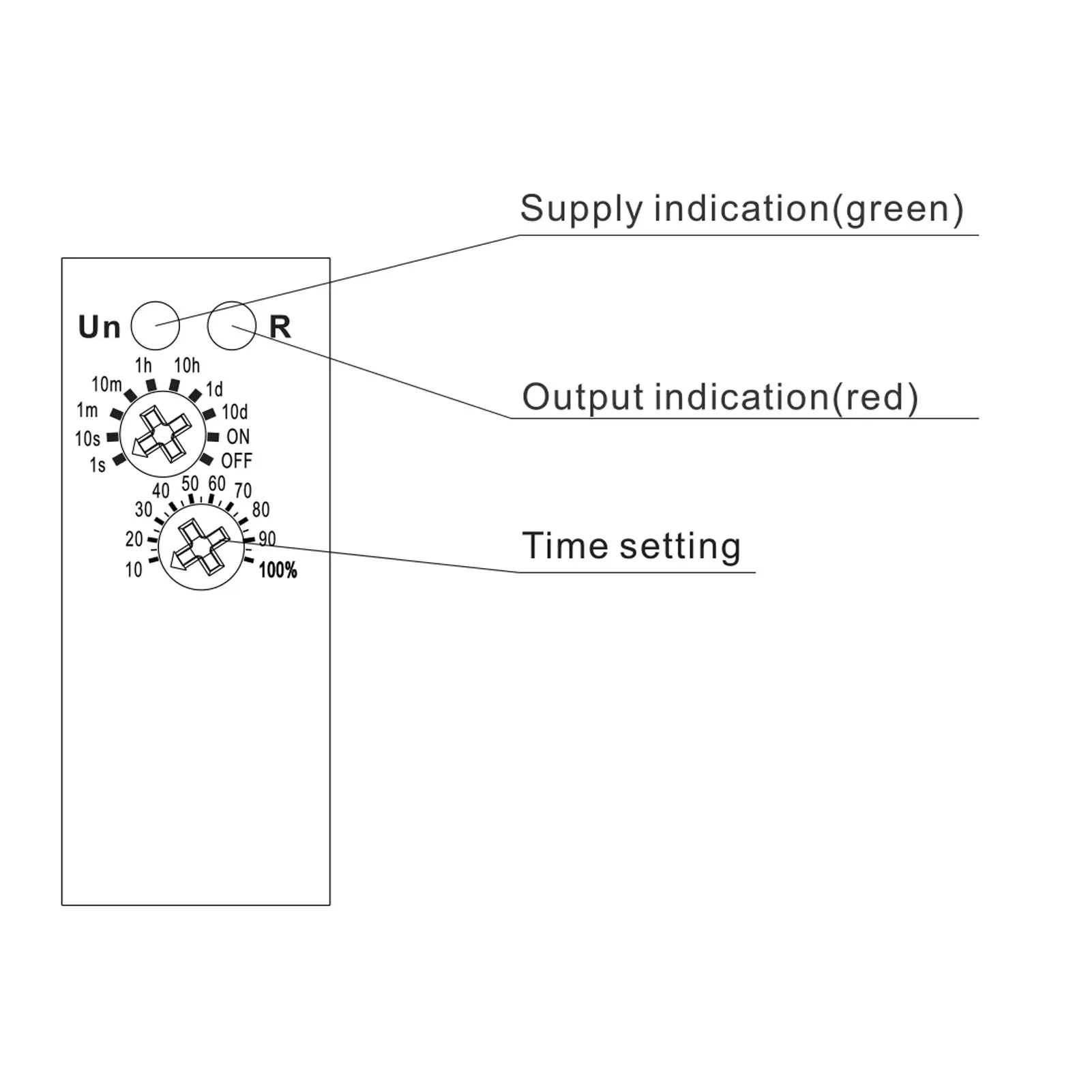

<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><div class="desc"><p><span style="color: var(--w-e-textarea-color);"></span></p><div style="font:Arial;font-size:16px;"><p><b>Feature:</b></p>1. FUNCTIONS AND EFFECTS: Single function time relay is a time switch, can be used to turn off the heating device after the pump attenuation time, fan switch<br/>2. SUPPORT TIMING: Electronic power on timer single function relay, can set time through potentiometer, stable and trusted, you can use with confidence<br/>3. TIME RANGE: Single function delay relay applies to applications that require functions and time. The time scale ranges from 0.1 seconds to 10 days and is divided into 10 ranges<br/>4. DISPLAY AND INSTALLATION: The working status of the relay is clearly displayed by the LED indicator. DIN rail installation, very convenient<br/>5. EASY TO SET: Delay can be set directly through the panel knob, convenient and intuitive, useful and practical, provide great convenience for your life<p><br/></p><p><b>Specification:</b></p>Item Type: Single Function Time Relay<br/>Function: Delay ON<br/>Power Terminals: A1-A2<br/>Voltage Range: AC DC 24-240V (50-60Hz)<br/>Load: AC 0.09-3VA; DC 0.05-1.7W<br/>Power Supply Voltage Tolerance: -15%; +10%<br/>Power Indication: Green LED<br/>Time Range: 0.1s-10days, ON, OFF<br/>Time Setting: Potentiometer<br/>Time Deviation: 10%: Mechanical setting<br/>Repeat Accuracy: 0.2%: Set value stability<br/>Temperature Coefficient: 0.05% ℃, at 20℃ (0.05% ℉, at 68℉)<br/>Output: 2 x SPDT<br/>Current Rating: 10A AC1<br/>Switching Voltage: 250VAC, 24VDC<br/>DC Minimum Breaking Capacity: 500mW<br/>Output Indication: Red LED<br/>Mechanical Life: 10000000<br/>Electrical Life (AC1): 100000<br/>Reset Time: Maximum 200ms<br/>Operating Temperature: -20℃ to +55℃ (-4℉ to 131℉)<br/>Storage Temperature: -35℃ to +75℃ (-22℉ to 158℉)<br/>Installation or Rail: Protecting Class EN/IEC60715<br/>Protecting Class: Front panel IP40, Terminal IP20<br/>Operating Position: Any<br/>Overvoltage Category: 3<br/>Maximum Cable Size (mm²): Solid wire maximum 1x2.5 or 2x1.5; with sleeve maximum 1x2.5 (AWG12)<br/>Tightening Torsion: 0.4Nm<br/><p><br/></p><p><b>Package List:</b></p><p>1 x Time Relay<br/>1 x User Manual</p><p><br/></p><p><b>Note:</b></p><div>1. The product must be installed by a qualified electrician.</div><div>2. All electrical connections of the product must conform.</div><div>3. All and any electrical connections of the product must comply with the appropriate safety standards.</div></div>:<br/><p><br/>:<br/></p><p><br/></p></div></div></div>
