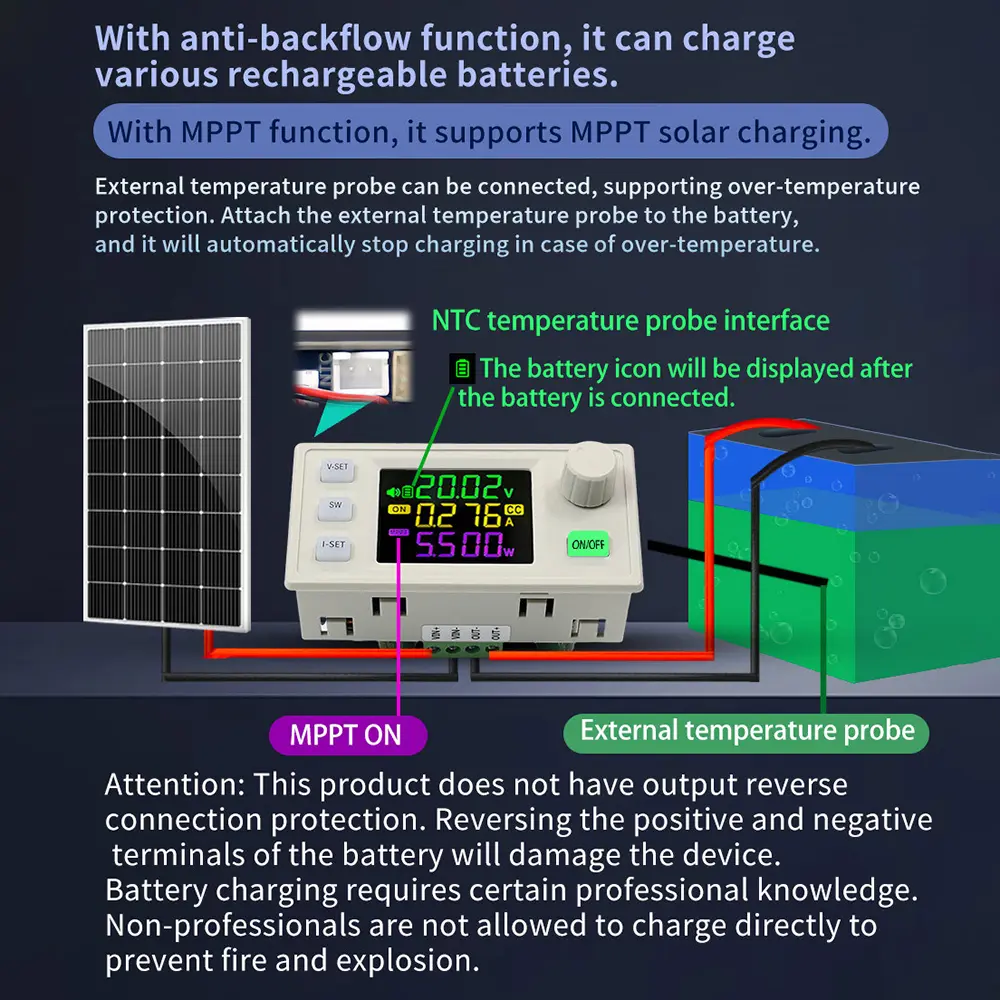

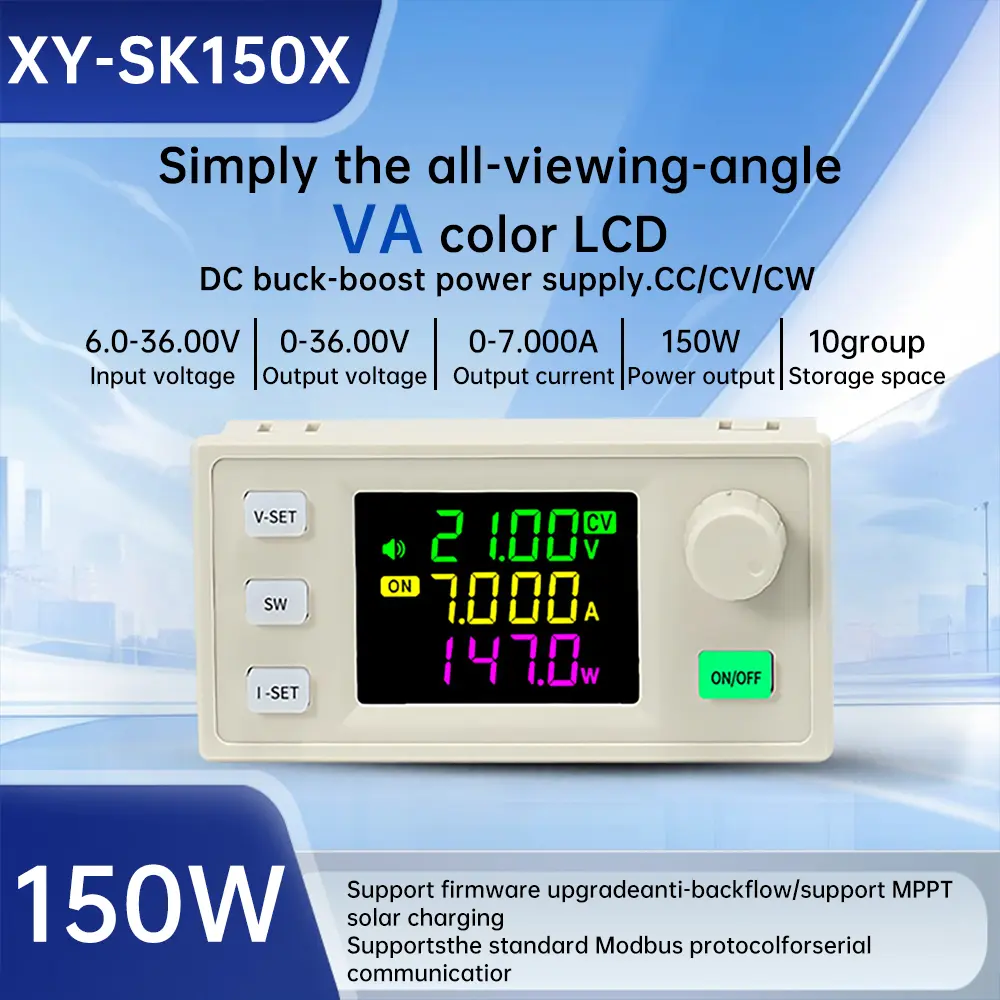

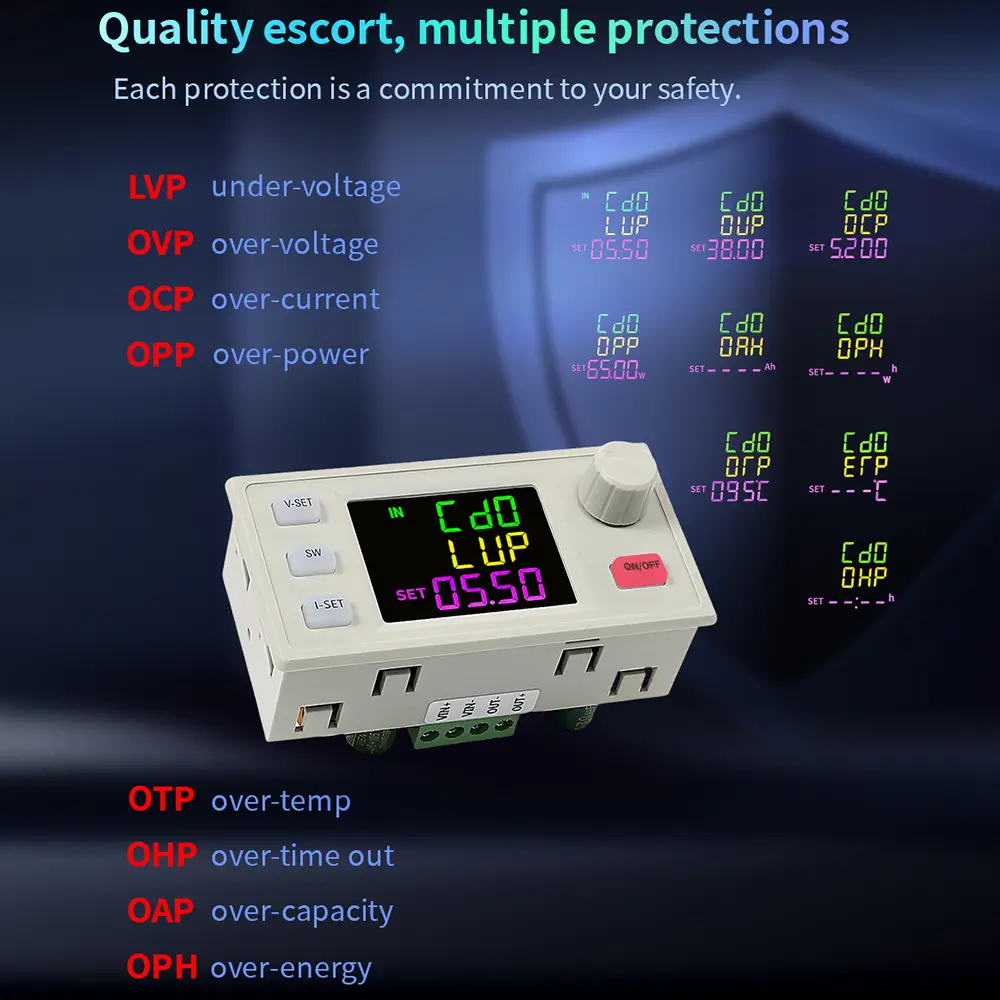

<div class="detailmodule_dynamic"><kse:widget data-widget-type="customText" id="1005000013403607" type="relation"></kse:widget></div><div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><div><br/>Features:<br/>1.X series products use silicone buttons, comfortable hand feeling, each button with cool indicator light<br/>2.Strict performance test and aging test to ensure the reliability and stability of the product.<br/>3. Support up to 150W output power, to meet the power needs of high-power devices.<br/>4. Built-in buzzer, key prompts, alarm prompts, safer and more secure use.<br/>5. Through the key control to realize precise voltage and current adjustment, the adjustment accuracy is as high as 0.01V/0.001A.<br/>6. Wide range of applications, with MPPT function, support MPPT solar charging, can be connected to external temperature probe to support over-temperature protection.<br/></div><p>Parameter:<br/>Input voltage: 6.0~36V<br/>Output current: 0~7.000A<br/>Output power: 150W<br/>Voltage resolution: 0.01V<br/>Conversion efficiency: 88% or so<br/>Output Voltage: 0~36V<br/>Voltage accuracy: ±0.5%+1 word<br/>Current accuracy: ±0.5%+3 words<br/>Current resolution: 0.001A<br/>Storage data group: 10 groups<br/>MPPT function: support MPPT solar charging<br/>Buzzer: Yes<br/>Soft start: Yes</p><div><br/></div><p>Protection mechanism:<br/>Input anti-reverse connection: Yes<br/>Output anti-reverse: Yes<br/>Input undervoltage protection: 5.5-36V adjustable, default 5.5V<br/>Output over-voltage protection: 0-38V adjustable, default 38V<br/>Output overcurrent protection: 0 -7.2A adjustable, default 7.2A<br/>Output over power protection: 0-180W adjustable, default 160W<br/>Over-temperature protection: 0-110°C adjustable, default 95°C<br/>Timeout protection: 1 minute -99 hours and 59 minutes, default off<br/>Over capacity protection: 0~9999AH adjustable, default off<br/>Super energy protection: 0~9999KWH adjustable, default off</p><div><br/></div><p>Package include:<br/>Adjustable boost and buck module *1<br/></p></div></div><p><br/></p>
