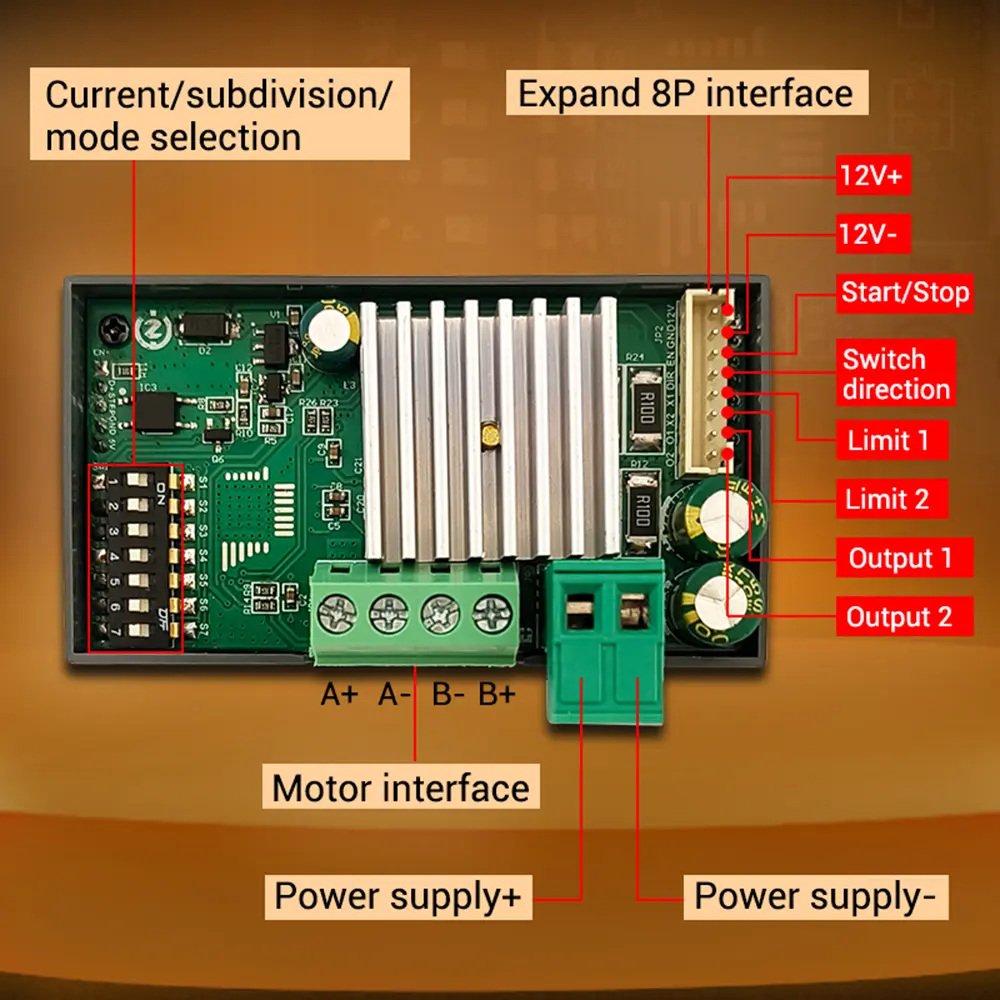

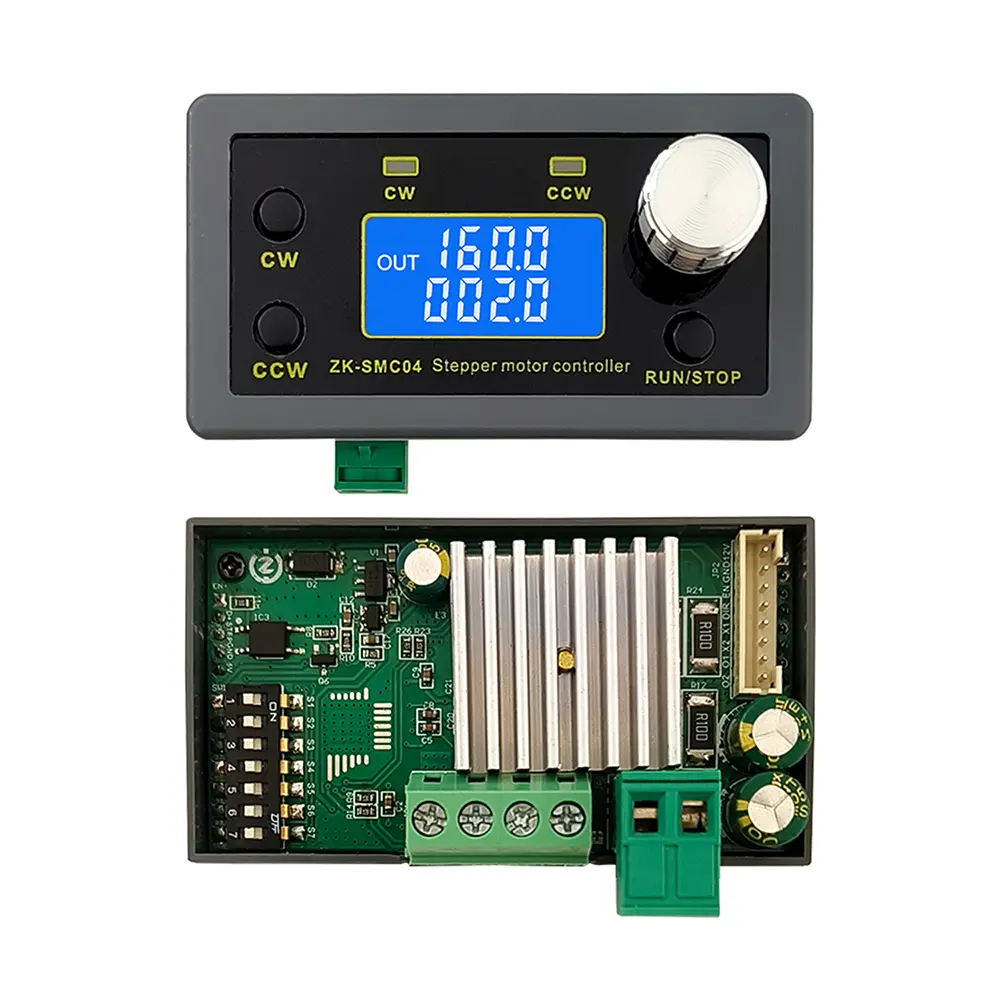

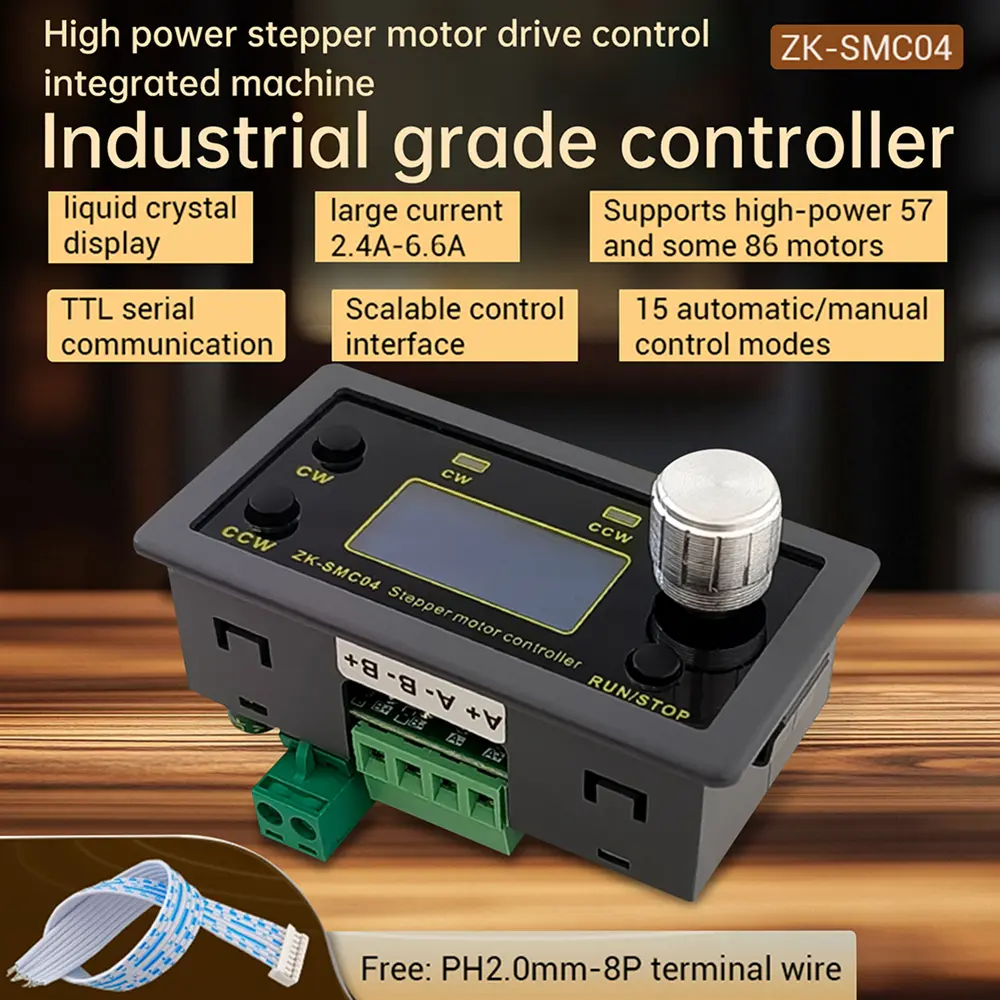

<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><p>Features:<br/>1. High-performance integrated design, integrated driver and controller, space-saving, convenient installation<br/>2. Support 42/57 specification stepper motor, adapt to a variety of applications to meet different needs.<br/>3. Forward and reverse free switching, accurate control of motor running direction, strong flexibility.<br/>4. Support TTL serial communication protocol, strong compatibility, easy to connect with the main control equipment debugging<br/>5. High-power drive design, stable and reliable output, suitable for high load working environment.</p><p>Parameter:<br/>Applicable motors: 42, 57, 86 stepper motor<br/>Control axis: single axis<br/>Motor Signal: Common Yin<br/>Power supply range: DC10-30V universal<br/>Driving capacity: peak 6.6A<br/>Pulse frequency: up to 200KHZ<br/>Instruction characteristics: streamline and optimize many common instructions<br/>Acceleration and deceleration control: Yes<br/>Input reverse connection protection: Yes<br/>Remote communication control: TTL serial port<br/>System main functions: automatic, manual, setup, serial port control<br/>Speed range: 0.1-999 revolutions/minute<br/>Number of forward rotation pulses: 1-9999999 pulses<br/>Number of reversal pulses: 1-9999999 pulses<br/>Cycle working times: 1-9999 times<br/>Forward rotation delay time: 0.0-999.9 seconds<br/>Reverse delay time: 0.0-999.9 seconds</p><p>Product Description: This is a special operation control module for single-axis two-phase four-wire stepper motor. The module is built-in a variety of fixed operation modes, the user can quickly select the appropriate motion trajectory. It can save and set the distance/speed/delay/cycle times after power down. It can be run independently as a module or used together with other systems. Can be used in general industrial control occasions, can not be used in medical, fire and other special industries or life-critical areas.</p><p>Package include:<br/>Motor controller *1<br/>PH2.0-8P terminal cable*1<br/></p></div></div><p><br/></p>
