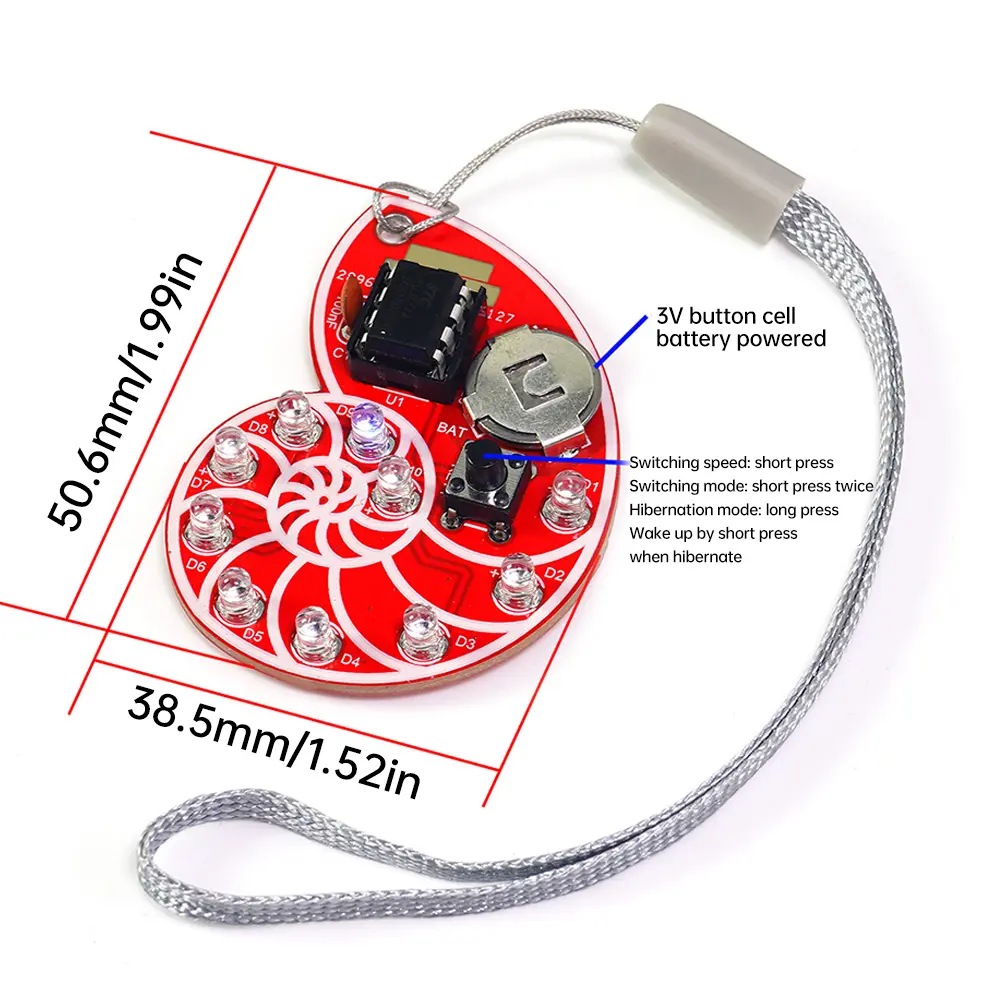

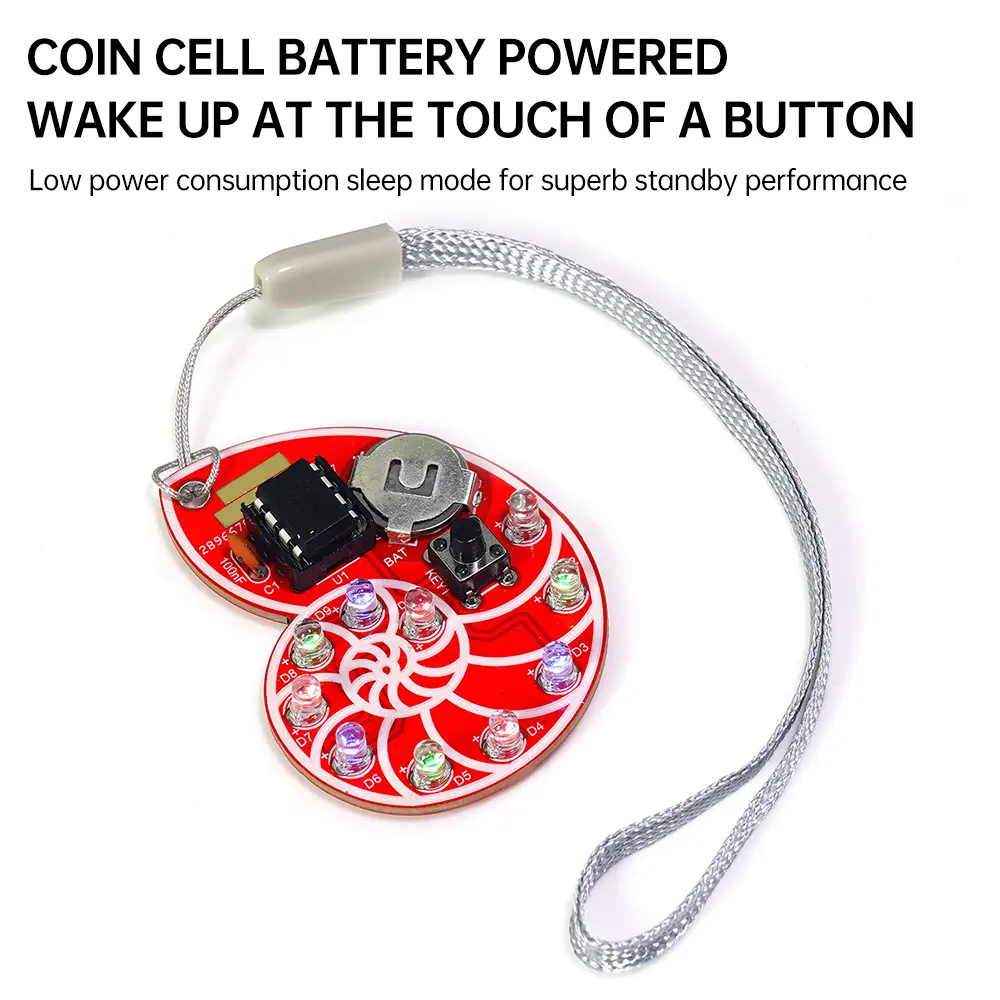

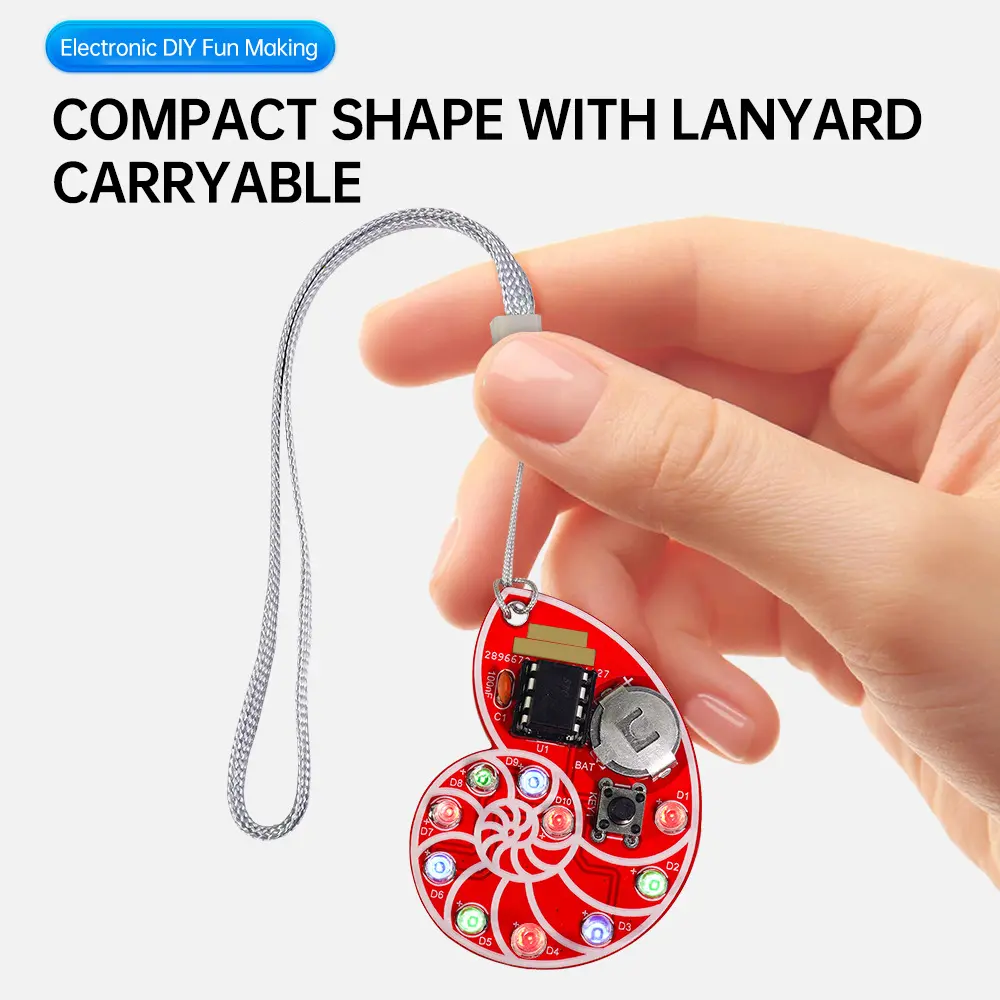

<div class="detailmodule_dynamic"><kse:widget data-widget-type="customText" id="1005000000542054" type="relation"></kse:widget></div><div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><div><br/>Features： <br/>1. Choose from seven lighting modes at will <br/>2. Button switching mode <br/>3. Press the button to switch the light speed <br/>4. Low power sleep mode achieves super standby capability <br/>5. Key wake-up function <br/>6. Exquisite and compact, paired with button batteries, can be carried around <br/>7. Seven lighting modes and six lighting speeds, short press the button once to change the lighting speed, short press the button twice to change the lighting mode</div><div><br/></div><p>Parameter： <br/>Kit Name: LED Shell Flow Light Production Kit <br/>Power supply mode: 3V button battery <br/>Working current: 0.5mA@3V (All lights are on) 0.19mA@3V (One light is on) <br/>Maximum current: 1.5mA@3V (At startup) <br/>Sleep mode current: 0.4uA@3V <br/>LED display refresh rate: around 245Hz <br/>PCB size: 38.5mm * 50.6mm <br/>Six types of light speeds <br/>Short press KEY1 to switch the speed of the light change. There are six gears for the speed change, which are: <br/>1000ms, 500ms, 100ms, 50ms, 20ms, 10ms <br/>The speed changes from high to low with each press of the button, and there is a power down saving function <br/>Display of seven lighting modes: <br/>Short press KEY1 twice in a row to switch modes, with a total of seven modes and a power failure saving function <br/>Mode 1: Switching between D1-D10 in sequence <br/>Mode 2: Switching between D1-D10 in sequence, and then switching between D10-D1 in sequence <br/>Mode 3: Red light (D1D4D7D10), green light (D2D5D8), blue light (D3 D6 D9) switch in sequence <br/>Mode 4: The red light (D10) is always on, and D9-D1 switches sequentially <br/>Mode 5: Three lights D1-D10 light up simultaneously and switch sequentially <br/>Mode 6: Switching between D1-D10 in sequence, switching to the last light that stays on and stays on in sequence <br/>Mode 7: Six modes. Each mode is displayed twice and then switched sequentially</p><p><br/>Package Include: <br/>1XDIY kit (without battery)<br/></p></div></div><p><br/></p>
