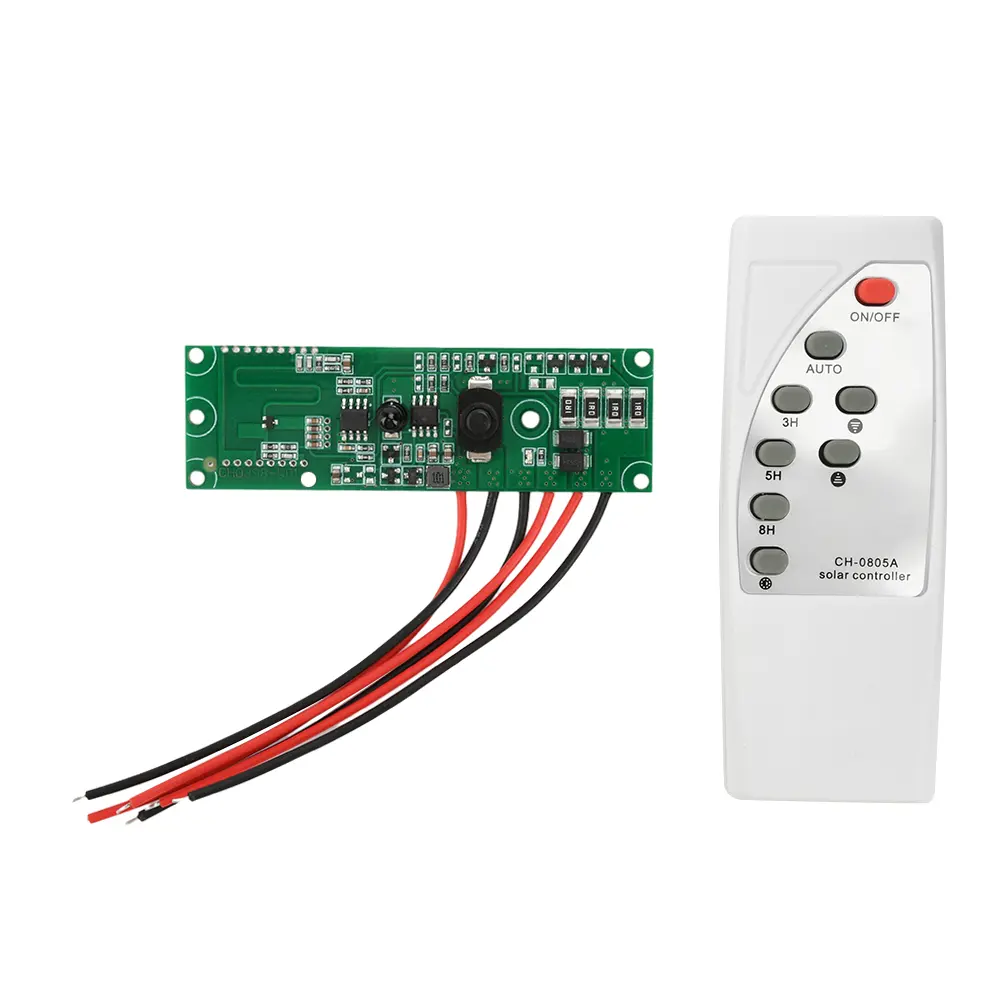

<div class="detailmodule_dynamic"><kse:widget data-widget-type="customText" id="1005000000542054" type="relation"></kse:widget></div><div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><div><br/>Features: <br/>1.Compatible with 3.2v lithium iron phosphate batteries and 3.7v lithium batteries<br/>2.Can be used for retrofitting or repairing solar integrated street lights<br/>3.Microwave induction fully lit for 10 seconds, then turned to slightly lit<br/>4 Multi mode low light long light, can be timed<br/>5.Easy and convenient to use, suitable for various diy operations</div><p>Parameters:<br/>Red board<br/>Rated voltage: 3.2v/3.7v<br/>Application led voltage: 2.8v-3.3v<br/>Power:&lt; 10w (falsely labeled 60w on the market)<br/>Maximum input of solar panel: 5v-6v&lt;30w<br/>Induction method: light controlled induction+radar human body induction<br/>Sensing time: high brightness for about 10 seconds+low brightness for long on/off<br/>Sensing distance: about 5-10 meters<br/>Function: timed radar conversion function<br/>Module size: 65mm*20mm<br/>Remote control size: 104mm*37.5mm<br/>Function: timed rear shell to radar function</p><p>Green board<br/>Rated voltage: 3.2v/3.7v<br/>Application led voltage: 2.8v-3.3v<br/>Led power:&lt; 8w (falsely labeled 60w on the market)<br/>Maximum input of solar panel: 5v-6v&lt;20w<br/>Induction method: light controlled induction+radar human body induction<br/>Sensing time: high brightness for about 10 seconds+low brightness for long on/off<br/>Induction method: microwave radar induction<br/>Sensing distance: about 5-10 meters<br/>Module size: 84mm*25mm<br/>Remote control size: 104mm*37.5mm<br/>Function: after timing, only brightness can be adjusted and cannot switch to radar mode</p><p>Instructions:<br/>Please connect the battery first, then the led light, and finally the solar panel. This control board does not have overcharge or overdischarge protection. Please install a protective board on the battery to prevent overcharge or overdischarge;<br/>This control board does not come with overcharge or over discharge protection connecting the battery requires the battery to come with a protective board, compatible with 3.2v lithium iron phosphate batteries and 3.7v lithium batteries, which can be used for solar integrated street light modification or maintenance.<br/>Microwave induction fully lit for 10 seconds and then turned to slightly lit, the remote control provided with this product does not have a battery installed inside you need to purchase a no. 7 battery locally for use.<br/><br/>Testing precautions:<br/>1.When testing the sensing mode, there should be no moving objects, including hands and feet, within 12 meters around, otherwise they will be detected<br/>2.When multiple sensing modules are together, mutual interference may occur, resulting in insensitive sensing or false triggering<br/>3.The surface of the patch part is the emitting surface, and no adhesive or glue can be stuck on this side, otherwise it will cause a shorter sensing distance<br/>4.The distance between the front and back of the sensor and the metal should not be less than 2cm<br/>5.The surface of the surface mounted component must not be obstructed by metal, otherwise the detection signal cannot be transmitted, resulting in a shorter sensing distance<br/>6. Inductive signals can penetrate glass and plastic walls, etc.</p><p>Package include:<br/>Module*1<br/>Remote control (excluding battery)*1<br/></p></div></div><br/>
