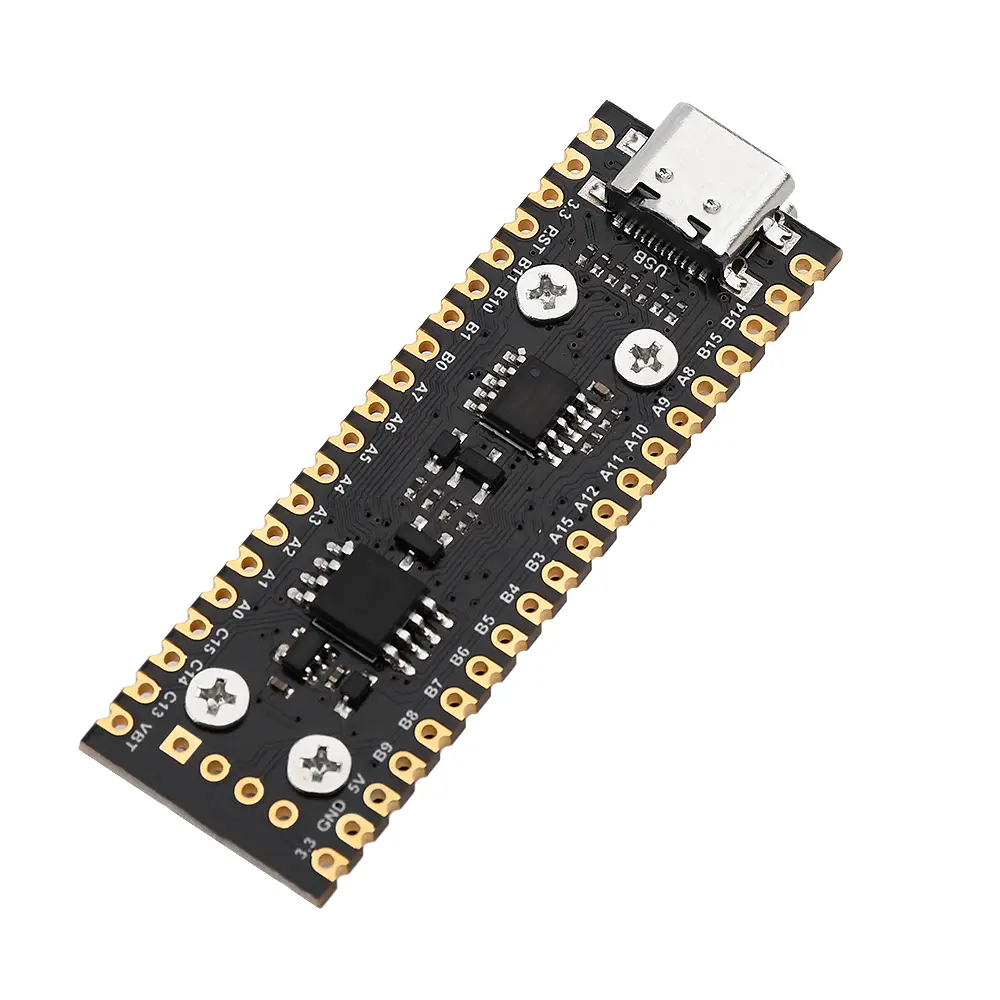

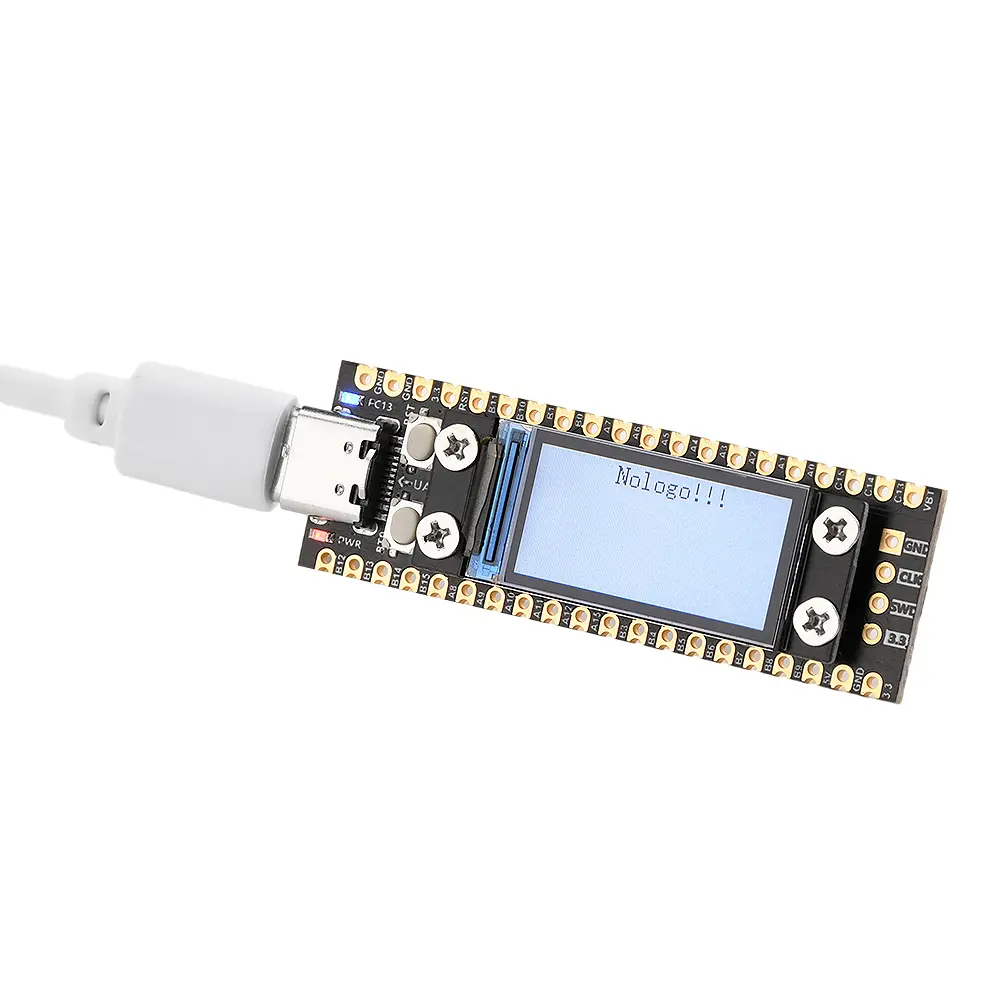

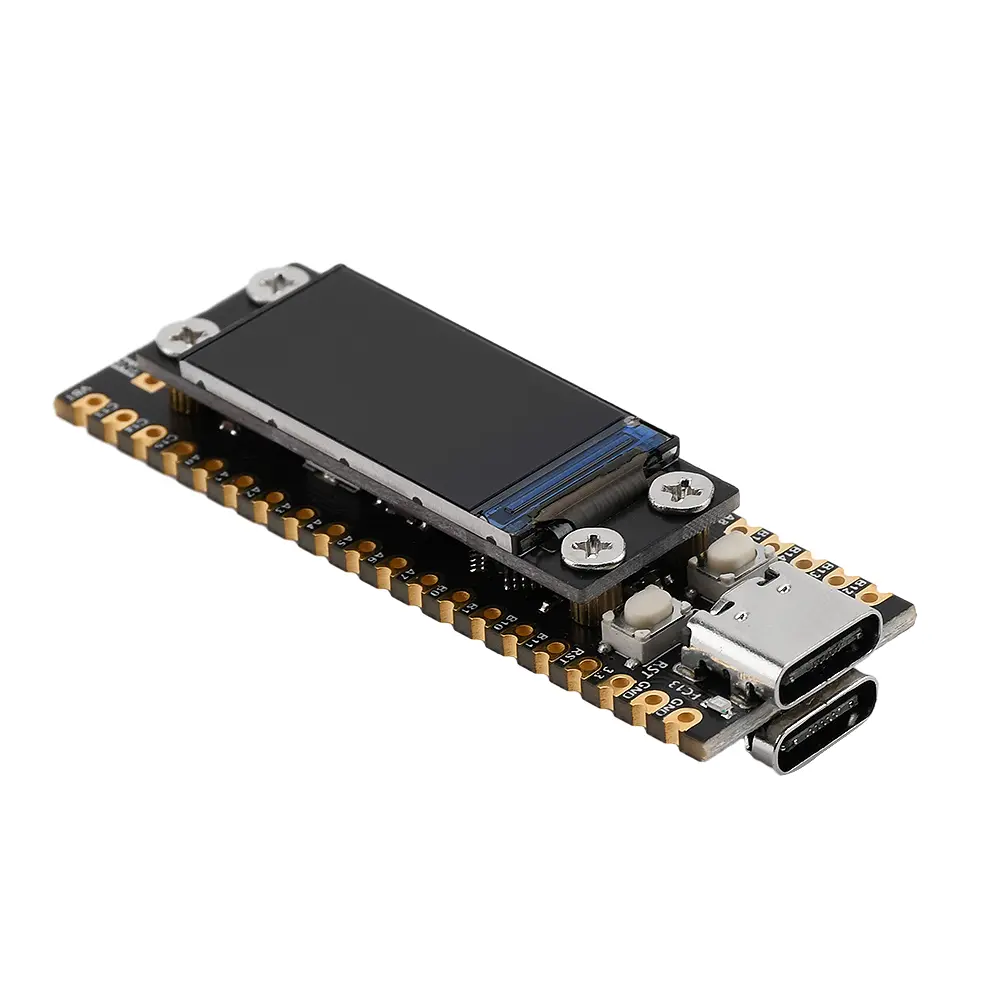

STM32F103C6T6/C8T6 Minimum System Board with 0.96-inch LCD TFT LCD Microcontroller Development Board C6T6 Core
<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><p>Features:<br/>1. This product is a 32-bit microcontroller based on the Cortex-M3 kernel, providing high operating frequency and powerful performance. <br/>2. The main frequency of the chip used is as high as 72MHz, and it has very rich on-chip resources, which can fully meet the needs of STM32 learning. <br/>3. The built-in flash memory integrates Flash memory for storing code and programs, with excellent performance, abundant resources, and ultra-high cost-effectiveness. <br/>4. Multiple GPIOs with multiple universal input/output pins (GPIOs) for connecting external devices. <br/>5. It has a wide range of applications, including but not limited to industrial automation, automotive electronics, household appliances, medical equipment, smart homes, and embedded systems.</p><p>Parameter: <br/>Style 1: STM32F103C8T6: <br/>Main control chip: STM32F103C8T6 <br/>Input voltage: USB 5V <br/>Output voltage: 3.3V/5V <br/>3V3/5V maximum power supply current: 500MA <br/>Timer: 4 <br/>Serial port: 3 <br/>USB function: 1 <br/>SRAM[KB]：20KBytes <br/>Flash[KB]：64KBytes <br/>Download method: SWD, serial port download <br/>Style 2: STM32F103C6T6: <br/>Main control chip: STM32F103C6T6 <br/>Input voltage: USB 5V <br/>Output voltage: 3.3V/5V <br/>3V3/5V maximum power supply current: 500MA <br/>Timer: 3 (without timer 4) <br/>Serial port: 2 (without serial port 3) <br/>USB function: 1 <br/>SRAM[KB]：10KBytes <br/>Flash[KB]：32KBytes <br/>Download method: SWD, serial port download</p><p>Suggestion: <br/>1. The Flash of the program is less than 32K, the RAM is less than 10K, and STM32F103C6T6 can be used instead of timer 4 and serial port 3, which has a price advantage. <br/>CH32F103C8T6 belongs to the enhanced F103C8T8, with built-in USB download function, no need for additional downloaders, excellent performance, abundant resources, and ultra-high cost-effectiveness.</p><p>Package include: <br/>1X development board <br/>3X Pin Headers<br/><br/></p></div></div><p><br/></p>
$16.16
$10.22
- Category : Home Improvement
- Brand : z_industry_store Z Industry Store
Colors
Sizes
-
+
<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><p>Features:<br/>1. This product is a 32-bit microcontroller based on the Cortex-M3 kernel, providing high operating frequency and powerful performance. <br/>2. The main frequency of the chip used is as high as 72MHz, and it has very rich on-chip resources, which can fully meet the needs of STM32 learning. <br/>3. The built-in flash memory integrates Flash memory for storing code and programs, with excellent performance, abundant resources, and ultra-high cost-effectiveness. <br/>4. Multiple GPIOs with multiple universal input/output pins (GPIOs) for connecting external devices. <br/>5. It has a wide range of applications, including but not limited to industrial automation, automotive electronics, household appliances, medical equipment, smart homes, and embedded systems.</p><p>Parameter: <br/>Style 1: STM32F103C8T6: <br/>Main control chip: STM32F103C8T6 <br/>Input voltage: USB 5V <br/>Output voltage: 3.3V/5V <br/>3V3/5V maximum power supply current: 500MA <br/>Timer: 4 <br/>Serial port: 3 <br/>USB function: 1 <br/>SRAM[KB]：20KBytes <br/>Flash[KB]：64KBytes <br/>Download method: SWD, serial port download <br/>Style 2: STM32F103C6T6: <br/>Main control chip: STM32F103C6T6 <br/>Input voltage: USB 5V <br/>Output voltage: 3.3V/5V <br/>3V3/5V maximum power supply current: 500MA <br/>Timer: 3 (without timer 4) <br/>Serial port: 2 (without serial port 3) <br/>USB function: 1 <br/>SRAM[KB]：10KBytes <br/>Flash[KB]：32KBytes <br/>Download method: SWD, serial port download</p><p>Suggestion: <br/>1. The Flash of the program is less than 32K, the RAM is less than 10K, and STM32F103C6T6 can be used instead of timer 4 and serial port 3, which has a price advantage. <br/>CH32F103C8T6 belongs to the enhanced F103C8T8, with built-in USB download function, no need for additional downloaders, excellent performance, abundant resources, and ultra-high cost-effectiveness.</p><p>Package include: <br/>1X development board <br/>3X Pin Headers<br/><br/></p></div></div><p><br/></p>
