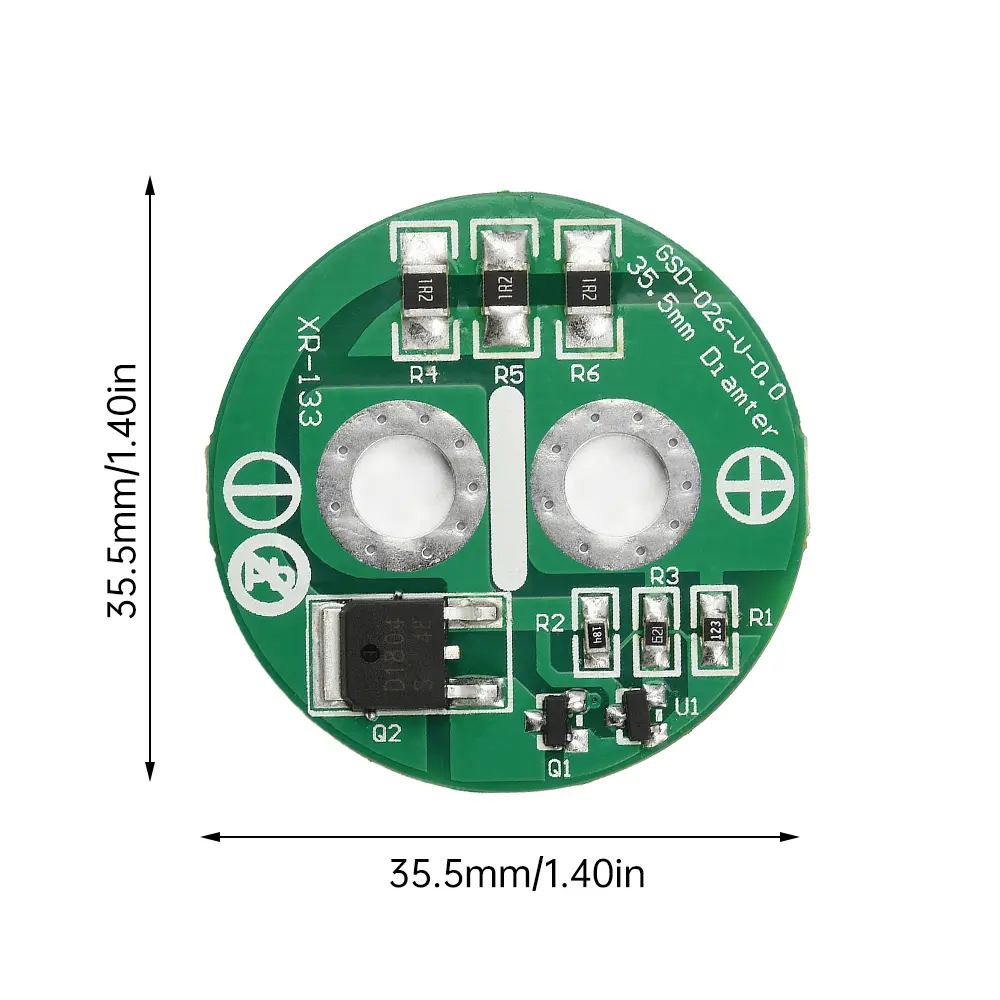

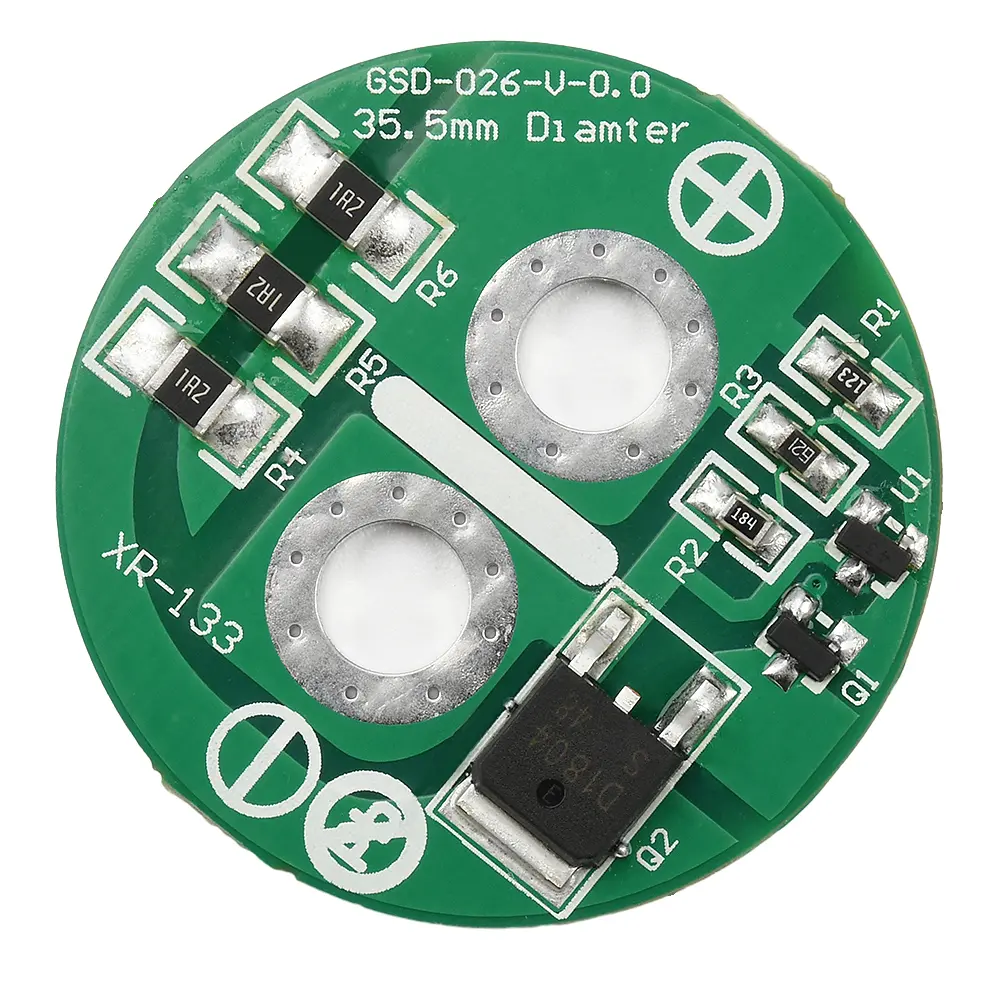

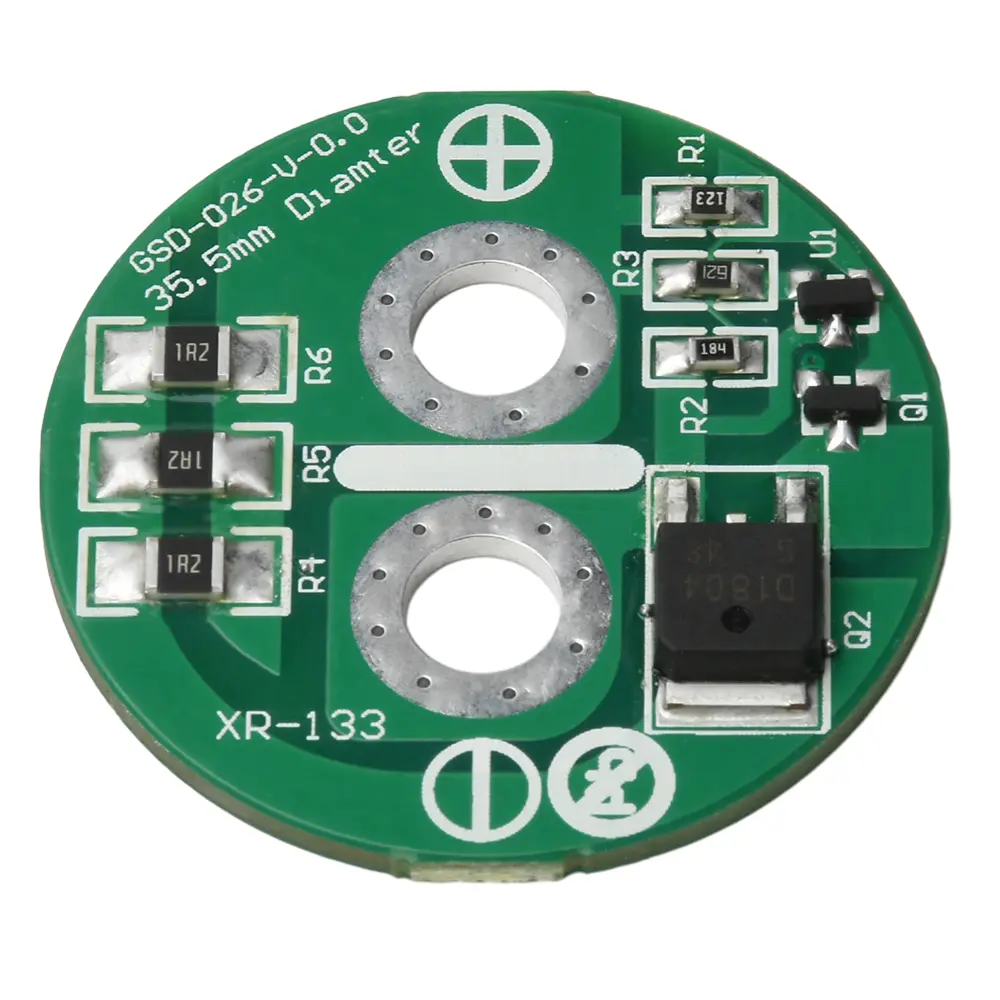

<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><p>Features:<br/>1. 2.7V high voltage: single input voltage up to 2.7V, excellent performance, suitable for a variety of high-voltage application scenarios<br/>2. 2.5V low voltage: single input voltage as low as 2.5V, wide compatibility, suitable for more low-voltage devices<br/>3. Ultra-wide temperature operating range: operating temperature -40℃ to 85℃, adapting to extreme environments, stable and reliable<br/>4. High-precision voltage control: balanced start-up voltage of 2.65V, precise control, to protect the safety of capacitors<br/>5. Charge equalization technology: adopts charge equalization energy dissipation mode to enhance capacitor life and performance<br/>6. Miniaturized design: diameter of only 35mm, easy to install and integrate into compact equipment</p><p>Parameter:<br/>Product Name: Super Farad Capacitor Protection Plate<br/>High-quality version:<br/>Maximum charging input voltage: DC 2.7V (single)<br/>Maximum charging current: unlimited (capacitor needs to be matched)<br/>Maximum discharge current: unlimited (capacitors need to be matched)<br/>Minimum discharge voltage: 0.1V<br/>Charging operating temperature: -40 to 85°C<br/>Unloading operating temperature: -40 to 85°C<br/>Balance starting voltage: 2.65V<br/>Balancing current: ≤1A<br/>Balancing method: charge equalization energy dissipation<br/>Resistance: 8mΩ<br/>Static power consumption: ≤n*50uA<br/>Operating power consumption: ≤n*1mA</p><p>Low Profile Version:<br/>Maximum charging input voltage: DC 2.5V (single unit)<br/>Maximum charging current: unlimited (capacitor needs to be matched)<br/>Maximum discharge current: unlimited (capacitor needs to be matched)<br/>Minimum discharge voltage: 0.1V<br/>Charging operating temperature: -40～85°C<br/>Unloading operating temperature: -40 to 85°C<br/>Balance starting voltage: 2.65V<br/>Balancing current: ≤1A<br/>Balance mode: charge equalization energy dissipation<br/>Plate resistance: 8mΩ<br/>Plugging static power consumption: ≤n*50uA<br/>Plate operating power consumption: ≤n*1mA<br/>Size parameters: diameter 35mm, fixed hole diameter 5.8mm, two holes center distance 12.5mm, pad diameter 10mm<br/>Characteristics: meet 600-700F supercapacitor specifications</p><p>Package include:<br/>Equalization board x1<br/><br/></p></div></div><p><br/></p>
