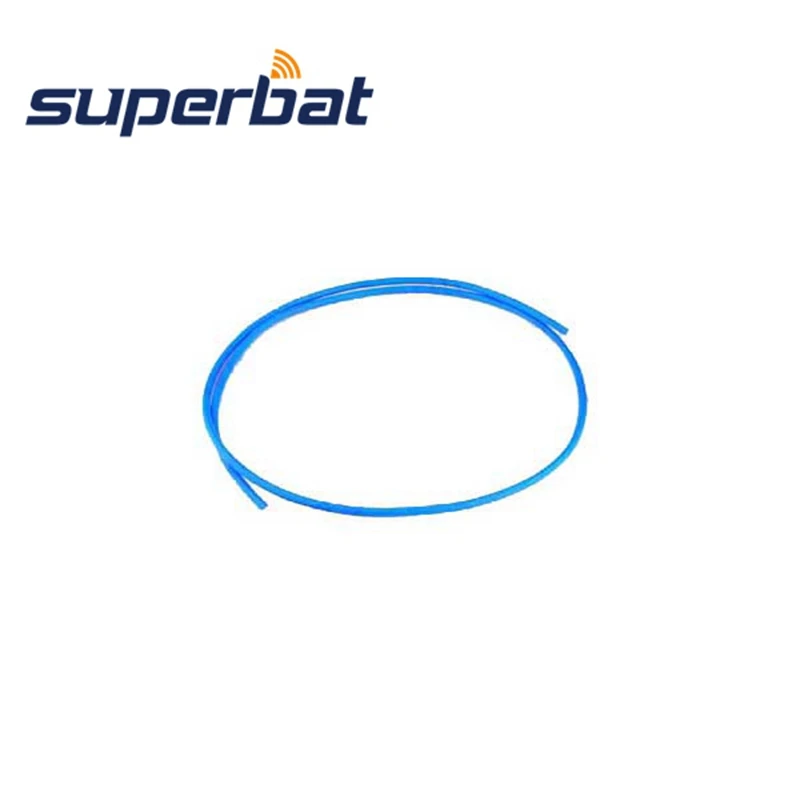

Superbat 10ft Coaxial Cable RG142 RG141 M17/60 Blue RF Coaxial Cable for Electronic Components Market

Blogs

<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><h1 style="text-align:center" align="center">Superbat RF Coaxial Cable M17/60-RG142 RG141 / 10ft Coax Cable</h1> M17 Part No.: M17/60-RG142PHYSICAL PROPERTIES<table style="border-collapse:collapse;border:1px solid rgb(221, 221, 221);width:358px" width="358" height="202" border="1" cellPadding="0" cellSpacing="0"><tbody><tr><td> </td><td>Material</td><td>Diameter</td></tr><tr><td>1. Inner conductor</td><td>SCCS</td><td>0.94</td></tr><tr><td>2. Insulation</td><td>PTFE</td><td>2.95</td></tr><tr><td>3. Outer conductor</td><td>SC</td><td>3.45</td></tr><tr><td>4. Jacket</td><td>Fiber Glass Braid</td><td>4.83</td></tr></tbody></table>ELECTRICAL PROPERTIES<table style="border-collapse:collapse;border:1px solid rgb(221, 221, 221);width:100%" border="1" cellPadding="0" cellSpacing="0"><tbody><tr><td>Nom. Capacitance Conductor to Shield</td><td>96.45</td></tr><tr><td>Nom. Characteristic Impedance</td><td>50</td></tr><tr><td>Nom. Velocity of Propagation</td><td>70</td></tr><tr><td>Min. Bend Radius Install</td><td>25</td></tr><tr><td>Voltage Rating</td><td>1900</td></tr><tr><td>Max. Operating Frequency</td><td>8000</td></tr><tr><td>Operating Temperature Rating</td><td>negetive 55to positive 250</td></tr></tbody></table>Nom. Attenuation<table style="border-collapse:collapse;border:1px solid rgb(221, 221, 221);width:356px" width="356" height="242" border="1" cellPadding="0" cellSpacing="0"><tbody><tr><td>Frequency</td><td>Nom. Attenuation</td></tr><tr><td>100</td><td>0.125</td></tr><tr><td>400</td><td>0.256</td></tr><tr><td>1000</td><td>0.420</td></tr><tr><td>3000</td><td>0.781</td></tr><tr><td>5000</td><td>1.050</td></tr></tbody></table> </div></div>
