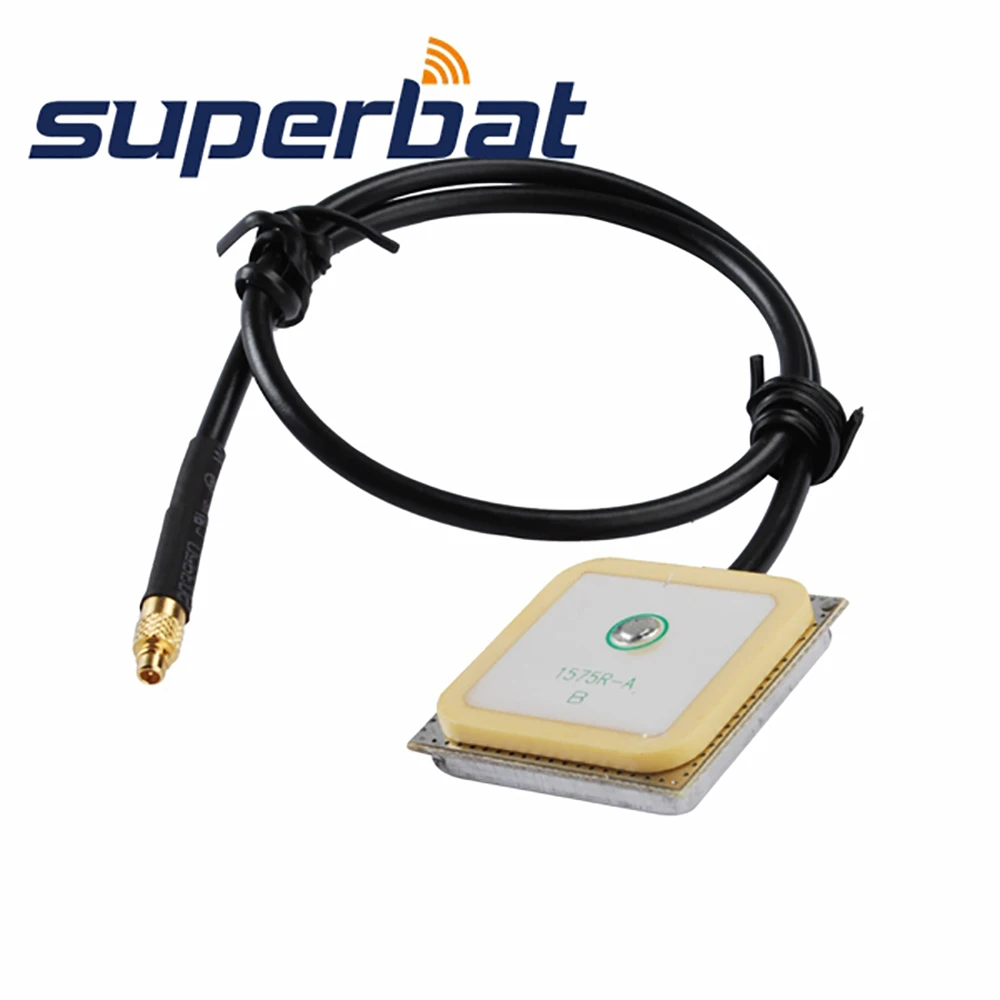

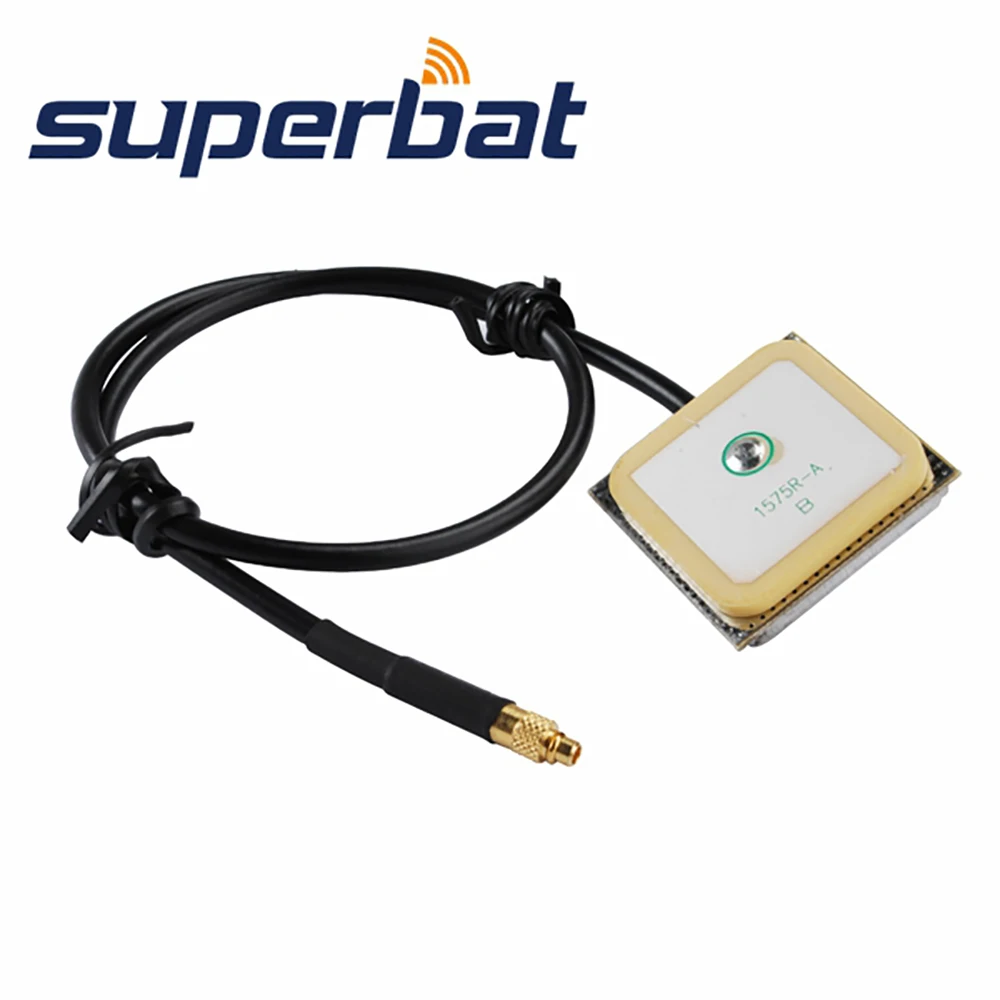

Superbat 3dbic 1575.42MHz +/-3 MHz Mini GPS Internal Aerial Signal Booster Antenna MMCX Male RG174 30CM Cable 50ohm Customizable

Blogs

<h1 style="text-align:center" align="center"><a href="http://www.aliexpress.com/store/group/Antenna/108021_211132583.html" target="_self" class="">Click to More Antenna</a></h1>Superbat Mini GPS Internal Antenna 1575.42MHz +/-3 MHz Aerial Signal Booster with MMCX Male Connector RG174 30CM Cable 50ohm CustomizableCharacteristic:(i) Dieletric Antenna Center Frequency1575.42MHz±3 MHz V.S.W.R 1.5:1 Impendence50 ohm Peak Gain >3dBic Based on 7×7cm ground plane Gain Coverage >-4dBic at –90<0<+90(over 75% Volume) Polarization RHCP (ii) LNA/Filter LNA Gain (Without cable) 28dB Typical Noise Figure 1.5dB Typ. Filter Out Band Attenuation (f =1575.42MHz) 7dB Min f0+/-20MHZ ; 20dB Min f0+/-50MHZ; 30dB Min f0+/-100MHZ V.S.W.R <2.0 DC Voltage 2.7V/3.0V/3.3V/5.0V/3.0V to 5.0V/other DC Current 5mA /11mA Max (iii)Mechanical Weight <60gram Size 27x27x6.2mm Cable :RG174 30CM/ contact us for other length Connector :MMCX male straight default/SMB/SMC/BNC/FME/TNC/MCX /SMA /Fakra/AVIC/WICLIC in straight or right angle please give us notes if you need other connector.Tks! (iv)Environmental Working Temp -40~+85 Storage Temp. -45~+100 Vibration Sine sweep 1g(0-p)10~50~10Hz each axis Relative Humidity 95% non-condensing Weatherproof 100% Waterproof GPS Antenna with MMCX Plug Connector Compatibility:Abarten:Bluetooth GPS Receiver BT-Q880, BM 6380 GPS Navigator, GPS 95023, GPS 95058, GPS 95069, GPS 95084, GPS 95085, GPS 95119, GPS 95145, GPS 95157, GPS 95161, GPS 95164, GPS 95165, GPS Receiver Module GPS 22, Navigator 7000 Pro SC, RoadMentor All in One, Acer:D100 Portable Navigator, D140 Portable Navigator, D150 Portable Navigator, D160 Portable Navigator, N35 Navigations PDA, Acore:Bluetooth AG-600, Bluetooth AG-700, Adac:Blue Media Pocket PC 255 Navigon, Airis:GPS Bluetooth N598G, GPS PDA509, Navigator T900, Navigator T920, PDA NC05, PDA T605, Aktronix:Bluetooth GPS BT, Aldi Medion:GPS MD95000, GPS MD95900, GPS MDPPC 150, Altina:Destinator A600, Bluetooth GPS GBT709, ASUS:MyPal A639, The Mobile Navigator, The Mobile Navigator 1, The Mobile Navigator Pro, Billionton:BTGPS Bluetooth GPS Receiver, Blue Media:GPS Navigation System 6300, Penny Navigation PNA BM 6300, Pocket PC 255 GPS, Bt Empf?nger:GPS BR-R700, GPS BT-R500, GPS CF ST-K500, GPS STBT110, GPS ST-BTS 110, GPS ST-CF110, Compass:Bluetooth GPS CN768, Bluetooth GPS GB233, Bluetooth GPS GB539, Bluetooth GPS GB732, Dell PDA:Bluetooth GPS Navigation System, GPS Navigation System with Bluetooth, Pocket GPS Navigator for Dell Axim X30, Pocket GPS Portable Navigator for Dell Axim X5, Delorme:Blue Logger GPS, Delphi:NAV200, Deluo:RoadMentor, Dual Electronics Corp.:NavAtlas XNAV3500p, NavAtlas XNAV3550, Evesham Technology:Nav-Cam 7500, Nav-Cam 7500 EU, Nav-Cam 7500 EU TMC, Nav-Cam 7500 TMC, Nav-Cam 7700, Nav-Cam 7700 AA, Falcom:Compact Dual Band GSM GPRS module with FTA I2D, FALK:Navigation 3500, Navigator N120, Navigator N200, Navigator N30, Navigator N40, Navigator N50, Navigator N80, Fortuna:NA View GPS 600, NA View GPS-430, NA View GPS-615(B), NA View GPS-620(B), NA View PNA 450, NA View PNA 455, Pocket X Tract CF Type, fTech:Bluetooth GPS Receiver BT1.5MR, Bluetooth GPS Receiver BT1.5SR, Bluetooth GPS Receiver BT2.3MR, Bluetooth GPS Receiver FGPXBT02, CF Card Type GPS Receiver FGPCFCD01, CF Card Type GPS Receiver FGPCFCD02, GPS Antenna MCX FGPANE1M2, GPS Antenna MCX FGPANE1M5, GPS Antenna MMCX FGPANE1X2, GPS Antenna MMCX FGPANE1X5, Mini Solar Bluetooth GPS Receiver BT2.5MR, Professional Navigator NAV 550, Solar Bluetooth GPS Receiver BT2.3MR, Solar Bluetooth GPS Receiver BT2.3SR, Solar Bluetooth GPS Receiver BT2.5SR, Geniustek Corporation: Bluetooth GPS Receiver, Bluetooth GPS Receiver GB500-N, Bluetooth GPS Receiver GB500-S, GlobalSat:Antenna AT-65-MMCX, BC-307, BC337, BT-308, BT-318, BT-318X BT308X, GV-101, GV-201, GV370 Personal Navigational Device, SD-501 (X-Trac), SD502, Haicom:Bluetooth Enabled GPS Car Holder, Bluetooth? GPS Receiver miniSD? to SD Adaptor, CF GPS Receiver HI 302 LP, CF GPS Receiver HI 302 LP CF, Compact GPS Receiver HI 303E, HI 303MMF, HI 303S, HI 305 N, HI 305III, HI 401 BT, HI 405 BT, HI 406 BT, HI 406 BT-C, HI 407BT GPS Receiver w 12, HI 701 BT Car Holder, HI-303III CF GPS Receiver, HI-701 GPS Enabled Car Holder, Holux:BT GPS GPSSLIM 236, GPSmile 51 Car Navigator, GPSmile 52 Car Navigator, GPSmile 53 Car Navigator, GR-239 Bluetooth GPS Receiver, HP:iPAQ rx5710 Travel Companion, iPAQ rx5720 Travel Companion, iPAQ rx5725 Travel Companion, iPAQ rx5730 Travel Companion, iPAQ rx5765 Travel Companion, iPAQ rx5770 Travel Companion, iPAQ rx5775 Travel Companion, iPAQ rx5780 Travel Companion, iPAQ rx5915 Travel Companion, iPAQ rx5935 Travel Companion, iPAQ rx5940 Travel Companion, iPAQ rx5965 Travel Companion, iPAQ rx5970 Travel Companion, iPAQ Travel Companion rx5910, iTrek:Bluetooth GPS, M1 bluetooth GPS, M5 Bluetooth GPS, LeadTek:9537, 9534 (New Version Only), Lidl:MYGUIDE Navigator 6500 XL, MYGUIDE Navigator 6500 XL TMC Edition, Lowrance:iWay 250c, RAA-5 External Antenna, Magellan:CrossOver 2500T w Traffic Kit, RoadMate 2000T w Traffic Kit, RoadMate 2200T w Traffic Kit, RoadMate 3000T, RoadMate 3050T, RoadMate 6000T, RoadMate 800, RoadMate 860T, MDPNA:GPS 150, GPS MD PNA 200, Medion:GPS MD 95000, GPS MD 95023, GPS MD 95085, GPS MD 95119, GPS MD 95308, GPS MD 95900, GPS MD PNA 200, GPS MD95084, GPS MDPNA 150, GPS MDPNA 175, GPS MDPNA 200, GPS MDPNA 200S, GPS MDPNA 220, GPS MDPNA 220T, GPS MDPNA 240, GPS MDPNA 240T, GPS MDPNA 250, GPS MDPNA 250T, GPS Plus MD PPC 150, Mighty GPS: Bluetooth UG-301, SysOnChip Smart Blue, Mitac Mio:136, 168, 268, 269, 168 RS, 268 Plus, 269 Plus. 269c, A201, A701 GPS PDA Phone, C210, C250, C310s DigiWalker, Car Navigation C710, DigiWalker C310x, DigiWalker C510E, DigiWalker P350, DigiWalker P550, ExternalAntenna EAN:5420027500409, H610 DigiWalker, Mobile Crossing Inc:BLUETOOTH GPS RECEIVER BGPS01, BLUETOOTH GPS RECEIVER BGPS02, BLUETOOTH GPS RECEIVER BGPS03, CompactFlash GPS CGPS01, WayPoint 100, WayPoint 200, MYGuide:3000 GO Series, 3050 GO, 3200 GO Series, 3240 GO, Silverguide 4350 NAV, Silverguide 5000 Series, Typhoon 3230, Typhoon 5500, Navigon:Transonic 3002 Transonic 4000 PNA, Transonic 5000 (TMC), Navman:Freedom Range F20, Freedom Range F20 EU, Freedom Range F30, Freedom Range F40 EU, Freedom Range F50, Freedom Range N20, Freedom Range N40i, Freedom Range N60i, iCN 320, iCN 330, iCN 510, iCN 520, iCN 530, iCN 550, PiN 100 Pocket PC, PiN 300 Pocket PC, PiN 570, Pocket PiN, Nextar:Navigator P7, Novogo:Car Navigator V30, Car Navigator V50, Car Navigator V70, Car Navigator V90, Navigator A Series A700, Navigator A30, Navigator A70, Navigator C Series C700, Navigator C Series C900, Navigator S Series S700, Navigator t Series t700, Navigator t Series t900, Navigator T30, Navigator T50, Navigator T70, Navigator T90, OnCourse5 (OCN5):MyGuide 300, MyGuide 500, MyGuide 700, Pharos:Drive GPS 135, Drive GPS 140, External Active Antenna for iGPS-CF Receiver, E-Z Road Pocket Navigator, iGPS-CF, PK016 for Toshiba PDA, Traveler GPS 505, Traveler GPS 525, Pioneer Electronics:Portable Sat Nav - AVIC-S1, Qstarz: All In One GPS Navigator NV-Q1200, All In One GPS Navigator NV-Q1400, Bluetooth GPS Receiver BT-Q800 Pro, Bluetooth GPS Receiver BT-Q815, Mini Solar Bluetooth Receiver BT-Q795, Mini Solar MTK Bluetooth Receiver BT-Q815, Rikaline:180 A-10302-M, A-10305-M, Bluetooth GPS-6033, Car Navigation GPS-450, CF GPS GPS-6020, GPS Receiver Board GPS 24 24A, GPS Receiver Board GPS 25, Road Angel:Navigator 6000, San Jose Navigation:GPS Module FV-M11, Synergy Systems:AR-05A GPS (MMCX) Antenna, AR-10K GPS Antenna MMCX, AR-10S GPS MMCX Antenna 10001268, SysOnChip (SOC):CF Memory GPS, CF Memory GPS III, GPS CF Plus III, GPS CF Plus III SOC, Smart Blue Mini Bluetooth GPS, Tele Type:16 Ch. w US Marine Vector Maps Bundle, 16 Ch. w US Marine Vector Maps Bundle, 16-Channel Bluetooth Receiver, 20-Channel Sirf III Bluetooth Receiver, Bluetooth Receiver - Global Maps & Program Including Australia, Booster Antenna, Booster Antenna 90 MMCX, BT GPS w Global Maps Bundle, Mini-Bluetooth GPS w Built-in LiON rechargeable batteries, Passive Tracker BT, Passive Tracker II, WorldNav 3100 Deluxe, WorldNav 3100 Premium, Telit: GPS Module GM862-GPS, Tom Tom:Go 300 w shoe, Go 500 w shoe, Go 700 w shoe, Whistler:GPS Receiver WGPX-545, GPS Receiver WGPX-550, GPS Receiver WGPX-635, GPS Receiver WGPX-650, OUR COMPANY FAMILYAs a youth great team full of vigor, we got ready to do our best to support your project with top quanlity,competitive pricing, and excellent service.
