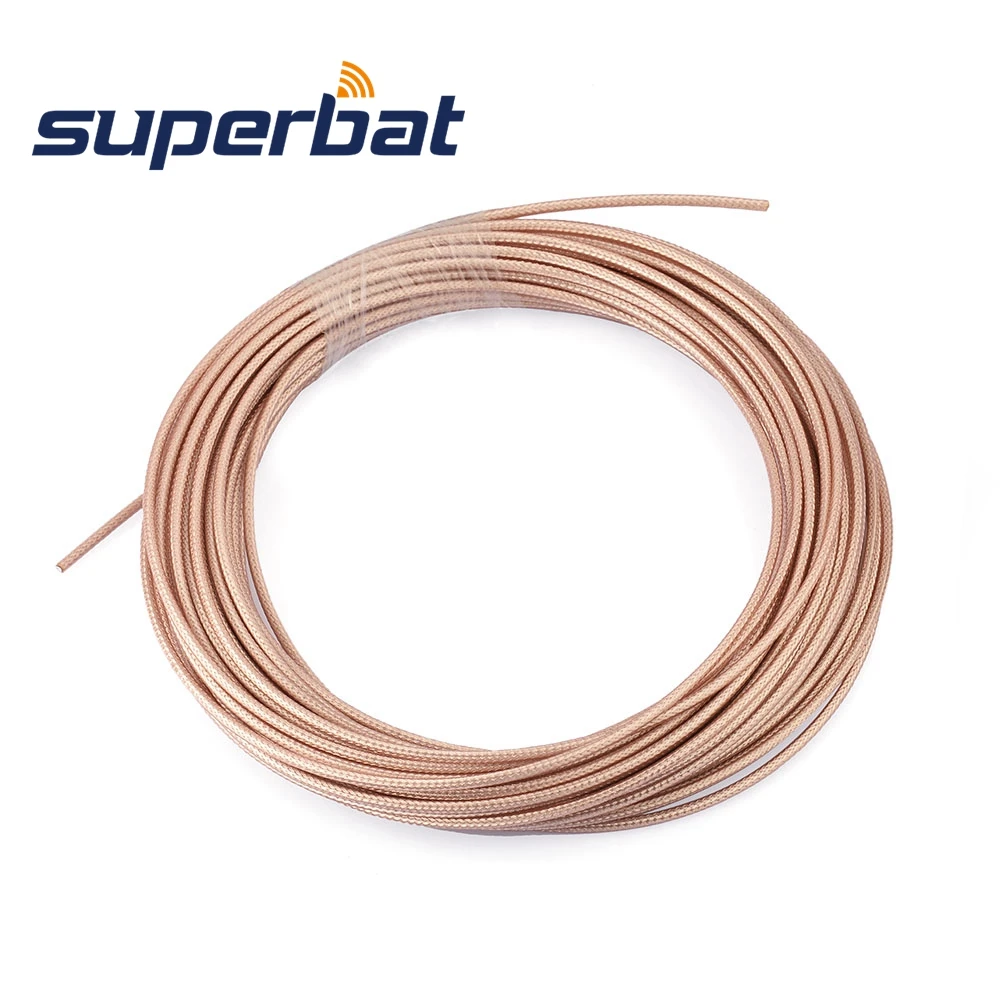

Superbat M17/113 RG316 50 Feet Coax Cable RF Coaxial Connector Adapter Cable for Electronic Components Market

Blogs

<div class="detailmodule_html"><div class="detail-desc-decorate-richtext">Superbat M17/113 RG316 50 Feet Coax Cable RF Coaxial Connector Adapter Cable for Electronic Components Market<div> </div>PHYSICAL PROPERTIES<table style="border-collapse:collapse;width:355px" border="1" cellPadding="0" cellSpacing="0"><tbody><tr><td> </td><td>Material</td><td>Diameter</td></tr><tr><td>1. Inner conductor</td><td>SCCS</td><td>7multiplied 0.175</td></tr><tr><td>2. Insulation</td><td>PTFE</td><td>1.52</td></tr><tr><td>3. Outer conductor</td><td>SC</td><td>1.95</td></tr><tr><td>4. Jacket</td><td>Fiber Glass Braid</td><td>2.50</td></tr></tbody></table>ELECTRICAL PROPERTIES<table style="border-collapse:collapse;width:360px" border="1" cellPadding="0" cellSpacing="0"><tbody><tr><td>Nom. Capacitance Conductor to Shield</td><td>96.5</td></tr><tr><td>Nom. Characteristic Impedance</td><td>50</td></tr><tr><td>Nom. Velocity of Propagation</td><td>70</td></tr><tr><td>Min. Bend Radius Install</td><td>13</td></tr><tr><td>Voltage Rating</td><td>1200</td></tr><tr><td>Max. Operating Frequency</td><td>3000</td></tr><tr><td>Operating Temperature Rating</td><td>negetive 55to positive 200</td></tr></tbody></table>Nom. Attenuation<table style="border-collapse:collapse;width:368px" border="1" cellPadding="0" cellSpacing="0"><tbody><tr><td>Frequency</td><td>Nom. Attenuation</td></tr><tr><td>100</td><td>0.262</td></tr><tr><td>400</td><td>0.531</td></tr><tr><td>1000</td><td>0.856</td></tr><tr><td>3000</td><td>1.532</td></tr><tr><td>5000</td><td>2.208</td></tr></tbody></table><div> </div></div></div>
