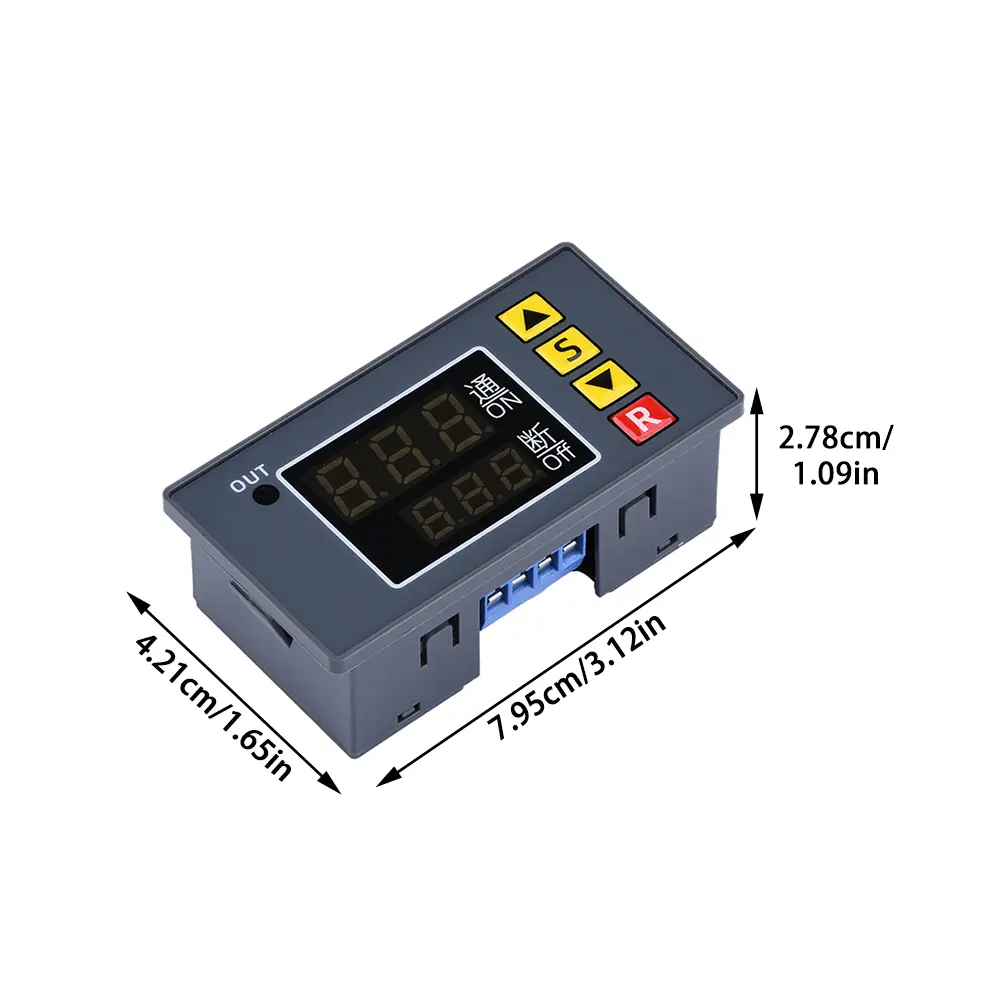

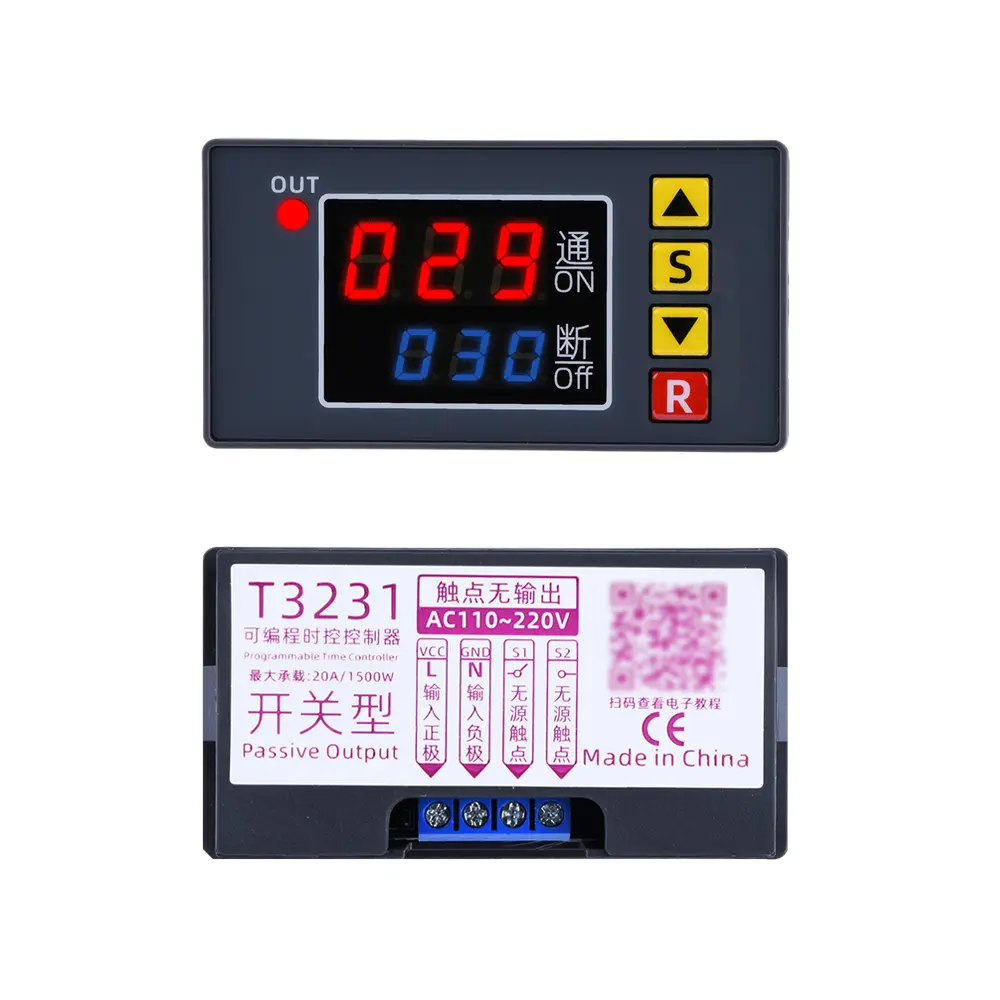

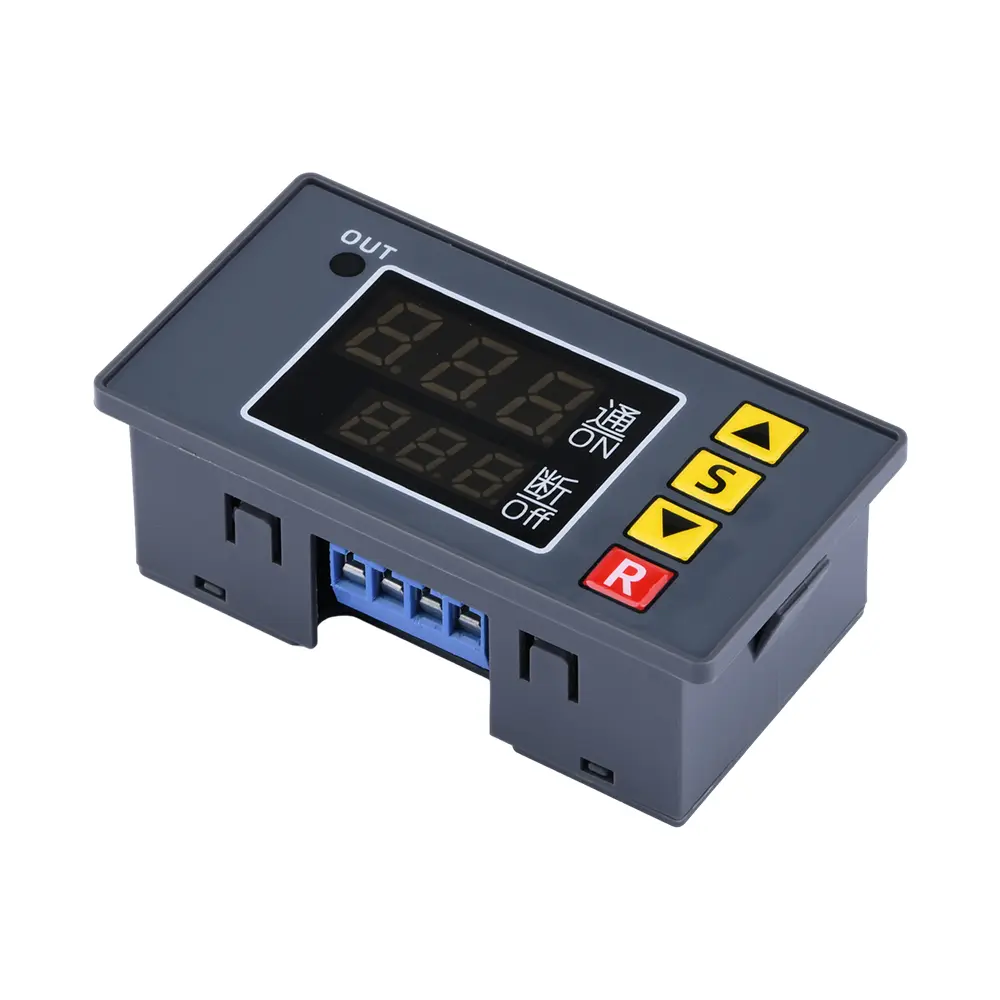

<div class="detailmodule_dynamic"><kse:widget data-widget-type="customText" id="1005000004880420" type="relation"></kse:widget></div><div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><div><br/></div><p><span style="font-size:20px"><strong>T3231 Cyclic Timing Delay Relay DC 12V 24V AC 110V-220V Timer Control Switch Adjustable Timing Digital Relay</strong></span></p><p><br/></p><p><span style="font-size:18px"><strong>Describe:</strong></span></p><p><span style="font-size:18px">Time range: 0-999 minutes, 0-999 0-999 seconds, three types can be selected</span></p><p><span style="font-size:18px">Size: Display Panel: 79mm * 43</span></p><p><span style="font-size:18px">Installation: 71mm * 40mm24mm</span></p><p><span style="font-size:18px">Feature set: a combination of 18 features</span></p><p><span style="font-size:18px">Relay: original 20A relay, power &lt;1800W</span></p><p><span style="font-size:18px">System power: 12v</span></p><p><br/></p><p><span style="font-size:18px"><strong>User&#x27;s manual</strong></span></p><p><span style="font-size:18px">Before using the first prompt, the user notices that a set of data waits for 6 seconds, and the memory module automatically saves the data set after 6 seconds.</span></p><p><span style="font-size:18px">(1) Press the SET button to enter the time setting mode, the digital tube flashes, and the plus or minus buttons adjust the time T1 and time T2. After setting the time, you must wait for 5s, and the module will automatically remember to save the data after 5s.</span></p><p><span style="font-size:18px">(2) Press SET, parameter setting mode. There are two sets of parameters for users to choose P0, P1. In the current mode, short press SET to switch between P0 and P1. In P0, the P1 parameter can be set for its own timer mode through key addition and subtraction.</span></p><p><br/></p><p><span style="font-size:18px">P0--0: The timing mode is 0--999</span></p><p><span style="font-size:18px">P0--1: The timer mode is 0--999minutes</span></p><p><span style="font-size:18px">P0--2: Timing when the mode is 0--999</span></p><p><span style="font-size:18px">P1--0: T1 delay relay (T1 timer)</span></p><p><span style="font-size:18px">P1--1: T1 delay time relay release (T1 timer)</span></p><p><span style="font-size:18px">P1--2: Delay relay after T1 (T1 timer), and then the relay is released after the delay time T2 (T2 timer) ends.</span></p><p><span style="font-size:18px">P1--3: T1 delay time relay is released (T1 timer), and then the delay time T2 relay is energized (T2 timing) ends.</span></p><p><span style="font-size:18px">P1--4: Delay the relay after T1 (T1 timer), and then release the relay after the delay time T2 (T2 timer), and repeat the cycle.</span></p><p><span style="font-size:18px">P1--5: T1 delay relay release (T1 timer), then delay T2 relay energization (T2 timer), repeat the cycle.</span></p><div><br/></div><p><span style="background-color:rgb(255, 255, 255);color:rgb(159, 5, 0);font-size:22px">TS4586 </span></p><p><span style="background-color:rgb(255, 255, 255);color:rgb(25, 77, 51);font-size:22px">Name: TS4586 digital display time control relay control module</span></p><p><span style="background-color:rgb(255, 255, 255);color:rgb(25, 77, 51);font-size:22px">Specifications: DC12V DC24V AC110-220V</span></p><p><span style="background-color:rgb(255, 255, 255);color:rgb(25, 77, 51);font-size:22px">Product size: 86.3×45.5×45mm</span></p><p><span style="background-color:rgb(255, 255, 255);color:rgb(25, 77, 51);font-size:22px">Installation hole: 76.8×42.3mm</span></p><p><span style="background-color:rgb(255, 255, 255);color:rgb(25, 77, 51);font-size:22px">Timing range: 0~999 (seconds/minutes/hours)</span></p><p><span style="background-color:rgb(255, 255, 255);color:rgb(25, 77, 51);font-size:22px">Timing accuracy: 1 second</span></p><p><span style="background-color:rgb(255, 255, 255);color:rgb(25, 77, 51);font-size:22px">Longest time: 999 hours</span></p><p><span style="background-color:rgb(255, 255, 255);color:rgb(25, 77, 51);font-size:22px">Minimum time: 1 second</span></p><p><span style="background-color:rgb(255, 255, 255);color:rgb(25, 77, 51);font-size:22px">Timing error: 20ppn</span></p><p><span style="background-color:rgb(255, 255, 255);color:rgb(25, 77, 51);font-size:22px">Crystal type: independent clock crystal</span></p><p><span style="background-color:rgb(255, 255, 255);color:rgb(25, 77, 51);font-size:22px">Control type: 1-way normally open relay</span></p><p><span style="background-color:rgb(255, 255, 255);color:rgb(25, 77, 51);font-size:22px">Timing trigger: power-on automatic trigger</span></p><p><span style="background-color:rgb(255, 255, 255);color:rgb(25, 77, 51);font-size:22px">Power off storage: save the settings when power off</span></p><p><span style="background-color:rgb(255, 255, 255);color:rgb(25, 77, 51);font-size:22px">Flame retardant grade: VO grade flame retardant shell</span></p><p><span style="background-color:rgb(255, 255, 255);color:rgb(25, 77, 51);font-size:22px">Buzzer prompt: no buzzer alarm</span></p><div><br/></div><p><span style="background-color:rgb(255, 255, 255);color:rgb(159, 5, 0);font-size:22px">list</span></p><p><span style="background-color:rgb(255, 255, 255);color:rgb(25, 77, 51);font-size:22px">1*TS4586 digital display time control relay control module</span></p><p></p></div></div><p><br/></p>
