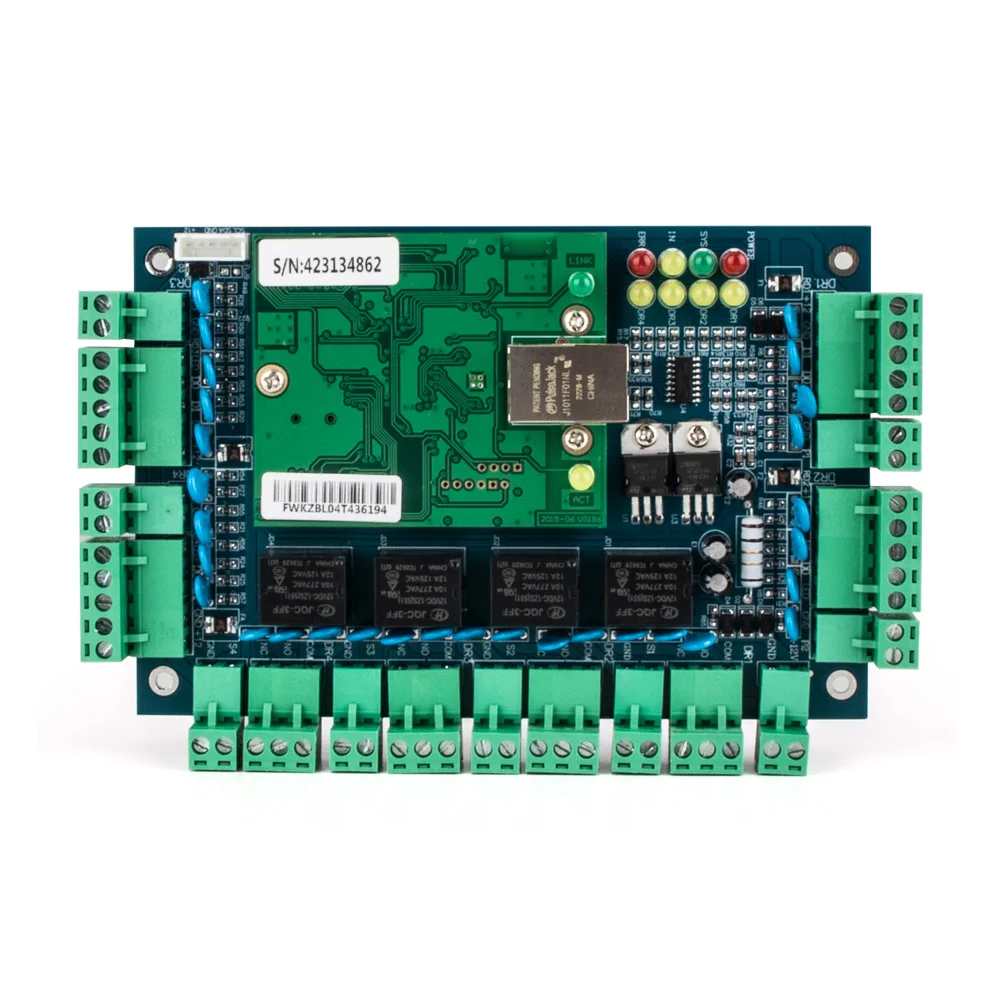

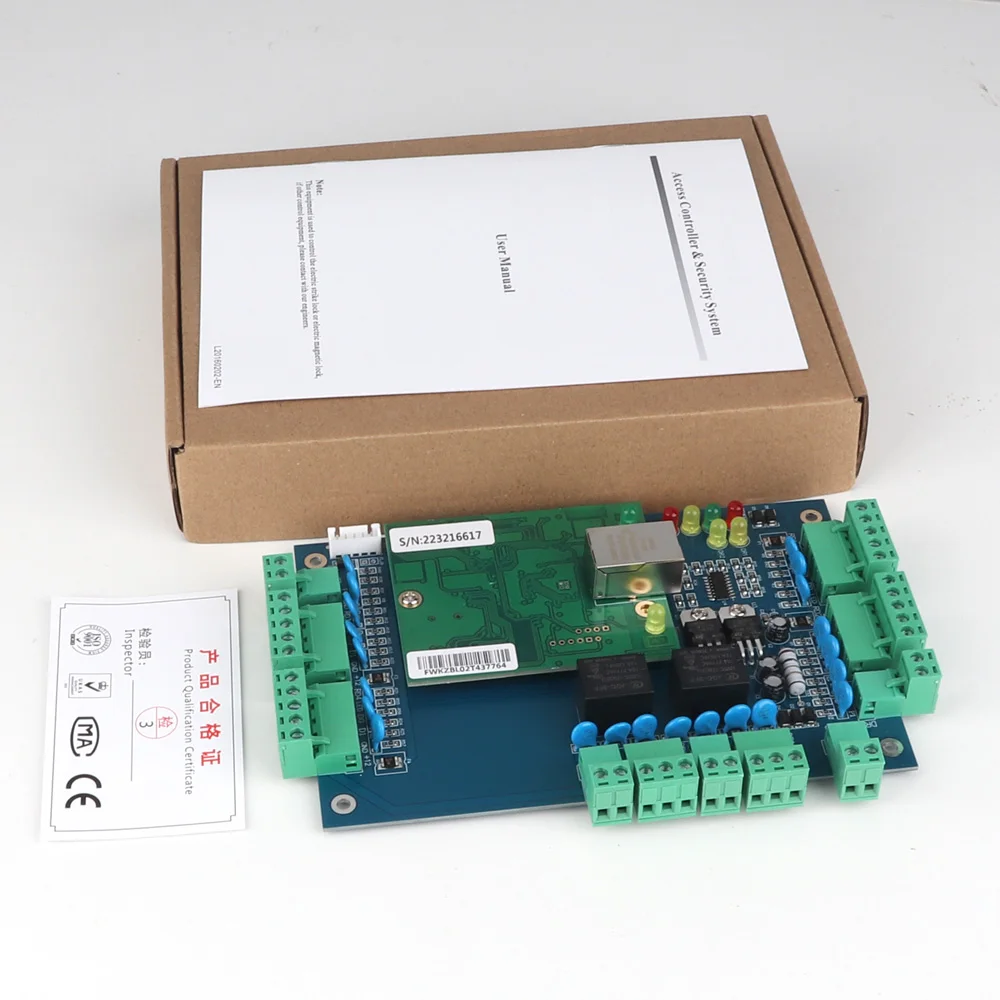

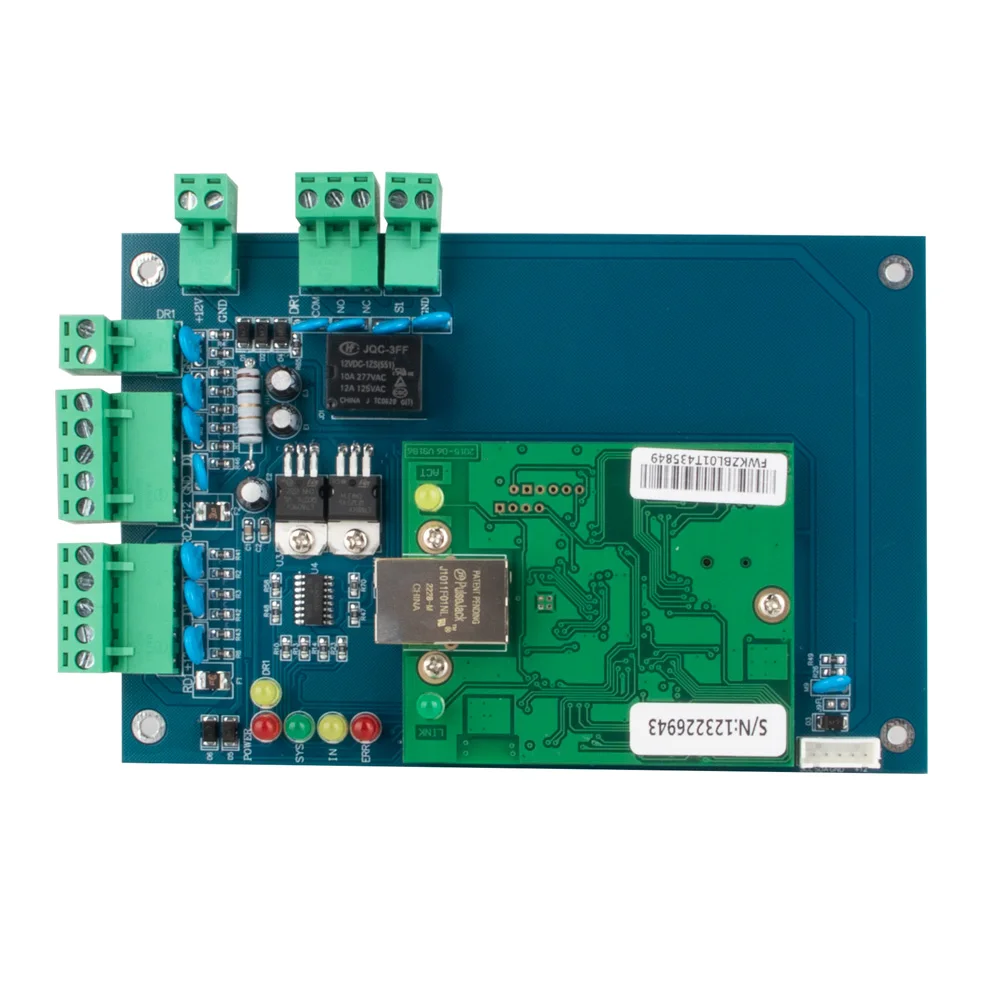

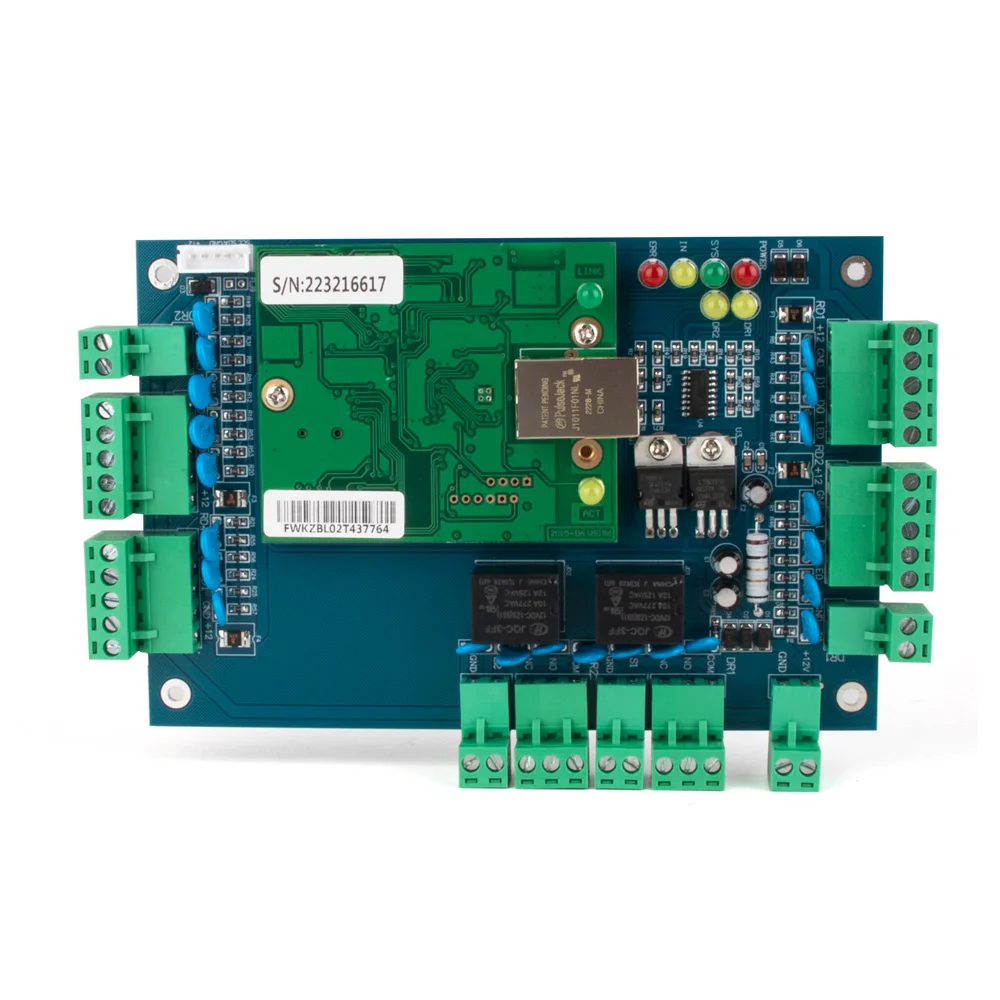

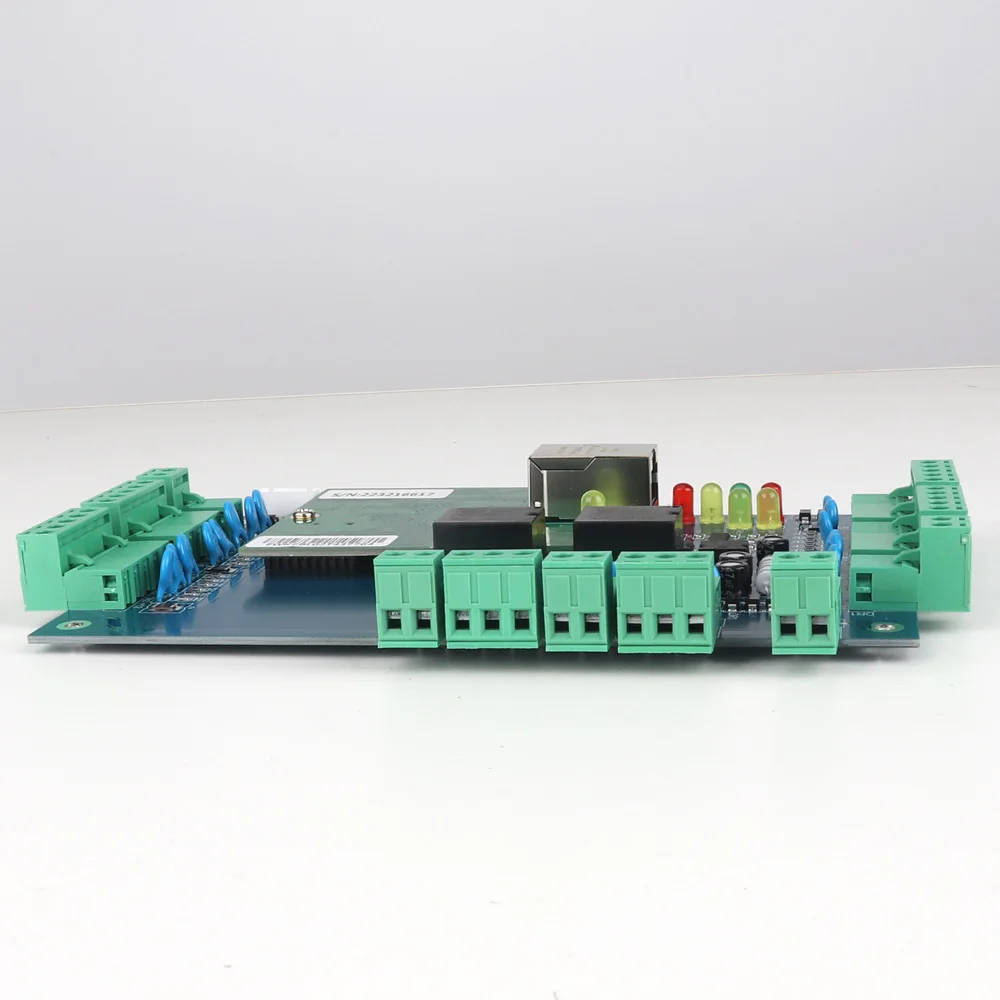

TCP/IP Wiegand 26 Network Single Double Four Door Entry Access Control Panel For Security Solutions Access System With Software

TCP/IP Wiegand 26 Network Single Double Four Door Entry Access Control Panel For Security Solutions Access System With Software

Software download link<a href="http://www.blrfidreader.com/" target="_self" class="">添加链接</a> Step 1 : Via link: http://www.blrfidreader.com/ Step 2: Click on "Download" Step 3: Choose (ACB-N3000) to download If you need an electronic manual, please send a message to the following email address, we will reply immediately when we see it! 1024460250@qq.com Parameter：ACB-001 ——Single Door Control PanelControl 1 door, get in and out door by swiping card, or get in by swiping card and get out door by button. ACB-002——Double Door Control PanelControl 2 doors, get in and out door by swiping card, or get in by swiping card and get out door by button. ACB-004——Four Doors Control PanelControl 4 doors, get in the door by swiping card, and get out door by button. Size of PCB board:ACB-001 ——160mm*106mmACB-002——160mm*106mmACB-004——218mm*106mm Quantity of Readers:ACB-001 ——2pcsACB-002——4PCSACB-004——4PCS Communication: TCP/IP 10M/100M adaptiveEnglish Software supportable database: Access and SQLPower Supply: 12VDC 4-7APower Consumption of Circuit Board: Less than 100mAInput Format of Reader: Wiegand 26 (All card reader with compatible protocol, such as Motorola , HID, EM , Mifare one etc)Door opening time extending setting: 1-600 seconds(adjustable)Max Quantity of controller: No limitOperation Temperature: -40°C-70°COperation Humidity: 10-90 % RH , No CondensationQuantity of users: 20,000 UsersQuantity of Event Buffers(offline): 100,000 event buffersPower interruption protection measure: High Speed Memory, Records never loseMax Distance from Reader to Controller: 100m (suggestion distance 80m)Package included: PCB board, software, manual, certificate.cartonFire and alarm linkage: If no connection with the expansion board, only has software interface alarm, and drive the computer speaker. If connected with expansion board, is able to alarm by hardware, if connected with strengthened expansion board, then is able to Security alarm, Model is ACB-EA05.Alarm for long time door open, ilegal break in, intimidate: YesComplsive open and close door at long time: YesOpen door in remote distance: YesInter block: ACB-001(NO) ACB-002 and ACB-004(YES) Anti pass back and tail: YesMulti-card open door: YesOpen long time at specified time: YesElectronic map: YesUrgency locking: YesFirst card unlocking: YesUnlock based on internal and external validation: Yes <kse:widget data-widget-type="customText" id="1005000002946929" type="custom"></kse:widget>
