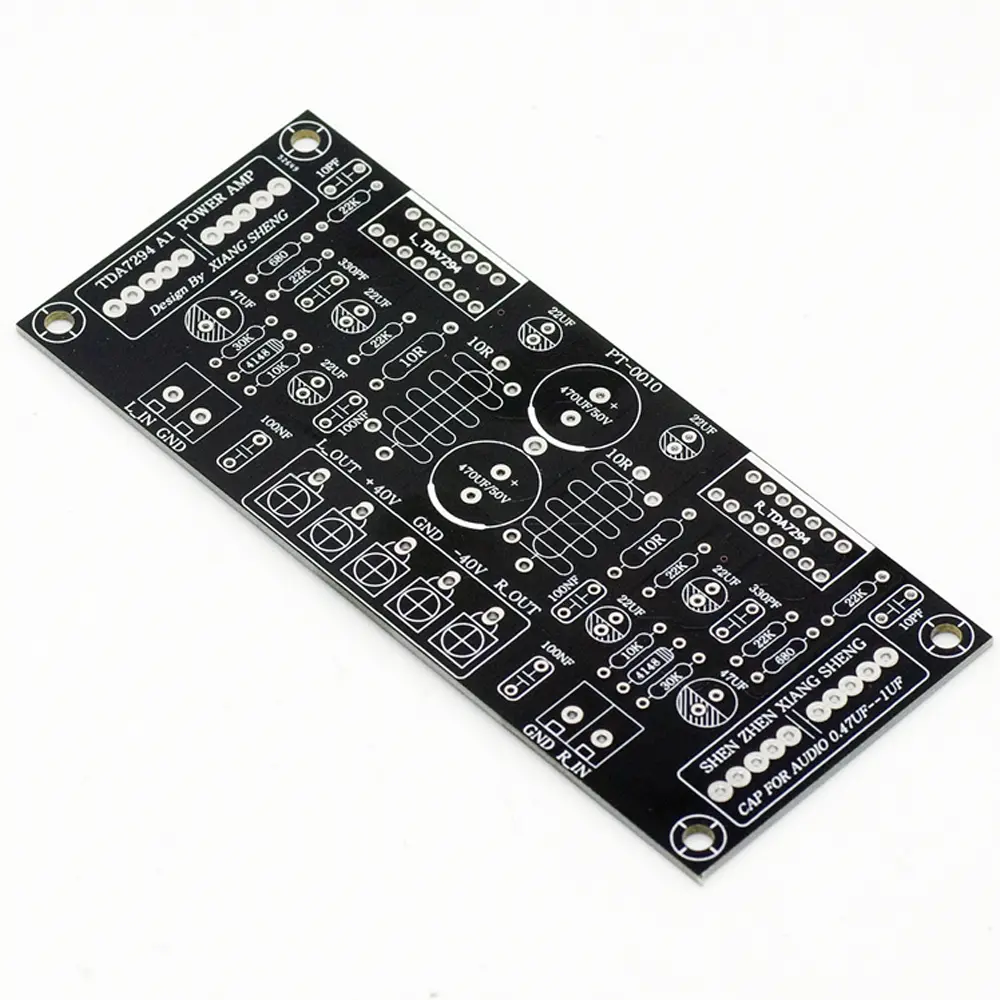

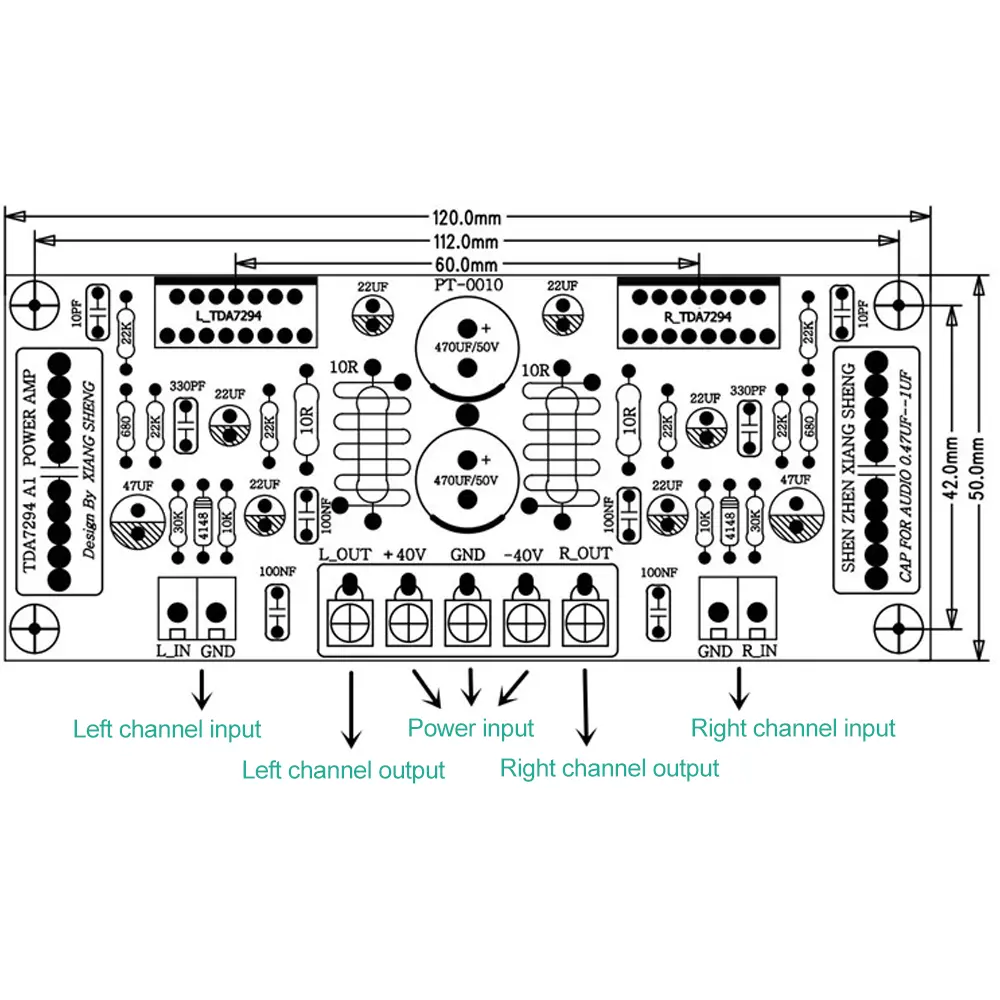

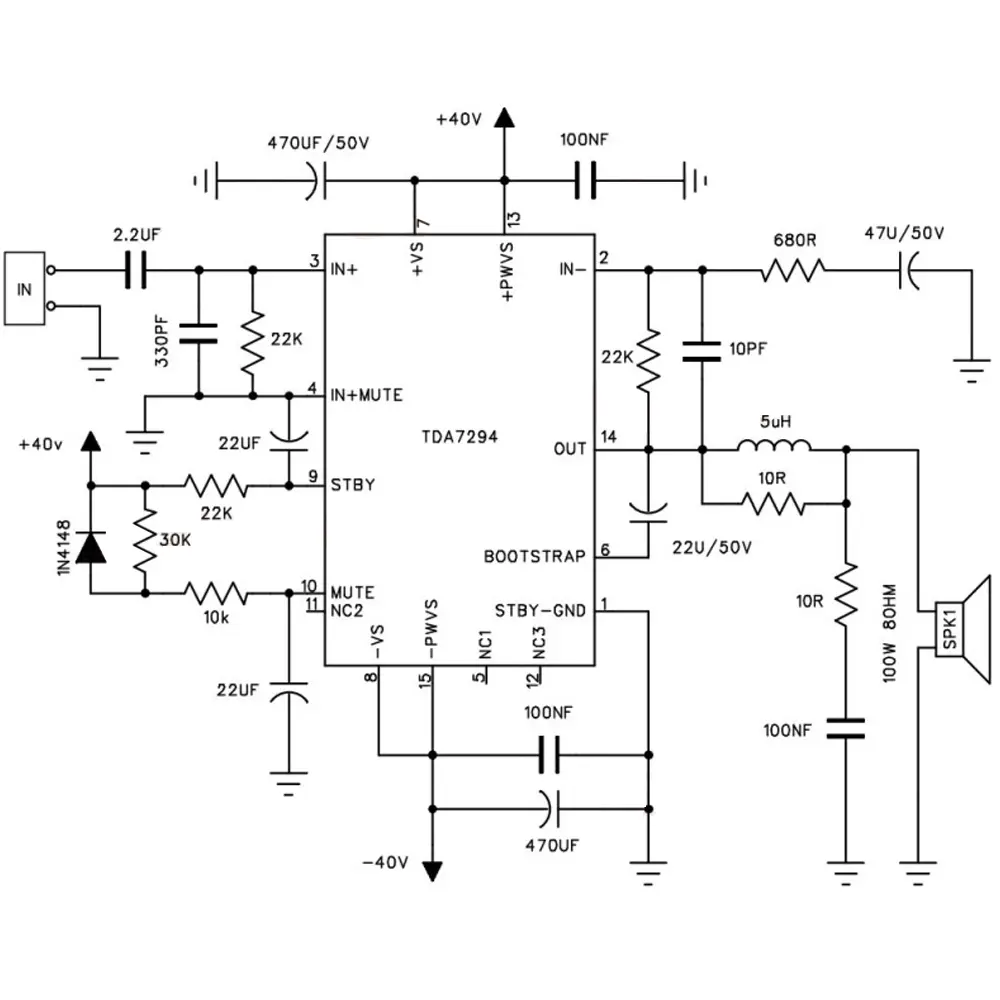

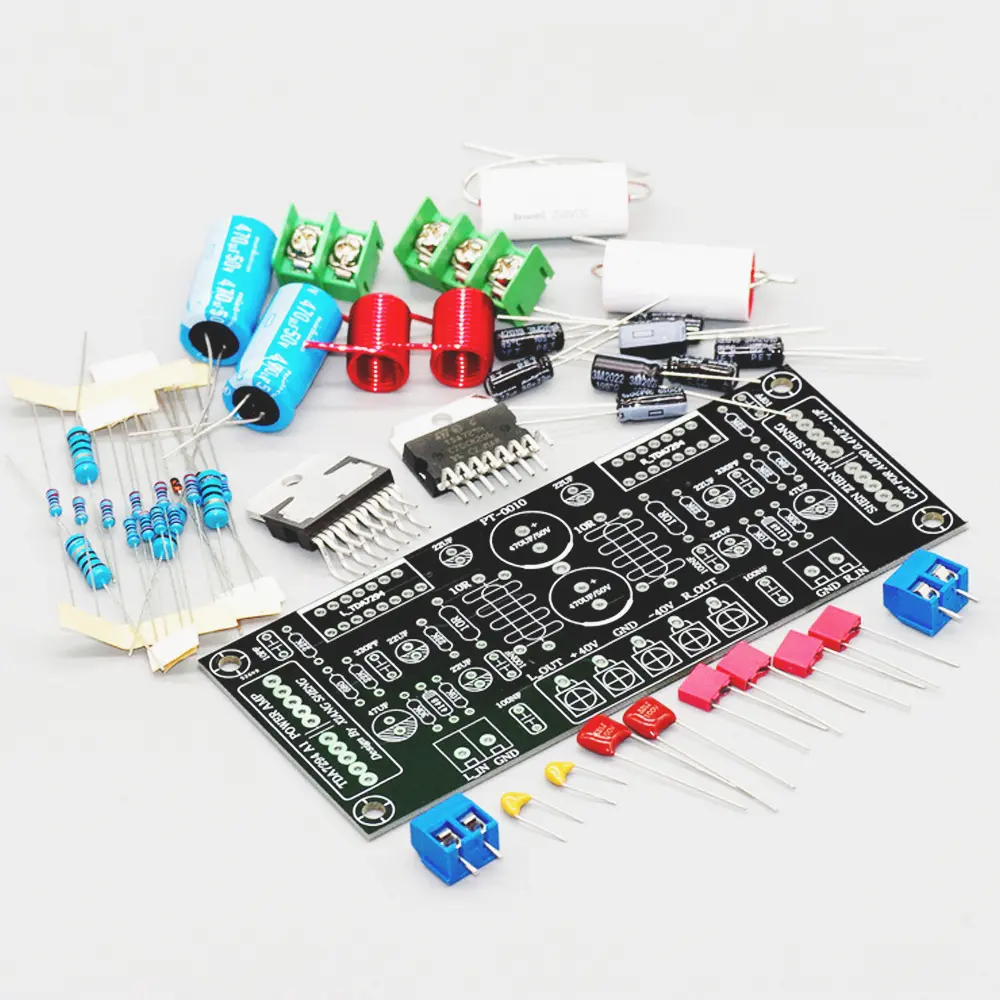

<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><br/></div></div><div class="detailmodule_dynamic"><kse:widget data-widget-type="customText" id="1005000004074434" type="relation"></kse:widget></div><div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><div><strong><br/>Features:</strong><br/>1.Adopting high-quality power amplifier chip, model: TDA7294<br/>2.The product adopts high-quality materials and has a long service life<br/>3.The product is loose and needs to be assembled by oneself, making it very suitable for DIY enthusiasts<br/>4.This is a high fidelity dual channel amplifier board<br/>5.200W power product with very stable performance</div><div><br/></div><p><span style="font-size:20px"><strong>Parameters:</strong></span><br/>1. Audio signal input: dual channel audio signal input;<br/>2. Audio output: dual channel 100W+100W audio output;<br/>3. Circuit principle: 2-way TDA7294 amplification output;<br/>4. Working voltage: DC 24-40V<br/>5. Input impedance: 22K OHM Output impedance: 4-8OHM<br/>6. PCB specification: FR4 50X120X1.6MM<br/>TDA7294 Dual Channel Amplifier Board Material List:<br/>Imported original power amplifier IC TDA7294:2 PCS<br/>1/4W resistor 22K: 6 PCS<br/>1/4w resistor 680:2 PCS<br/>1/4W resistor 10K: 2 PCS<br/>1/4W resistor 30K: 2 PCS<br/>1W resistor 10R: 2PCS<br/>2W resistor 10R: 2PCS<br/>Diode 1N4148:2 PCS<br/>Thin film capacitor 100NF: 4PCS<br/>Thin film capacitor 10PF: 2PCS<br/>Electrolytic capacitor 22UF: 6PCS<br/>Electrolytic capacitor 47UF: 2PCS<br/>Thin film capacitance 2.2UF: 2PCS (axial coupling capacitance)<br/>Inductance 5UH: 2PCS<br/>7.62 sockets, 2 positions, 3 positions, 1 PCS each<br/>5.0 Socket: 2PCS<br/>Circuit board double-sided FR4 50X120X1.6MM: 1PCS</p><p><span style="font-size:20px"><strong>Introduction to circuit principles:</strong></span><br/>Dual channel TDA7294 amplification design, symmetrical design of left and right channels, one point grounding, no current sound, no noise, dual output of 100W, with some improvements made to the circuit.<br/>1.The input port is connected in parallel with a 330P small capacitor. This method has two advantages: first, it can form a low-pass with R1, filter out some unnecessary residual Super high frequency, make the sound smoother, and also reduce the burden of the amplifier. The second is to eliminate circuit self-excitation.<br/>2.A 10PF capacitor is connected in parallel to the feedback resistor, making the sound more transparent.<br/>3.Use Bell networks and output inductors to prevent high-frequency self-excitation and compensate for the output.<br/>The above modifications, compared to many circuits, with a good power supply, can basically achieve over 99% performance of 7294. The voltage feedback is negative, and the performance is stable. Replacing different feedback capacitors can modulate different tones, suitable for grinding machines.</p><p><span style="font-size:20px"><strong>Package include:</strong></span><br/>Package 1: DIY loose parts X1<br/>Package 2: Finished module X1<br/><br/></p></div></div><p><br/></p>
