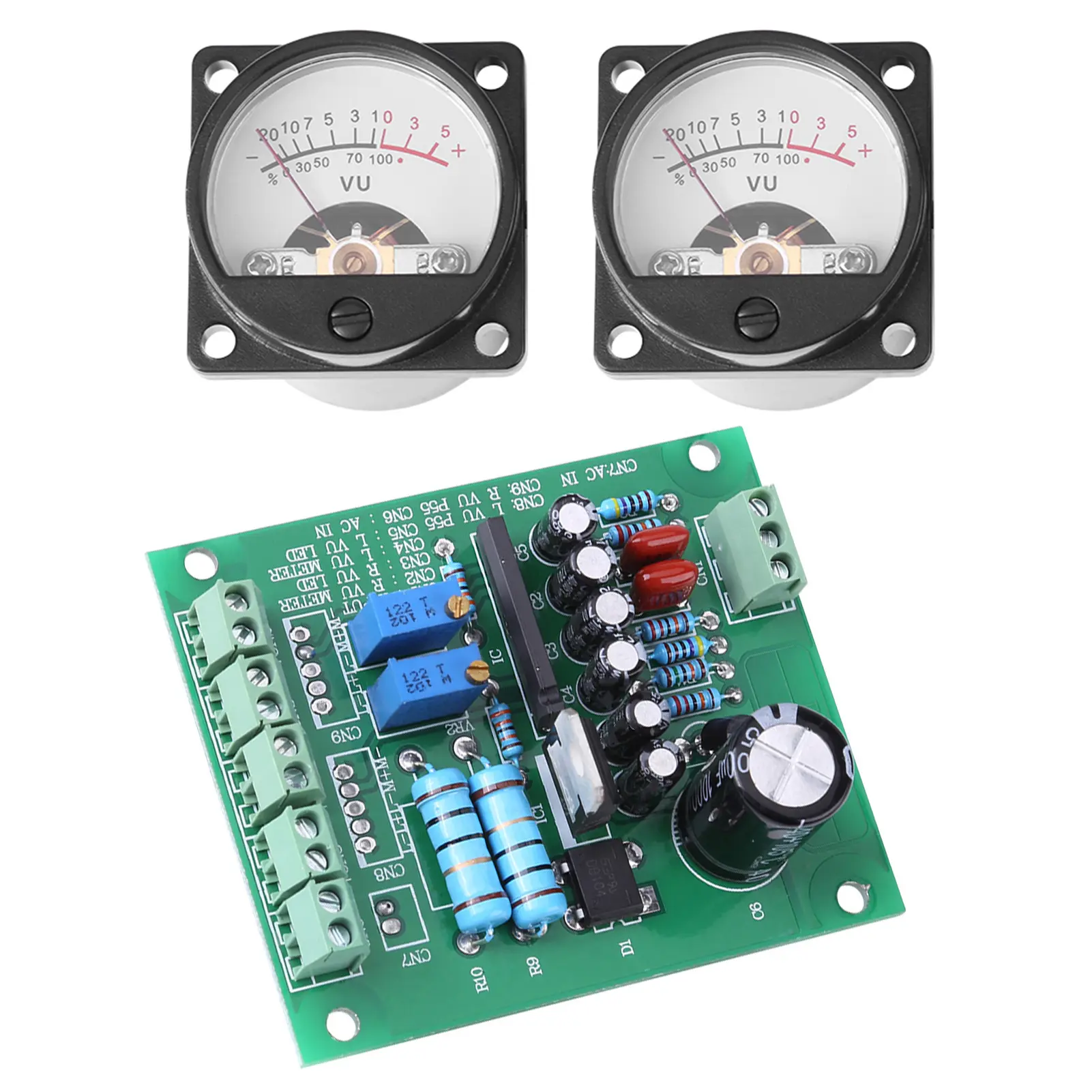

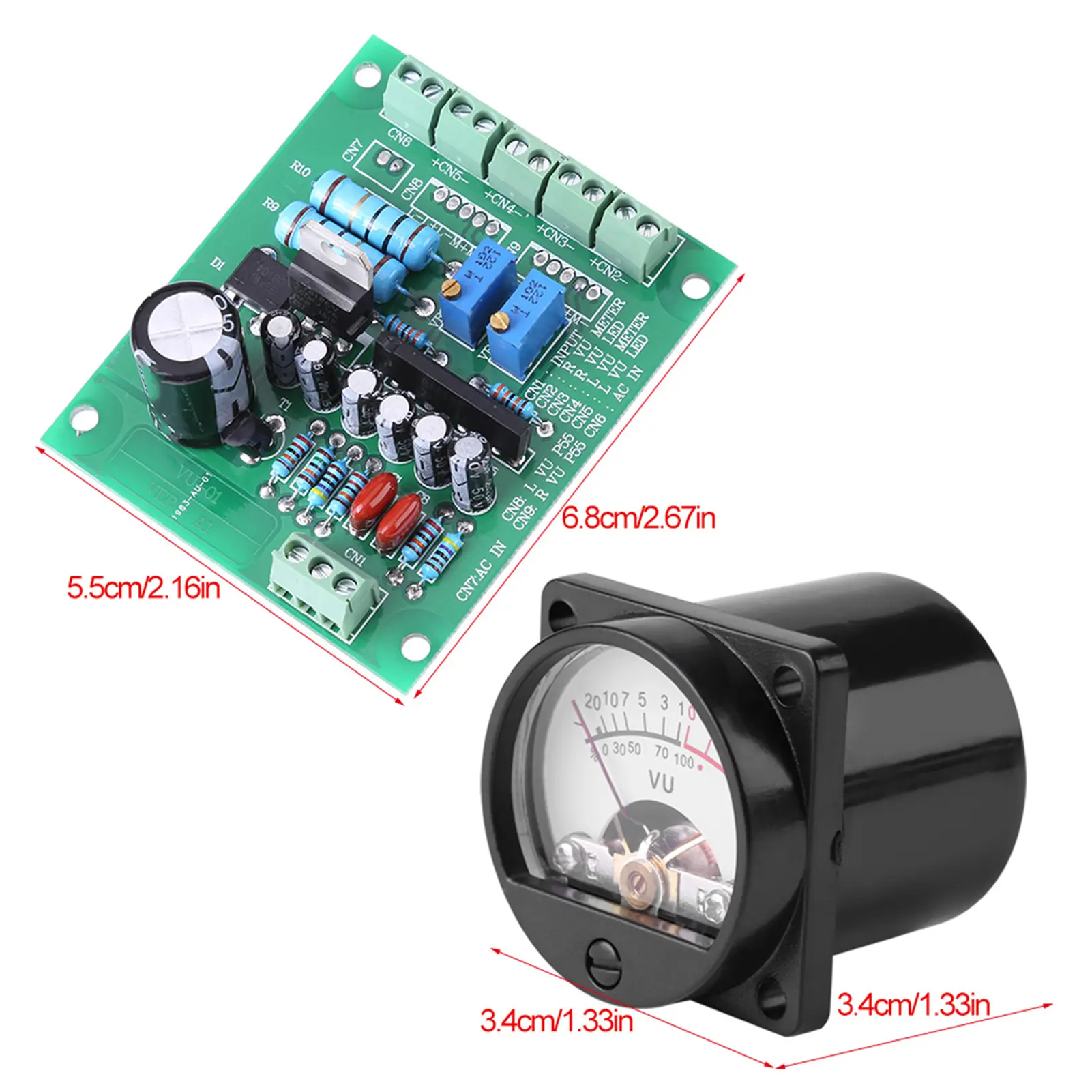

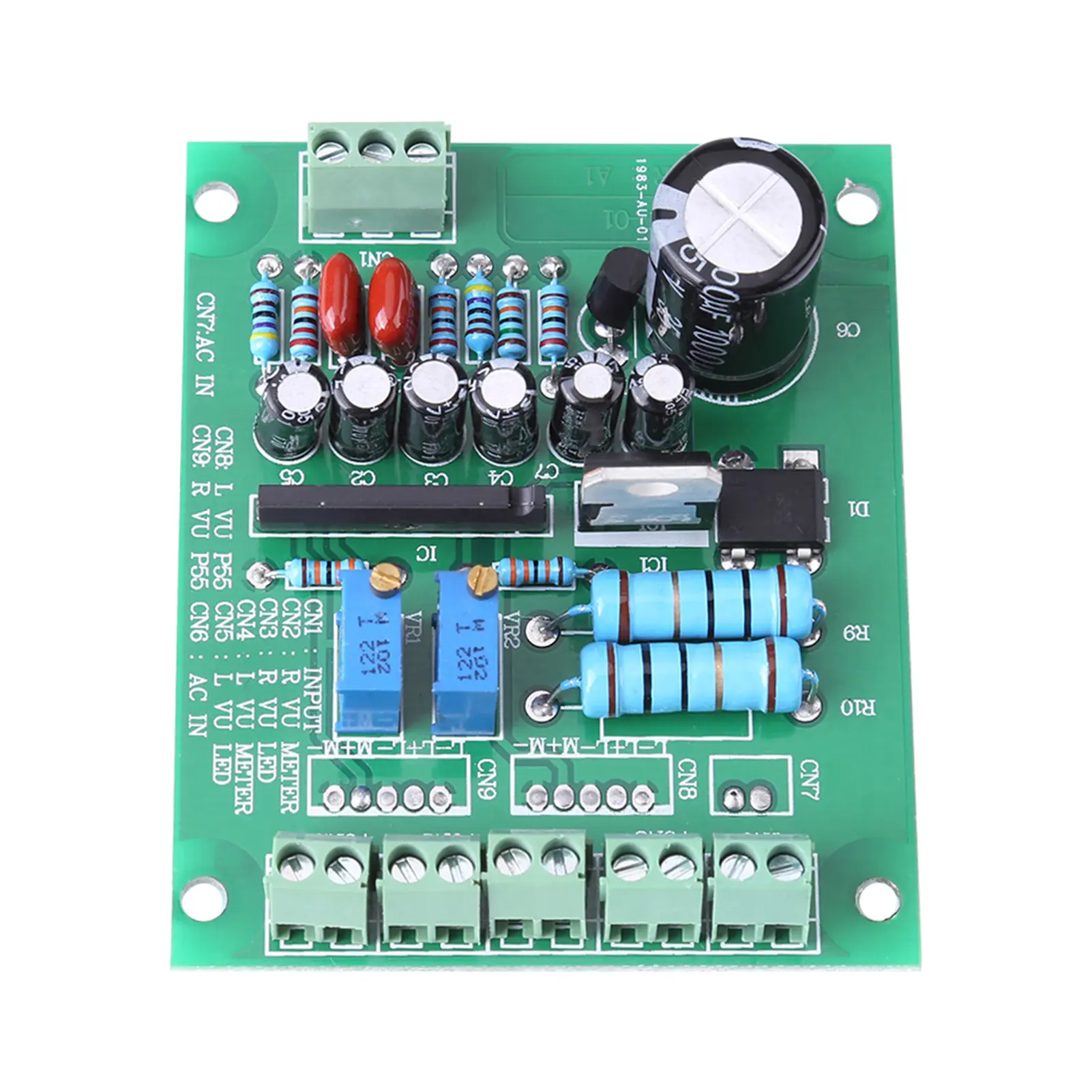

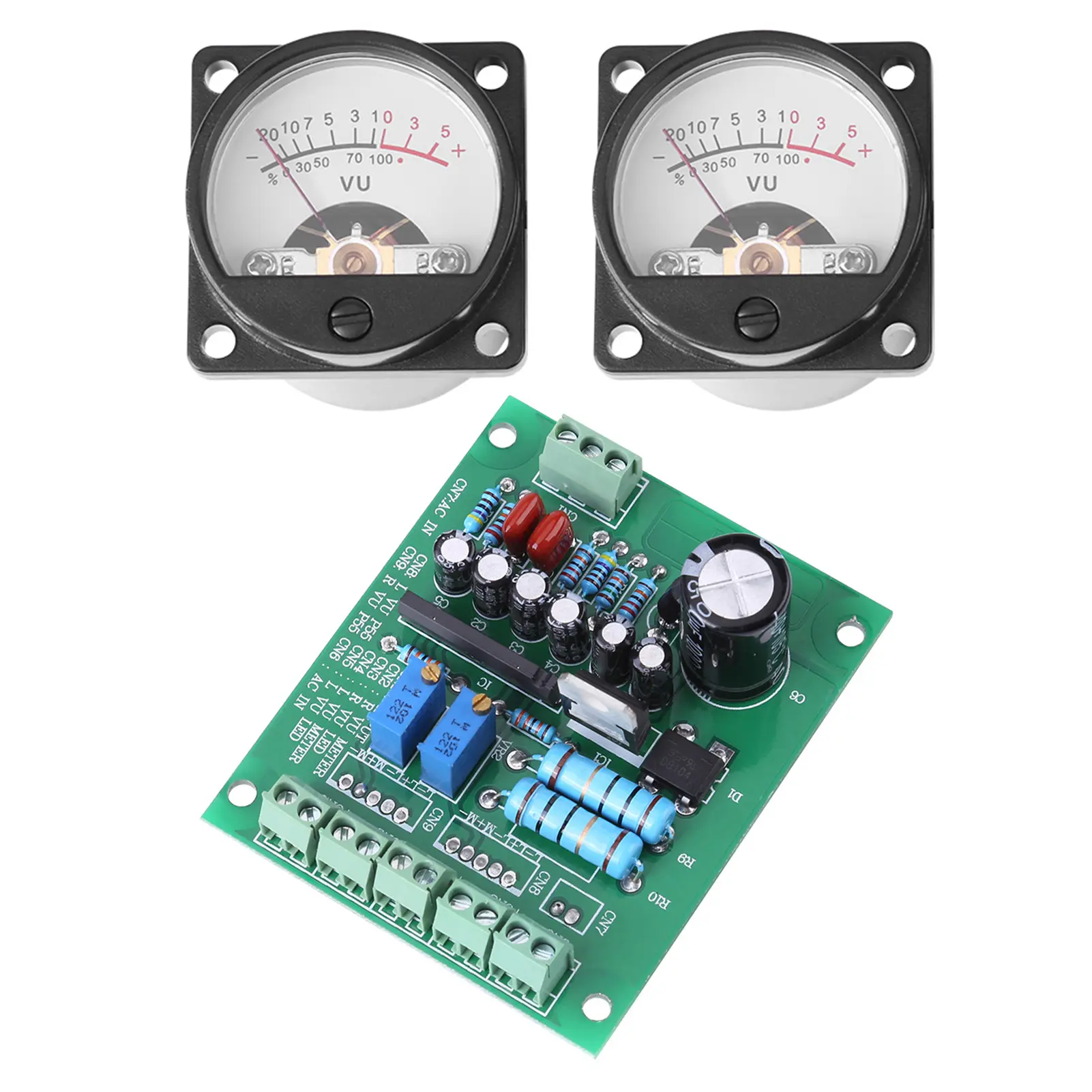

<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><div class="desc"><p data-we-empty-p="" style="text-align:center;"><b>2x pcs VU Meter Warm Back Light Recording + Audio Level Amp with Driver Board</b></p><div style="font:Arial;font-size:16px;">Features:<br/>Driver board:<br/>The design of bridge pile rectifier filter circuit, can be a transformer or DC power supply, power supply voltage 12-15V / 300mA. <br/>The level swings adjustable, can be compatible with all the different types of table header. <br/>The drive signal source can be connected to the amplifier input or audio amplifier output, without changing original circuitry. <br/>Support two level meter backlight power supply, change the current limiting resistor can be connected to different backlight. <br/>The driver board supports two output connection terminals.<br/> VU meter:<br/>Voltage 500MV, Weight: 21 grams, excellent quality, cute appearance, stable and reliable performance. <br/>Header DC resistance: 652Ω <br/>The backlight of incandescent bulbs. Operating voltage: 6 ~ 12V AC or DC. <br/>In the backlight brightness to meet the requirements under the conditions, lower operating voltage, can significantly prolong life. <br/>Need to use current limiting resistor in series 100Ω to 200Ω, reduce the impact on the filament boot.<br/><br/></div><div style="font:Arial;font-size:16px;">Specifications:<br/>Material: Plastic + metal<br/>Driver board: 6.8cm x 5.5cm/2.67 x 2.16inch<br/>VU meter: 3.4cm x 3.4cm/1.33 x 1.33inch<br/>Weight: 90g<br/><br/></div><div style="font:Arial;font-size:16px;">Packing Include: <br/>2 x 500μA VU Meter<br/>1 x AC12V driver<br/><p><br/></p></div><br/><p><br/><br/><br/><br/><br/><br/><br/><br/><br/><br/></p></div></div></div>
