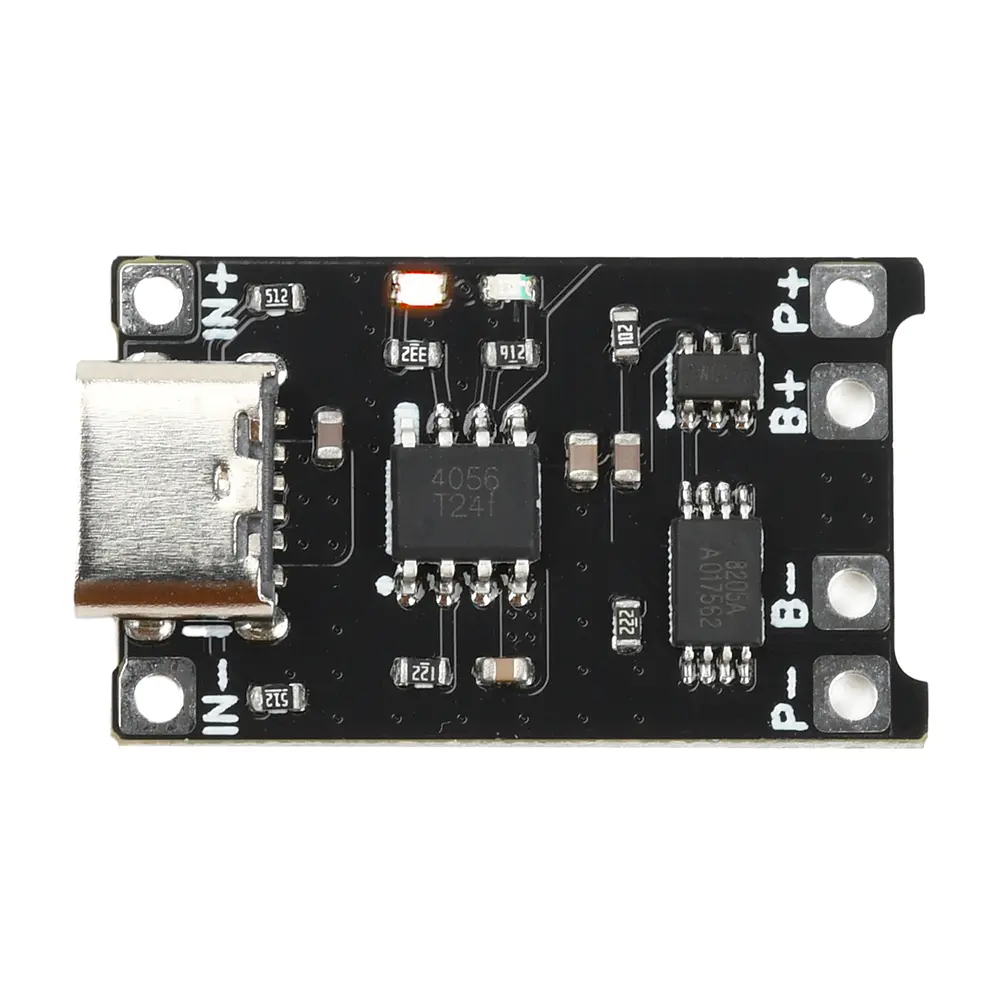

TP4056 Lithium Battery Charger Module 1A 18650 Li-ion Battery Charging Board With Protection Type-c DC 4-8V
<div class="detailmodule_dynamic"><kse:widget data-widget-type="relatedProduct" id="1005000004384065" title="" type="relation"></kse:widget></div>
<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><br />Features:<br />1. Efficient and fast charging: support up to 1.2A charging current, significantly shorten the charging time<br />2. Precise voltage control: preset 4.2V charging termination voltage, accuracy of 1%, to protect the battery life.<br />3. Multiple safety protection: with anti-backflow and anti-reverse connection functions to ensure a safer charging process.<br />4. Ultra-low standby power consumption: power consumption in shutdown mode is only 55μA, standby current is less than 2pA, energy saving and power saving<br />5. Flexible expansion design: reserved input soldering points, free to adapt to a variety of equipment and application scenarios</p>
<p>Parameter:<br />Product name: TP4056 lithium battery charging module<br />Input voltage: DC 4-8V<br />Maximum output current: 1.2A<br />Operating temperature: -40°C~85°C<br />Preset charging termination voltage: 4.2V, accuracy up to 1%<br />Standby current: <2pA<br />Power consumption: 55μA in shutdown mode<br />OV battery charging: supported<br />Linear charging current: 1.2A maximum<br />Three-stage charging: trickle/constant current/constant voltage<br />Protection function:<br />1. With BAT-VDD anti-backup function<br />2. Charging with battery anti-reverse connection function</p>

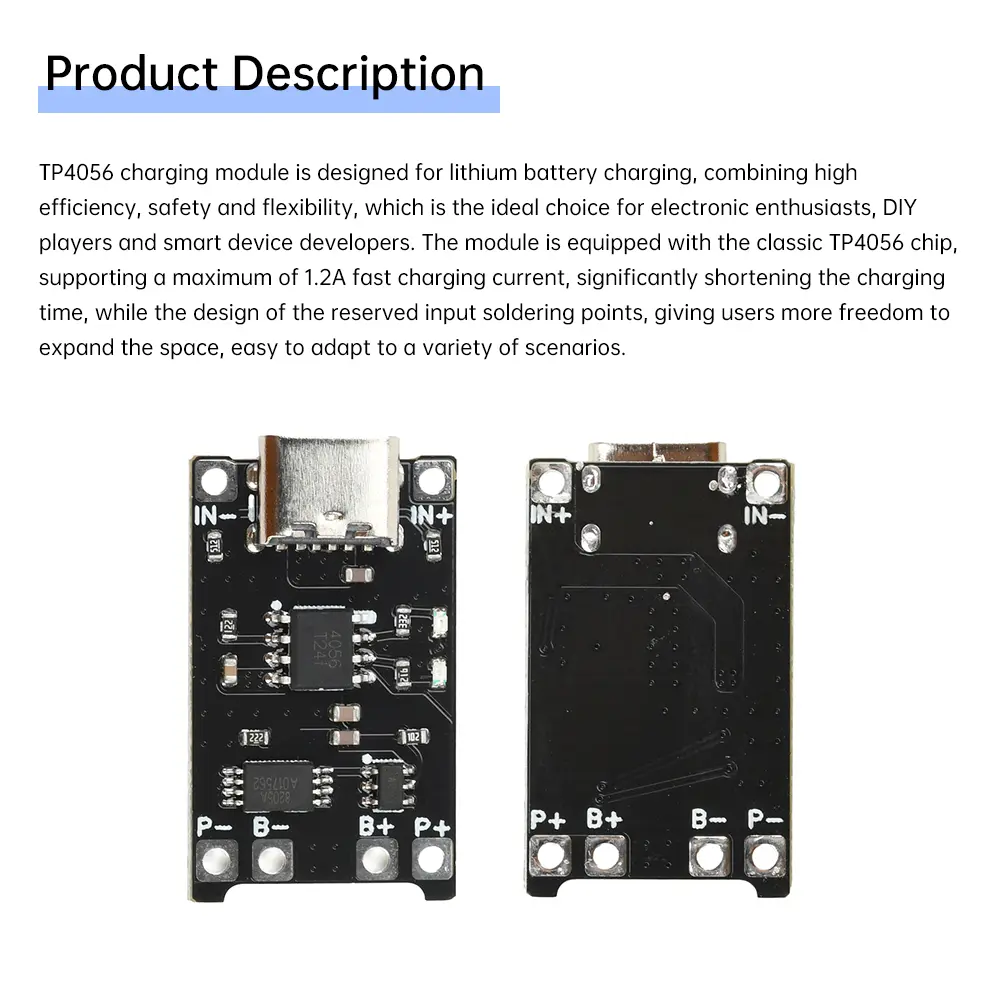

<p>Description:<br />TP4056 charging module is designed for lithium battery charging, integrating high efficiency, safety and flexibility, which is the ideal choice for electronic enthusiasts, DIY players and smart device developers. The module is equipped with the classic TP4056 chip, supporting a maximum of 1.2A fast charging current, significantly shortening the charging time, while the design of the reserved input soldering points, giving users more freedom to expand the space, easy to adapt to a variety of scenarios.</p>
<p>Package include:<br />Module x1<br /></p></div></div>
$4.85
$3.23
- Category : Consumer Electronics
- Brand : diy_electronics_module_999_store DIY Electronics Module 999 Store
Colors
Sizes
-
+
<div class="detailmodule_dynamic"><kse:widget data-widget-type="relatedProduct" id="1005000004384065" title="" type="relation"></kse:widget></div>
<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><br />Features:<br />1. Efficient and fast charging: support up to 1.2A charging current, significantly shorten the charging time<br />2. Precise voltage control: preset 4.2V charging termination voltage, accuracy of 1%, to protect the battery life.<br />3. Multiple safety protection: with anti-backflow and anti-reverse connection functions to ensure a safer charging process.<br />4. Ultra-low standby power consumption: power consumption in shutdown mode is only 55μA, standby current is less than 2pA, energy saving and power saving<br />5. Flexible expansion design: reserved input soldering points, free to adapt to a variety of equipment and application scenarios</p>
<p>Parameter:<br />Product name: TP4056 lithium battery charging module<br />Input voltage: DC 4-8V<br />Maximum output current: 1.2A<br />Operating temperature: -40°C~85°C<br />Preset charging termination voltage: 4.2V, accuracy up to 1%<br />Standby current: <2pA<br />Power consumption: 55μA in shutdown mode<br />OV battery charging: supported<br />Linear charging current: 1.2A maximum<br />Three-stage charging: trickle/constant current/constant voltage<br />Protection function:<br />1. With BAT-VDD anti-backup function<br />2. Charging with battery anti-reverse connection function</p>
<p>Description:<br />TP4056 charging module is designed for lithium battery charging, integrating high efficiency, safety and flexibility, which is the ideal choice for electronic enthusiasts, DIY players and smart device developers. The module is equipped with the classic TP4056 chip, supporting a maximum of 1.2A fast charging current, significantly shortening the charging time, while the design of the reserved input soldering points, giving users more freedom to expand the space, easy to adapt to a variety of scenarios.</p>
<p>Package include:<br />Module x1<br /></p></div></div>
