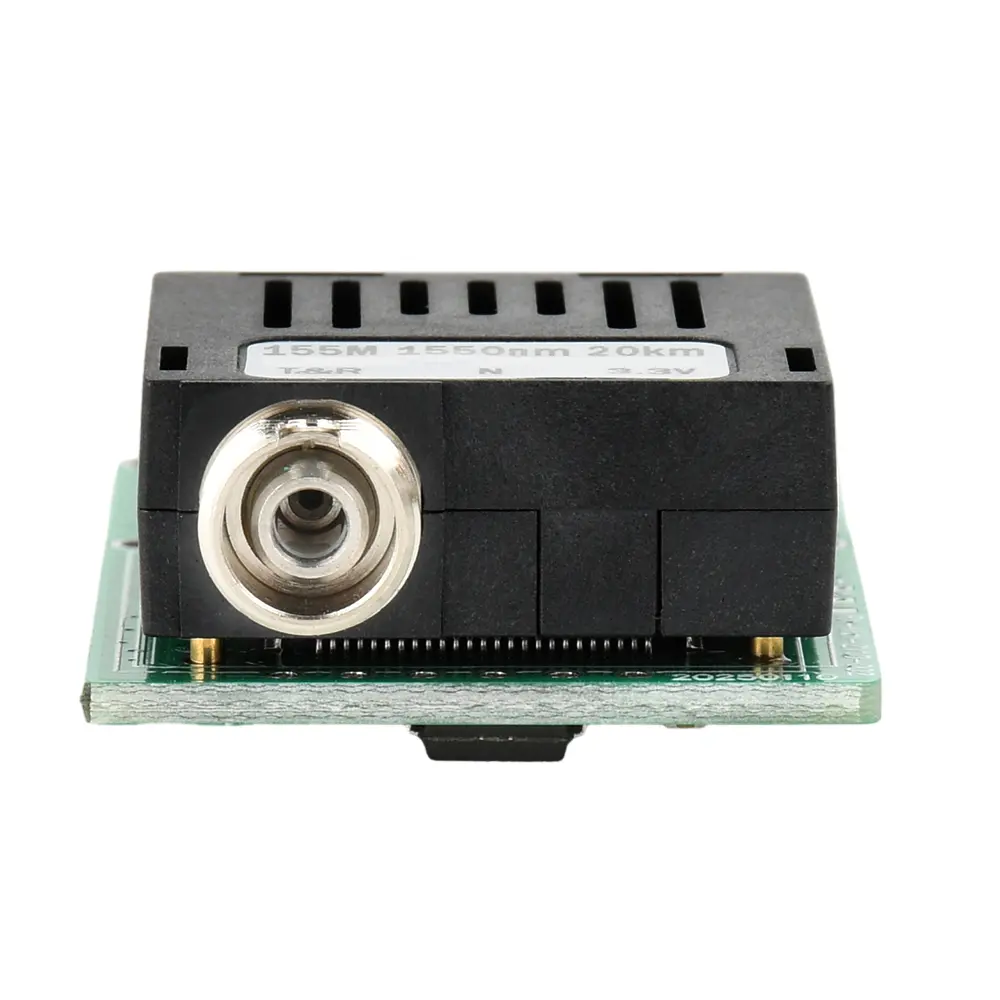

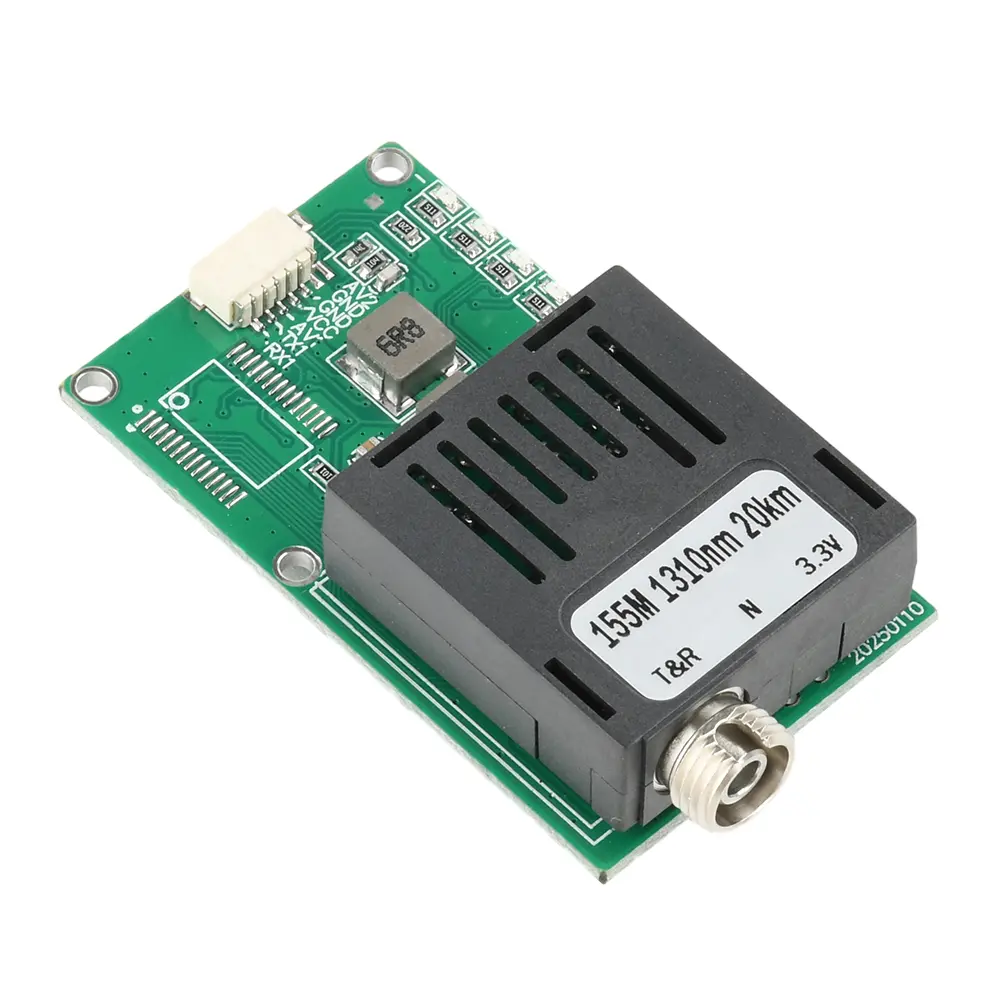

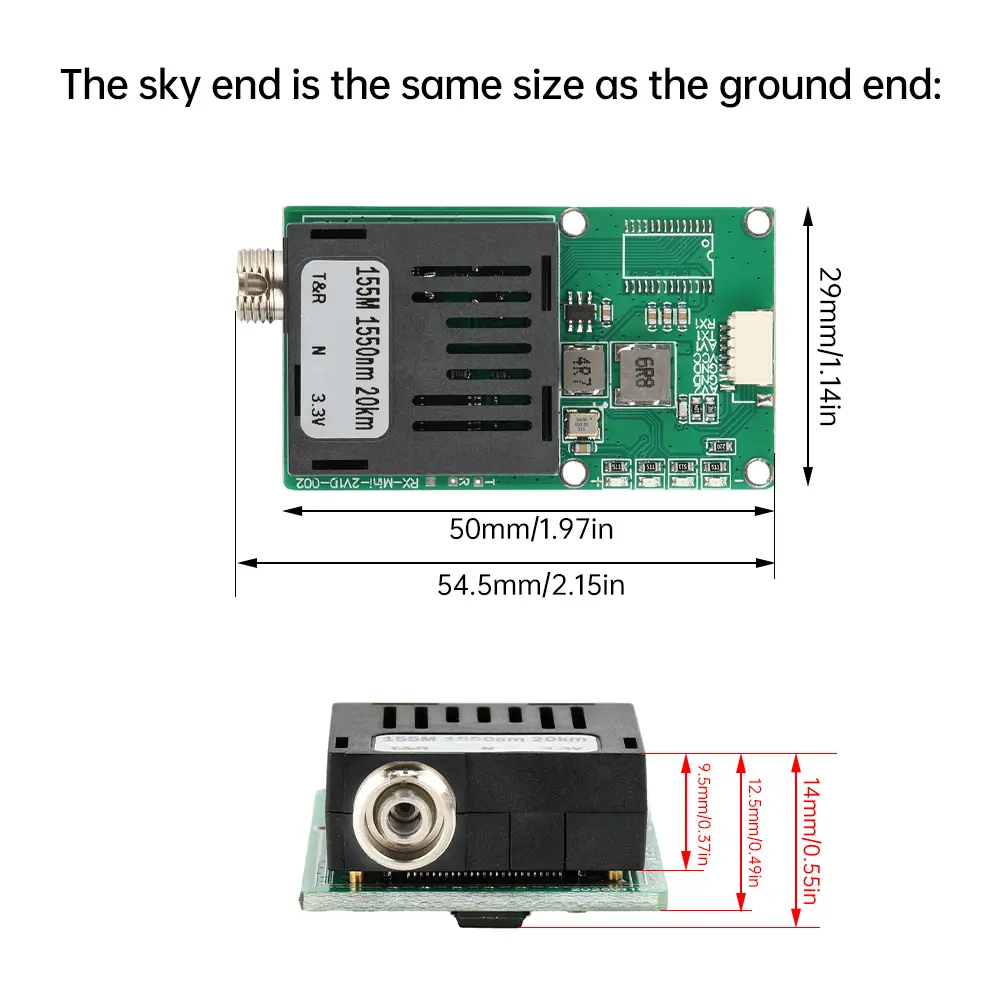

<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><p>Features:<br/>1.Wide voltage power supply 5.5-26V: compatible with a variety of batteries to ensure stable work, suitable for drones<br/>2.Communication distance up to 20KM: fiber optic transmission, long-distance signal without loss, suitable for FPV control<br/>3.Lightweight design: compact size of only 50x29x13mm, reducing the burden on equipment and improving flight efficiency<br/>4.Dual-wavelength fiber optic communication: 1310nm at the sky end and 1550nm at the ground end, guaranteeing the signal transmission quality<br/>5.Multiple indicator monitoring: power, fiber, video, data status at a glance, easy to maintain</p><p>Parameter:<br/>Product name: TTL optical transceiver module<br/>Power supply: DC 5.5-26V (2S-6S battery)<br/>Power consumption: ≤ 5W<br/>Communication Interface: MX-SH1.0mm-5P: CRSF interface / CVBS video port<br/>Fiber optic interface: FC<br/>Communication distance: Maximum 20KM<br/>Indicator: power indicator, fiber optic indicator, video signal indicator, data indicator<br/>Size: 50*29*13mm</p><p>Sky end:<br/>The fiber optic wavelength of the sky side is 1310nm, the interface is defined as: RX/TX/AV/VCC/GND, RX access to the CRSFTX of the flight control, TX access to the CRSFRX of the flight control, AV access to the AV signal output port of the flight control.<br/>Ground side:<br/>The fiber optic wavelength of the ground side is 1550nm, and the interface is defined as RX/TX/AV /CC /GND, RX accesses the CRSFTX of the remote control receiver, TX accesses the CRSFRX of the remote control receiver, and AV outputs to the AV signal input port of the display or VTX</p><p>Description:<br/>This device is developed for UAV signal transmission system with 1 channel analog video and 1 channel TTL level signal. The device is characterized by safety, reliability, stable performance, overall light weight, cost-effective and so on.<br/>Application Scenario: FPV remote control, pipeline communication, emergency rescue communication</p><p>Precautions:<br/>1. Please note that the power supply voltage should not exceed 26V, otherwise there is a risk of burnout<br/>2.Note that the minimum voltage should not be less than 5V, otherwise the chip of the board may not work properly</p><p>Package include:<br/>Module x1<br/><br/></p></div></div><p><br/></p>
