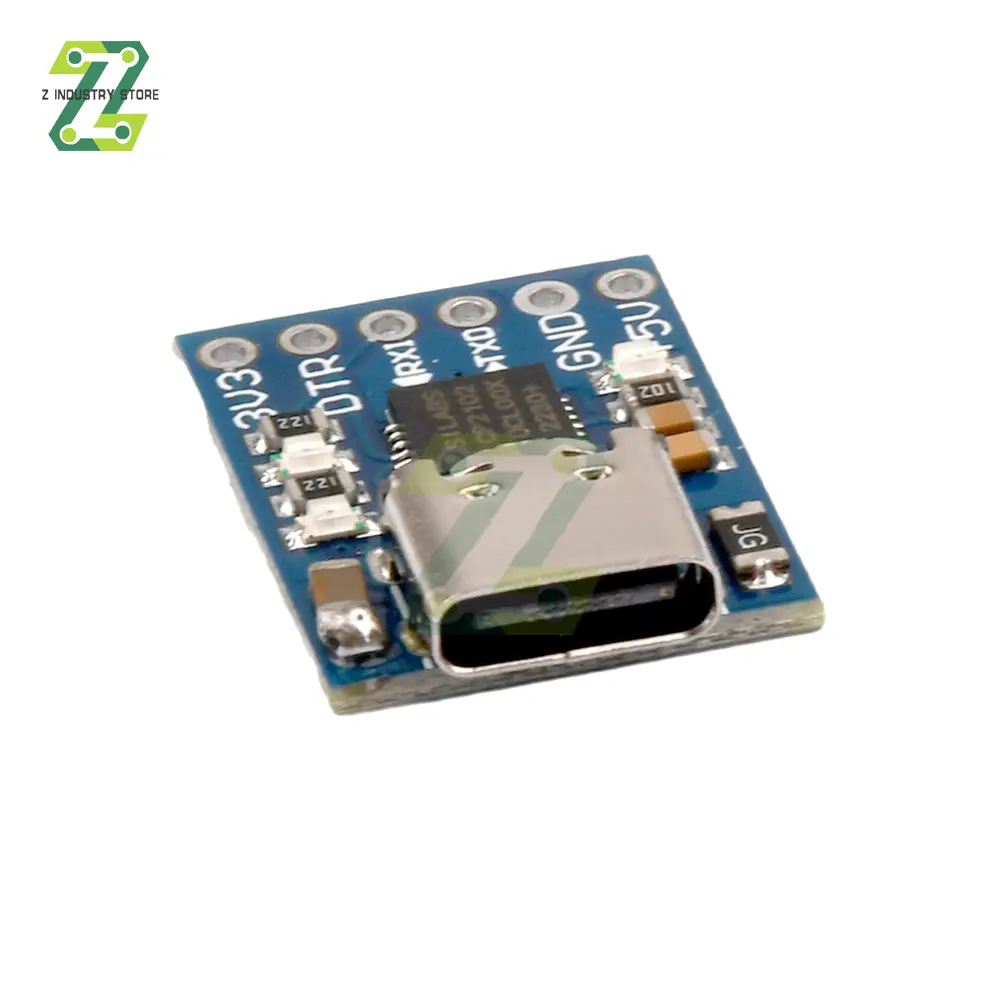

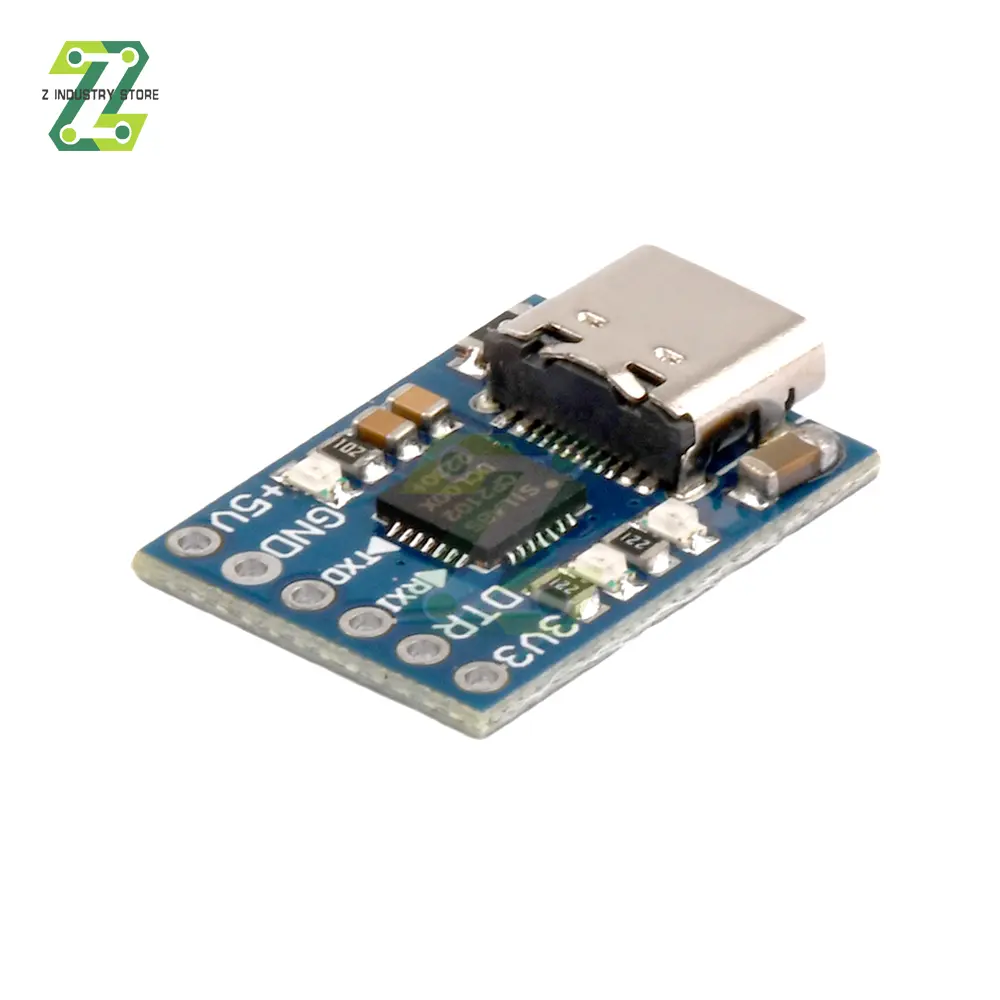

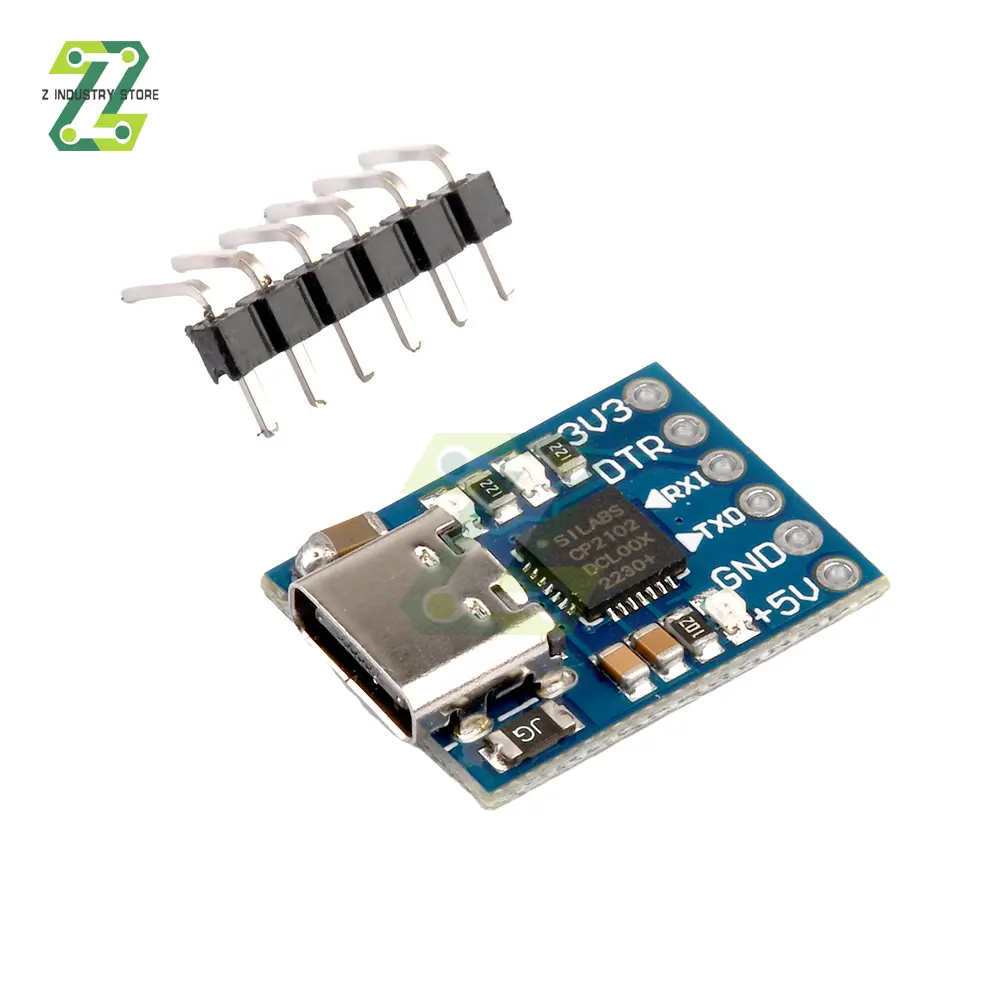

<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><br/></div></div><div class="detailmodule_dynamic"><kse:widget data-widget-type="customText" id="1005000000567623" type="relation"></kse:widget></div><div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><div><br/><br/><span style="font-family:arial, helvetica, sans-serif"><strong><span style="font-size:16px">TYPE-C USB CP2102 to UART TTL Module 6Pin Serial Converter UART STC Replace FT232 for aduino</span></strong></span><br/><br/><span style="font-size:16px;font-family:arial, helvetica, sans-serif"><span style="color:rgb(255, 0, 0);font-size:18px"><strong>Description:<br/></strong></span></span><span style="font-size:16px;font-family:arial, helvetica, sans-serif">1.Easy to use, the module is delivered with pins, but not welded. When convenient to use, it can be welded according to personal needs;</span><br/><span style="font-size:16px;font-family:arial, helvetica, sans-serif">2.CP2102 module, upgrade TYPE-C interface to TTL, support USB to serial port, and support UART STC downloader;</span><br/><span style="font-size:16px;font-family:arial, helvetica, sans-serif">3.CP2102 has high integration, with built-in USB2.0 full speed functional controller, USB transceiver, crystal oscillator, EEPROM, and asynchronous serial data bus (UART);</span><br/><span style="font-size:16px;font-family:arial, helvetica, sans-serif">4.Support full function signal of the modem without any external USB devices;</span><br/><span style="font-size:16px;font-family:arial, helvetica, sans-serif">5.The working principle of CJMCU-CP2102 is similar to other USB-UART adapter circuits, where the USB port of the PC is virtualized into a COM port through a driver program to achieve expansion.</span></div><br/><p><span style="color:rgb(255, 0, 0)"><strong><span style="font-size:18px;font-family:arial, helvetica, sans-serif">Parameter:</span></strong></span><br/><span style="font-size:16px;font-family:arial, helvetica, sans-serif">CJMCU-Attitude Module Communication USB to TTL Module 5V Power Output TTL Level CP2102 Core CJMCU-CP2102 is a highly integrated USB-UART bridge that provides a simple solution for RS232 to USB conversion using minimal component and PCB space. Simply put, users can convert the USB interface to RS232 interface using CJMCU-CP2102.</span></p><p><span style="color:rgb(255, 0, 0)"><strong><span style="font-size:18px;font-family:arial, helvetica, sans-serif">Module Description:</span></strong></span><br/><span style="font-size:16px;font-family:arial, helvetica, sans-serif">1. Using a 2102 chip, generate a COM port after installing the driver.</span><br/><span style="font-size:16px;font-family:arial, helvetica, sans-serif">2. Connect standard TYPE-C cable input to computer USB interface, with two power outputs of 3.3V and 5V voltage</span><br/><span style="font-size:16px;font-family:arial, helvetica, sans-serif">3. On board status indicator light and transceiver indicator light. After the driver is correctly installed, the status indicator light will remain on, and the transceiver indicator light will flash during communication, with a running LED indicator light.</span><br/><span style="font-size:16px;font-family:arial, helvetica, sans-serif">4. Support Baud from 300bps to 1Mbps</span><br/><span style="font-size:16px;font-family:arial, helvetica, sans-serif">5. Communication format support: 1) 5,6,7,8 data bits; 2) Supports stop bits 1, 1.5, and 2; 3) Odd, even, mark, space, none verification</span><br/><span style="font-size:16px;font-family:arial, helvetica, sans-serif">6. Supported operating systems: Windows 8.1/7/vista/xp/98, Mac OS-X/OS-9</span><br/><span style="font-size:16px;font-family:arial, helvetica, sans-serif">7. The USB socket interface is TYPE-C-USB socket</span><br/><span style="font-size:16px;font-family:arial, helvetica, sans-serif">8. The SMD components are welded by a legitimate company, with stable quality and beautiful appearance</span><br/><span style="font-size:16px;font-family:arial, helvetica, sans-serif">9. With DTR trigger signal output, it can directly download programs for communication to pro mini ATMEGA328P and other motherboards.</span><br/><span style="font-size:16px;font-family:arial, helvetica, sans-serif">10. Module size: 16mm * 20mm super small.</span></p><p><span style="font-size:16px;font-family:arial, helvetica, sans-serif">Driver download address: http://pan.baidu.com/s/1jI3PYn0</span></p><p><span style="color:rgb(255, 0, 0)"><strong><span style="font-size:18px;font-family:arial, helvetica, sans-serif">Package include:</span></strong></span><br/><span style="font-size:16px;font-family:arial, helvetica, sans-serif">1X module</span><br/><span style="font-size:16px;font-family:arial, helvetica, sans-serif">1X needle arrangement<br/><br/></span><span style="font-size:16px;font-family:arial, helvetica, sans-serif"><br/></span></p></div></div><br/>
