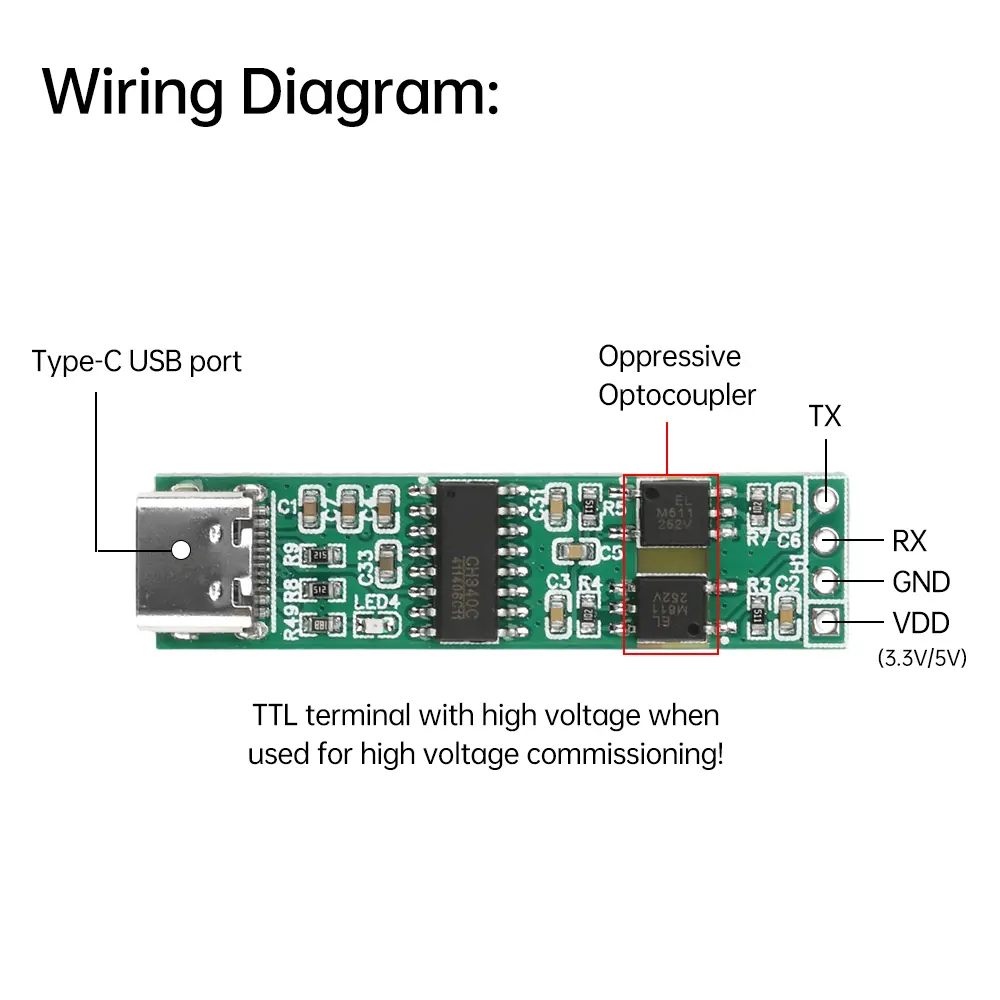

<div class="detailmodule_dynamic"><kse:widget data-widget-type="relatedProduct" id="1005000004105228" title="" type="relation"></kse:widget></div> <div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><br />Features: <br />1. High speed optoelectronic isolation effectively protects computers and circuit board equipment. <br />2. Supports Type C interface, supports forward and reverse insertion, and is easy to connect. <br />3. Isolation voltage exceeding 600V, suitable for high voltage environment debugging. <br />4. Two high-speed optocouplers are used for isolation to achieve TTL serial port bidirectional communication. <br />5. The exterior design is compact and adaptable to various environmental requirements.</p> <p>Product Introduction: <br />The optoelectronic isolated USB transit serial port using Type C interface is non isolated compared to ordinary USB to serial ports, and the circuit board end is not electrically isolated from the computer, which can easily damage the upper computer or circuit board. This optoelectronic isolation USB transit serial port module uses two high-speed optocouplers for isolation, achieving TTL serial port bidirectional communication. The isolation voltage exceeds 600V and can be used for serial port debugging of control chips (MCUs) for high and low voltage brushless DC motors (BLDC) or high and low voltage CNC power supplies. Due to the use of TYPE-C interface, computers with TYPE-C interface can be directly plugged into the USB interface, while those with only USB-A interface can be connected with a regular TYPE-C data cable.</p> <p>Parameter: <br />Interface: Type C <br />Voltage: 3.3V/5V <br />Size: 44mm * 11mm <br />Attention: When used for debugging high-voltage circuit boards, there is high-voltage electricity present at the TTL serial port end, and this part of the circuit cannot be touched.</p> <p>Package Include: <br />1X module<br /></p></div></div>
$8.375
$4.745

Colors

Sizes

-
+
<div class="detailmodule_dynamic"><kse:widget data-widget-type="relatedProduct" id="1005000004105228" title="" type="relation"></kse:widget></div> <div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><br />Features: <br />1. High speed optoelectronic isolation effectively protects computers and circuit board equipment. <br />2. Supports Type C interface, supports forward and reverse insertion, and is easy to connect. <br />3. Isolation voltage exceeding 600V, suitable for high voltage environment debugging. <br />4. Two high-speed optocouplers are used for isolation to achieve TTL serial port bidirectional communication. <br />5. The exterior design is compact and adaptable to various environmental requirements.</p> <p>Product Introduction: <br />The optoelectronic isolated USB transit serial port using Type C interface is non isolated compared to ordinary USB to serial ports, and the circuit board end is not electrically isolated from the computer, which can easily damage the upper computer or circuit board. This optoelectronic isolation USB transit serial port module uses two high-speed optocouplers for isolation, achieving TTL serial port bidirectional communication. The isolation voltage exceeds 600V and can be used for serial port debugging of control chips (MCUs) for high and low voltage brushless DC motors (BLDC) or high and low voltage CNC power supplies. Due to the use of TYPE-C interface, computers with TYPE-C interface can be directly plugged into the USB interface, while those with only USB-A interface can be connected with a regular TYPE-C data cable.</p> <p>Parameter: <br />Interface: Type C <br />Voltage: 3.3V/5V <br />Size: 44mm * 11mm <br />Attention: When used for debugging high-voltage circuit boards, there is high-voltage electricity present at the TTL serial port end, and this part of the circuit cannot be touched.</p> <p>Package Include: <br />1X module<br /></p></div></div>
