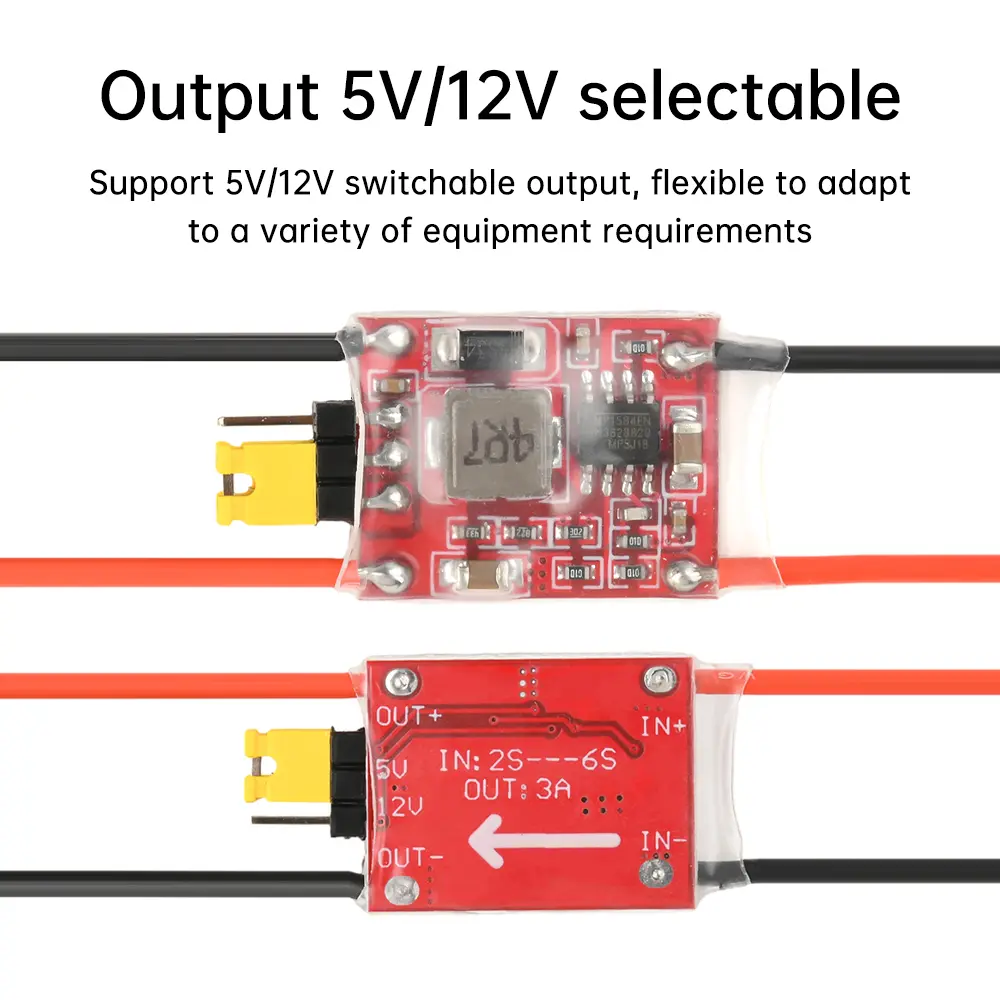

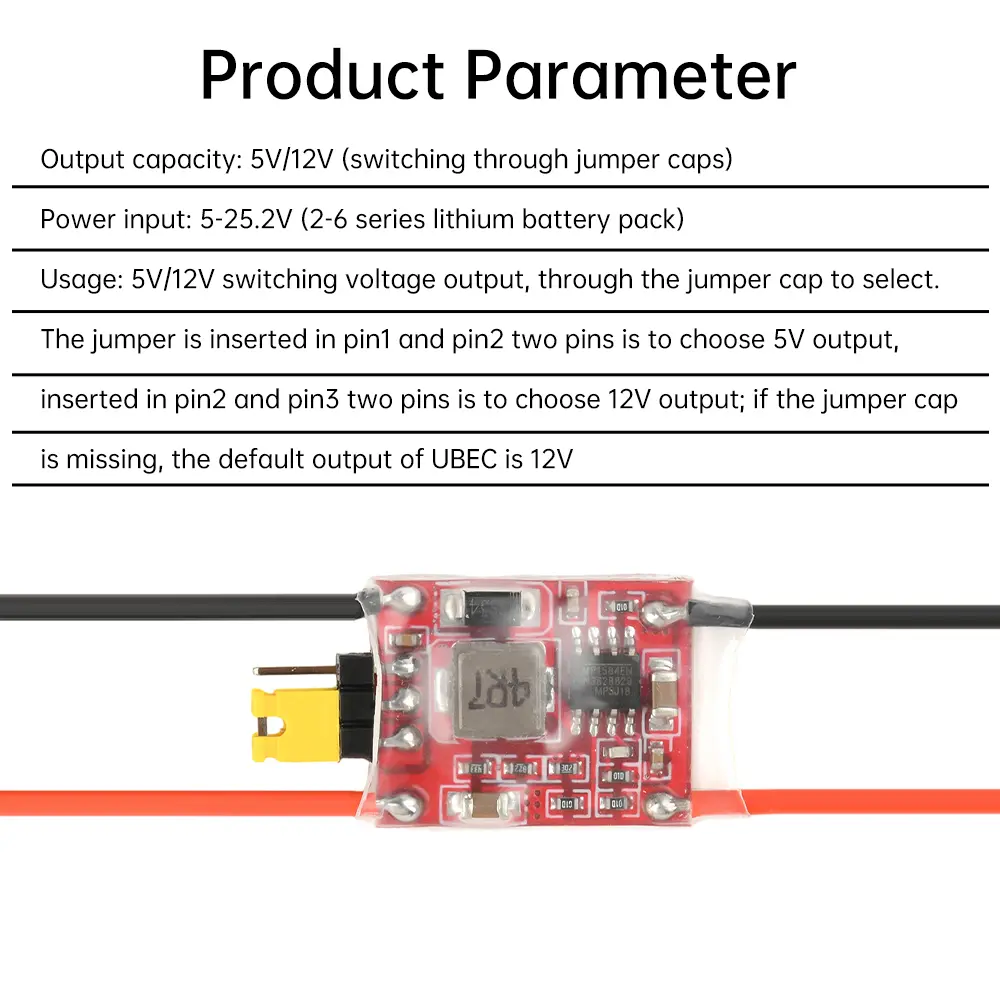

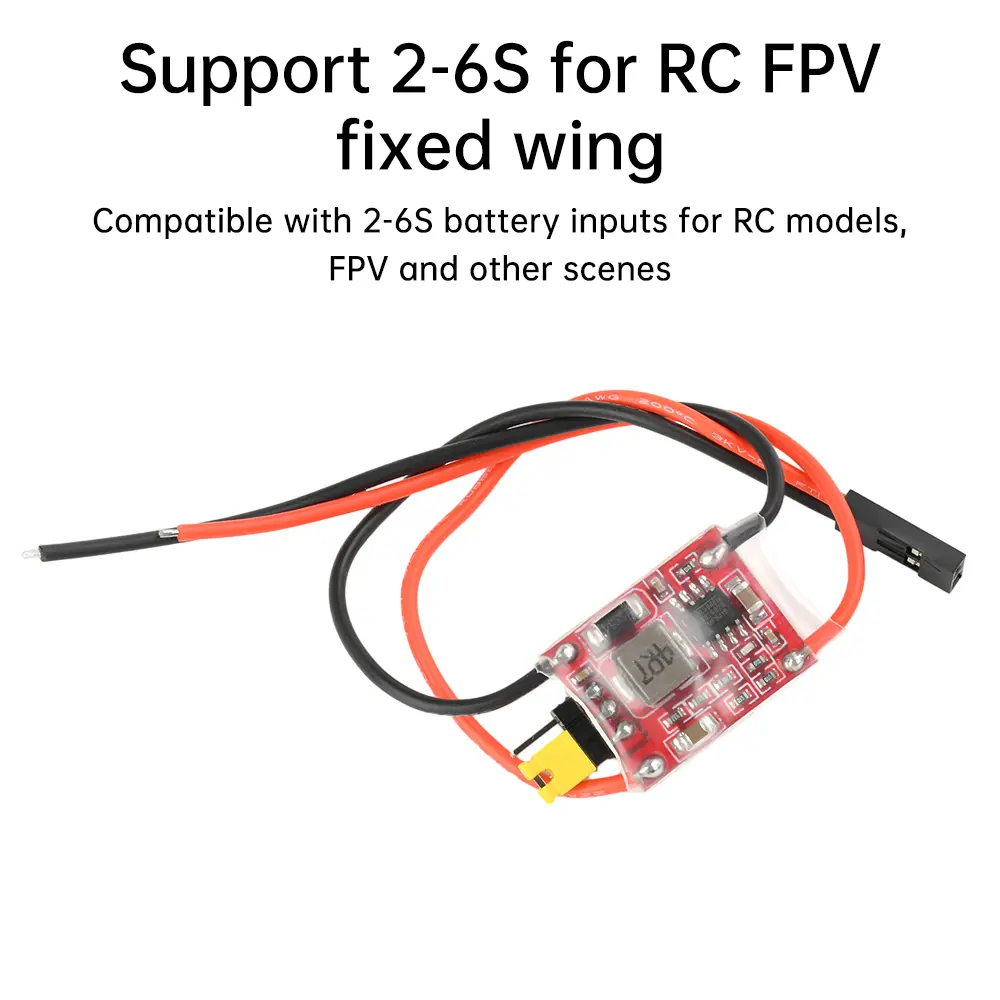

<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><p>Features:<br/>1.Support 5V/12V switchable output, flexible to adapt to the needs of a variety of equipment<br/>2.Provide stable 3A current to meet the power supply needs of high power consumption equipment.<br/>3. Built-in filtering circuit, effectively reduce interference and ensure stable signal transmission.<br/>4. Compatible with 2-6S battery input, suitable for RC model, FPV and other scenes.<br/>5. Reduce ESC load, improve system stability and extend equipment life.</p><p>Parameter:<br/>Output capacity: 5V/12V (switching through jumper caps)<br/>Power input: 5-25.2V (2-6 series lithium battery pack)<br/>Usage: 5V/12V switching voltage output, through the jumper cap to select. The jumper is inserted in pin1 and pin2 two pins is to choose 5V output, inserted in pin2 and pin3 two pins is to choose 12V output; if the jumper cap is missing, then the default output of UBEC is 12V!</p><p>Product Description: UBEC full name is Ultra Battery Elimination Circuit, is the built-in BEC from the electronic speed controller (ESC) in the independent, independent external voltage regulator, for the load to provide greater output power, and therefore also known as external BEC. UBEC to the switching mode of power (Switch Mode) The main reason for the use of UBEC is that the voltage of the input power supply exceeds the permissible range of the on-board BEC of the ESC; or the current demanded by the load exceeds the permissible output range of the on-board BEC of the ESC. The UBEC can range from 2S to 2S. This UBEC is ideal for fixed-wing and FPV use as it can obtain a DC voltage suitable for receiver and other equipment operation from a 2S-6S LiPo battery pack and stabilize up to 3A of output current to power equipment such as receivers, FPVs, and multiple servos. With this device, it is possible to obtain the power needed for the receiver directly from the power supply, eliminating the need for a separate receiver battery pack.</p><p>Cautions:<br/>1, despite the use of various measures to reduce electromagnetic interference, but the switching regulator mode of the UBEC can not completely avoid a small amount of electromagnetic interference in the work; in order to ensure the normal operation of the receiver, the output filter ring and the UBEC main control board as far away as possible (the magnetic ring can not be superimposed on the main control board), and at the same time the entire UBEC as far away as possible from the receiver!<br/>2, the positive and negative of the input power supply can not be reversed, otherwise the UBEC will be burned, can not be repaired!</p><p>Package include:<br/>Module *1<br/><br/></p><div><br/></div></div></div><p><br/></p>
