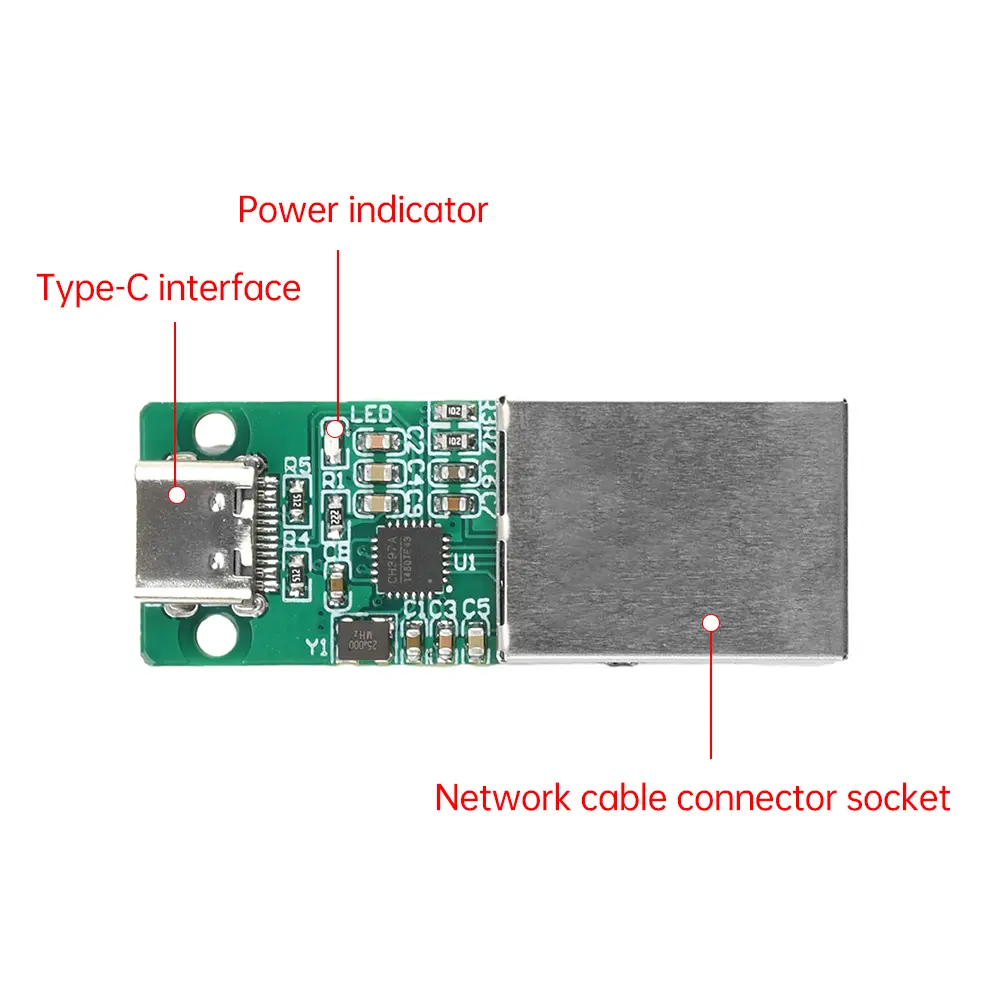

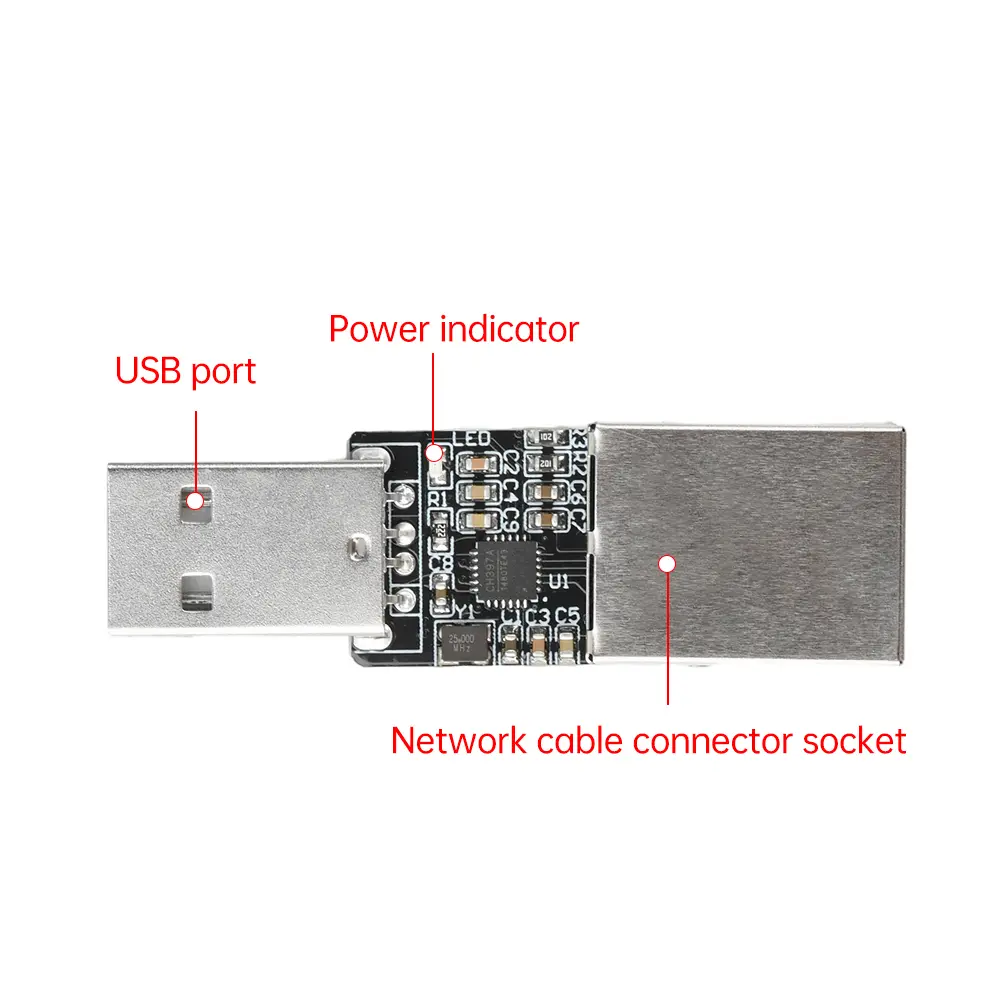

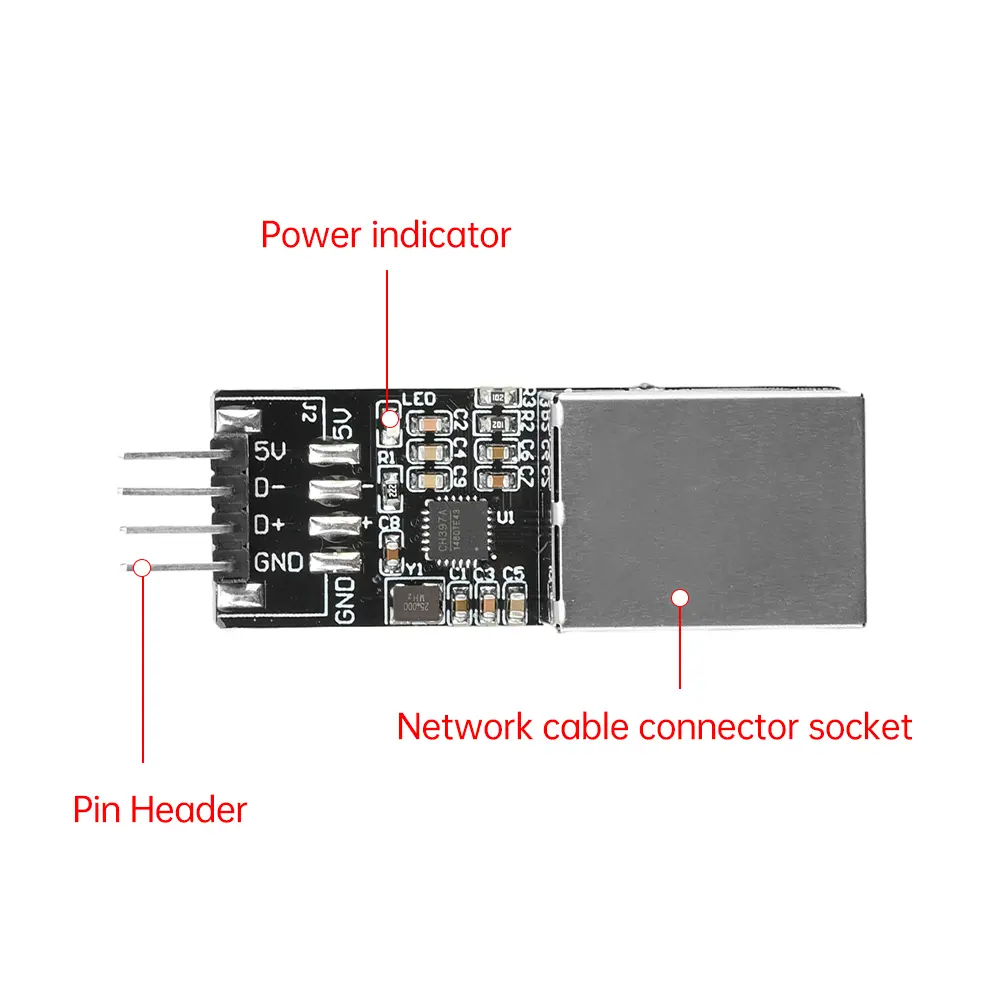

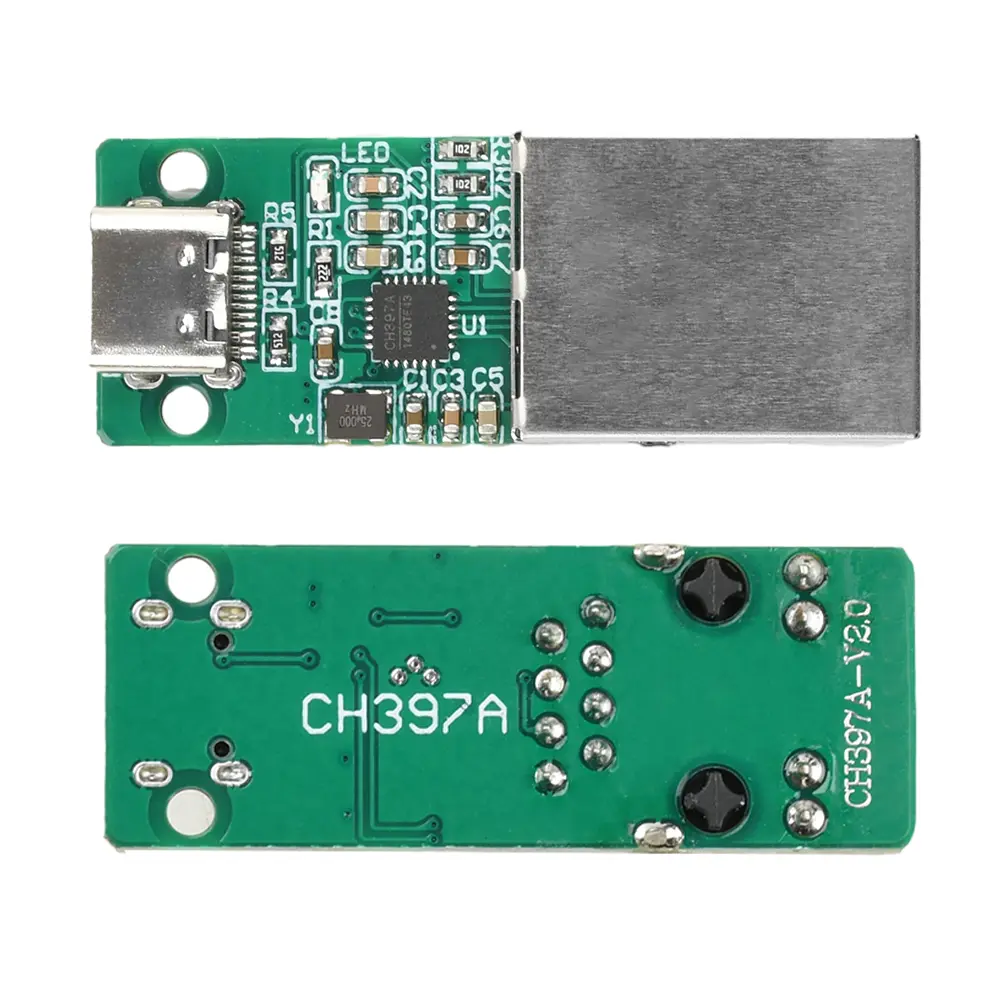

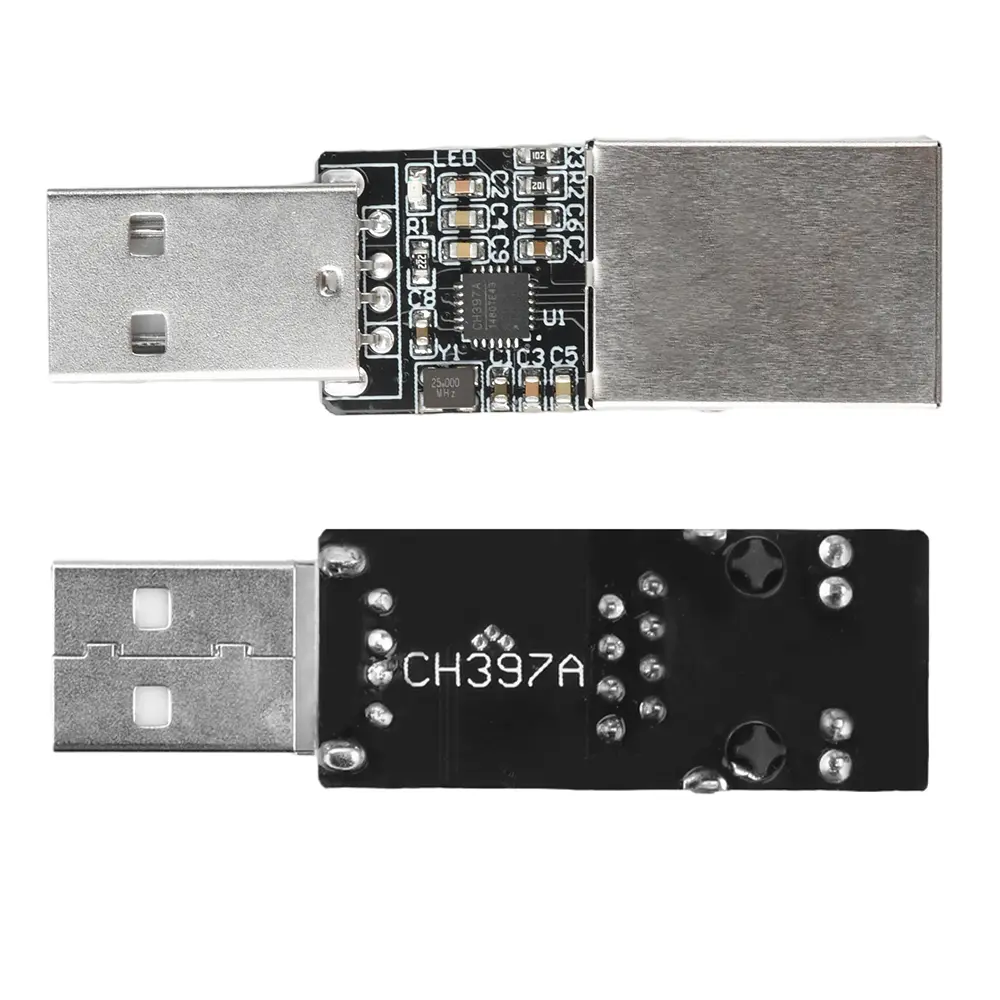

<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><p>Features: <br/>1. High integration single-chip solution with built-in RISC-V processor and USB/Ethernet controller. <br/>2. Supports multiple protocols, compatible with USB 2.1 and IEEE 802.3 standards, and adaptable to various types of devices. <br/>3. Automatically negotiate 10M/100M speeds, support IPv4/IPv6 packet verification and traffic control. <br/>4. Low power design, supporting sleep mode and remote wake-up function, with a transmission distance of up to 120 meters. <br/>5. Miniaturized PCB design, streamlined peripheral circuits, and strong ESD protection performance.</p><p>Functional performance introduction: <br/>Single chip USB2.0/2.1 to 10/100M Fast Ethernet, integrated USB PHY and Ethernet MAC and Ethernet PHY support CDC-ECM protocol, CDC-NCM protocol and RNDIS protocol, no driver installation or optional vendor driver supports 10Mbps and 100Mbps rates, compatible with IEEE802.3 10BASE-T/100BASE-TX and supports 10M/100M auto negotiation. <br/>Built in TX/RX packet buffer <br/>Support IPv4/IPv6 packet verification, support IPv4 TCP/UD? HEA! 1.61F/uP packet verification generation and inspection support IEEE802.3x flow control and half duplex collision pressure fallback flow control <br/>Supports IEEE 802.3QV LAN tagging <br/>Supports sleep mode and low-power sleep mode, supports network low-power configuration, supports dynamic power management, and supports remote wake-up through events such as magic packets and network wake-up packets <br/>Supports UTP CAT5E and CAT6 twisted pair cables, with a transmission distance of 120 meters <br/>Support AutO MDIX exchange TX/RX, automatically identify positive and negative signal lines <br/>Optional external SPI Flash that can update user configurations <br/>Support LED flashing frequency and duty cycle configuration <br/>Built in LD0, single power supply <br/>Built in 50 Ω impedance matching resistor, built-in capacitor required for crystal oscillator, simplified peripheral circuit <br/>The processor IP, controller, and transceiver IP are all self-developed and tightly integrated, with high efficiency and low cost <br/>6KV enhances ESD performance, ClaSS3A <br/>Style: Type C to RJ45, Pin to RJ45, USB to RJ45 <br/>PCB size: 37mm * 16mm (measured manually, with errors ranging from 1-3mm if any)</p><p>Network connection communication test: <br/>1. Install the driver; <br/>2. Connect the module to the computer USB; Insert one end of the network cable into this module and the other end into the router; <br/>3. Choose the internet connection for this module. If it can connect to the internet normally, it is considered normal; otherwise, it is abnormal.</p><p>Package Include: <br/>1X module<br/><br/></p></div></div><br/>
