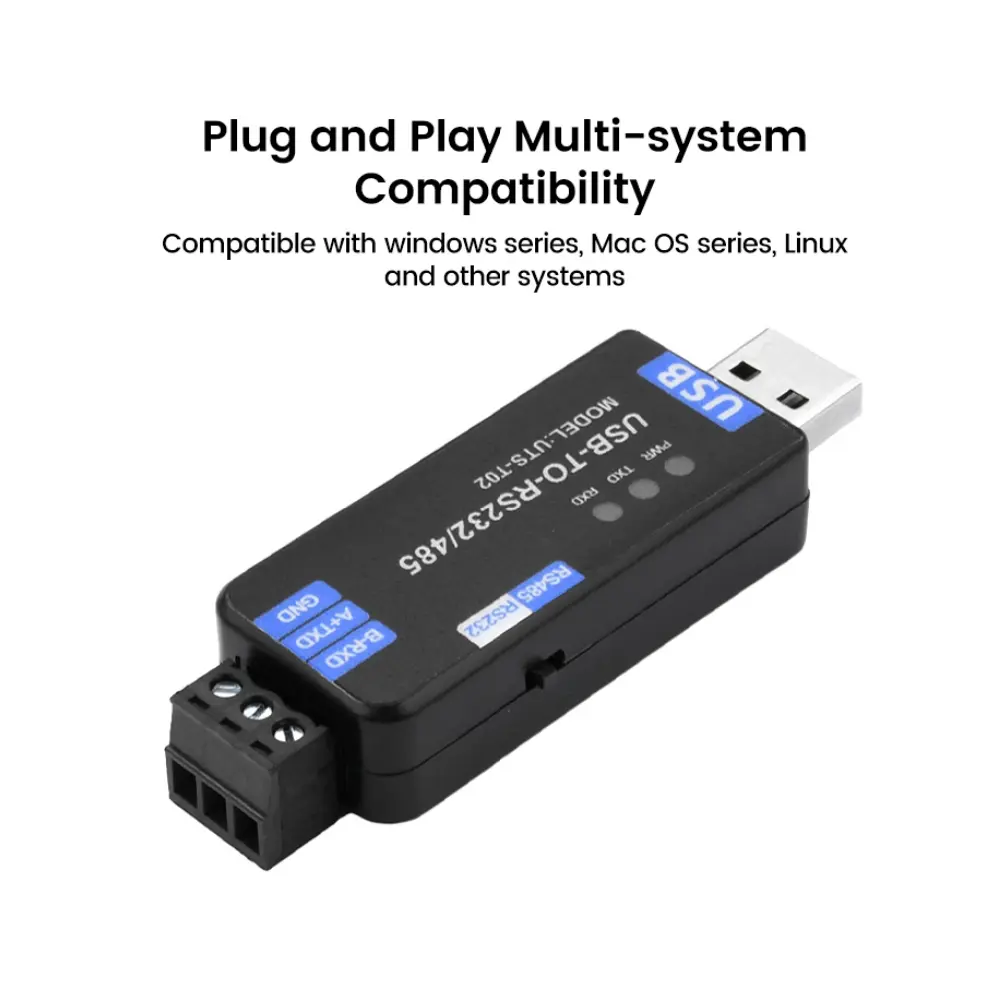

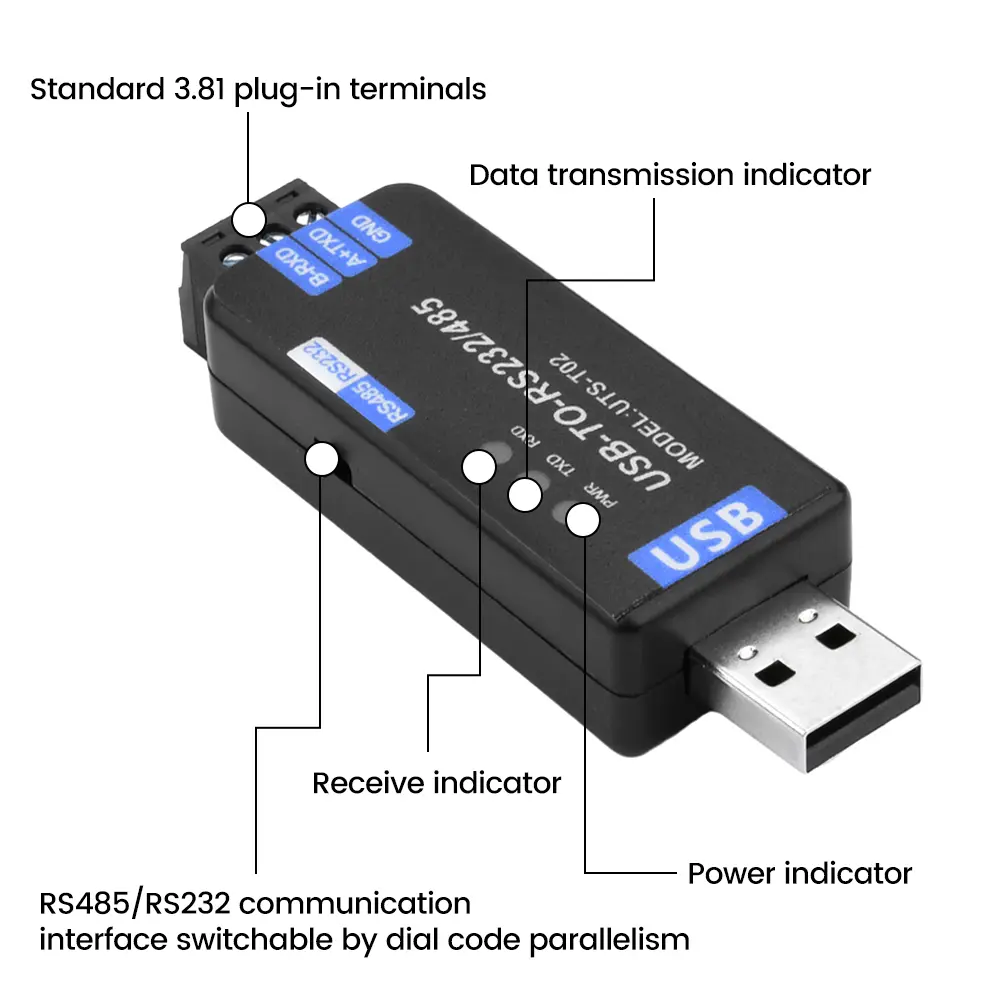

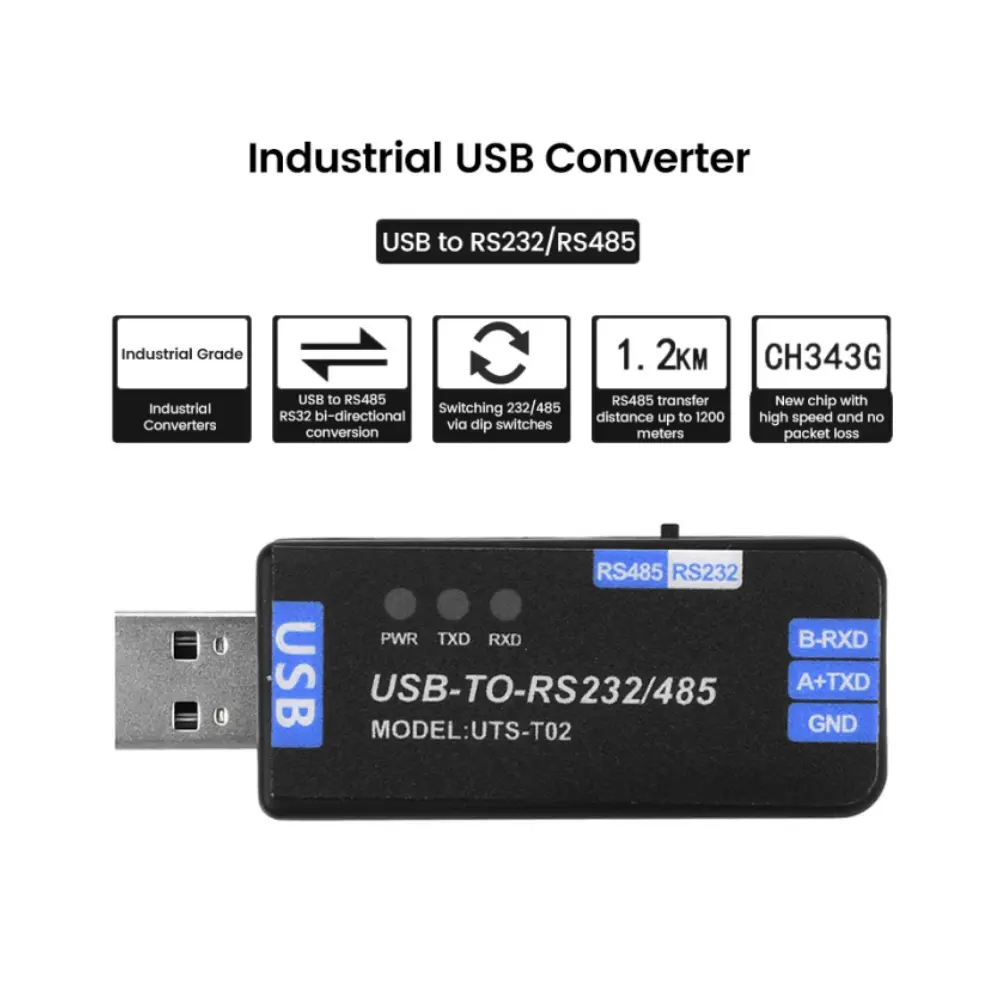

<div class="detailmodule_dynamic"><kse:widget data-widget-type="customText" id="1005000004105228" type="relation"></kse:widget></div><div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><div><br/><strong><span style="font-size:20px">Product features</span></strong><br/><br/>1. Supports USB to RS485/RS232 communication (switched through a toggle switch).<br/><br/>2. Adopting the brand new CH343G chip, plug and play, compatible with Windows series, MacOS series, Linux and other systems.<br/><br/>3. On board TVS (transient voltage suppression tube) can effectively suppress surge voltage and peak voltage in the circuit, and prevent lightning and static electricity.<br/><br/>4. The board is equipped with self recovery fuses and protective diodes, which can ensure stable output of current and voltage, prevent overcurrent and overvoltage, and improve impact resistance.<br/><br/>5. Three LED indicator lights on board for easy viewing of power signal transmission and reception status.<br/><br/><strong><span style="font-size:20px">Product parameters:</span></strong><br/><br/>Product type: Industrial grade USB to RS485/232 converter<br/><br/>Communication speed: 50bps~1000000bps<br/><br/>Host interface: USB<br/><br/>Device interface: RS485/RS232 (switched by dial switch)<br/><br/>USB interface:<br/><br/>Working level: 5V<br/><br/>Interface form: USB-A type interface<br/><br/>Interface protection: 200MA recovery fuse, ESD static protection<br/><br/>Transmission distance: approximately 5 meters<br/><br/>RS485/RS232 interface:<br/><br/>Interface form: wiring terminals<br/><br/>Interface pins: GND, A+(TXD), B - (RXD)<br/><br/>Direction control: Hardware automatically determines and controls the direction of data transmission<br/><br/>Interface protection: Provides 600W lightning protection, surge and 15KV static electricity protection (onboard 120R balanced resistor)<br/><br/>Transmission distance: RS485 (approximately 1200 meters), RS232 (approximately 10 meters) under low speed conditions<br/><br/>Transmission mode: point-to-point (up to 32 nodes, with a maximum of 16 nodes. It is recommended to add a repeater RS232 (only one device can be connected to a point-to-point interface, and if multiple nodes need to be connected, a repeater should be added)<br/><br/>Indicator lights:<br/><br/>PWR: Power indicator light, connected to USB, lights up when voltage is detected<br/><br/>TXD: Send indicator light, light up when data is sent from USB port<br/><br/>RXD: Receive indicator Jie, light up when USB interface receives data<br/><br/>USB to RS485/RS232 interface description:<br/><br/>GND: Peripheral Connection GND<br/><br/>A+TXD: RS485 connected to A, RS232 connected to RXD<br/><br/>B-RXD: RS485 to B, RS232 to TXD<br/><br/><strong><span style="font-size:20px">Product List:</span></strong><br/><br/>1X module<br/></div><div><br/></div></div></div><p><br/></p>
