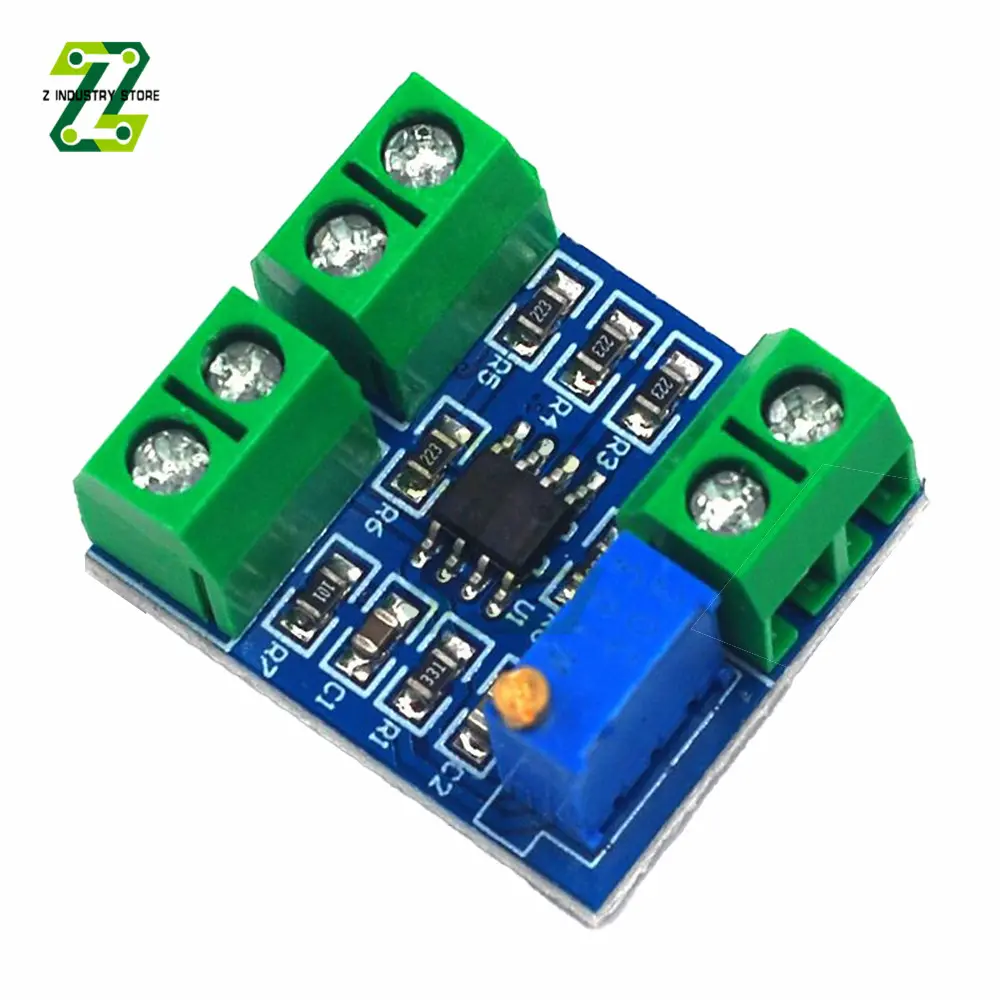

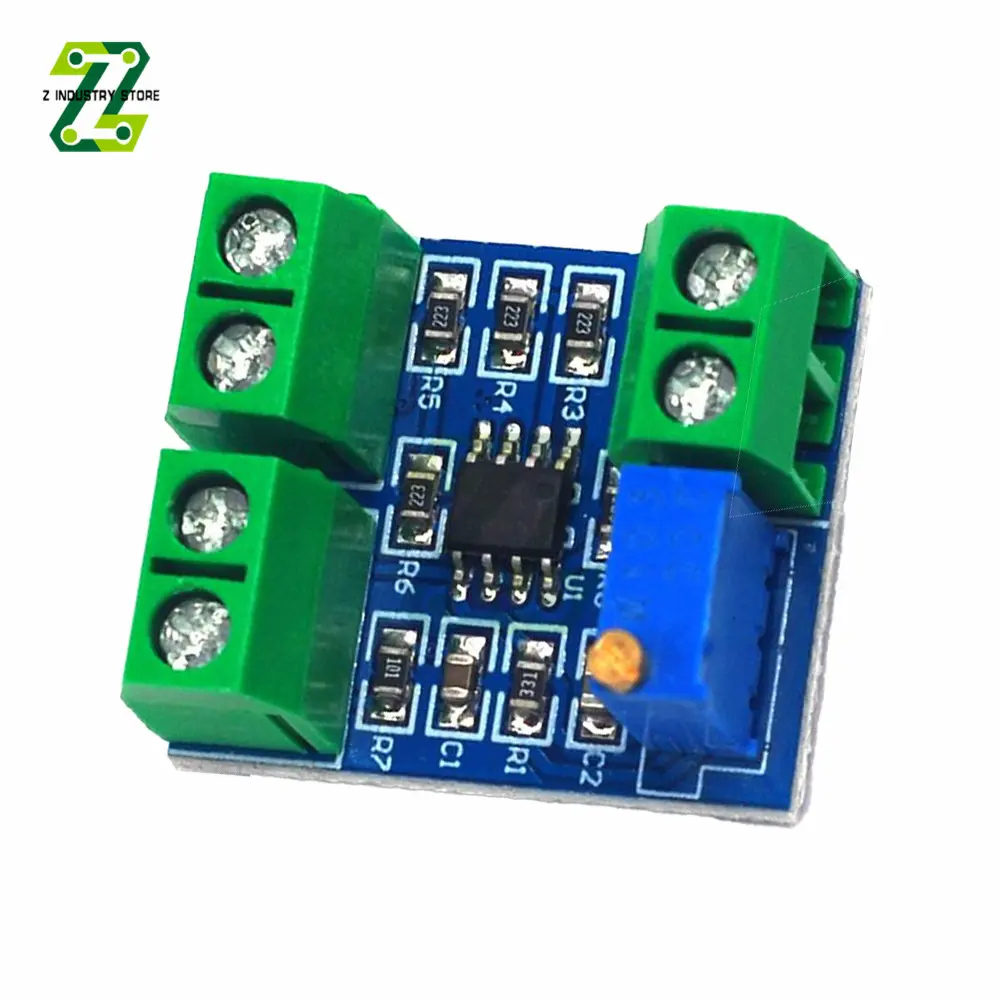

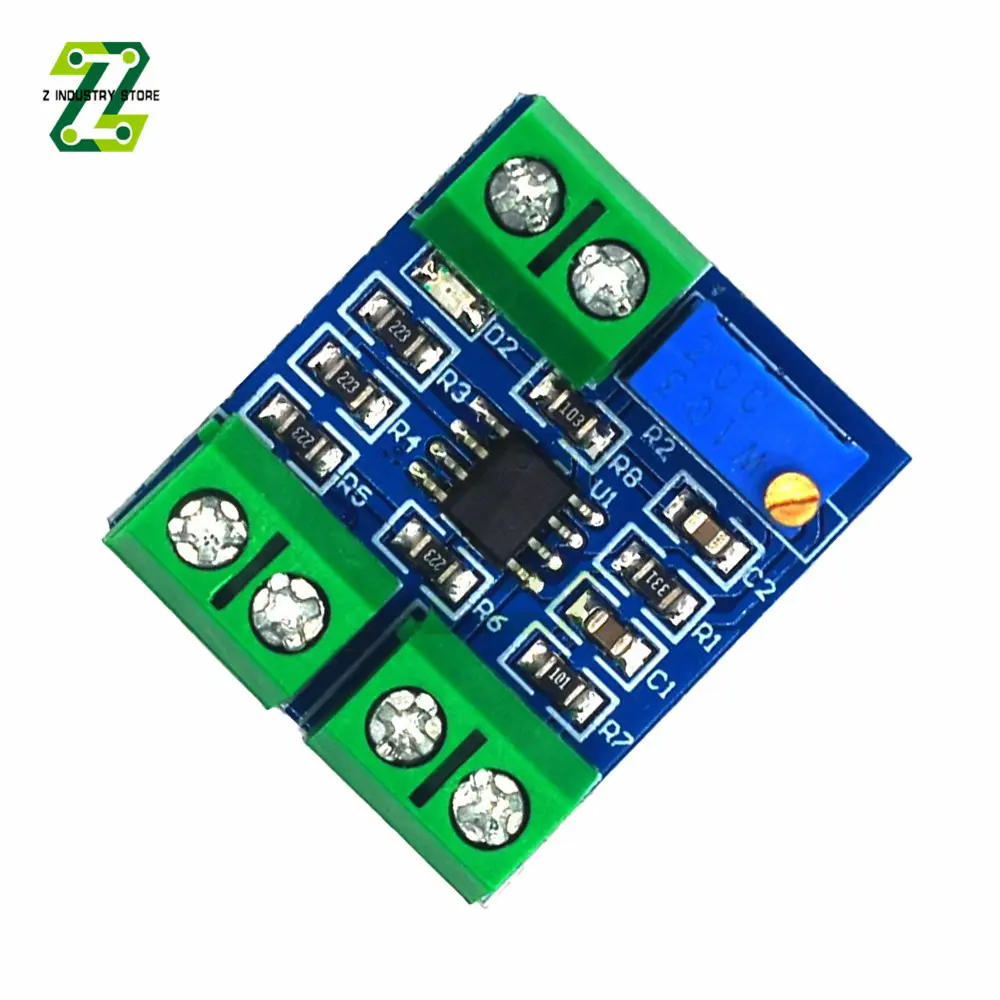

<p><kse:widget data-widget-type="customText" id="1005000000567623" type="relation"></kse:widget></p><p><span style="font-size:20px"><strong>Voltage To Current Module 0-5V to 0 -20mA Current Transmitter Signal Converter Module</strong></span></p><p><br/></p><p><span style="font-size:18px"><strong>Product:</strong></span></p><p><span style="font-size:18px">1. Using high-quality materials, the quality is guaranteed</span></p><p><span style="font-size:18px">2. Adopt single chip embedded technology</span></p><p><span style="font-size:18px">3. The output signal can be directly connected to the AD converter</span></p><p><span style="font-size:18px">4. It can be connected with the microcontroller with AD function</span></p><p><span style="font-size:18px">5. Easy to operate, can be fine-tuned by potentiometer</span></p><p><span style="font-size:18px">6. Drive capability MAX15MA, linear output</span></p><p><span style="font-size:18px">7. Realize the voltage (0~5V) on the industrial standard to convert the current on the industrial standard (0~10mA, 4~20mA)</span></p><p><br/></p><p><span style="font-size:18px"><strong>Parameter:</strong></span></p><p><span style="font-size:18px">Working voltage: DC 10V~30V</span></p><p><span style="font-size:18px">Conversion range: 0-5V voltage is converted into 0-20mA current</span></p><p><br/></p><p><span style="font-size:18px">VCC: working power supply 10V-30V</span></p><p><span style="font-size:18px">GND: working power ground</span></p><p><span style="font-size:18px">VIN: Input voltage 0-5V</span></p><p><span style="font-size:18px">GND: input voltage ground</span></p><p><span style="font-size:18px">OUT: output current 0-20mA</span></p><p><span style="font-size:18px">GND: output ground</span></p><p><span style="font-size:18px">Operation instructions: Connect the working voltage to VCC and GND, and do not connect them in reverse, so as not to damage the board and devices.</span></p><p><span style="font-size:18px">A controllable voltage is connected to the VIN terminal, the range is 0-5V, and there is a corresponding current output at the output terminal.</span></p><p><span style="font-size:18px">The corresponding relationship between voltage and current can be fine-tuned and calibrated by adjusting the potentiometer.</span></p><p><br/></p><p><span style="font-size:18px"><strong>Package list:</strong></span></p><p><span style="font-size:18px">Conversion module*1</span></p><p><br/></p>
