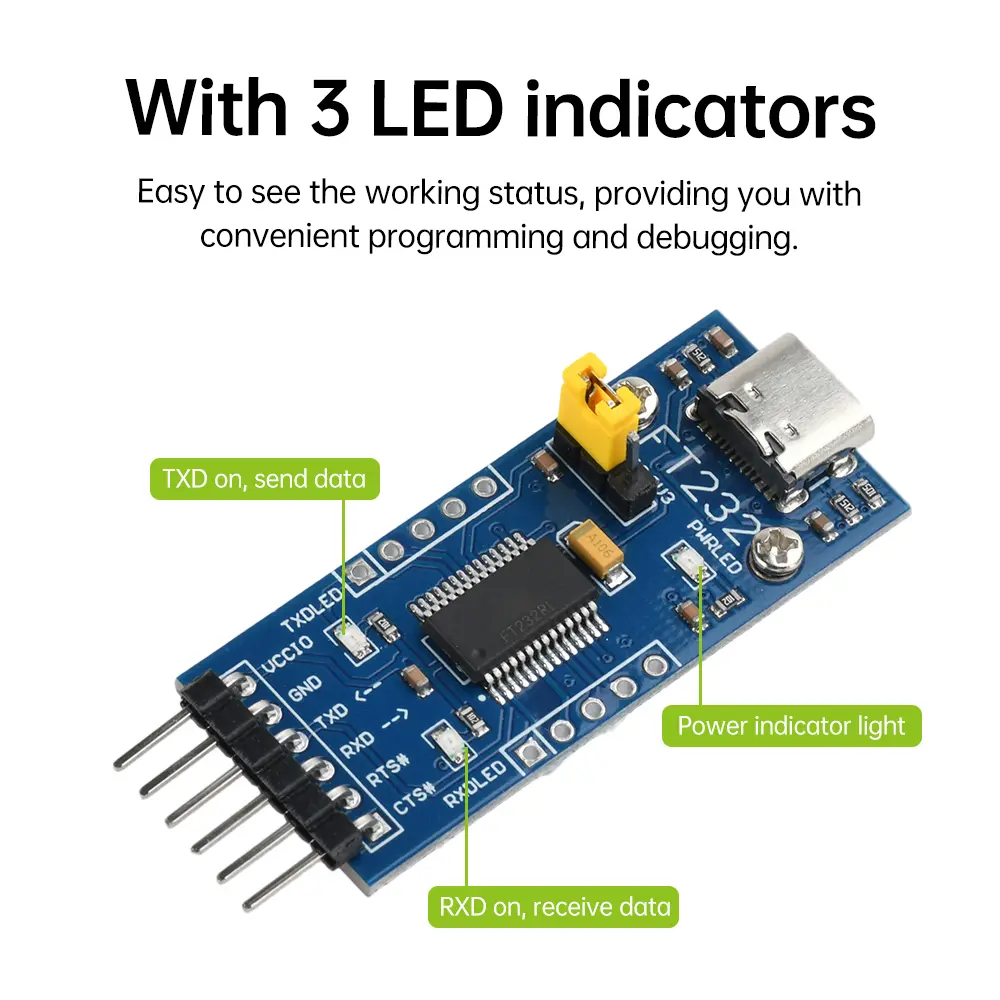

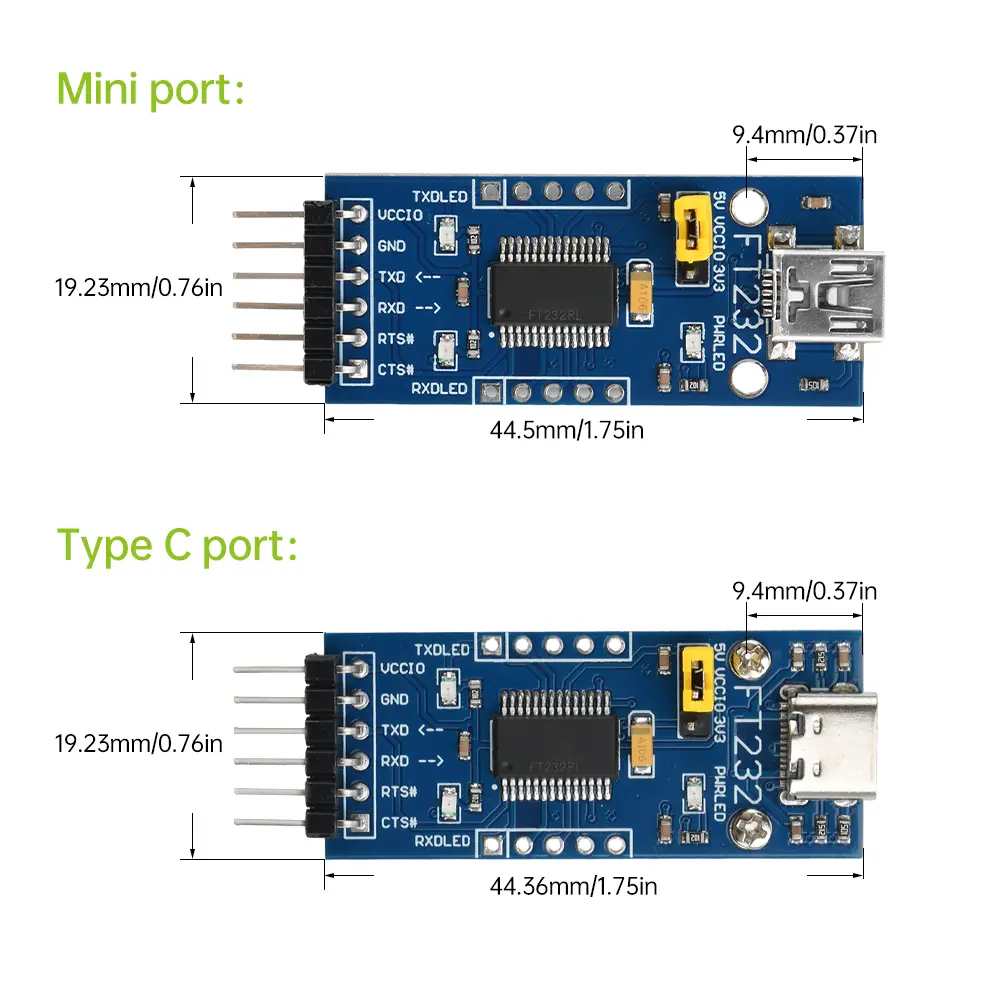

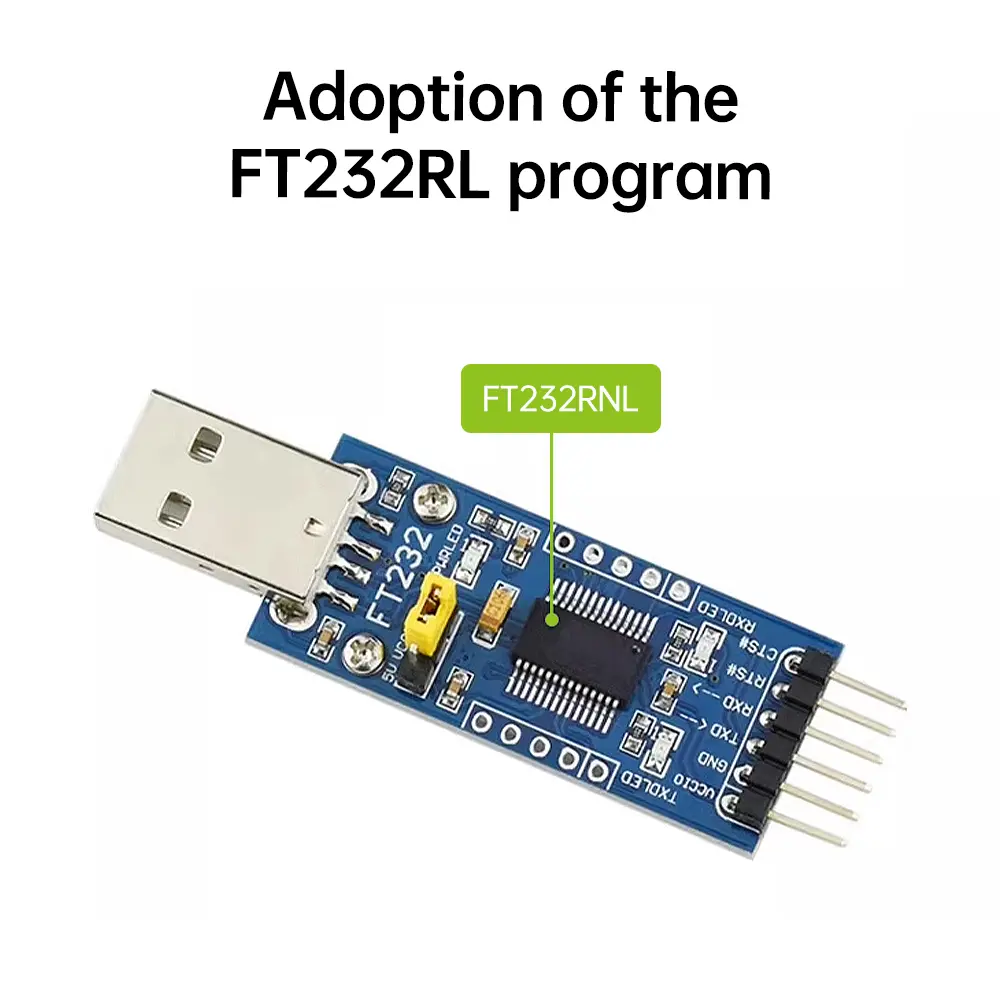

<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><p>Features: <br/>1. Multiple interface options: Type-A, Micro USB, Mini USB, Type-C, with wide compatibility. <br/>2. Supports multiple operating systems: compatible with Linux, Windows 7/8/8.1/10/11, etc., suitable for multiple operating systems. <br/>3. Flexible power supply method: VCCIO can be set through jumper caps, supporting external power supply of 5V, 3.3V or external power supply (3.3V~5V). <br/>4. Clear work instructions: Equipped with three LED indicators, TXD, RXD, and PWR, for easy debugging and viewing of work status. <br/>5. Convenient pin design: TXD, RXD, RTS #, and CTS # pins are led out using bent pins, while other function pins have reserved solder pads for easy access to user systems.</p><p>Parameter: <br/>Using FT232RL chip <br/>Four optional interfaces: Type-A Micro USB、Mini USB、Type-C <br/>Supports Linux Windows7/8/8.1/10/11...... <br/>Support setting VCCIO3 power supply modes through jumper caps: <br/>VCCIO-5V: 5V external power supply <br/>VCCIO-3.3V: 3.3V external power supply <br/>Not connected to jumper cap: powered by external source (supports 3.3V~5V) <br/>Onboard 3 LED indicator lights: TXD、RXD、PWR <br/>Equipped with 3 LED indicator lights, it is easy to see the working status, providing convenient programming and debugging for you <br/>TXD, RXD, RTS #, and CTS # are all led out using bent pins <br/>Other functions PIN: Reserved solder pads (can be plugged in or out to access the user system; PIN spacing supports insertion into a universal board) <br/>PCB board size: 45mm * 19mm</p><p>Package Include: <br/>1 * Module<br/>2 * Needle arrangement <br/>2 * seating arrangement <br/>2 * screws <br/>2 * Nut <br/>1 * DuPont Line<br/><br/></p></div></div><p><br/></p>
