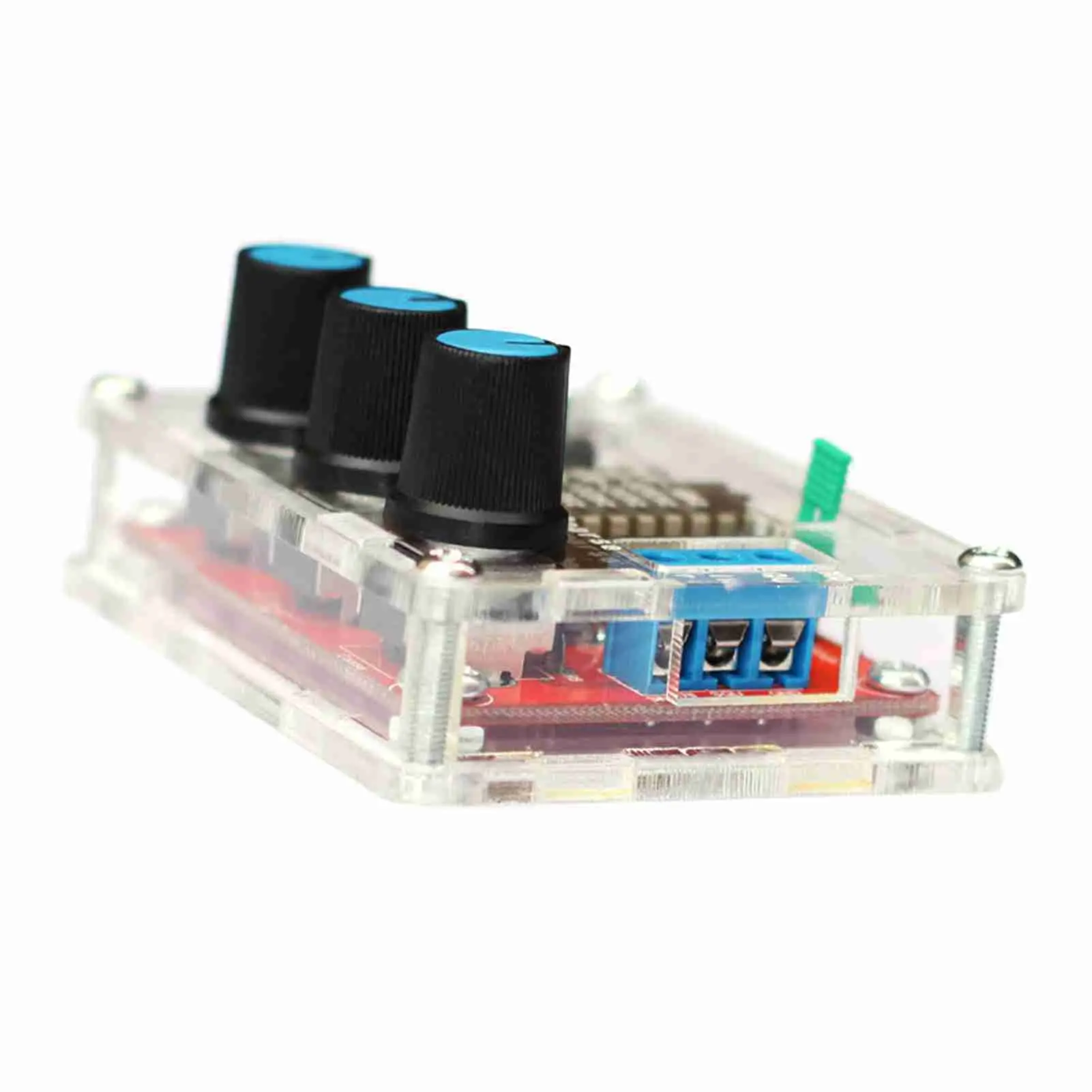

XR2206 High Precision Function Signal Generator Sine/Triangle/Square Output 1Hz-1MHz Adjustable Frequency Amplitude
<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><div class="desc">
<p style="text-align:center" align="center"><strong>XR2206 High Precision Function Signal Generator Sine/Triangle/Square Output 1Hz-1MHz Adjustable Frequency Amplitude</strong><br /></p>
<div style="font-size:16px">
<p>This signal generator is professional product to generate sine/triangle/square . <br /><br /><strong>Features:</strong><br />High resolution, can generate sine/triangle/square waveforms.<br />Frequency range: 1Hz-1MHz.<br />Adjustable frequency and amplitude.<br />Frequency adjustment features coarse tuning and fine tuning.<br />Wide power supply range, use 9-12V external power or 9V battery(NOT Included).<br /><br /><strong>Specifications:</strong><br />Type: DIY Kit / Semi-finished Product (Optional)<br />Voltage Supply: 9-12V DC Input<br />Waveforms: Square, Sine & Triangle<br />Impedance: 600 Ohm + 10%<br />Frequency: 1Hz-1MHz<br />SINE<br />Amplitude: 0-3V at 9V DC Input<br />Distortion: Less than 1% (at 1KHz)<br />Flatness: +0.05dB 1Hz - 100kHz<br />SQUARE<br />Amplitude: 8V (no load) at 9V DC Input<br />Rise Time: Less than 50ns (at 1KHz)<br />Fall Time: Less than 30ns (at 1KHz)<br />Symmetry: Less than 5% (at 1KHz)<br />TRIANGLE<br />Amplitude: 0-3V at 9V DC Input<br />Linearity: Less than 1% (up to 100KHz) 10mA<br />Package Size: Approx. 12 * 8 * 2cm / 4.72 * 3.15 * 0.8in<br />Package Weight: 69g / 2.46oz<br /><br /><strong>Package List:</strong><br />1 * Signal Generator<br />1 * User Manual (English)<br /><br /><strong>Note:</strong><br />Semi-finished Product: circuit board has welded, while the transparent shell need to assemble by yourself.<br /></p>
</div>
<p><br /><br /><br /><br /><br /><br /><br /><br /><br /></p>
</div><br /></div></div>
$23.405
$12.275
- Category : Tools
- Brand : shop1103736030_store Shop1103736030 Store
