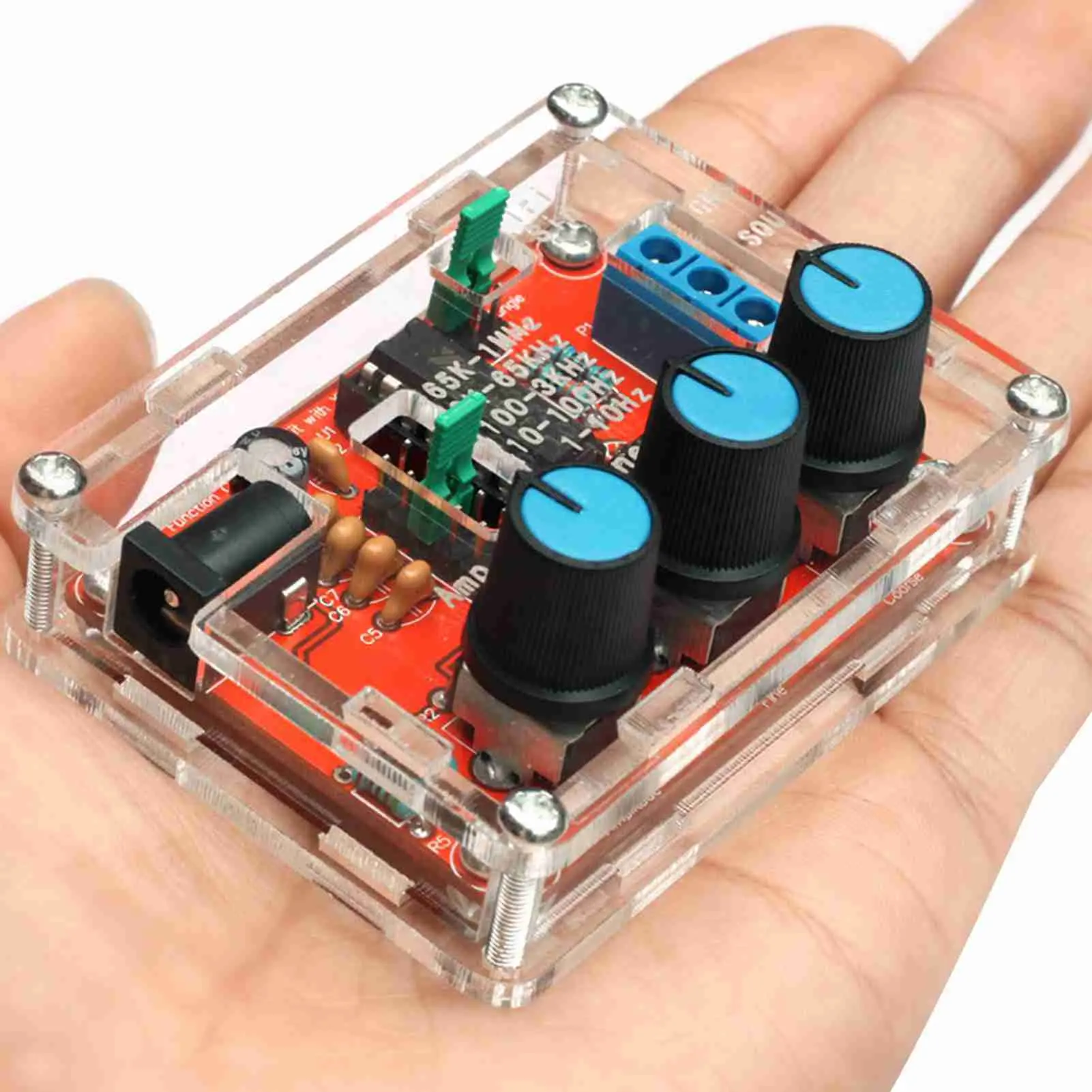

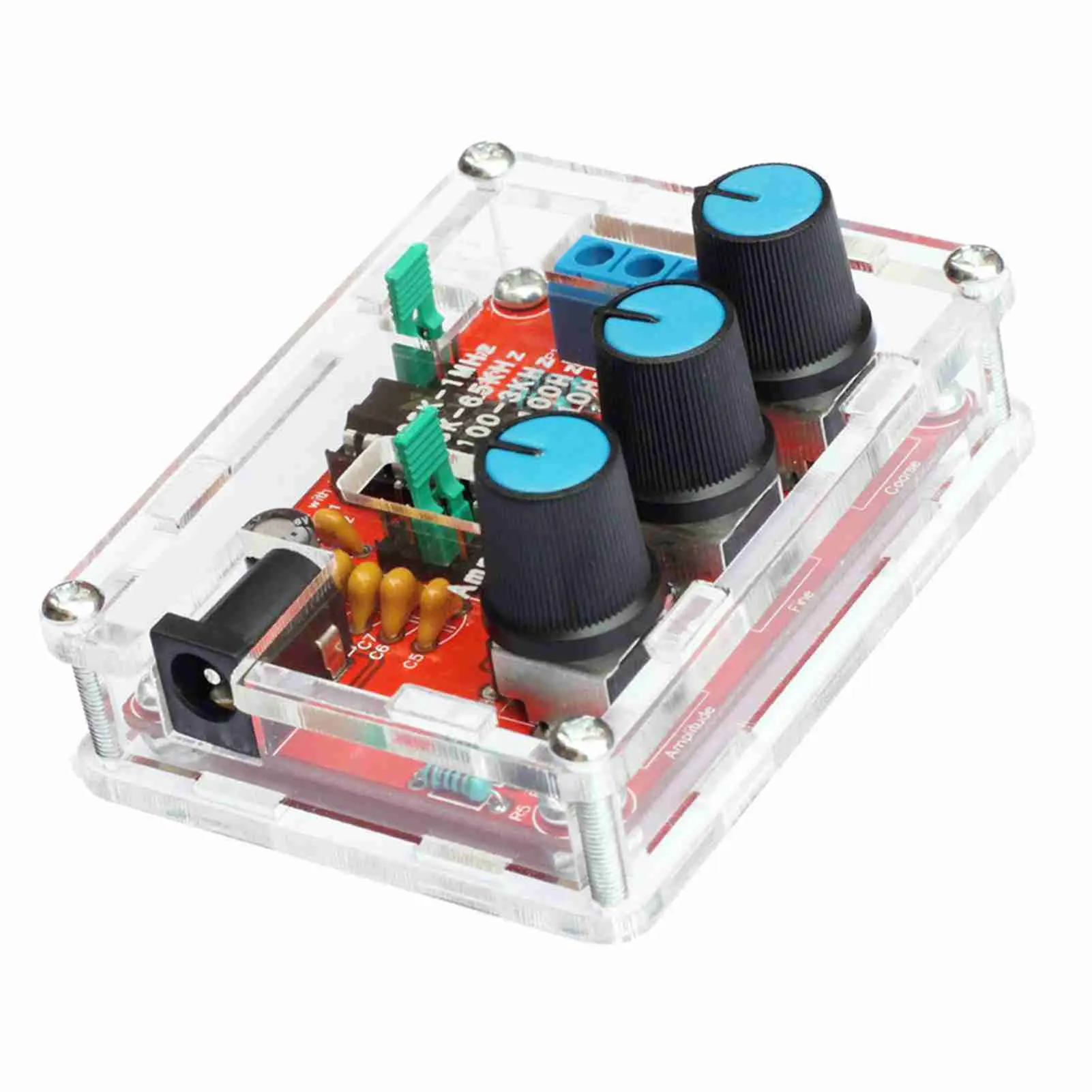

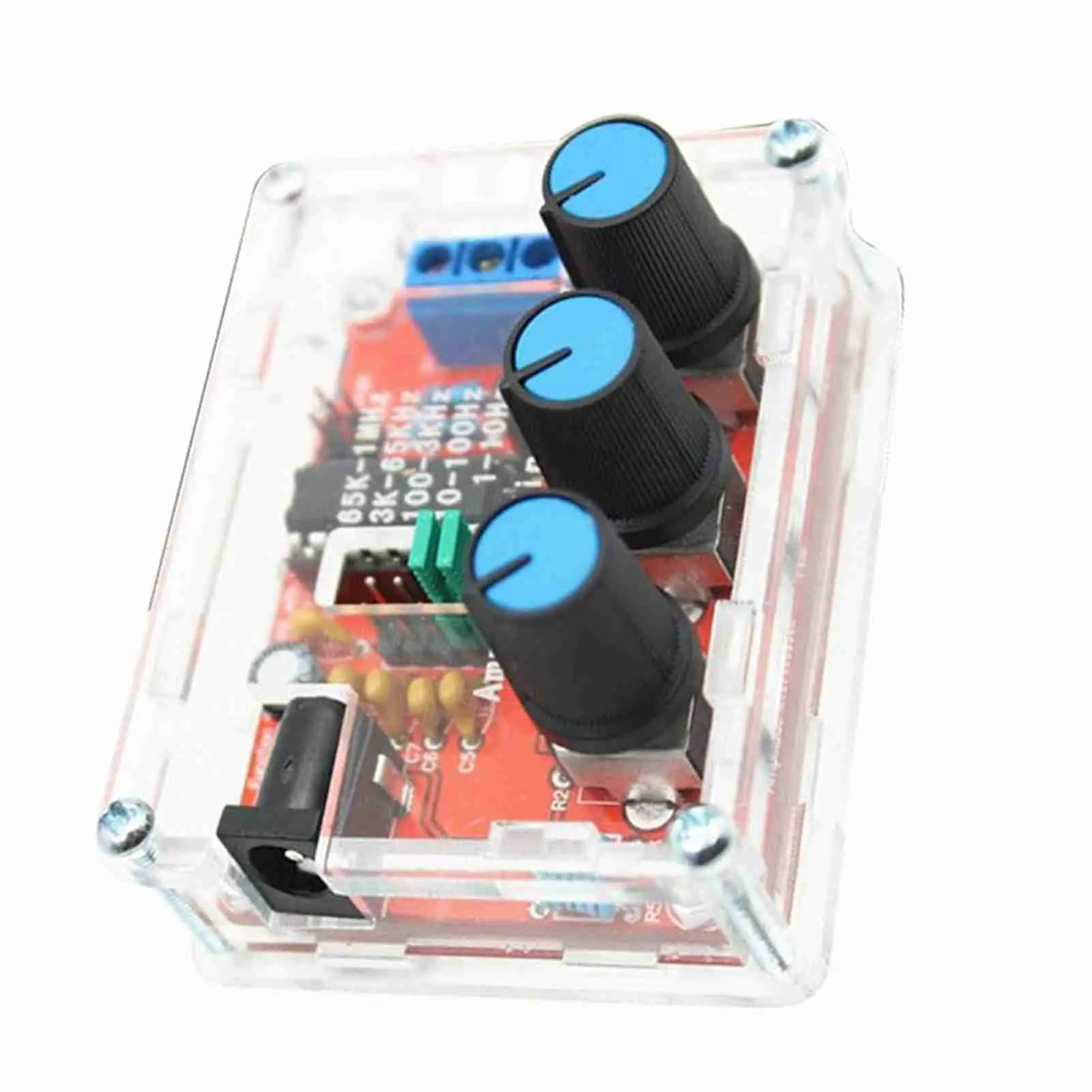

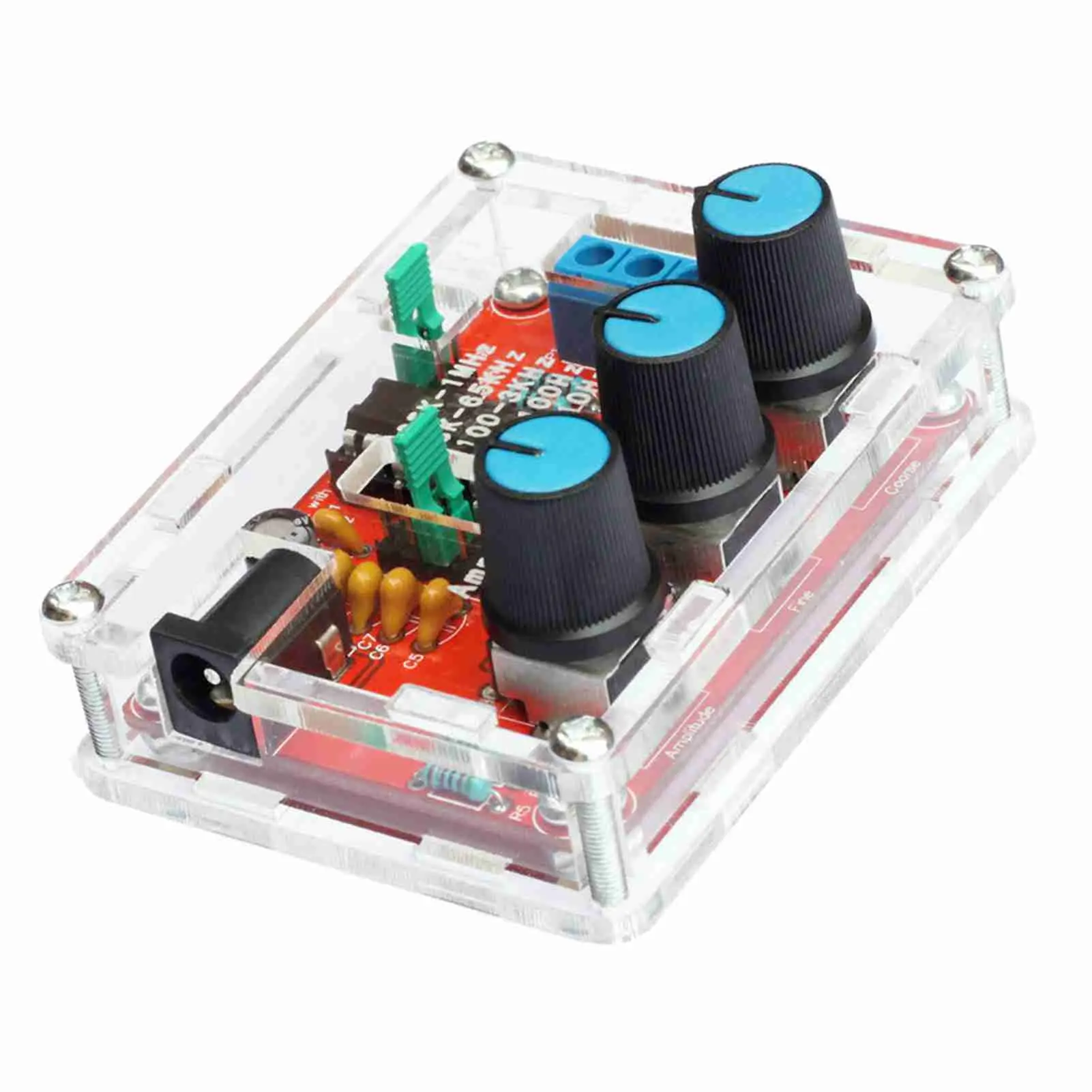

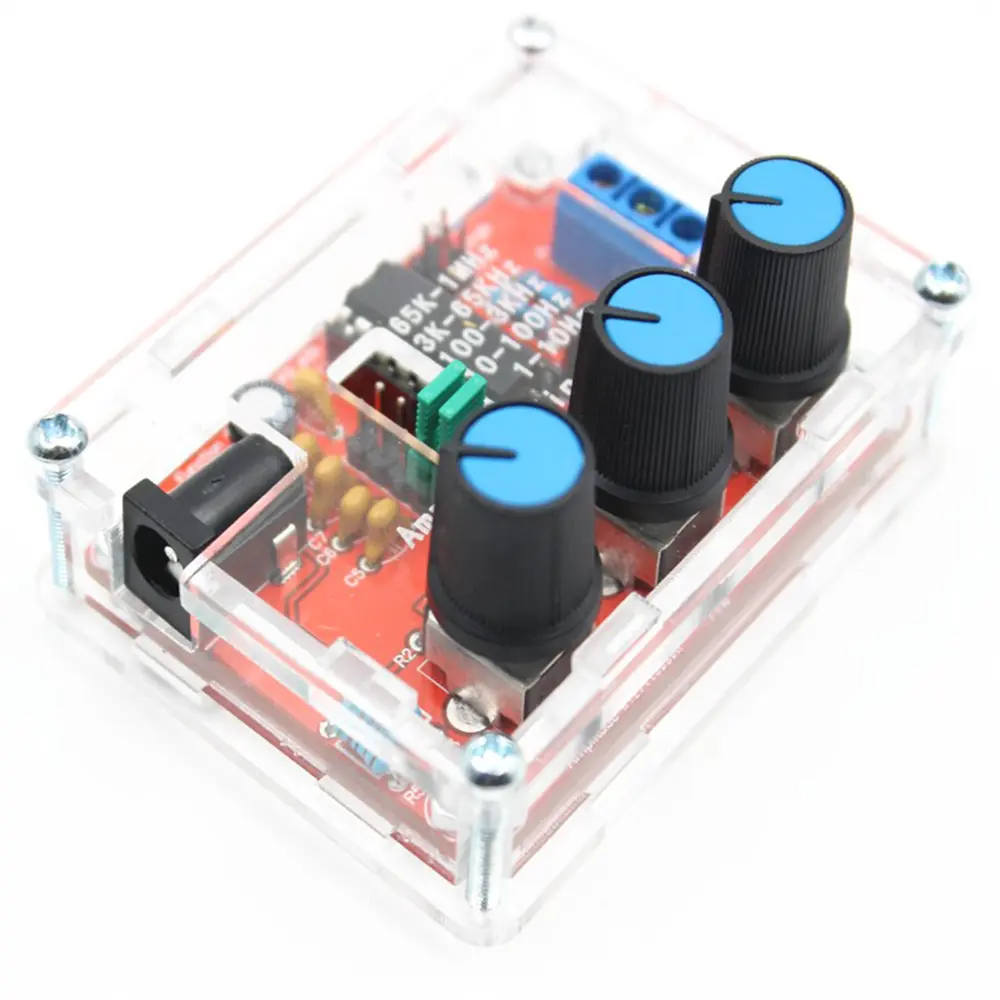

<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><div class="desc"> <p style="text-align:center" align="center"><strong>XR2206 High Precision Function Signal Generator Sine/Triangle/Square Output 1Hz-1MHz Adjustable Frequency Amplitude</strong><br /></p> <div style="font-size:16px"> <p><strong>Specification:</strong></p> <div> This signal generator DIY kit is professional product to generate sine/triangle/square . It's a DIY kit for you to weld and install. <br /> <br /> </div> </div> <div style="font-size:16px"> <strong>Features:</strong> <br />High resolution, can generate sine/triangle/square waveforms. <br />Frequency range: 1Hz-1MHz. <br />Adjustable frequency and amplitude. <br />Frequency adjustment features coarse tuning and fine tuning. <br />Wide power supply range, use 9-12V external power or 9V battery(NOT Included). <br />All are through hole components, easy for installation. <br /> <br /> </div> <div style="font-size:16px"> <div> <strong>Specifications:</strong> <br />Voltage Supply: 9-12V DC Input <br />Waveforms: Square, Sine &amp; Triangle <br />Impedance: 600 Ohm + 10% <br />Frequency: 1Hz-1MHz <br />SINE <br />Amplitude: 0-3V at 9V DC Input <br />Distortion: Less than 1% (at 1KHz) <br />Flatness: +0.05dB 1Hz - 100kHz <br />SQUARE <br />Amplitude: 8V (no load) at 9V DC Input <br />Rise Time: Less than 50ns (at 1KHz) <br />Fall Time: Less than 30ns (at 1KHz) <br />Symmetry: Less than 5% (at 1KHz) <br />TRIANGLE <br />Amplitude: 0-3V at 9V DC Input <br />Linearity: Less than 1% (up to 100KHz) 10mA <br />Package Size: Approx. 12 * 8 * 2cm / 4.72 * 3.15 * 0.8in <br />Package Weight: 69g / 2.46oz <br /> </div> <p>A:Finished Product<br />B:DIY Kit</p> <p><br /></p> <p><strong>Package List:</strong></p> <div> 1 * Signal Generator DIY Kit <br />1 * User Manual(English) </div> </div> <div> <br /> </div> <p><br /><br /><br /><br /><br /><br /><br /><br /><br /></p> </div><br /></div></div>
