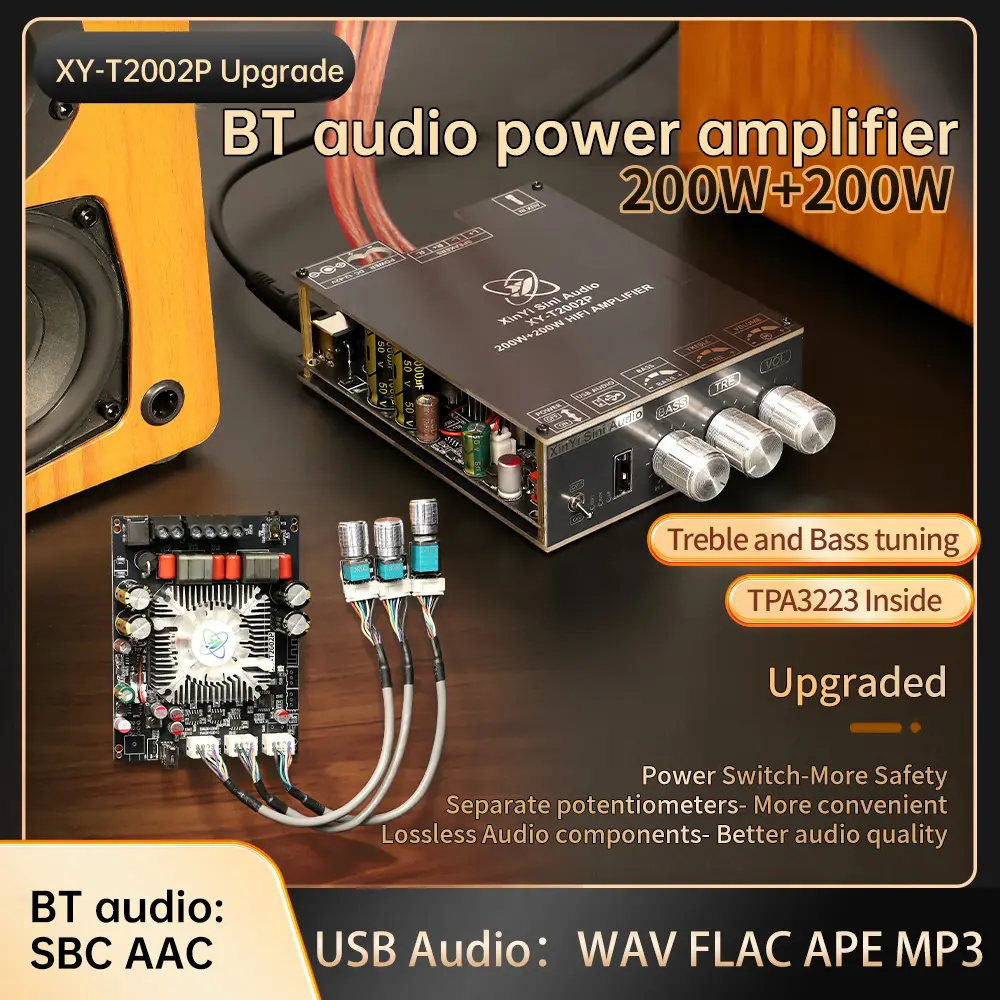

XY-T2002P Bluetooth Digital Sound Amplifier Module 200W*2 Audio Power Amplifiers Module TPA3223 T2002P AMP AUX
<div class="detailmodule_dynamic"><kse:widget data-widget-type="relatedProduct" id="1005000004074434" title="" type="relation"></kse:widget></div>

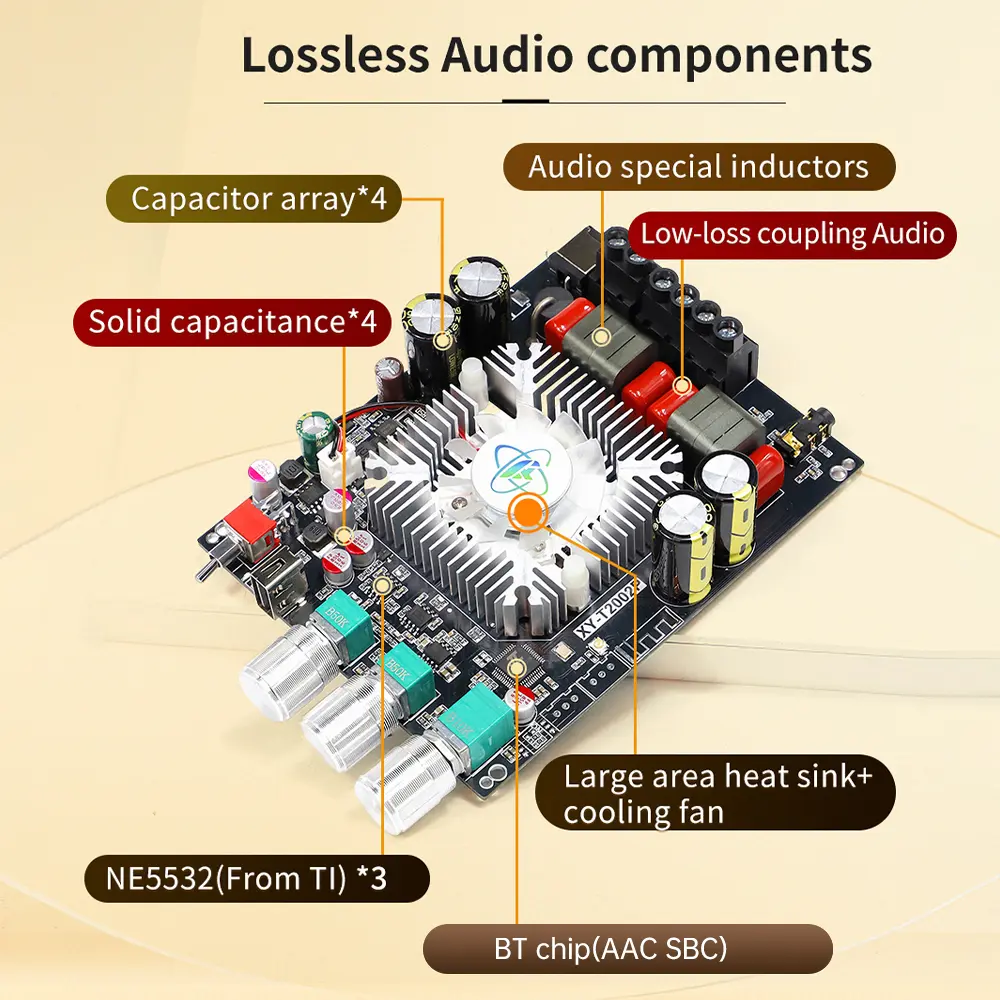

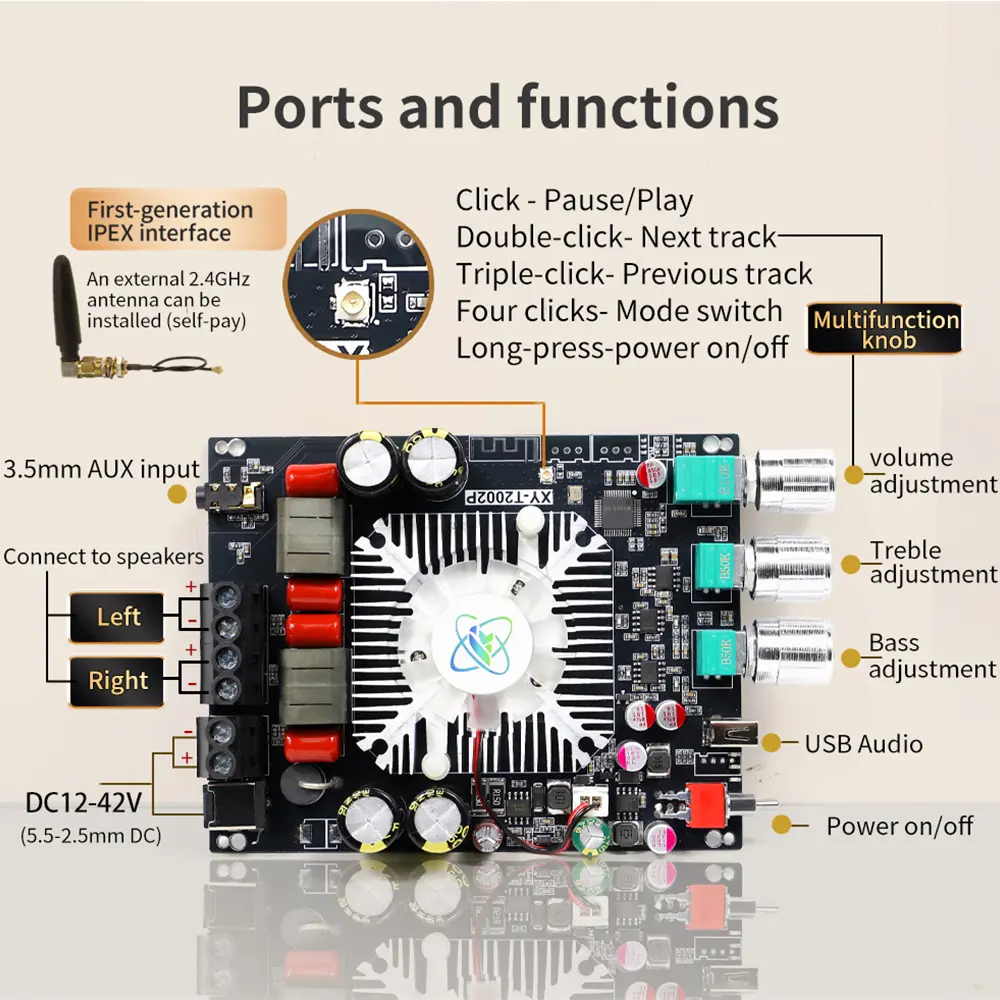

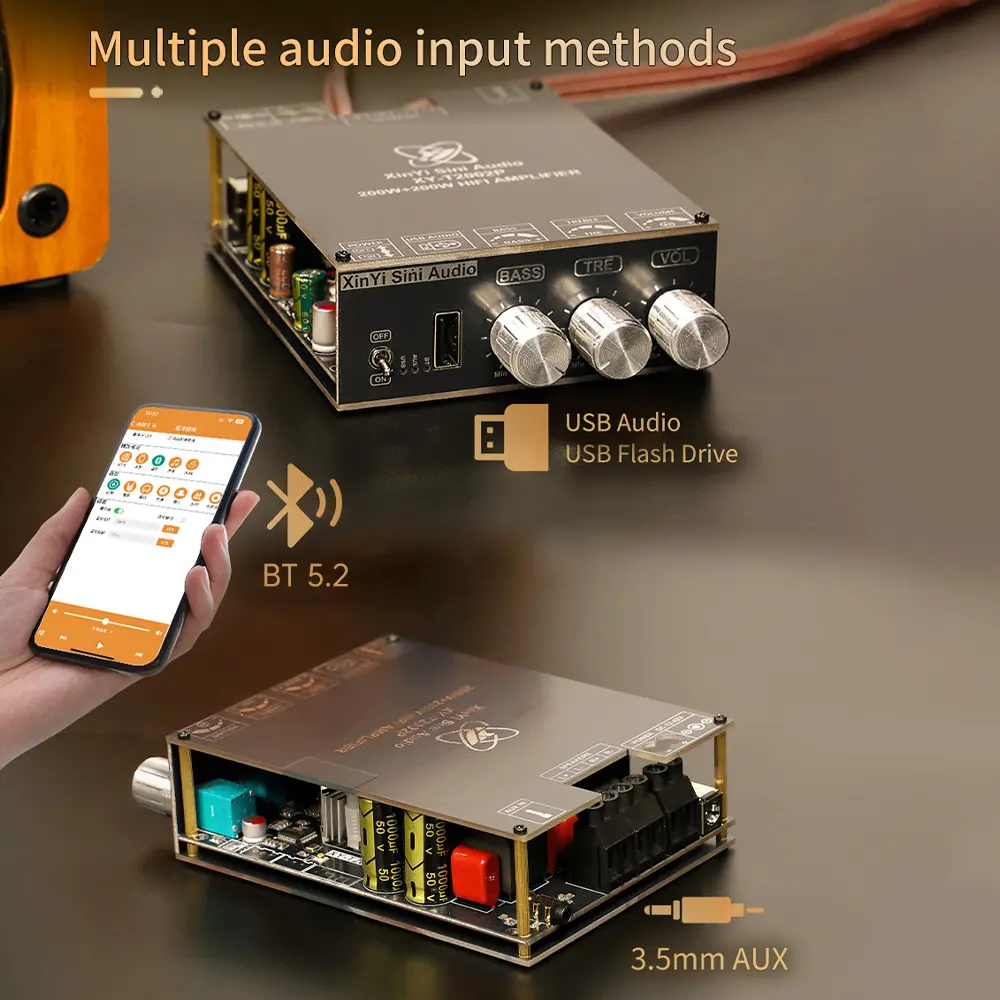

<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><br />Features: <br />1. High performance TPA3223 chip: using the high-end TPA3223 chip, supporting lossless component sound quality, providing a clearer and more delicate audio experience. <br />2. Multi functional volume knob: Integrated with multiple operation functions, click pause/play, double-click next track, triple tap previous track, quadruple tap switch mode, long press power on/off, easy and efficient operation. <br />3. High power output design: Supports up to 200W × 2 output power, adapts to different voltage requirements (DC12-42V), meets multi scenario applications from 10W to 200W, and has stunning sound effects. <br />4. Multiple audio input methods: Supports multiple input methods such as BT 5.2, AUX, USB flash drive, USB sound card, etc., compatible with lossless formats such as WAV, FLAC, APE, etc., meeting diverse audio source needs. <br />5. High quality component selection: Equipped with digital amplifier specific low loss inductors, large capacity black gold capacitors, and metal film capacitors to ensure stable and efficient audio performance, resulting in purer sound quality.</p>
<p>Parameter: <br />Product Name: BT Digital Audio Amplifier Board <br />Product model: T2002P <br />Power supply: DC12-42V/5A or above <br />BT version: 5.2 <br />Audio input: BT/AUX/U disk/USB sound card <br />BT audio decoding: AACSBC <br />USB lossless decoding: WAV FLAC APE MP3 <br />Left and right channel output power: <br />10W+10W @8Ω/12VDC <br />20W+20W @4Ω/12VDC <br />35W+35W @8Ω/24VDC <br />70W+70W @4Ω/24VDC <br />80W+80W @8Ω/36VDC <br />160W+ 160W@4 Ω/36VDC <br />100W+ 100W@8 Ω/42VDC <br />200W+ 200W@4 Ω/42VDC</p>
<p>Package Include: <br />1X power amplifier board <br />1X screwdriver</p>

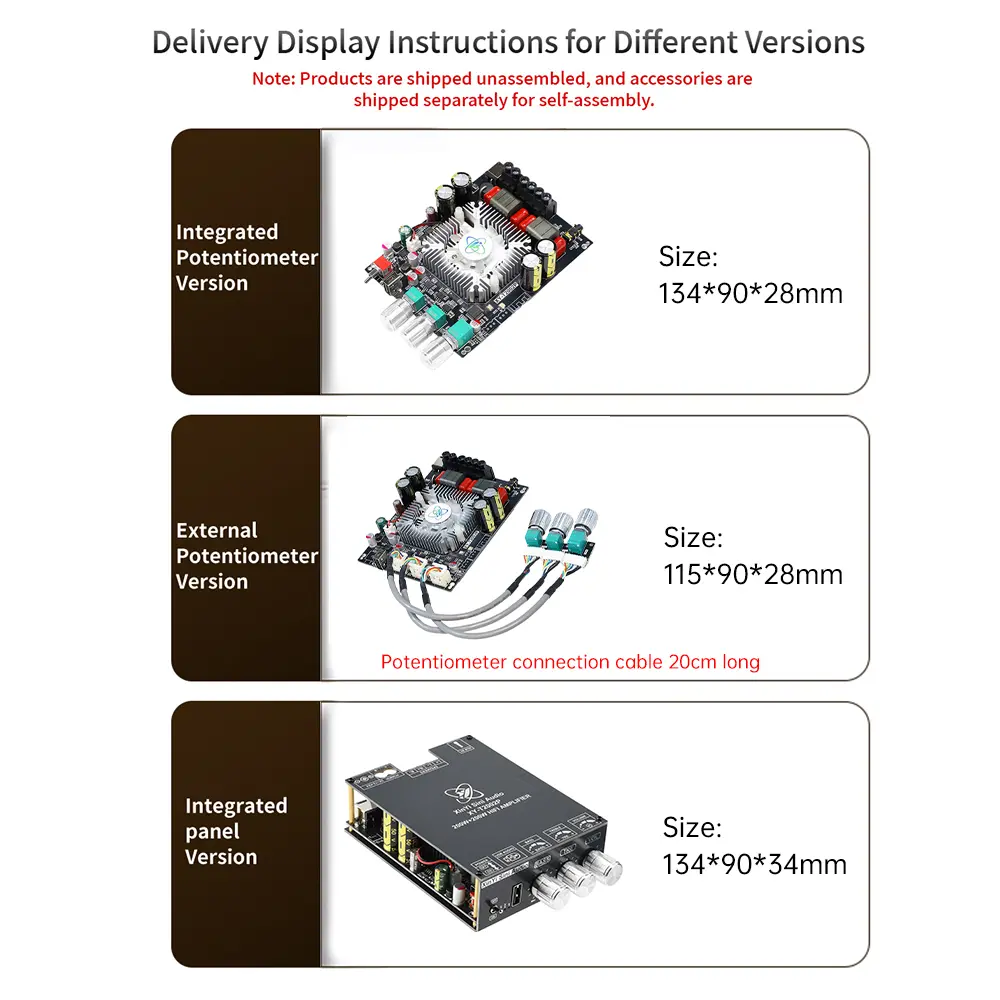

<p><br />Shipping instructions for each version: <br />Note: The product is shipped without assembly, and the accessories need to be assembled by oneself when shipped separately. A screwdriver is included as a gift.<br /></p></div></div>
$67.1
$29.99
