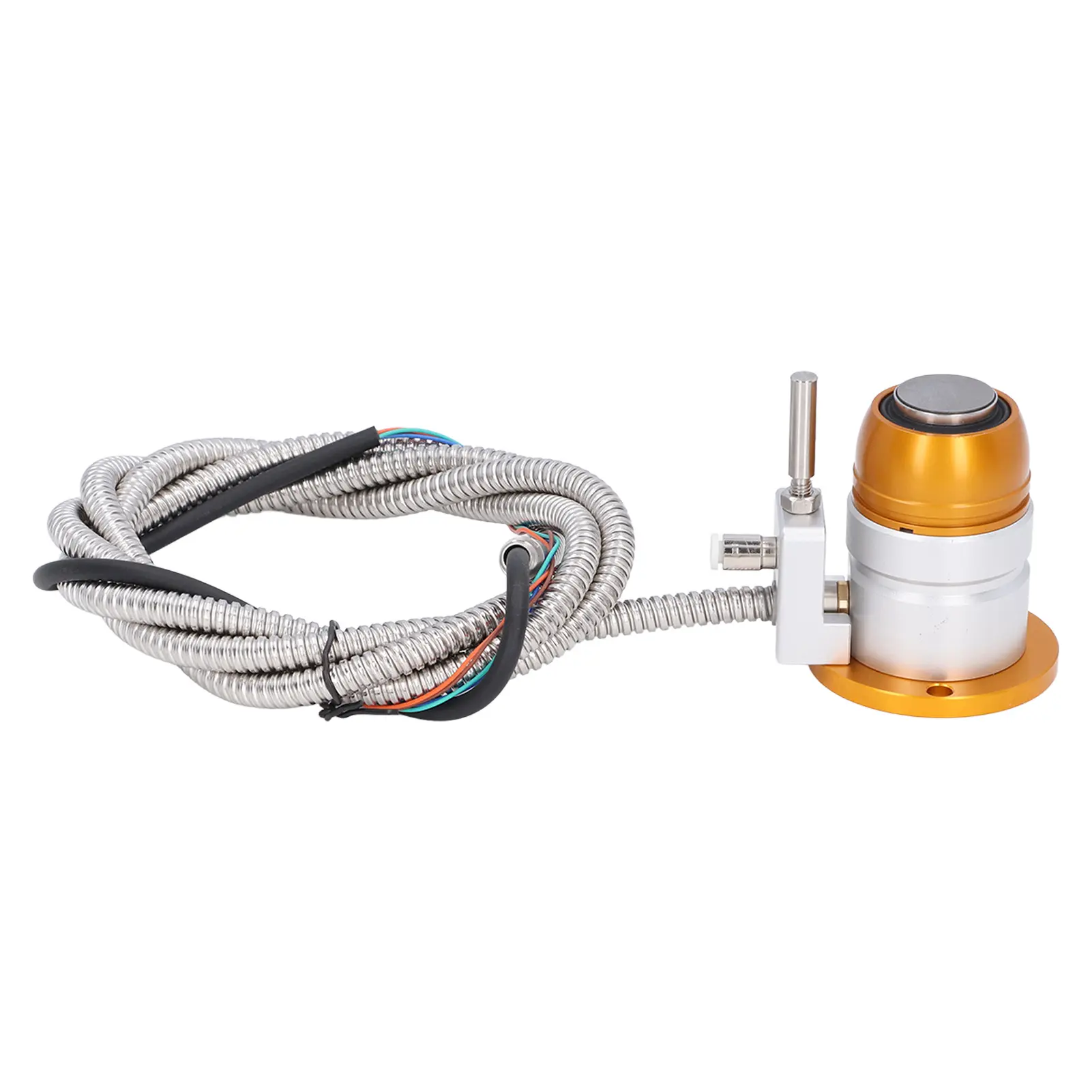

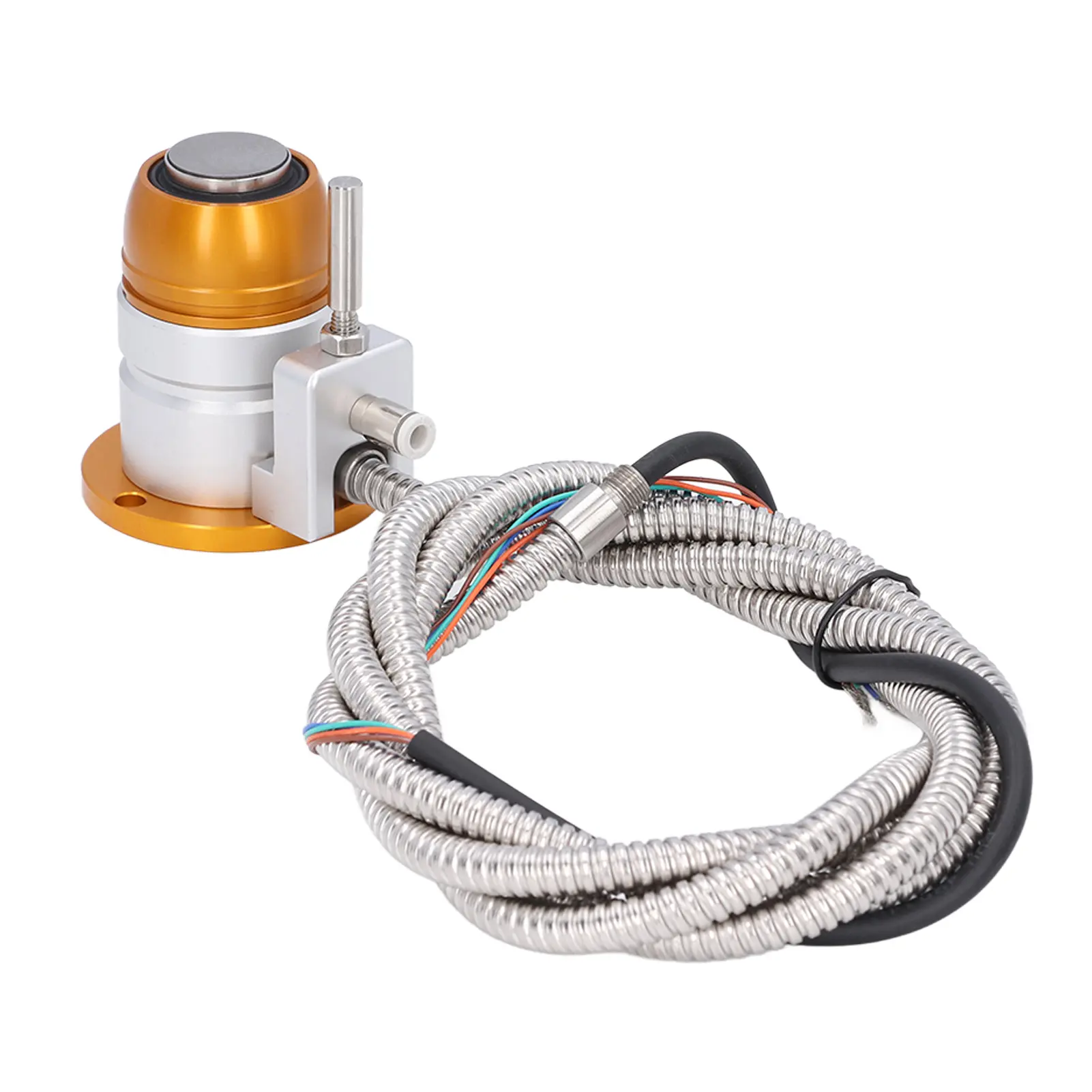

<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><div class="desc"> <div style="width: px; line-height:150%; font-family:Arial, Helvetica, sans-serif; font-size:12px;"> <p style="margin-bottom:6px; margin-top:6px;"></p> <p> Z Axes Touch Tool Setter Normally Closed CNC Tool Setting Accessory with Cable DC 24V </p><div style="font:Arial;font-size:16px;"><p><b>Feature:</b></p>1. STRONG MAGNET: Bottom magnet design, can be directly connected to the machine, firmly attached to the body.<br/>2. CARBIDE PROBE: The tool probe is made of cemented carbide, with fine processing, hard and wear resistant.<br/>3. GOOD SEALING: With dustproof and waterproof structure, has strong durability in the existence of coolant and iron filings.<br/>4. HIGH EFFICIENCY: Repeated positioning accuracy of 0.001mm, with high accuracy and sensitivity, efficient and durable.<br/>5. FOR CNC DEVICES: The tool setter is normally closed design, with cable, and can be used with most CNC equipments.<p><br/></p><p><b>Specification:</b></p>Item Type: Touch Tool Setter<br/>Product Material: Aluminum Alloy<br/>Tool Head Material: Carbide Alloy<br/>Product Model: MY20-20-2<br/>Voltage: DC 24V<br/>Current: 20MA (Maximum)<br/>Output Mode: NC (Normally Closed)<br/>Stroke: Approx. 5mm / 0.2in<br/>Repeat Positioning Accuracy: 0.001mm<br/>Life: 3 million times<br/>Contact Force: 1.5N<br/>Tool Head Diameter: Approx. 20mm / 0.8in<br/><p><br/></p><p><b>Package List:</b></p>1 x Tool Setter<p><br/></p><p><b>Note:</b></p><div>1. Please control the tool setting speed at 50‑200mm/min.</div><div>2. Ambient temperature range is 0‑80℃.</div><div>3. Please control the voltage at DC24V and the current below 20MA.</div></div><br/> <p style="margin-bottom:6px; margin-top:6px;"> </p><p style="margin-bottom:6px; margin-top:6px;"><br/></p> <p><br/><br/><br/><br/><br/><br/><br/><br/><br/><br/><!--#list--><!--#if--></p><div style=" margin-bottom:6px; margin-top:6px;"> </div> <p class="STYLE1"><u>Shipping:</u></p> <p>1.We guarantee to ship goods out within 24-72 hour after payment confirmation except holiday.<br/> 2.We ship by China post,HKpost EMS,DHL,Fedex,according to your choice when placing orders .<br/> 3.If you didn't receive the item after 45 days,please feel free to contact us.We will make all our effort to resolve the problem.<br/> 4.We are not responsible for delays causedby the customs,Import duties,taxes or other customscharges.</p> <p class="STYLE1"><u>Warranty:</u></p> <p>1.All items have 1 year guarantee.IF your purchase do not meet merchantable quality, fitness for purpose or match the description, We can make sure your issues are resolved .<br/> 2.For wrongly-shipped items, Please contact us in 48 hours after delivery.We will arrange to deliver the correct items or return all your payment.<br/> 3.For defective or faulty products,please take photos or videos,we would resend or refund after confirmation. </p> <p style="margin-top:6px;"></p> </div></div></div></div>
